Johnson Controls EasyIO FW-08 V3 Manuale utente
EasyIO FW-08 V3 - Instruction Manual
V1.01

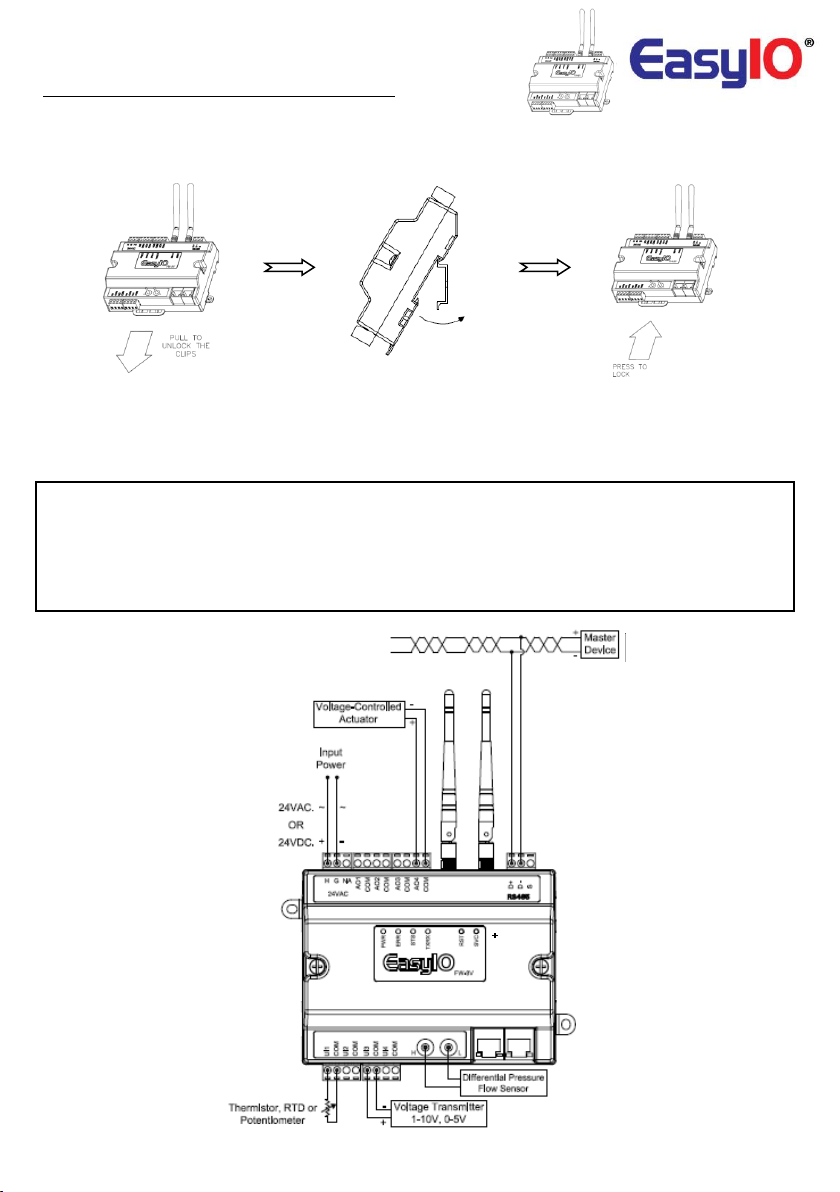

Installation Guide on typical industrial 35mm DIN rail
Pull to Unlock the Clip Push to lock clip
Wiring Guide
WARNING: Class 2 Devices Wiring Only –Do Not Reclassify and Install as Class 1, 3 or Power and Lighting
Wiring
ATTENTION : Câblage destiné aux équipements de classe 2 seulement. Ne pas les reclasser ni les installer
avec un câblage de classe 1 ou de classe 3, ou avec un câblage d'alimentation ou d'éclairage.
EasyIO FW-08 V3 - Instruction Manual
V1.01
Electrical Rating
Input Rating (UL Listing)
Type
Rating
Terminal
Supply
24Vac(+/-5%), 20VA; 24Vdc(+15%/-15%),
15VA, Class 2
H (Vcc), G (Ground)
Universal Inputs
Voltage: 0-10 Vdc Class 2;
Resistance: 500-500K Ohms
UI1 ~ 4 and COM (4 sets)
Output Rating (UL Listing)
Type
Rating
Terminal
Universal Output
Voltage: 0-10V, Class 2
AO1 ~ 4 and COM (4 sets)
Communication (UL Listing)
Type
Rating
Terminal
EIA/RS-485
Class 2
D+, D-, S
Ethernet Ports (2)
Class 2
ENET0, ENET1
Wireless Rating
Description
Details
Remarks
Standard
IEEE 802.11
Band
b/g/n
Frequency Range
2412 MHz ~ 2472 MHz (EU)
Antenna
2dBi Dipole
Transmission Power
16.6 dBm EIRP (EU)
Regulatory
UL 916 Energy Management Equipment
FCC Class B , Part 15 , Subpart C 15.247
CE Compliance
The Equipment named above is confirmed to comply with the requirements set out in the European Council
Directive on the Approximation of the Laws of the Member States relating to 2014/53/EU (RED)
The equipment passed the following test which was performed according to the following European standards:
EN 300 328 V2.2.2
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 62311: 2008
EasyIO FW-08 V3 - Instruction Manual
V1.01
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Non-modification Statement:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
EasyIO FW-08V V3 - Instruction Manual
V1.01
Installation Guide on typical industrial 35mm DIN rail
Pull to Unlock the Clip Push to lock clip
Wiring Guide
WARNING: Class 2 Devices Wiring Only –Do Not Reclassify and Install as Class 1, 3 or Power and Lighting
Wiring
ATTENTION : Câblage destiné aux équipements de classe 2 seulement. Ne pas les reclasser ni les installer
avec un câblage de classe 1 ou de classe 3, ou avec un câblage d'alimentation ou d'éclairage.
EasyIO FW-08V V3 - Instruction Manual
V1.01
Electrical Rating
Input Rating (UL Listing)
Type
Rating
Terminal
Supply
24Vac(+/-5%), 20VA; 24Vdc(+15%/-15%),
15VA, Class 2
H (Vcc), G (Ground)
Universal Inputs
Voltage: 0-10 Vdc Class 2;
Resistance: 500-500K Ohms
UI1 ~ 4 and COM (4 sets)
Output Rating (UL Listing)
Type
Rating
Terminal
Universal Output
Voltage: 0-10V, Class 2
AO1 ~ 4 and COM (4 sets)
Differential Pressure sensor
Type
Rating
Terminal
Air Flow Sensor
0 ~ 500 Pa / 0 ~ 2 Inch of water
MOD 1
Communication (UL Listing)
Type
Rating
Terminal
EIA/RS-485
Class 2
D+, D-, S
Ethernet Ports (2)
Class 2
ENET0, ENET1
Wireless Rating
Description
Details
Remarks
Standard
IEEE 802.11
Band
b/g/n
Frequency Range
2412 MHz ~ 2472 MHz (EU)
Antenna
2dBi Dipole
Transmission Power
16.6 dBm EIRP (EU)
Regulatory
UL 916 Energy Management Equipment
FCC Class B , Part 15 , Subpart C 15.247
CE Compliance
The Equipment named above is confirmed to comply with the requirements set out in the European Council
Directive on the Approximation of the Laws of the Member States relating to 2014/53/EU (RED)
The equipment passed the following test which was performed according to the following European standards:
EN 300 328 V2.2.2
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 62311: 2008
EasyIO FW-08V V3 - Instruction Manual
V1.01
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Non-modification Statement:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
