FAC2513 Advanced Application Field Equipment

Controller Installation Guide

Application

The FAC2513 Advanced Application Field Equipment

Controller (FAC) is part of the Metasys® system Field

Equipment Controller (FEC) family. These controllers

run pre-engineered and user-programmed

applications and provides the inputs and outputs

required to monitor and control a wide variety of

HVAC and other facility equipment.

FAC25 field controllers operate on an RS-485

BACnet® MS/TP Bus as BACnet Application Specific

Controllers (B-AACs) and integrate into Johnson

Controls® and third-party BACnet systems. FAC25

controllers include an integral real-time clock, which

enables the controllers to monitor and control

schedules, calendars, and trends, and operate for

extended periods of time as stand-alone controllers

when offline from the Metasys system network. This

model does not support wireless applications.test

Communications Protocols

The FAC2513 field controllers can communicate

using BACnet MS/TP or N2. By default, the FAC2513

field controllers communicate using the standard

BACnet MS/TP protocol based on the ANSI/

ASHRAE 135-2016, Protocol Revision 15. The BACnet

protocol is a standard for ANSI, ASHRAE, and the

International Standards Organization (ISO) for

building controls.

The FEC Family Controllers, including the FAC2513,

can be used as functional replacements for

legacy N2 controllers. The N2-capable MS/TP

field controller models provide a cost-effective

upgrade and modernization path for customers

with existing N2 controllers. For installation and

commissioning support, and tips for efficient and

safe replacement, refer to the Modernization Guide

for Legacy N2 Controllers (LIT-12012005) and the

controller-specific documentation. For information

about mapping N2 Objects in controllers with

switchable communications protocols, refer to the

N2 Compatibility Options chapter of the Controller Tool

Help (LIT-12011147).

For more details on configuring FAC2513 controllers

to communicate using the N2 communications

protocol, see Configuring N2 Communications.

North American emissions

compliance

United States

This equipment has been tested and found to

comply with the limits for a Class A digital device

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when this equipment

is operated in a commercial environment. This

equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference, in which case the

users will be required to correct the interference at

their own expense.

Canada

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

Installation

Observe the following guidelines when installing a

field controller:

• To minimize vibration and shock damage,

transport the controller in the original container.

• Verify that all parts shipped with the controller.

• Do not drop the controller or subject it to physical

shock.test

Parts included

• One FAC controller with removable terminal

blocks (Power, SA bus, and FC bus are removable)

• One installation instructions sheet

*24110236B*

Part No. 24-11023-6 Rev. B

2019-10-18

(barcode for factory use only)

MS-FAC2513

Materials and special tools needed

• Three fasteners appropriate for the mounting

surface (M4 screws or #8 screws)

• One 20 cm (8 in.) or longer piece of 35 mm DIN

rail and appropriate hardware for DIN rail mount

(only)

• Small straight-blade screwdriver for securing

wires in the terminal blocks

FAC2513 physical features

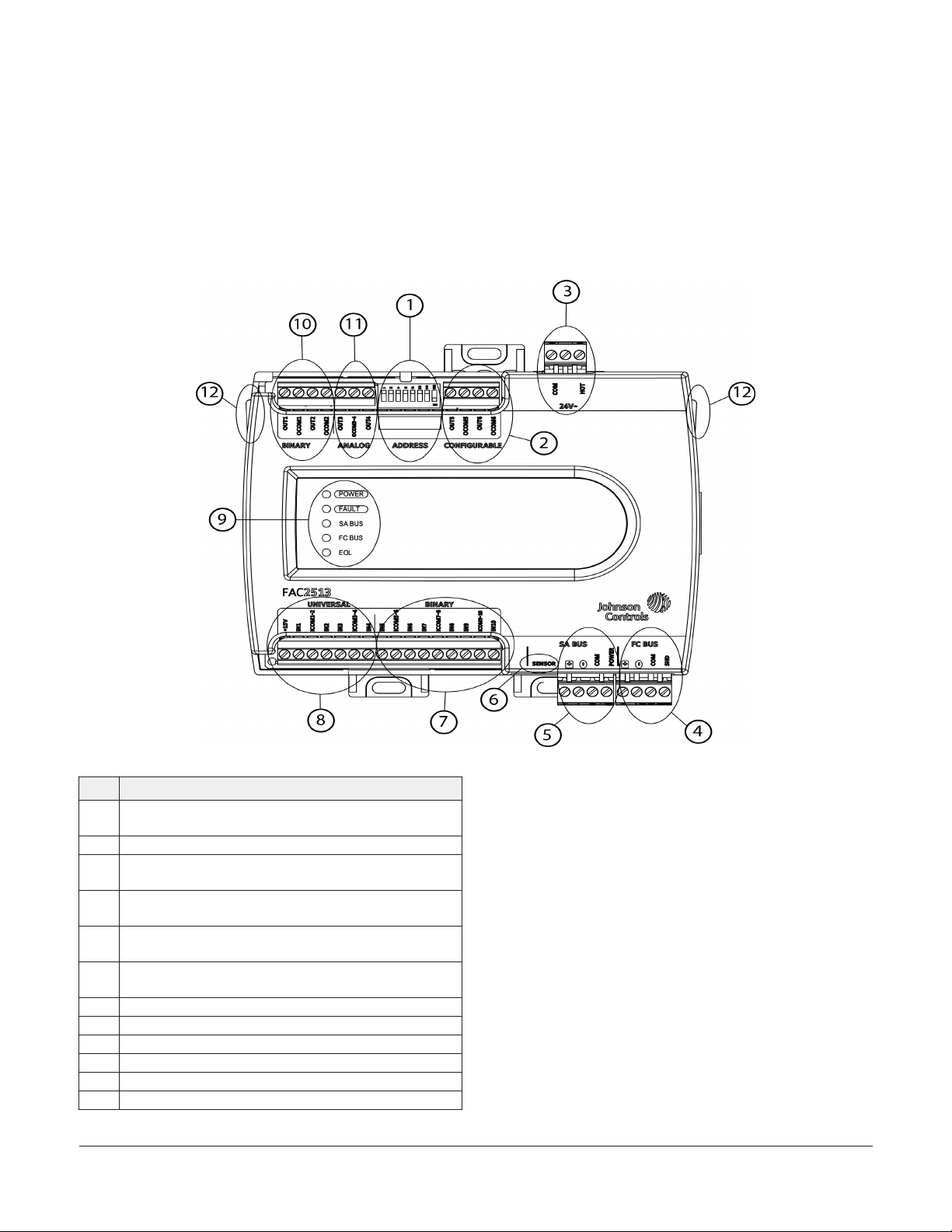

Figure 1: FAC2513 physical features

Table 1: Physical features

Physical features: description and references

1Device Address Dip Switch Block (see Setting the device

address)

2Configurable Output (CO) Terminal Block (see Table 3)

324 VAC, Class 2 Supply Power Terminal Block (see Supply

power terminal block)

4Field Controller (FC) Bus Terminal Block (see FC bus

terminal block)

5Sensor Actuator (SA) Bus Terminal Block (see SA bus

terminal block)

6Sensor Actuator (SA) Bus (RJ-12 6-pin Modular Jack) (see

SA Bus port)

7Binary Input (BI) Terminal Block (see Table 3)

8Universal Inputs (UI) Terminal Block (see Table 3)

9LED Status Indicators (see Table 8)

10 Binary Output (BO) Terminal Block (see Table 3)

11 Analog Outputs (AO) Terminal Block (see Table 3)

12 Cover lift tabs

FAC2513 Advanced Application Field Equipment Controller Installation Guide2

FAC2513 point type counts

The following table shows the different point types

and counts available in the FAC2513 and FAC26

Series controllers.

Note: The FAC2513 model is only available in

certain regions. Contact your local Johnson

Controls representative for more information.

Table 2: FAC2513 and FAC26 Series Point Type Counts per Model

Point Types Signals Accepted FAC2513 FAC2611

Universal Input (UI)

Analog Input, Voltage Mode, 0–10 VDC

Analog Input, Current Mode, 4–20 mA

Analog Input, Resistive Mode, 0–2k ohm, RTD

(1k NI [Johnson Controls], 1k PT, A99B SI), NTC

(10k Type L, 2.252k Type 2)

Binary Input, Dry Contact Maintained Mode

4 (Does not support Current

Mode) 6

Binary Input (BI)

Dry Contact Maintained Mode

Pulse Counter/Accumulator Mode (High

Speed), 100 Hz

6 2

Analog Output (AO) Analog Output, Voltage Mode, 0–10 VDC

Analog Output, Current Mode, 4–20 mA

2 (Does not support Current

Mode) 2

Binary Output (BO) 24 VAC Triac 2 (External Power only) 3

Configurable Output (CO) Analog Output, Voltage Mode, 0–10 VDC

Binary Output Mode, 24 VAC Triac 2 4

Mounting

Observe the following guidelines when mounting a

field controller:

• Ensure the mounting surface can support the

controller, DIN rail, and any user-supplied

enclosure.

• Mount the controller horizontally on 35 mm DIN

rail whenever possible.

• Mount the controller in the proper mounting

position (Figure 2).

• Mount the controller on a hard, even surface

whenever possible in wall-mount applications.

• Use shims or washers to mount the controller

securely and evenly on the mounting surface.

• Mount the controller in an area free of corrosive

vapors and observe the Ambient Conditions

requirements in Technical specifications.

• Provide for sufficient space around the controller

for cable and wire connections for easy cover

removal and good ventilation through the

controller (50 mm [2 in.] minimum on the top,

bottom, and front of the controller).

• Do not mount the controller on surfaces prone to

vibration, such as duct work.

• Do not mount the controller in areas where

electromagnetic emissions from other

devices or wiring can interfere with controller

communication.

Observe these additional guidelines when mounting

a field controller in a panel or enclosure:

• Mount the controller so that the enclosure walls

do not obstruct cover removal or ventilation

through the controller.

• Mount the controller so that the power

transformer and other devices do not radiate

excessive heat to the controller.

• Do not install the controller in an airtight

enclosure.

FAC2513 Advanced Application Field Equipment Controller Installation Guide 3

Figure 2: Mounting positions

Mounting features and dimensions

Figure 3: Back of Controller showing extended

mounting clips, DIN rail channel, and mounting

dimensions, mm (in.)

DIN rail mount applications

Mounting the field controller horizontally on 35 mm

DIN rail is the preferred mounting method.

To mount a controller on 35 mm DIN rail, complete

the following steps:

1. Securely mount a 20 cm (8 in.) or longer section

of 35 mm DIN rail horizontal and centered in

the appropriate location so that the controller

mounts in the horizontal position.

2. Pull the two bottom mounting clips outward

from the controller to the extended position.

3. Hang the controller on the DIN rail by the hooks

at the top of the (DIN rail) channel on the back

of the controller, and position the controller

snugly against the DIN rail.

4. Push the bottom mounting clips inward (up) to

secure the controller on the DIN rail.

To remove the controller from the DIN rail, pull the

bottom mounting clips out to the extended position

and carefully lift the controller off the DIN rail.

Wall mount applications

To mount a field controller directly on a wall or

other flat vertical surface, complete the following

steps:

1. Pull the two bottom mounting clips outward

and ensure they are locked in the extended

position.

2. Mark the mounting hole locations on the wall

in either the horizontal or vertical mounting

position. Or hold the controller up to the wall or

surface in a proper mount position and msark

the hole locations through the mounting clips.

3. Drill holes in the wall or surface at the marked

locations, and insert appropriate wall anchors

in the holes (if necessary).

4. Hold the controller in place, and insert the

screws through the mounting clips and into the

holes (or anchors). Carefully tighten all of the

screws.

Important: Do not overtighten the mounting

screws. Overtightening the screws may

damage the mounting clips.

FAC2513 Advanced Application Field Equipment Controller Installation Guide4

Wiring

CAUTION

Risk of Electric Shock

Disconnect the power supply before making electrical

connections to avoid electric shock.

ATTENTION

Risque de décharge électrique

Débrancher l'alimentation avant de réaliser tout rac-

cordement électrique afin d'éviter tout risque de

décharge électrique.

CAUTION

Risk of Property Damage

Do not apply power to the system before checking all

wiring connections. Short circuited or improperly con-

nected wires may result in permanent damage to the

equipment.

ATTENTION

Mise En Garde: Risque de dégâts matériels

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils for-

mant un court-circuit ou connectés de façon incor-

recte risquent d'endommager irrémédiablement

l'équipement.

Important: Do not exceed the controller

electrical ratings. Exceeding controller electrical

ratings can result in permanent damage to the

controller and void any warranty.

Important: Use copper conductors only. Make

all wiring in accordance with local, national, and

regional regulations.

Important: Electrostatic discharge can

damage controller components. Use proper

electrostatic discharge precautions during

installation, setup, and servicing to avoid

damaging the controller.

For detailed information on configuring and

wiring an MS/TP Bus, FC bus, and SA bus, refer to

the MS/TP Communications Bus Technical Bulletin

(LIT-12011034). For detailed information on wiring

an N2 network, refer to the N2 Communications Bus

Technical Bulletin (LIT-636018)

Terminal blocks and bus ports

See Figure 1 for a terminal block and bus port

locations on the controller. Observe the following

guidelines for terminal blocks and bus ports when

you wire a controller.

Input and Output terminal blocks

The fixed input terminal blocks are mounted on the

bottom of the controller and the output terminal

blocks are mounted on the top of the controller. See

Figure 1 for more information about I/O terminal

functions, requirements, and ratings.

FC bus terminal block

The FC Bus terminal block is a blue, removable, 4-

terminal plug that fits into a board-mounted jack.

Wire the removable FC bus terminal block plugs on

the controller, and other controllers in a daisy-chain

configuration using 3-wire twisted, shielded cable as

shown below. See Table 5 for more information.

Figure 4: FC bus terminal block wiring

FAC2513 Advanced Application Field Equipment Controller Installation Guide 5

Note: The FC bus Shield (SHLD) terminal is

isolated and can be used to connect (daisy

chain) the shields for FC bus wiring.

SA bus terminal block

The SA Bus terminal block is a brown, removable, 4-

terminal plug that fits into a board-mounted jack.

Wire the removable SA Bus terminal block plugs on

the controller and other SA Bus devices in a daisy-

chain configuration using 4-wire twisted, shielded

cable as shown in the following figure. See Table 5

for more information.

Figure 5: SA bus terminal block wiring

Note: The SA PWR terminal supplies 15 VDC.

The SA PWR terminal can be used to connect

(daisy chain) the 15 VDC power leads on the SA

bus.

SA Bus port

The Sensor (SA Bus) port on the bottom of the

controller (Figure 1) is an RJ-12, 6-position modular

jack that provides a connection for the Mobile

Access Portal (MAP) Gateway, the Bluetooth®

Commissioning Converter (BTCVT), the VAV

Balancing Tool, specified network sensors, or other

SA Bus devices with RJ-12 plugs.

The Sensor port is connected internally to the

SA bus terminal block. See Table 5 for more

information.

Note: The MAP Gateway serves as a

replacement for the BTCVT, which is no longer

available for purchase, but continues to be

supported.

Figure 6: Pin number assignments for sensor

and SA bus ports on Controllers

Supply power terminal block

The 24 VAC supply power terminal block is a gray,

removable, 3-terminal plug that fits into a board-

mounted jack on the top right of the controller.

Wire the 24 VAC supply power wires from the

transformer to the HOT and COM terminals on

the terminal plug as shown below. Do not use the

middle terminal on the supply power terminal block.

See Table 5 for more information about the Supply

Terminal Block.

Figure 7: 24 VAC supply power terminal block

wiring

Note: The supply power wire colors may

be different on transformers from other

manufacturers. Refer to the transformer

manufacturer’s instructions and the project

installation drawings for wiring details.

FAC2513 Advanced Application Field Equipment Controller Installation Guide6

Important: Connect 24 VAC supply power to

the controller and all other network devices so

that transformer phasing is uniform across the

network devices. Powering network devices

with uniform 24 VAC supply power phasing

reduces noise, interference, and ground loop

problems. The field controller does not require

an earth ground connection.

Terminal Wiring Guidelines,

Functions, Ratings, and

Requirements

Input and Output wiring guidelines

Table 3 provides information and guidelines about

the functions, ratings, and requirements for the

controller input and output terminals. This table

also references guidelines for determining proper

wire sizes and cable lengths.

In addition to the wiring guidelines in the table,

observe the following guidelines when you wire

controller inputs and outputs:

• Run all low-voltage wiring and cables separate

from high-voltage wiring.

• All input and output cables, regardless of wire

size or number of wires, should consist of

stranded, insulated, and twisted copper wires.

• Shielded cable is not required for input or output

cables.

• Shielded cable is recommended for input

and output cables that are exposed to high

electromagnetic or radio frequency noise.

• Inputs/outputs with cables less than 30 m (100 ft)

typically do not require an offset in the software

setup. Cable runs over 30 m (100 ft) may require

an offset in the input/output software setup.

FAC2513 Advanced Application Field Equipment Controller Installation Guide 7

Input and Output wiring guidelines

table

Table 3: I/O Terminal Blocks, Functions, Ratings, Requirements, and Cables

Terminal block label Terminal label Function, ratings, requirements Determine wire size and

maximum cable length

+15 V

15 VDC Power Source for active (3-wire) input

devices connected to the Universal INn terminals.

Provides 100 mA total current

Same as (Universal) INn

Note: Use 3-wire cable for

devices that source power

from the +15 V terminal.

See Guideline A in Table 4.Analog Input - Voltage Mode (0–10 VDC)

10 VDC maximum input voltage

Internal 75k ohms pull-down See Guideline B in Table 4.

Analog Input - Resistive Mode (0–600k ohms)

Internal 12 V 15k ohms pull up

Qualified Sensors: 0–2k ohms potentiometer, RTD

(1k Nickel [Johnson Controls sensor], 1k Platinum,

and A99B Silicon Temperature Sensor) Negative

Temperature Coefficient (NTC) Sensor (10k Type L,

10k JCI Type II, 2.252k Type II)

See Guideline A in Table 4.INn

Binary Input - Dry Contact Maintained Mode

1 second minimum pulse width

Internal 12 V 15k ohms pull up

See Guideline A in Table 4.

UNIVERSAL

(Inputs)

ICOMn

Universal Input Common for all Universal Input

terminals

Note: All Universal ICOMn terminals share

a common, which is isolated from all other

commons, except the SA bus common.

Same as (Universal) INn

Binary Input - Dry Contact Maintained Mode

0.01 second minimum pulse width

Internal 18 V 3k ohms pull up

INnBinary Input - Pulse Counter/Accumulator Mode

0.01 second minimum pulse width

(50 Hz at 50% duty cycle)

Internal 18 V 3k ohms pull up

BINARY

(Inputs)

ICOMn

Binary Input Common for all Binary Input (IN)

terminals

Note: All Binary ICOMn terminals share a

common, which is isolated from all other

commons, except the Configurable Output

(CO) common (OCOMn) when the CO is defined

as an Analog Output.

See Guideline A in Table 4.

OUTn

Analog Output - Voltage Mode (0–10 VDC)

10 VDC maximum output voltage

10 mA maximum output current

Required an external load of 1,000 ohms or more.

Note: The Analog Output (AO) operates in the

Voltage Mode when connected to devices with

impedances greater than 1,000 ohms. Devices

that drop below 1,000 ohms may not operate

as intended for Voltage Mode applications.

ANALOG

(Outputs)

OCOMn

Analog Output Signal Common for all Analog OUT

terminals.

Note: All Analog Output Common terminals

(OCOMn) share a common, which is isolated

from all other commons.

See Guideline C in Table 4.

FAC2513 Advanced Application Field Equipment Controller Installation Guide8

Table 3: I/O Terminal Blocks, Functions, Ratings, Requirements, and Cables

Terminal block label Terminal label Function, ratings, requirements Determine wire size and

maximum cable length

OUTn

Binary Output - 24 VAC Triac (Internal Power

Source)

Sources internal 24 VAC power (24~ HOT).

BINARY

(Output)

OCOMn

Binary Output - 24 VAC Triac (Internal Power

Source)

Connects OCOMn to 24~ when activated.

Internal Power Source:

30 VAC maximum output voltage

0.5 A maximum output current

1.3 A at 25% duty cycle

40 mA minimum load current

See Guideline C in Table 4.

Analog Output - Voltage Mode (0–10 VDC)

10 VDC maximum output voltage

10 mA maximum output current

Required an external load of 1,000 ohms or more.

See Guideline A in Table 4.

OUTn

Binary Output - 24 VAC Triac (External Power Source

only)

Connects OUTn to OCOMn when activated.

External Power Source Requirements:

30 VAC maximum output voltage

0.5 A maximum output current

1.3 A at 25% duty cycle

40 mA minimum load current

See Guideline C in Table 4.

Analog Output Signal Common All Configurable

Outputs (COs) defined as Analog Outputs (AOs) share

a common, which is isolated from all other commons

except the Binary Input common.

CONFIGURABLE

(Outputs)

OCOMnBinary Output Signal Common All Configurable

Outputs (COs) defined as Binary Outputs are

isolated from all other commons, including other CO

commons.

Same as (Configurable) OUTn.

Cable and wire length guidelines

Table 4 defines cable length guidelines for the

various wire sizes that may be used for wiring low-

voltage (30V) input and outputs.

Note: The required wire sizes and lengths

for high voltage (>30 V) Relay Outputs are

determined by the load connected to the relay,

and local, national, or regional electrical codes.

Table 4: Cable length guidelines for recommended wire sizes for low-voltage (<30 V) Inputs and

Outputs

Guideline Wire size/Gauge and type Maximum cable length and

type Assumptions

1.0 mm (18 AWG) stranded

copper 457 m (1,500 ft) twisted wire

0.8 mm (20 AWG) stranded

copper 297 m (975 ft) twisted wire

0.6 mm (22 AWG) stranded

copper 183 m (600 ft) twisted wire

N/A (24 AWG) stranded copper 107 m (350 ft) twisted wire

100 mV maximum voltage drop

Depending on cable and the connected input

or output device, you may have to define an

offset in the setup software for the input or

output point.

FAC2513 Advanced Application Field Equipment Controller Installation Guide 9

Table 4: Cable length guidelines for recommended wire sizes for low-voltage (<30 V) Inputs and

Outputs

Guideline Wire size/Gauge and type Maximum cable length and

type Assumptions

1.0 mm (18 AWG) stranded

copper 229 m (750 ft) twisted wire

0.8 mm (20 AWG) stranded

copper 137 m (450 ft) twisted wire

0.6 mm (22 AWG) stranded

copper 91 m (300 ft) twisted wire

N/A (24 AWG) stranded copper 61 m (200 ft) twisted wire

100 mV maximum voltage drop

Depending on cable and the connected input

or output device, you may have to define an

offset in the setup software for the input or

output point.

See Figure 8 to select wire size/

gauge. Use stranded copper

wire

See Figure 8 to determine cable

length. Use twisted wire cable. N/A

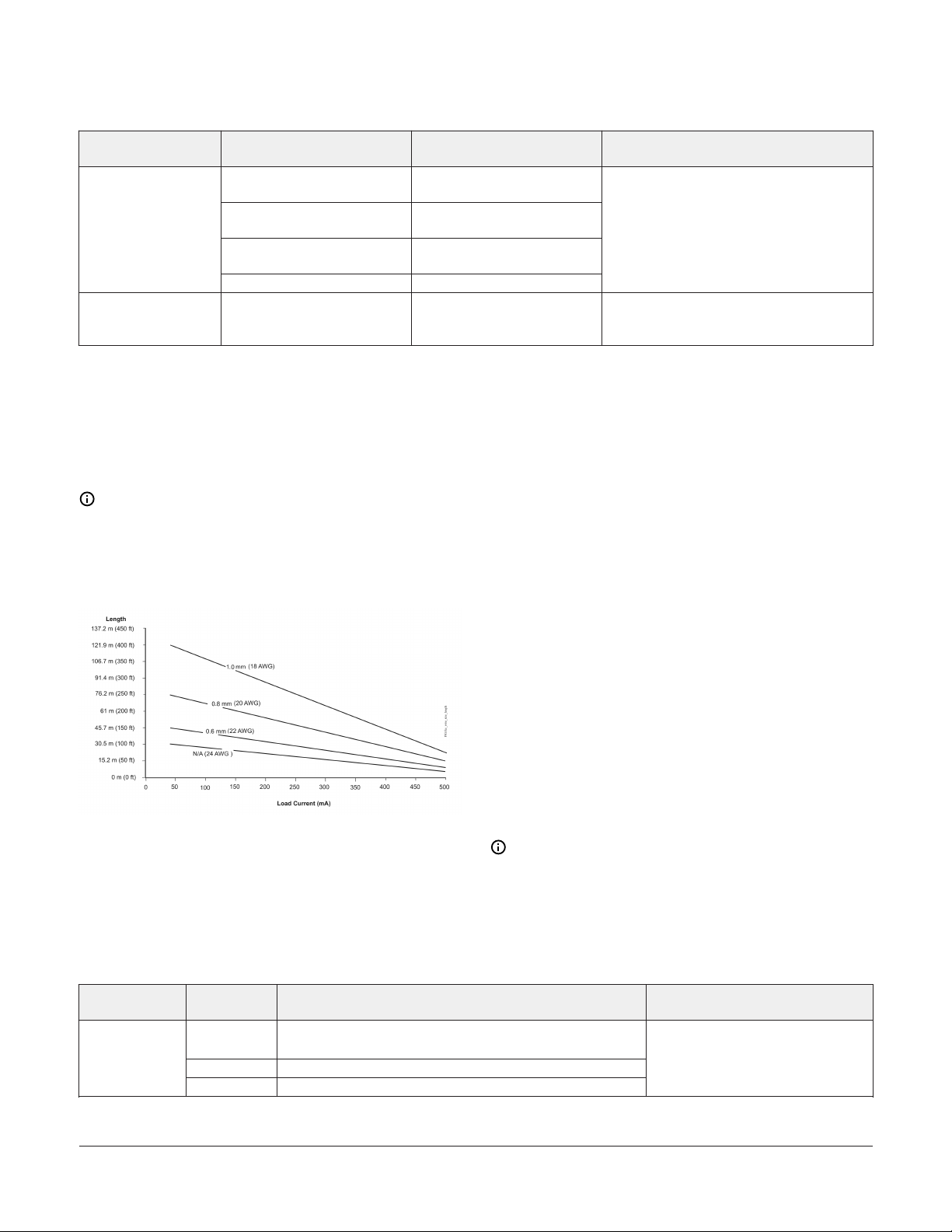

Maximum cable length versus load

current

Use Figure to estimate the maximum cable length

relative to the wire size and the load current (in mA)

when you wire inputs and outputs.

Note: Figure applies to low-voltage (<30 V)

inputs and outputs only.

Figure 8: Maximum wire length for low-voltage

(<30 V) Inputs and Outputs by current and wire

size

Communications bus and supply

power wiring guidelines

Table 5 provides information about the functions,

ratings, and requirements for the communication

bus and supply power terminals. The table also

provides guidelines for wire sizes, cable types, and

cable lengths for when you wire the controller's

communication buses and supply power.

In addition to the guidelines in Table 5, observe the

following guidelines when you wire an SA or FC bus

and the 24 VAC supply power:

• Run all low-voltage wiring and cables separate

from high-voltage wiring.

• All SA and FC bus cables, regardless of wire size,

should be twisted, insulated, stranded copper

wire.

• Shielded cable is strongly recommended for all SA

and FC bus cables.

• Refer to the MS/TP Communications Bus

Technical Bulletin (LIT-12011034) for detailed

information regarding wire size and cable length

requirements for the SA and FC buses.

Communications bus and supply

power terminal blocks, ratings, and

requirements

Note: The SA Bus and FC bus wiring

recommendations in this table are for MS/TP

bus communications at 38.4k baud.

Table 5: Communications Bus and Supply Power Terminal Blocks, Functions, Ratings, Requirements,

and Cables

Terminal block/

Port label

Terminal

labels Function, electrical ratings/Requirements Recommended cable type

-FC Bus Communications

COM Signal Reference (Common) for Bus communications

FC BUS

SHLD Isolated terminal (optional shield drain connection)

0.6 mm (22 AWG) stranded, 3-wire

twisted, shielded cable recommended

FAC2513 Advanced Application Field Equipment Controller Installation Guide10

Indice

Altri manuali Johnson Controls Controllori

Johnson Controls

Johnson Controls PENN P70 Series Manuale utente

Johnson Controls

Johnson Controls MS-FEC1611-1U Manuale utente

Johnson Controls

Johnson Controls Metasys DX-9100 Manuale di servizio

Johnson Controls

Johnson Controls HS3032 Manuale utente

Johnson Controls

Johnson Controls TEC3010 Manuale utente

Johnson Controls

Johnson Controls V-4000-1 Manuale utente

Johnson Controls

Johnson Controls VA-9070 Series Manuale di servizio

Johnson Controls

Johnson Controls FAC2612-2 Manuale utente

Johnson Controls

Johnson Controls FEC26 Series Manuale utente

Johnson Controls

Johnson Controls LP-NRM653-000C Manuale utente

Johnson Controls

Johnson Controls M9132-AG -1N Series Manuale utente

Johnson Controls

Johnson Controls VMA1200 Series Istruzioni operative

Johnson Controls

Johnson Controls Tyco Kantech KT-400 Manuale utente

Johnson Controls

Johnson Controls VA-9070 Series Manuale di servizio

Johnson Controls

Johnson Controls VFD66 Series Manuale

Johnson Controls

Johnson Controls F4-SNC Manuale utente

Johnson Controls

Johnson Controls PENN P28 Manuale utente

Johnson Controls

Johnson Controls TEC3310 Manuale utente

Johnson Controls

Johnson Controls RRS Economizer Controller Manuale utente

Johnson Controls

Johnson Controls UNT1100 Series Manuale utente

Johnson Controls

Johnson Controls FX-PCV1930 Manuale utente

Johnson Controls

Johnson Controls VMA1615 Manuale utente

Johnson Controls

Johnson Controls M9102-GA-1S Series Manuale utente

Johnson Controls

Johnson Controls FX-PCG26 Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
