Johnson Level & Tool 40-6560 Manuale utente
©2005 Johnson Level & Tool 1
Automatic-Leveling Rotary Laser Level
with GreenBrite™ Technology
Model Nos. 40-6560 and 40-6570
Instruction Manual
Congratulations on your choice of this Automatic-Leveling Rotary
Laser Level with GreenBrite Technology. We suggest you read this
instruction manual thoroughly before using the instrument. Save this
instruction manual for future use.
This tool emits one rotating laser beam level line that is ideal for lay-
out of indoor or outdoor construction projects. Since the product is
equipped with a laser beam detector, visibility of the beam in various
lighting conditions is not an issue.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.
™
40-6560_6570 English 5/5/05 4:30 PM Page 1
2©2005 Johnson Level & Tool
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Self-Check and Calibration
9. Technical Specifications
10. Application Demonstrations
11. Care and Handling
12. Product Warranty
13. Product Registration
14. Accessories
1. Kit Contents
Description Model No. 40-6560 Qty.
Automatic-Leveling Rotary Laser Level with GreenBrite™ Technology 1
Ni-MH Rechargeable Battery Pack 1
6V Battery Adapter 1
Remote Control with 9V Battery 1
Detector with 3 “AAA” Batteries and Quick Clamp 1
Magnetic Target 1
Tinted Glasses 1
Instruction Manual with Warranty Card 1
Hardshell Carrying Case 1
Description Model No. 40-6570 Qty.
Automatic-Leveling Rotary Laser Level with GreenBrite™ Technology 1
Ni-MH Rechargeable Battery Pack 1
6V BatteryAdapter 1
Multi-Function Mount with Carrying Case 1
Remote Control with 9V battery 1
Detector with 3 “AAA” Batteries with Quick Clamp 1
Magnetic Target 1
Tinted Glasses 1
Aluminum Tripod 1
8ft. Grade Rod with Carrying Case 1
Instruction Manual with Warranty Card 1
Hardshell Carrying Case 1
40-6560_6570 English 5/5/05 4:30 PM Page 2
©2005 Johnson Level & Tool 3
2. Features and Functions
• Green beam is 400% brighter than red beam laser levels.
• Large electronic auto-level range, the unit can work normally
within ±5°. When beyond the leveling range, the laser line
will flash, rotation of the beam will stop, and an audible alarm
will activate.
• Slope operation function facilitates user of performing slope
scan at different inclinations.
• Out of balance alarm function ensures product accuracy.
• Dust and rain resistant.
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool. Failure to do so, may result in bodily injury.
CAUTION: If using this product with anytype of tinted goggles,
please note safety warning below.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 522-542nm
THIS TOOL EMITS LASER RADIATION.
DO NOTSTARE INTO BEAM.
AVOID DIRECT EYE EXPOSURE.
40-6560_6570 English 5/5/05 4:30 PM Page 3
4©2005 Johnson Level & Tool
WARNING!
The tinted goggles are designed to enhance
the visibility of the laser beam. They DO NOT
offer protection to the eyes from direct exposure
of the laser beam.
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from
tool.
• Use of controls or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injurymay result.
•Always turn the laser tool off when not in use or left unattended for a period of time.
•Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
•Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, serious injury may result.
•Use only original AccuLine Pro™parts and accessories purchased from your AccuLine
Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty.
40-6560_6570 English 5/5/05 4:30 PM Page 4
©2005 Johnson Level & Tool 5
4. Location/Content of Warning Labels
40-6560_6570 English 5/5/05 4:30 PM Page 5
6©2005 Johnson Level & Tool
5. Location of Part/Components
Rotating Laser Output Window
Handle
BatteryCover DC 6V Power Jack
Plumb Laser Beam Output Window
Operation Panel
40-6560_6570 English 5/5/05 4:30 PM Page 6
©2005 Johnson Level & Tool 7
6. Operating Instructions
IMPORTANT: It is the responsibility of the user to verify the calibration
of the instrument before each use.
Battery Installation
Note: Always check to be sure that the on/off switch is in the off
position before removing and replacing batteries.
Alkaline Battery Installation
1. Unscrew the press board of the alkaline battery case and remove
the battery cover.
2. Put in 4 “C” alkaline batteries (not included) according to the
illustrated polarity direction.
3. Screw the press board to press against batteries.
Ni-MH Rechargeable Battery Pack Installation
1. Unscrew the press board of the alkaline battery case and remove
the battery cover.
2. Put in the Ni-MH rechargeable battery pack according to the
outward direction of plug down-lead. Then insert the down-lead
plug into jack inside the instrument.
3. Screw the press board to press against batteries.
Ni-MH Rechargeable BatteryCharging
Using the battery adapter (included), charge the rechargeable battery
pack through the outlet jack. When the charge indicator lamp turns
from red to green (after five hours or so), the Ni-MH rechargeable
battery pack has been fully charged.
40-6560_6570 English 5/5/05 4:30 PM Page 7
8©2005 Johnson Level & Tool
Note:
(1) Even after battery pack appears to be full charged, we suggest
users continue to charge for 2 more hours to ensure the battery-
pack’s maximum charge capacity.
(2) We also suggest charging a new battery during its initial charge
for at least ten hours.
(3) The instrument will still work even if it being charged with
adapter.
(4) Do not charge alkaline batteries to avoid explosion.
(5) Used (discharged) batteries are hazardous waste and should be
disposed of properly.
Instrument Usage
1. Put in Ni-MH rechargeable battery pack, or 4 “C” alkaline batteries
(not included), or connect with the 6V DC power through the
power jack.
2. Place the instrument on a platform or tripod, connecting with tripod
to the 5/8” screw thread at the bottom of the instrument.
Note: If the instrument is inclined beyond the self-leveling range,
the instrument will deliver an audible alarm. You will need to
re-position the instrument until it can be leveled.
3. Press power switch to turn power on, and press operation buttons
on control panel or use remote control to adjust to your desired
working status.
4. After finishing operation or before moving the instrument, turn the
power off.
40-6560_6570 English 5/5/05 4:30 PM Page 8
©2005 Johnson Level & Tool 9
7. Using the Product

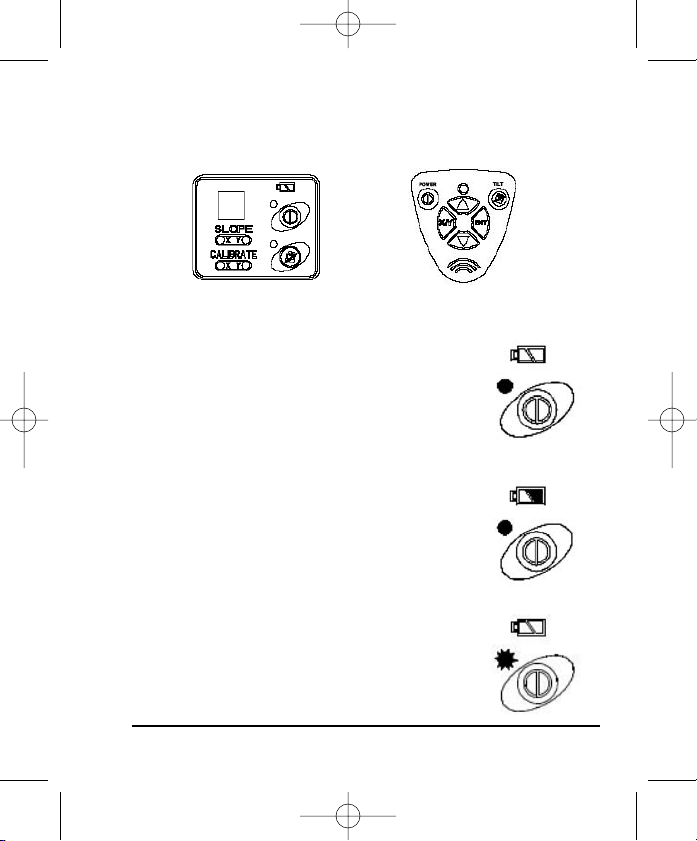

Operating Panel
Power On/Off
1. Press the power button to power on. The
power indicator lamp should light up and then
the instrument will automatically level itself,
with rotation occurring once the unit is level.
2. Press the power button again to power off.
Low BatteryIndication
If the battery indicator lamp is lit, this means low
battery voltage. To ensure normal operation, replace
batteries or charge the rechargeable Ni-MH battery pack.
Alarm If Beyond Range
If the instrument is inclined beyond the self-leveling
range of ±5° , it will deliver an audible alarm, and
the power indicator lamp will blink. You will need
to re-position the instrument until it is within the
leveling range.
Instrument Panel Remote Control Panel
40-6560_6570 English 5/5/05 4:30 PM Page 9
10 ©2005 Johnson Level & Tool
Safety Mode (TILT)
1. After powering on the instrument and entering into
auto-level status, press the tilt button. When the
indicator lamp lights us (see figure), the instrument
enters into TILT mode. If the leveled instrument is
moved or bumped, the head will stop rotation and the TILT indicator
lamp will flash instead of the unit performing the auto-level function.
At this time, you must press the tilt button to quit safety mode and
enter into auto-level status.
2. Press the tilt button to quit safety mode and activate auto-level mode.
Slope Adjusting Function (SLOPE)
The function must be operated by the remote control (see operating
panel shown in fig.1).
1. Select slope adjusting direction
The first press of X/Y button will illuminate the X indicator lamp
(fig. 2) and you should then select the X-direction slope adjustment
(see below). The second press of X/Y button will illuminate the Y
indicator lamp (fig. 3) and you should then select the Y-direction
slope adjustment. The third press of the X/Y button will quit the
slope-adjusting function and enter the unit into auto-level status.
2. Adjust the slope angle
Press either of the two arrow
keys on remote control (fig.1) to
adjust slope angle.
Note: Asingle press of either key
activates fine tuning while a
continuous pressing activates
quick adjustment.
40-6560_6570 English 5/5/05 4:30 PM Page 10
