JONATHAN Y JYL3059 Manuale utente

WARNING

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

CARE AND MAINTENANCE

Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an appropriate

vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate to

the material. Avoid the use of chemicals and household cleaners as they may damage the finish. Model# JYL3059

Product Dimensions: 18"L X 18W X 59"H

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below

for safe use and installation

*The external flexible cable or cord of this lamp cannot be replaced;

If the cord is damaged, the lamp shall be destroyed

**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce the

risk of electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in the outlet,

reverse the plug, if it still does not fit, contact a qualified electrician. Never use with an extension cord unless the

plug can be fully inserted. do not attempt to disregard this safety feature.

Part List and Hardware List

PIECE DESCRIPTION PICTURE

QUANTITY

PIECE DESCRIPTION PICTURE QUANTITY

A1 Tube 3X I Tube 1X

B1 Tube 3X J Saddle 1X

C1 Tube 3X K Socket 1X

D Tube 1X L Harp 1X

E Fork frame 2X M Shade 1X

F Tube 1X N Finial 1X

G glass 1X O Bulb

H Tube 1X

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents

list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 20 minutes.

PLEASE USE ON/OFF TYPE"A" BULB MAX 100-WATT OR CFL BULB MAX 23-WATT OR LED BULB MAX 12-WATT

THERE IS LED 9-WATT BULB IN THE BOX

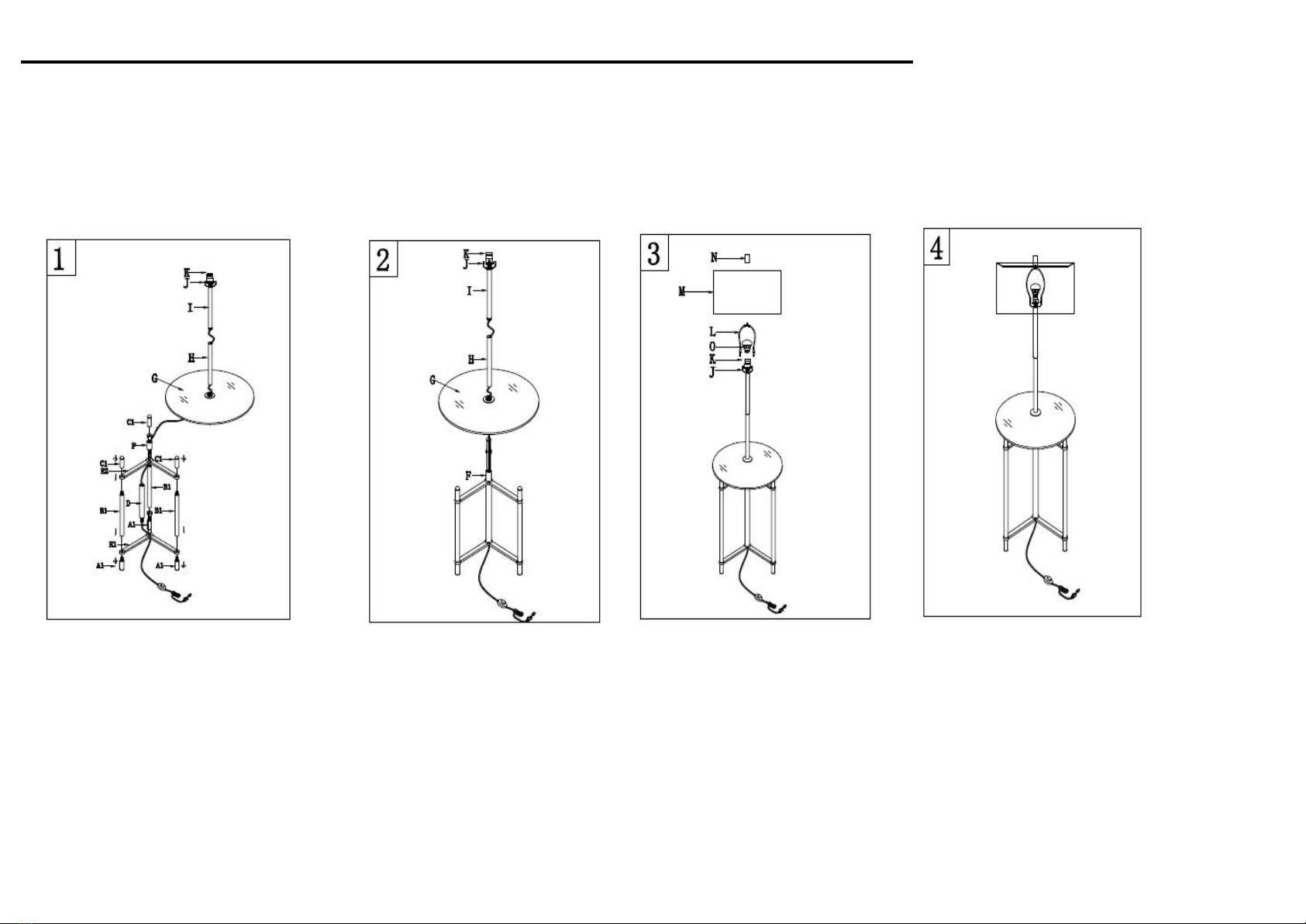

Step 1 Step 2 Step 3 Step 4

Make sure all parts could be aligned before assemble Fix the Glass(G) onto the tube(F) Insert the Harp (L) into the Saddle (J). Put the light on a level surface to check

Do not rotate lamp body too hard avoid base screw broken Screw the tube(H) onto the Glass(G) Put the shade(M) on the Harp(L), then if everything is stable.

Let tube(A1) go through Fork frame(E1), and screw tube(B1) Screw the tube(I) onto the Tube(H) tighten the Finial (N) into the Harp (L)

onto tube(A1) Insert the bulb(O) into the socket(K).

Screw Tube(D) into middle threaded part of Fork frame(E1)

Fix the Fork frame(E2) onto Tube(B1) by using Tube(C1)

Let tube(F) go through Fork frame(E2) middle hole, and screw

tube(F) onto the tube(D).

Be careful not to twist the power cord and tighten securely

ENJOY YOUR LAMP
