IPL, LT2217 A, 96041003402, 2008-02, 532 41 73-48

LT2217 A

532 41 73-48

532 41 73-48 Rev. 6 02.17.09 BAD

ILLUSTRATED PARTS LIST

MODEL NO. 96041003402

CUSTOMER CATALOG NO. LT2217A

PRODUCT NO. 960 41 00-34

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

DECALS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" Front

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire F T 15 x 6 0 - 6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59

Bearing Flange (Front Wheel Only)

8 532 17 50-39 Cap Axle Blk 1 50 x 1 00

9 532 10 62-68 Tire R 18 x 9.5-8 Turf Saver

- - 532 42 05-31 Tire R 18 x 9.5-8 Turf Saver LT

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm 8" Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Operators

2 532 18 95-53 Decal, Hood

3 532 19 68-41 Decal, Warning Eng. Symbols

4 532 40 86-53 Decal, Hood Panel

5 532 15 97-36 Decal, Chassis Hot Muffler

6 532 18 04-32 Decal, Fender 100 DB/CE

7 532 18 21-66 Decal, Cutfinger CE

8 532 41 72-50 Decal, Rpl

9 532 14 50-05 Decal, Battery Dnge/Poi

10 532 14 08-37 Decal, Saddle Brake Parking

11 532 19 63-57 Decal, Warning

12 532 19 43-02 Decal, Mower V-Belt Schematic

13 532 15 97-37 Decal, Brake/Clutch Symbol

14 532 40 91-51 Decal, Eng. HP

16 532 18 57-73 Decal, Steering

17 532 19 68-42 Decal

18 532 18 39-30 Decal, Jonsered

- - 532 16 69-60 Decal, Bypass

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 40 95-05 Pad, Footrest, LH

- - 532 41 12-73 Pad, Footrest, RH

- - 532 40 86-84 Manual Oper. Euro

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

SCHEMATIC

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

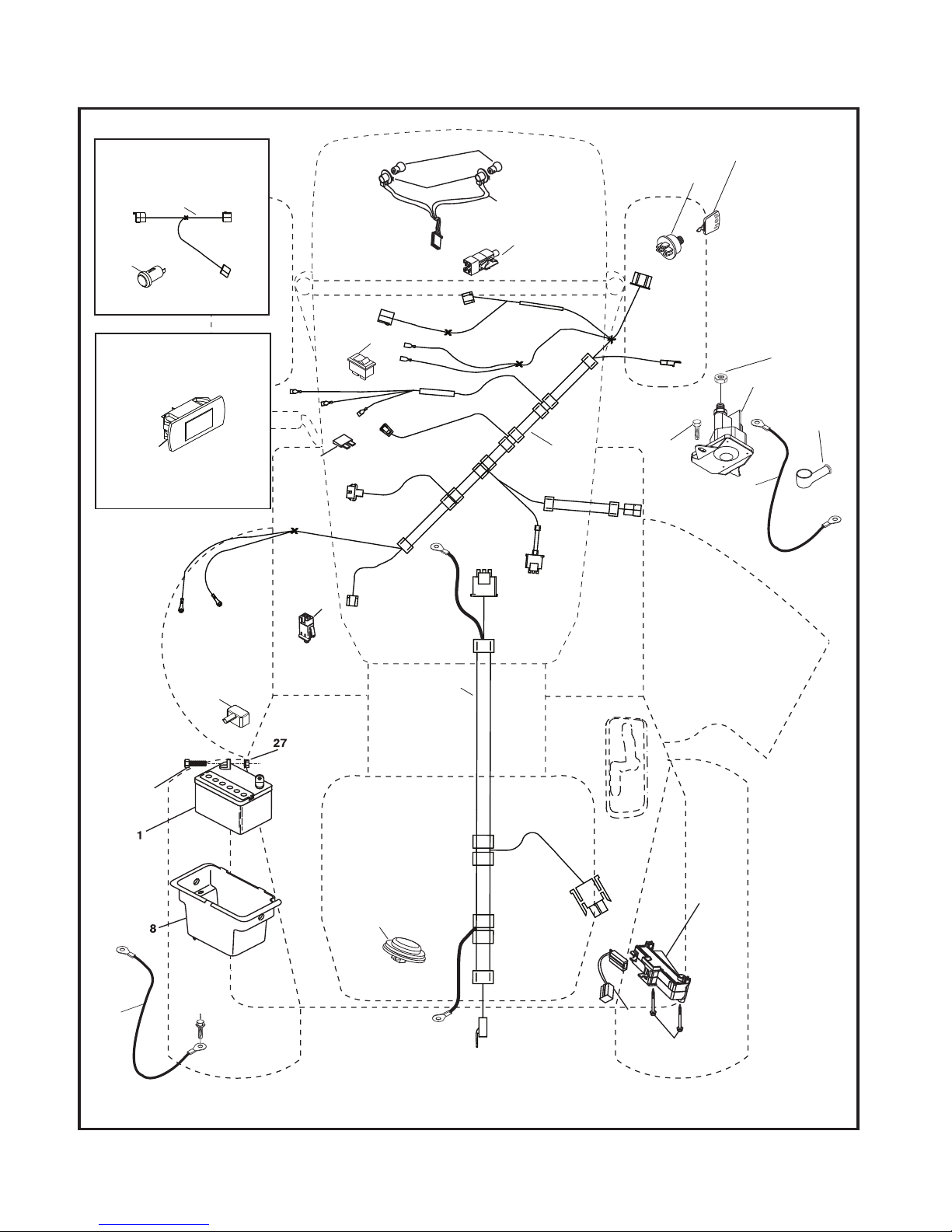

ELECTRICAL

79 21

T02S

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 532 40 16-62 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light / Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 40 04-49 Harness Ign.

79 532 17 52-42 Socket Asm Bulb

87 532 19 78-02 Switch Interlock

90 532 40 07-25 Cover Terminal

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

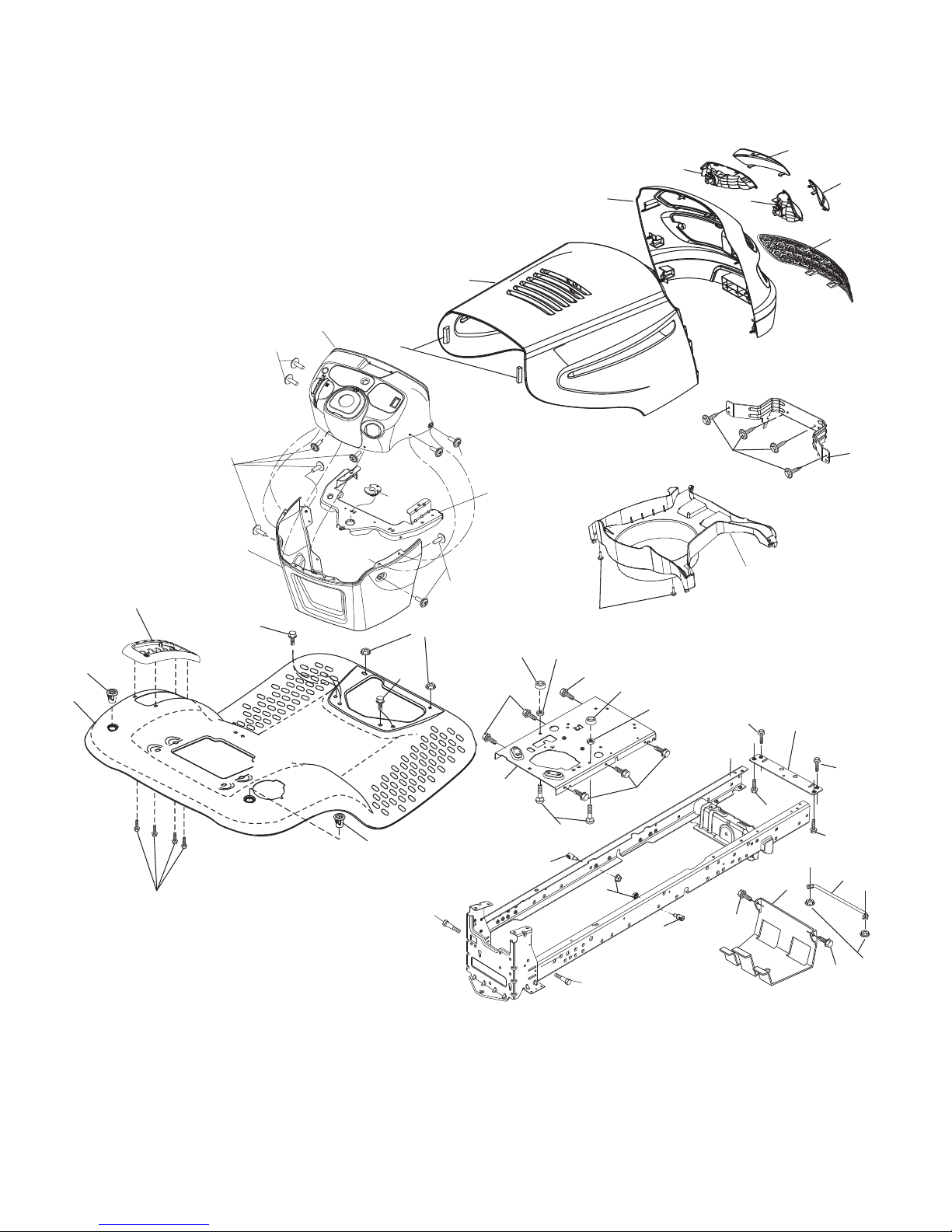

CHASSIS

183

236

chassis-tex_elite-sv-pro_8_r1

213

218

189

152 217

235

182

176

175

177

176

176 130 151

137

208

207

186

194

181

36 36

196

181

222

130

150

228

194

180

159

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

CHASSIS

5 532 41 12-79 Dash

14 532 19 47-57 Hood

15 532 18 97-54 Lens LH

18 532 19 29-15 Grille/Lens Asm.

25 532 18 97-55 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 41 12-83 Fender

52 873 68 05-00 Nut Crown Lock 5/16

68 817 49 05-08 Screw THDROL 5/16-18 x 1/2

130 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

137 532 18 49-21 Bumper Dash

150 532 18 43-22 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw 3/8-16 x 3/4

175 532 19 32-43 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 19 54-57 Chassis

181 532 40 47-96 Bushing Mtg. Fender Crgo

182 532 19 30-57 Dash Lower

183 874 78 05-20 Bolt 5/16-18 unc x 1-1/4

186 532 18 97-53 Insert Grille

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 40 97-28 Console Asm. Deck Lift

207 532 18 38-33 Bezel RH

208 532 18 38-32 Bezel LH

213 874 76 05-12 Bolt 5/16-18 x 3/4

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

222 532 13 77-29 Screw 1/4-20 x 5/8

228 532 19 51-61 Stud Fastener

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

KEY PART

NO. NO. DESCRIPTION

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

DRIVE

186

189

49 187

190

231

170

165 166

188

161

184

221

167 160

159

114

125

80 125

125

121



159

175

176

178

174

166

232

233

183

205

drive-tex_4-lt-hydro_T2_r4

37 33

116

162

125

162



153

153 279

125

116











171

TRACTOR - - MODEL NUMBER LT2217A (96041003402), PRODUCT NO. 960 41 00-34

DRIVE

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - - - Transaxle, Hydro GR T2

(Internal parts not available)

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-96 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 12 12-74 Knob

29 532 40 83-91 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 77-22 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 12 59-07 V-Belt, Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 13-29 Console Shift

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc

80 532 40 83-93 Strap Torque

99 532 40 84-18 Rod Bypass

114 873 80 05-00 Nut Lock 16-18 unc

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

121 532 17 56-11 Bracket Mount Torque

122 872 01 05-20 Bolt 5/16-18 x 2.50

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

148 817 00 06-12 Screw 3/8-16 x 3/4

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

KEY PART

NO. NO. DESCRIPTION

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

162 532 40 87-84 Adapter Transaxle

165 532 19 62-12 Bushing Brake Shaft

166 532 19 72-90 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

171 872 11 06-22 Bolt RDHD SQNK 3/8-16 unc x 2

174 532 19 72-89 Nut Push

175 532 40 85-39 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 15 69-72 Spacer Axle

184 532 41 12-89 Handle Parking Brake

185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

205 532 12 17-48 Washer

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

231 532 40 72-87 Idler V-Groove

232 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5

233 532 40 52-96 Washer Serrated

268 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

275 532 18 24-02 Guard Muffler

279 532 40 85-38 Link Shift

Indice

Altri manuali Jonsered Taglia erba

Jonsered

Jonsered LM2153CMDAE Manuale utente

Jonsered

Jonsered Front Rider FR13 Manuale utente

Jonsered

Jonsered LT2218A2 Manuale utente

Jonsered

Jonsered yardpro YP51-450S Manuale utente

Jonsered

Jonsered LM2146C Manuale utente

Jonsered

Jonsered CTH163T Manuale utente

Jonsered

Jonsered LT2216 Guida

Jonsered

Jonsered LM 2146CMD Manuale utente

Jonsered

Jonsered LM2150 Manuale utente

Jonsered

Jonsered LM2150SM Manuale utente

Jonsered

Jonsered LT2112 Manuale utente

Jonsered

Jonsered LM2150SM Manuale utente

Jonsered

Jonsered LT2213 A Manuale utente

Jonsered

Jonsered LM2146M Manuale utente

Jonsered

Jonsered FR2111 Manuale utente

Jonsered

Jonsered LT2217A Manuale utente

Jonsered

Jonsered LT2317 A2 Manuale utente

Jonsered

Jonsered LGT54 Manuale utente

Jonsered

Jonsered Z54XF Manuale utente

Jonsered

Jonsered FR2312 MA Manuale utente

Jonsered

Jonsered LT2217CMA Manuale utente

Jonsered

Jonsered Front Rider FR13 Manuale di istruzioni

Jonsered

Jonsered LT2318CMA2 Manuale utente

Jonsered

Jonsered Frontrider FR2216MA 4X4 Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
