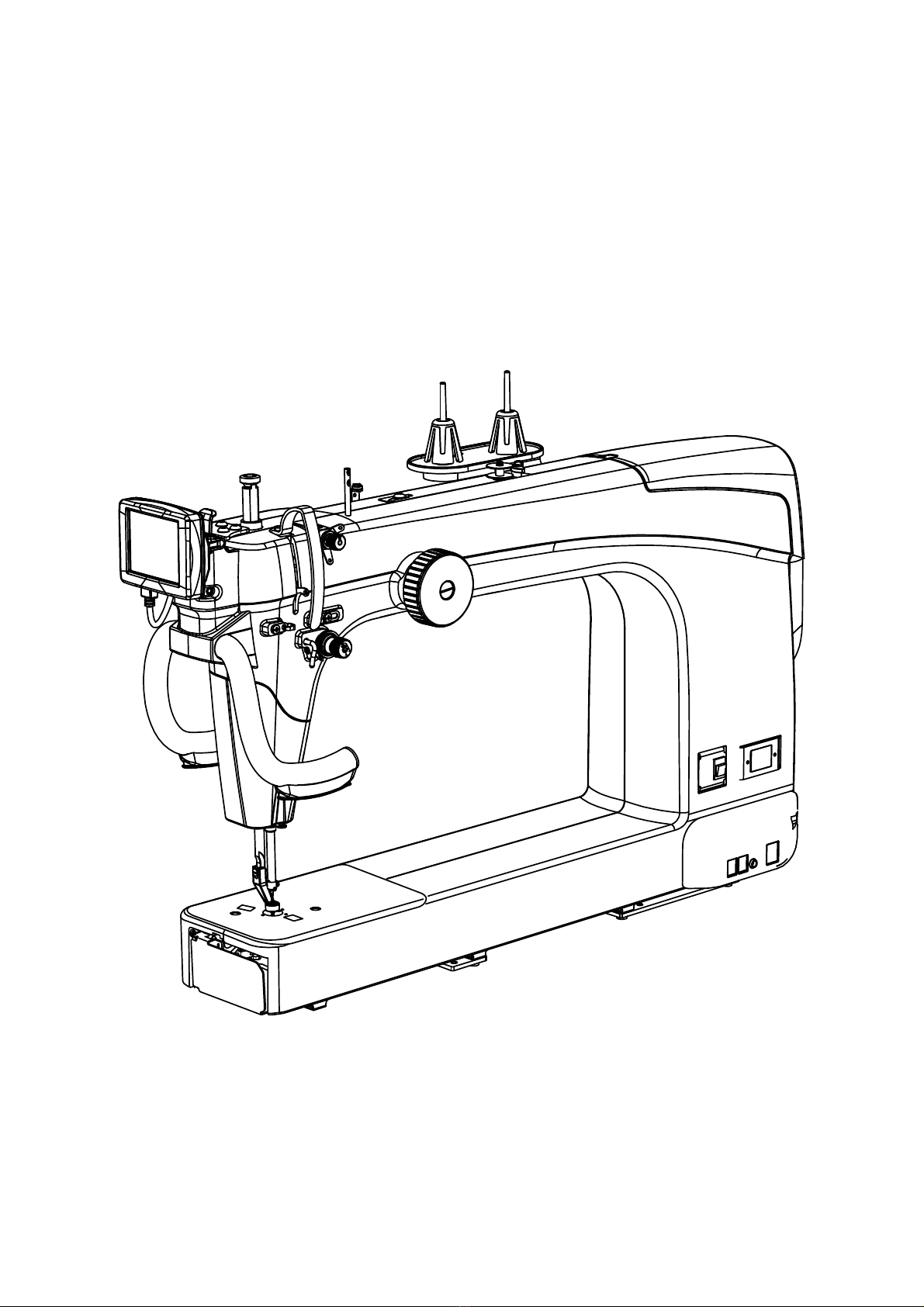

JUKI J-350QVP Manuale utente

Juki Sit Down LCD, Lighting,

and Surestitch Installation

Copyright June 7, 2018

The Grace Company(Reproduction Prohibited)

Version 12.2

Table of Contents

4 Parts List

6 Front LCD Orientation Instructions

10 Side LCD Orientation Instructions

12 Juki HDMI Cable Static Protection

13 Needle Plate Optical Sure Stitch Cable

4

Side LCD

Mount Bracket

HDMI Cable

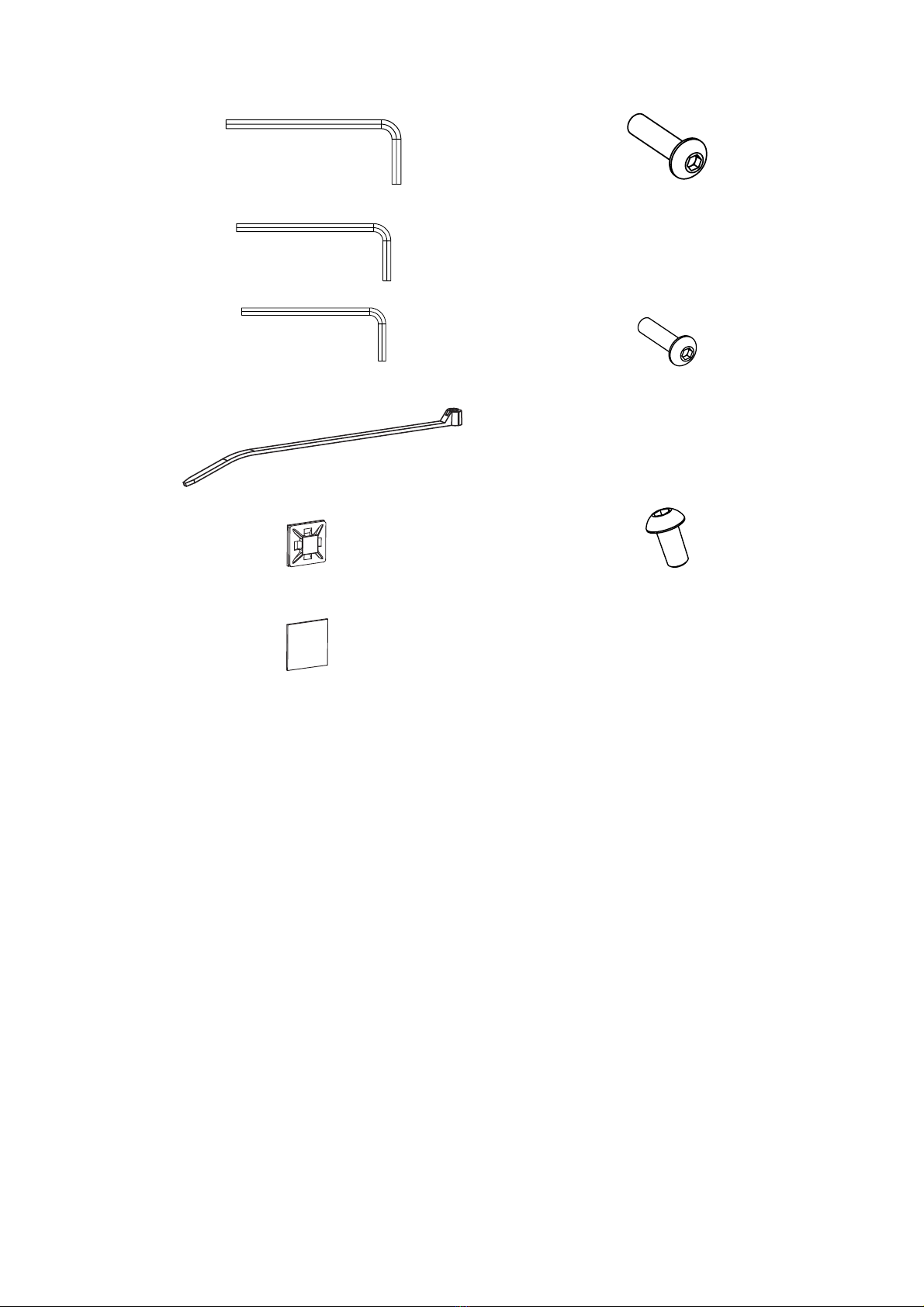

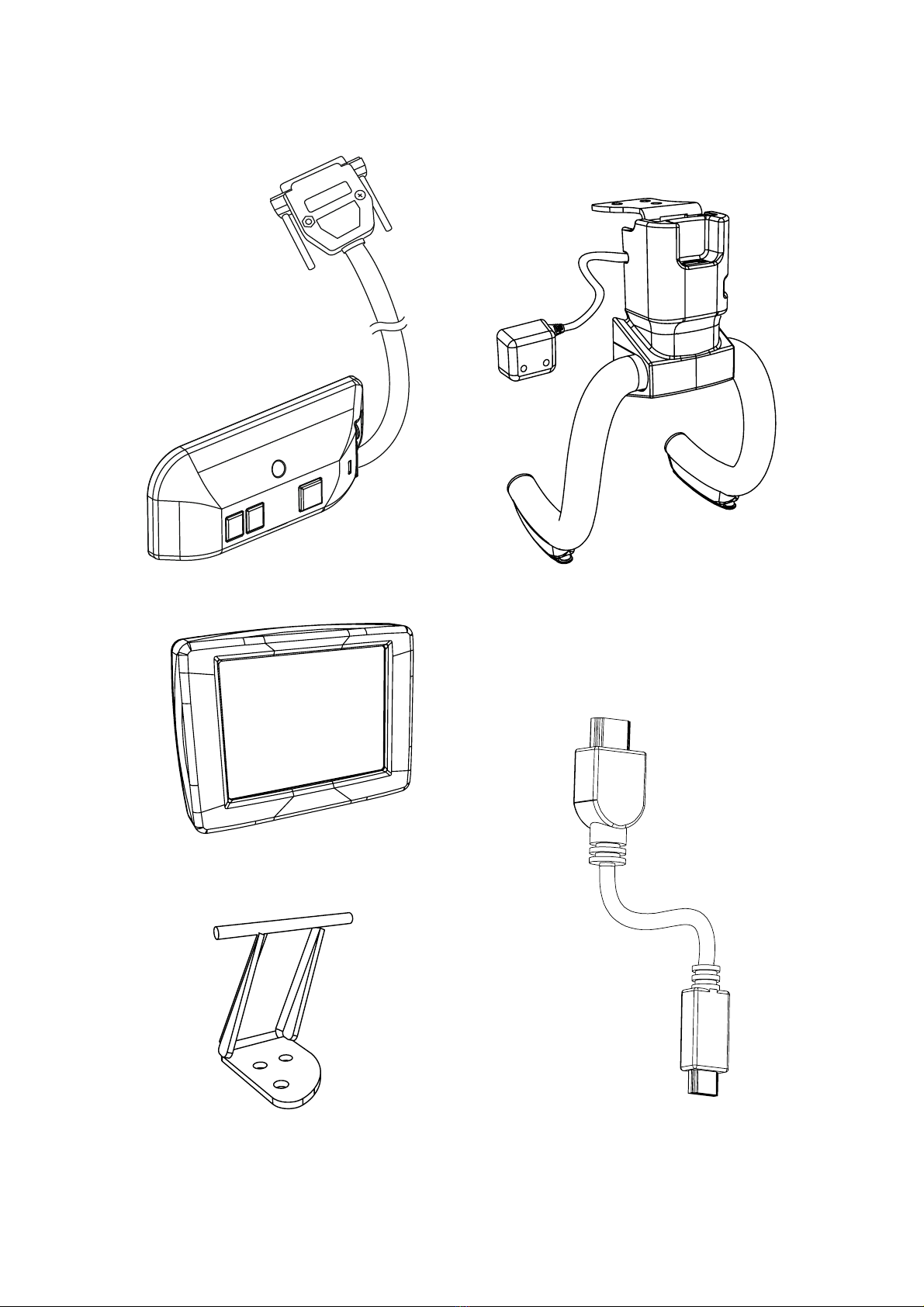

Parts List

LCD Screen

Sure Stitch Box Lighting Mount

5

M6 x 12mm

SBHC screws

(3)

Ziptie

Ziptie Mount

M3 x 16mm

SBHC Screw

(1)

M4 x 16mm

SBHC Screw

(1)

4mm Allen Wrench

2.5mm Allen Wrench

2mm Allen Wrench

Insulating Sheet

6

Front LCD

Orientation

Instructions

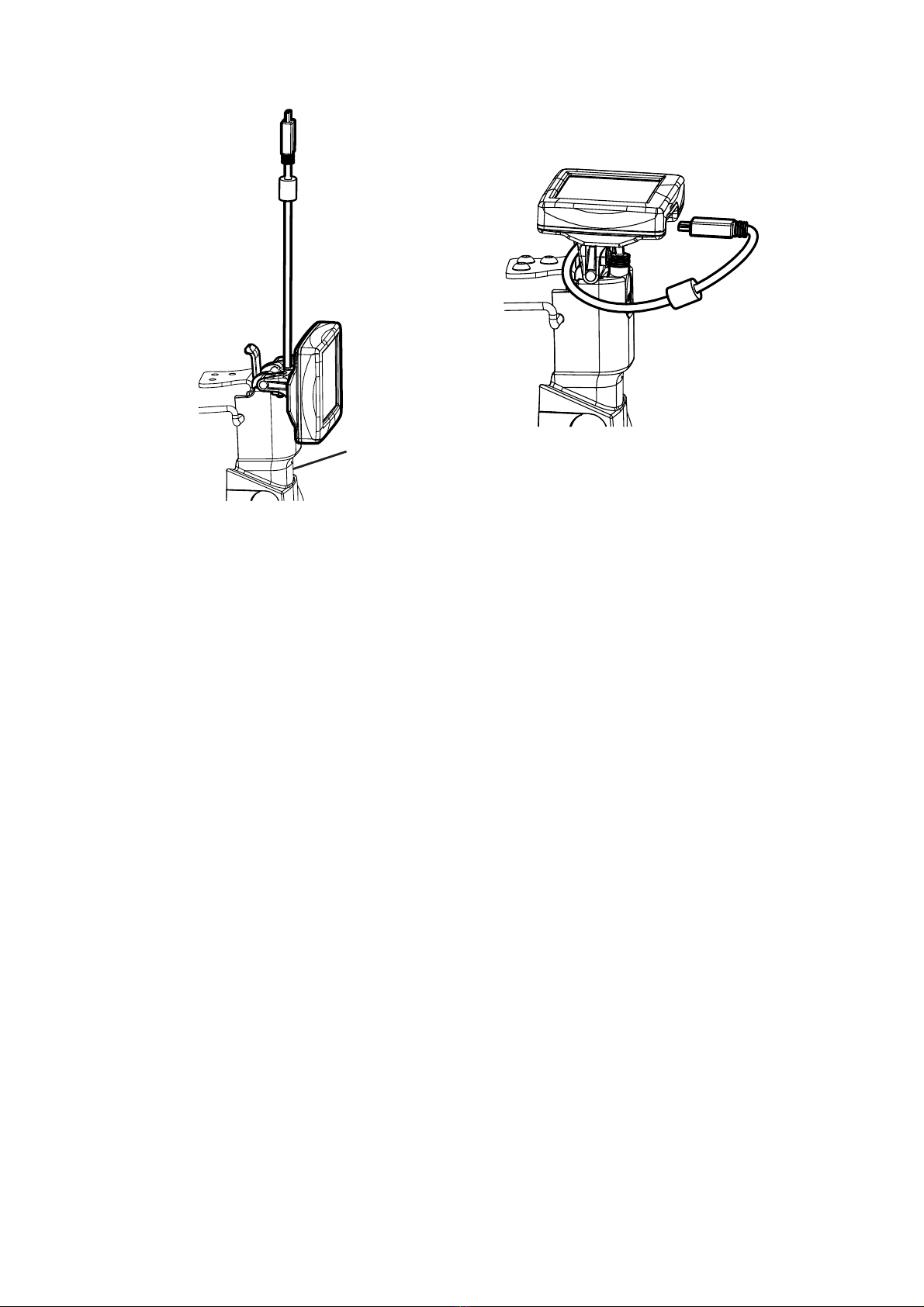

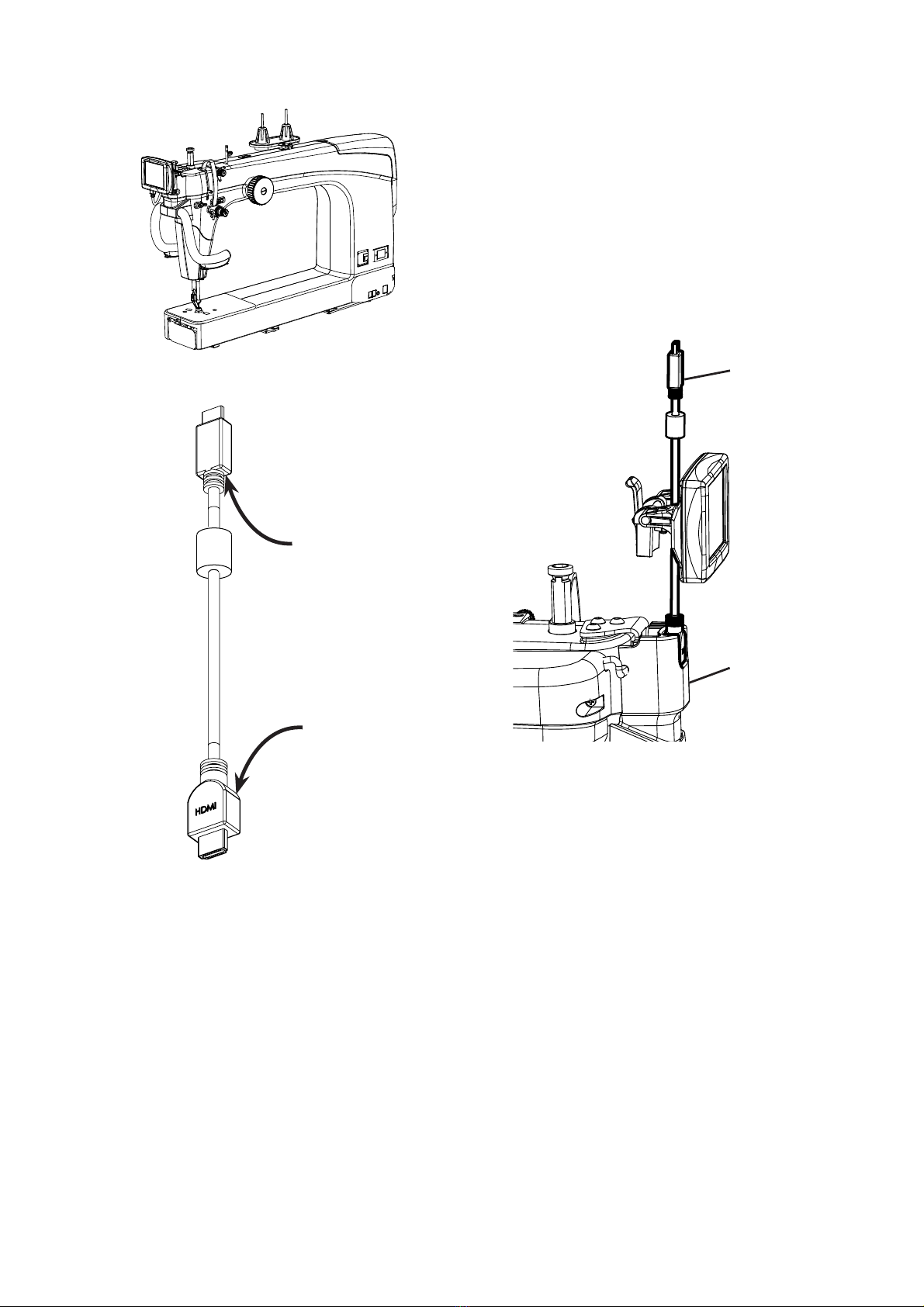

1Take the HDMI cable end

(HDMI connector Type A

see Fig. 1) and plug it into the

Lighting Mount as Shown in Fig.

1.2. Pass the cable behind the

LCD from the bottom.

Fig. 1

Fig. 1.2

HDMI

Connector

Type A

HDMI

Connector

Type D

Lighting

Mount

HDMI

Cable

7

2Clip the LCD into the

Lighting Mount 3Tilt the LCD Screen back

and plug the other HDMI

cable end (HDMI connector

Type D, see Fig. 1) into the

LCD.

Lighting

Mount

8

Front LCD Orientation Instructions

continued from page 7...

Data Cable

M6 x 12mm

SBHC Screws

4mm Allen

Wrench

2.5mm Allen

Wrench

M4 x 16mm

SBHC Screw

Zip Tie and Mount

Fig. 2

Lighting

Mount

Casing

Groove

Plastic Machine

Casing Grooves

9

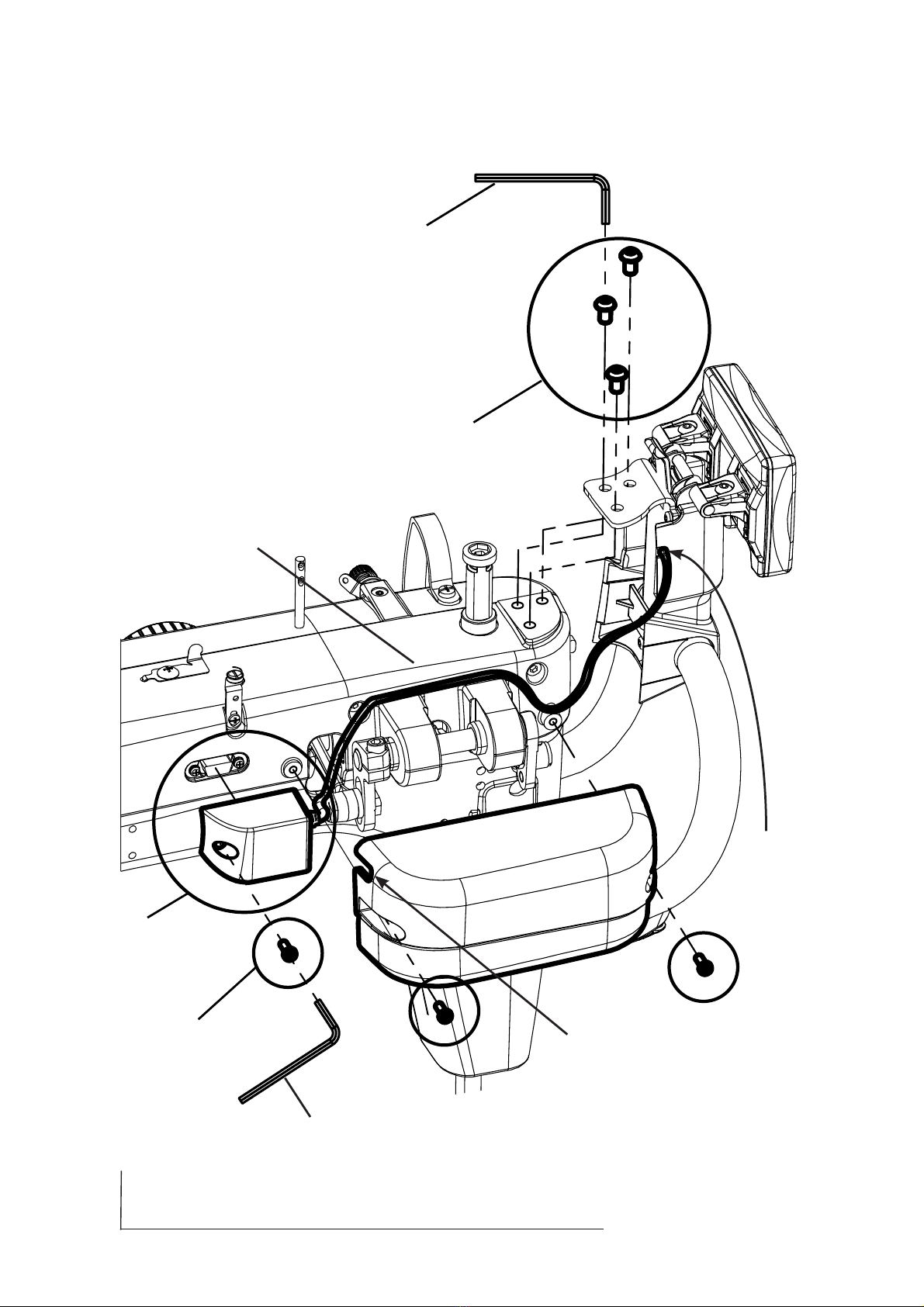

4

Install the LCD and Lighting Mount using the 4mm Allen

Wrench and (3) M6 x 12mm SBHC Screws. Be sure not to

pinch the LCD Data Cable and that it falls in the groove on the

LCD Mount Bracket Casing.

5

Remove the (2) screws holding the Plastic Machine Casing

to the side of the machine using a phillips head screw driver.

6

Plug in the Data Cable into the left side of the machine and

secure it in place using the 2.5mm Allen Wrench and M4

x 16mm SBHC Screw. Secure the Cord to the machine using

the Zip Tie and Zip Tie Mount as shown in Fig. 2.

7

Reinstall the Plastic Machine Casing to the side of the

machine. Be sure to cover the Data Cable without pinching

it by placing it in the grooves on the Plastic Machine Casing.

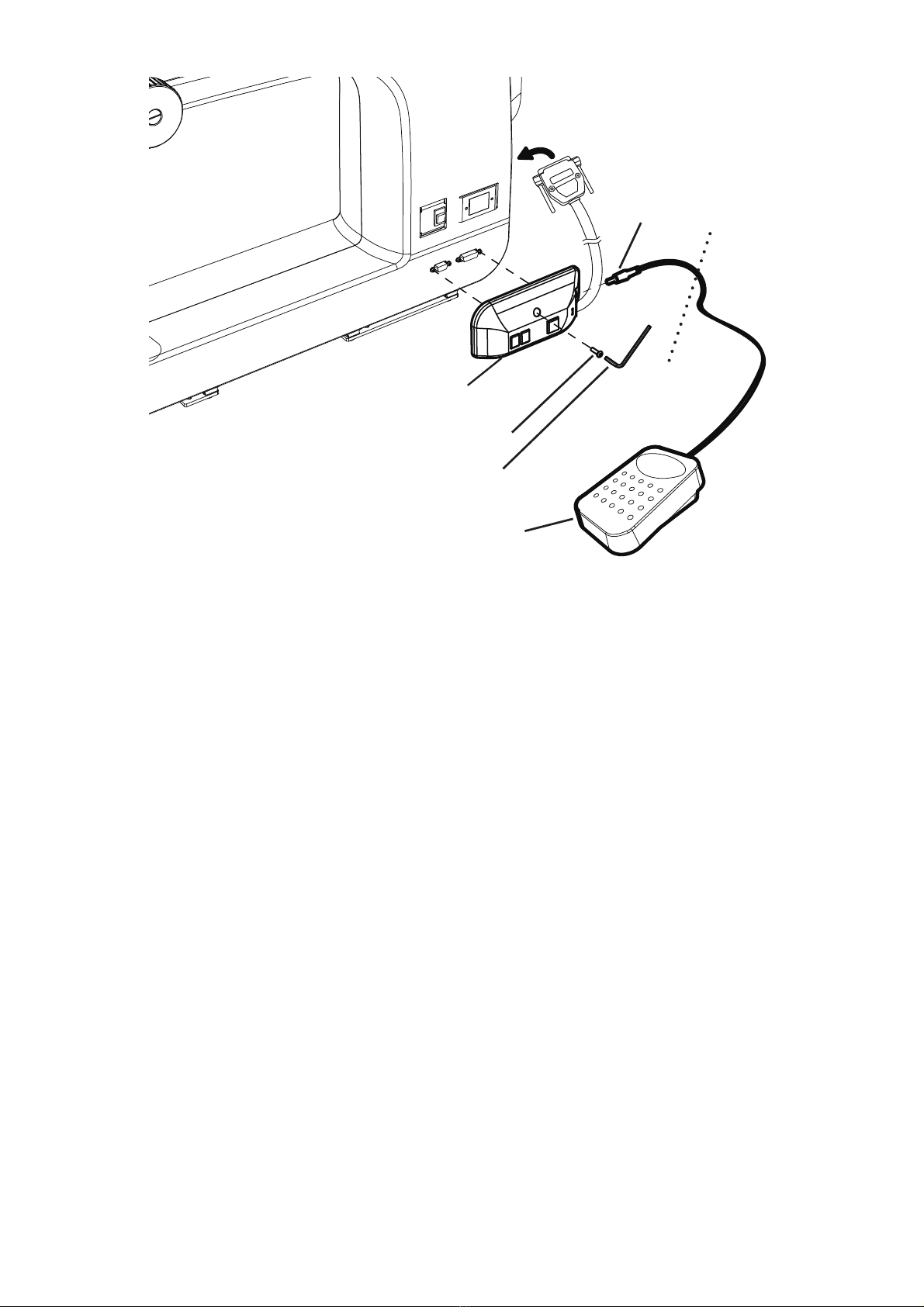

8 Plug in the Surestitch Box to the back right corner of

the machine. Remove the 5.5mm Barrel Connector Plug

and plug in the foot pedal into the back connector of the

Surestitch Box. Secure the Surestitch Box in place using the

2mm Allen Wrench and the M3 x 16mm SBHC Screw.

Surestitch Box

Model JC-001

M3 x 16mm SBHC Screw

2mm Allen Wrench

5.5mm Barrel

Connector Plug

Fig. 3

10

3

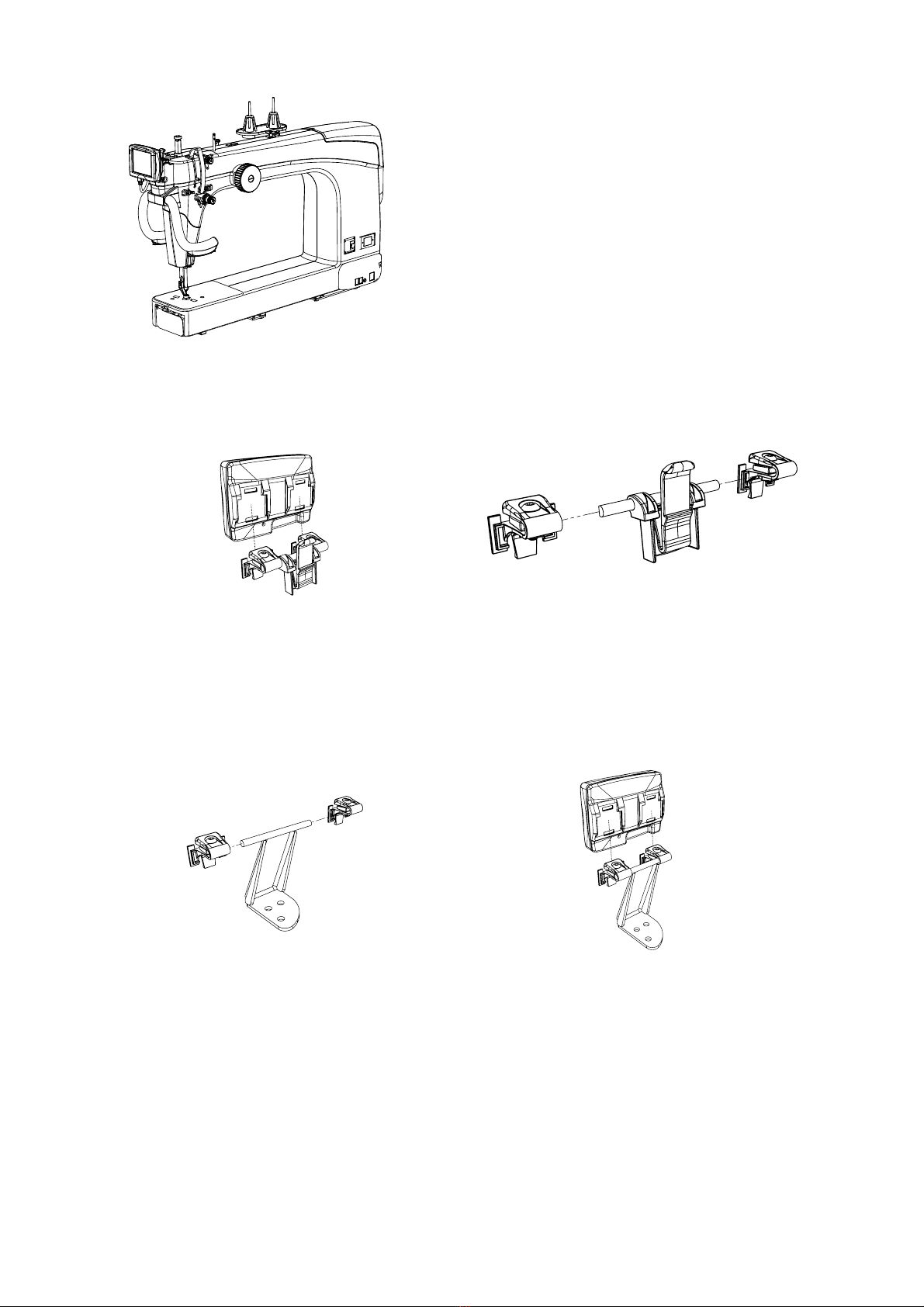

Push LCD Clips onto rod

ends of Side LCD Mount

Bracket.

4

Push LCD Screen onto

LCD Clips. Continue to

page 11...

Side LCD

Orientation

Instructions

1

Pull LCD Screen o LCD

Clips. 2

Pull LCD Clips o LCD

Mount.
