JUKI PLC-2710V Manuale utente
PLC-2710V
INSTRUCTION MANUAL
i
CONTENTS
1. SPECIFICATIONS................................................................................................. 1
1-1. Specications of the sewing machine head ............................................................................1
1-2. Specications of the control box..............................................................................................1
2. INSTALLATION.....................................................................................................2
2-1. Mounting positions of the devices and table...........................................................................2

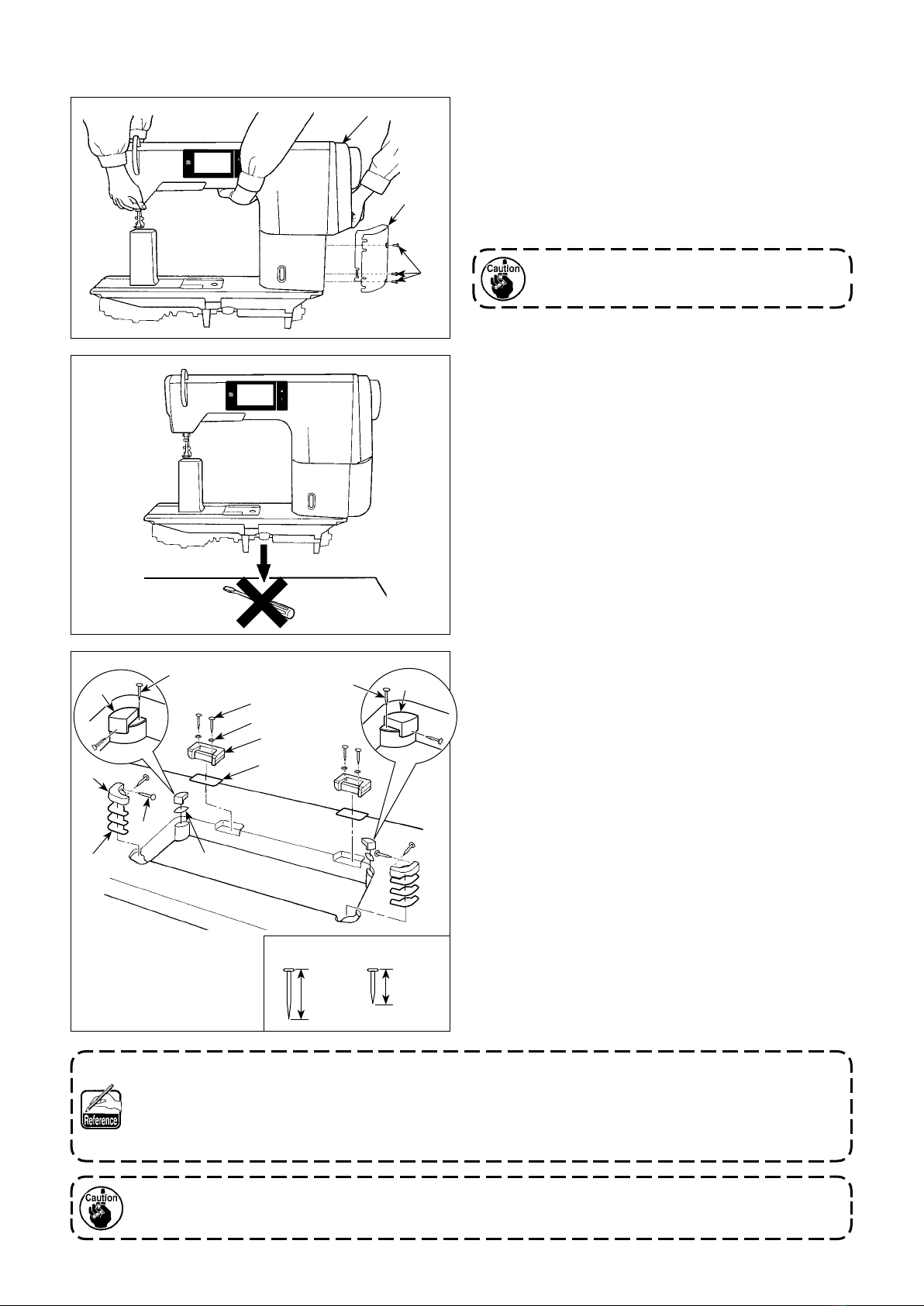

2-2. Installation of the sewing machine...........................................................................................3
2-3. Installing the thread stand.........................................................................................................8
2-4. Installing the thread guide pin ..................................................................................................8
2-5. Installing the electrical box .......................................................................................................9
2-5-1. Preparing for installation of the control box...................................................................... 9
2-5-2. Installing the electrical box.................................................................................................. 9
2-6. Installing the pedal sensor ........................................................................................................9
2-7. Installing the accessory ring core (Only for the EU type models).......................................10
2-7-1. Installing the accessory ring core supplied with the electrical box .............................. 10
2-8. Connecting the power switch cable .......................................................................................10
2-8-1. Installing the power switch................................................................................................10
2-8-2. Connecting the power source cord .................................................................................. 11
2-9. Connecting the cords...............................................................................................................12
2-9-1. Connecting the cords coming from the sewing machine............................................... 12
2-10 Handling the cords..................................................................................................................13
2-10-1. Handling the cords coming from the control box ......................................................... 13
2-11. Attaching the connecting rod................................................................................................14
2-12. Adjustment of the pedal.........................................................................................................15
2-12-1. Installing the connecting rod........................................................................................... 15
2-12-2. Adjusting the pedal angle ................................................................................................15
2-13. Pedal operation.......................................................................................................................15
2-14. Opening/closing the hook cover...........................................................................................16
2-15. Lubrication..............................................................................................................................16
2-16. How to use the operation panel (Basic explanation) ..........................................................17
2-16-1. Selection of the language (operation to be done at rst) ............................................. 17
2-16-2. Names and functions of the panel keys ......................................................................... 19
2-16-3. Basic operation.................................................................................................................20
3. PREPARATION BEFORE SEWING ...................................................................21
3-1. Attaching the needle ................................................................................................................21
3-2. Attaching and removing the bobbin .......................................................................................21
3-3. Threading the hook ..................................................................................................................22
3-4. Winding a bobbin .....................................................................................................................22
3-5. Threading the machine head...................................................................................................24
4. ADJUSTING THE SEWING MACHINE ..............................................................25
4-1. Thread tension..........................................................................................................................25
4-1-1. Adjusting the tension of thread tension controller No. 1................................................ 25
4-1-3. Adjusting the bobbin thread tension ................................................................................ 25
4-1-2. Adjusting the needle thread tension (Active tension)..................................................... 25
4-2. Thread take-up spring..............................................................................................................26
4-2-1. When you want to change the stroke of the thread take-up spring............................... 26
4-2-2. When you want to change the tension of the thread take-up spring............................. 26
ii
4-3. Presser foot (Active presser device) ......................................................................................27
4-3-1. Presser foot pressure......................................................................................................... 27
4-3-2. Micro-lifter function ............................................................................................................27
4-4. Adjusting the stitch length ......................................................................................................28
4-5. Changing the sewing speed....................................................................................................28
4-6. Adjusting the alternating vertical movement amount...........................................................29
4-7. Thread trimming and condensation stitching function ........................................................30
4-8. LED hand light ..........................................................................................................................32
4-9. Reverse feed stitching .............................................................................................................32
4-10. Jog dial....................................................................................................................................32
4-11. Custom switch ........................................................................................................................33
4-12. Adjusting the oil quantity in the hook ..................................................................................36
5. OPERATION OF THE SEWING MACHINE........................................................ 37
5-1. Resetting the safety clutch......................................................................................................37
5-2. Lifting the presser foot at an emergency...............................................................................37
5-3. Power lamp ...............................................................................................................................38
5-4. Knee switch...............................................................................................................................39
6. HOW TO USE THE OPERATION PANEL ..........................................................40
6-1. Explanation of the sewing screen (when selecting a sewing pattern)................................40
6-2. Sewing patterns........................................................................................................................44
6-2-1. Sewing pattern conguration ............................................................................................44
6-2-2. List of sewing patterns....................................................................................................... 45
6-2-3. Reverse feed stitching (at start) pattern........................................................................... 47
6-2-4. Reverse feed stitching (at end) pattern ............................................................................ 54
6-2-5. Editing the sewing patterns...............................................................................................55
6-2-6. List of pattern functions..................................................................................................... 60
6-2-7. Teaching function ............................................................................................................... 67
6-2-8. One-touch utility changeover function............................................................................. 69
6-2-9. Registration of a new sewing pattern ............................................................................... 70
6-2-10. Copying a pattern .............................................................................................................72
6-2-11. Narrow-down function......................................................................................................73
6-3. Counter function.......................................................................................................................75
6-3-1. Displaying the sewing screen under the counter display mode.................................... 75
6-3-2. Types of the counter........................................................................................................... 75
6-3-3. How to set the counter .......................................................................................................76
6-3-4. How to reset the count-completion state ......................................................................... 79
6-4. Simplied chart of panel displays ..........................................................................................80
6-5. List of memory switch data .....................................................................................................81
6-6. List of errors .............................................................................................................................86
6-7. Memory switch data .................................................................................................................90
7. CARE ..................................................................................................................92
7-1. Standby mode...........................................................................................................................92
7-2. Cleaning ....................................................................................................................................93
7-3. Applying grease........................................................................................................................93
7-4. Replacing the fuse....................................................................................................................94
7-5. Disposal of batteries ................................................................................................................94
8. ADJUSTMENT OF THE MACHINE HEAD (APPLICATION) .............................95
8-1. Needle-to-hook relation ...........................................................................................................95
8-2. Adjusting the timing between the needle and the blade point of hook...............................96
iii
8-3. Adjusting the hook needle guard............................................................................................97
8-4. Adjusting the bobbin case opening lever ..............................................................................97
8-5. Adjusting the position of counter knife, knife pressure and clamp pressure ....................98
8-6. Adjusting the thread trimming cam timing ............................................................................99
8-7. Adjusting the thread clamp device .......................................................................................100
8-8. Active-presser multi-layered section detection function ...................................................103
8-8-1. Multi-layered section detection function........................................................................ 103
8-8-2. Turning OFF the multi-layered section changeover function by the number of
stitching ..............................................................................................................................106
8-9. Grease shortage alarm ..........................................................................................................108
8-9-1. Regarding the grease shortage alarm ............................................................................ 108
8-9-2. E221 Grease-shortage error ............................................................................................ 108
8-9-3. Regarding K118 error resetting procedure .................................................................... 109
9. HOW TO USE THE OPERATION PANEL (APPLICATION)............................. 110
9-1. Management of sewing patterns...........................................................................................110
9-1-1. Creation of a new pattern................................................................................................. 110
9-1-2. Copying a pattern ............................................................................................................. 112
9-1-3. Deleting a pattern ............................................................................................................. 113
9-2. Setting up the polygonal-shape stitching............................................................................114
9-2-1. Editing a polygonal-shape stitching pattern.................................................................. 114
9-2-2. Creating a new polygonal-shape stitching pattern ....................................................... 120
9-2-3. Setting the step from which polygonal-shape stitching is started .............................. 120
9-3. Cycle pattern...........................................................................................................................121
9-3-1. Selecting the cycle pattern ..............................................................................................121
9-3-2. Editing cycle sewing data ............................................................................................... 122
9-3-3. Creating a new cycle pattern ........................................................................................... 123
9-3-4. Setting the step from which cycle sewing pattern is started ....................................... 125
9-4. Custom pitch...........................................................................................................................126
9-4-1. Selecting a custom pitch ................................................................................................. 126
9-4-2. Creating a new custom pitch...........................................................................................128
9-4-3. Custom pitch edit function ..............................................................................................131
9-4-4. Copying/deleting a custom pitch .................................................................................... 132
9-5. Condensation custom pattern...............................................................................................133
9-5-1. Selecting the condensation custom ............................................................................... 133
9-5-2. Creating a new condensation custom ............................................................................ 133
9-5-3. Condensation custom edit function ............................................................................... 136
9-5-4. Copying/deleting a condensation custom ..................................................................... 137
9-6. Simple lock of the screen ......................................................................................................138
9-7. Version information................................................................................................................138
9-8. Adjustment of brightness of the LED panel.........................................................................139
9-9. Information..............................................................................................................................140
9-9-1. Data communication ........................................................................................................ 140
9-9-2. USB ....................................................................................................................................143
9-9-3. NFC ....................................................................................................................................144
9-10. Key customization................................................................................................................145
9-10-1. Assignable data .............................................................................................................. 145
9-10-2. How to assign a function to a key................................................................................. 146
9-11. Maintenance management function....................................................................................148
10. SEWING SPEED TABLE ................................................................................152
11. TROUBLES IN SEWING AND CORRECTIVE MEASURES .......................... 153
– 1 –
Item Application
Model PLC-2710V
Sewing speed Max. 2,500 sti/min
(See "10. SEWING SPEED TABLE" p.152.)
Stitch length Max. 12 mm
Needle SCHMETZ 134×35 (Nm 125 to Nm 200) (Standard : Nm 140)
Applicable thread size for sewing #30 to #0 (US: #46 to #266, Europe: 60/3 to 10/3)
Applicable thread size to be cut #30 to #0 (US: #46 to #266, Europe: 60/3 to 10/3)
Motor AC servo motor
Presser foot pressure control Electronic control
Horizontal feed control Electronic control
Alternate vertical feed control Electronic control
Lubricating oil JUKI New Defrix Oil No. 1 (equivalent to ISO standard VG7)
or JUKI MACHINE OIL No. 7
Number of patterns Sewing pattern ............................99 patterns (For the polygonal shape sewing,
as many as 10 patterns can be registered.)
Cycle sewing pattern ................... 9 patterns
Custom-pitch pattern ...................20 patterns
Condensation custom pattern .....9 patterns
Noise -Equivalent continuous emission sound pressure level (LpA) at the
workstation:
A-weighted value of 83.5 dB; (Includes KpA = 2.5 dB); according to ISO
10821- C.6.2 - ISO 11204 GR2 at 2,500 sti/min.
-Sound power level (LWA);
A-weighted value of 90.5 dB; (Includes KWA = 2.5 dB); according to ISO
10821- C.6.2 - ISO 3744 GR2 at 2,500 sti/min.
1. SPECIFICATIONS
1-1. Specications of the sewing machine head
1-2. Specications of the control box
Supply
voltage
Single phase
100 to 120V
3-phase
200 to 240V
Single phase
220 to 240V
Single phase
220 to 240V CE
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Operating
environment
Temperature : 0 to 35˚C
Humidity : 90% or less
Temperature : 0 to 35˚C
Humidity : 90% or less
Temperature : 0 to 35˚C
Humidity : 90% or less
Temperature : 0 to 35˚C
Humidity : 90% or less
Input 600VA 600VA 600VA 600VA
PLC-2710VS70BBZ
– 2 –
2. INSTALLATION
2-1. Mounting positions of the devices and table
The devices including the oil pan and electrical box are to be mounted to the positions as shown in the gure
below.
Control box
Power switch
Oil pan
Pedal sensor
* Dimensions are the reference values.
Dimension: mm
513
58
94
110
– 3 –
2-2. Installation of the sewing machine
1) Carry the sewing machine with two persons.
In the case of the sewing machine with a thread
trimmer, loosen post cover mounting screws
(three locations) to remove them. Remove post
cover . Then, carry the sewing machine by
holding motor cover .
2) Place the sewing machine on a horizontal and
plane place when placing it and do not place
any protruding thing such as a screwdriver or
the like.
Never hold the handwheel since it rotates.
3) Attaching the hinge seats and the support rub-
bers of the machine head
Fix accessory hinge seat supplied with the
unit on the table with wood screw and wash-
er while placing sheet plate between the
hinge seat and the table as shown in the gure.
Fix machine head support rubbers and on
the table with nails while putting sheets A(stan-
dard: 3 pieces) and sheet B(standard: 1 piece)
under the machine head support rubbers.
Use nail for sheet Band nail for sheets A.
There are two dierent machine head support
rubbers ; i.e., the rubber for the right and that
for the left. Be sure to check the types of the
support rubbers before xing them.
Sheet A (eight pieces) and sheet B (four pieces) are supplied with the machine as accessories.
For the sheet A, three sheets are to be used as standard for each mounting position. For the sheet B,
one sheet is to be used as standard. (The state shown in the left gure)
The sheets A and B are used for adjusting the height of the top surface of the bed. Use one more
sheet to increase the height, or use only one sheet to decrease it.
Be sure to use a short nail for sheet B. If long nail is used, the nail tip can penetrate the table
giving rise to a risk of injury.
25 mm
19 mm
Sheet B
Sheet A
– 4 –
6) Install hinge on the bed with screw . En-
gage the hinge with the rubber hinge of the
table. Then, place the machine head on the
machine head support rubber.
5) Attach a lter to the oil pan as shown in
the gure.
Install lter so that its multi-layered part is
brought to the right side as observed from you.
Multi-layered part
Top surface
4) Attaching the oil pan
Fix the oil pan supplied with the machine on
the table by tightening ten wood screws.
Operator’s side Table
Align
Align
– 5 –
9) Put reux pipe in the oil reservoir of oil
pan . Secure the pipe in groove .
10) Fix lter and lter clamp with tting .
Secure the reux pipe as illustrated in the
gure.
7) Securely attach head support rod to the table until it goes no further.
8) Fix hinge stopper with screws . At this time, be sure to adjust so that the end face of hinge is
spaced 45 mm from the end face of hinge stopper .
45
Chamfered section
Chamfered
section
– 6 –

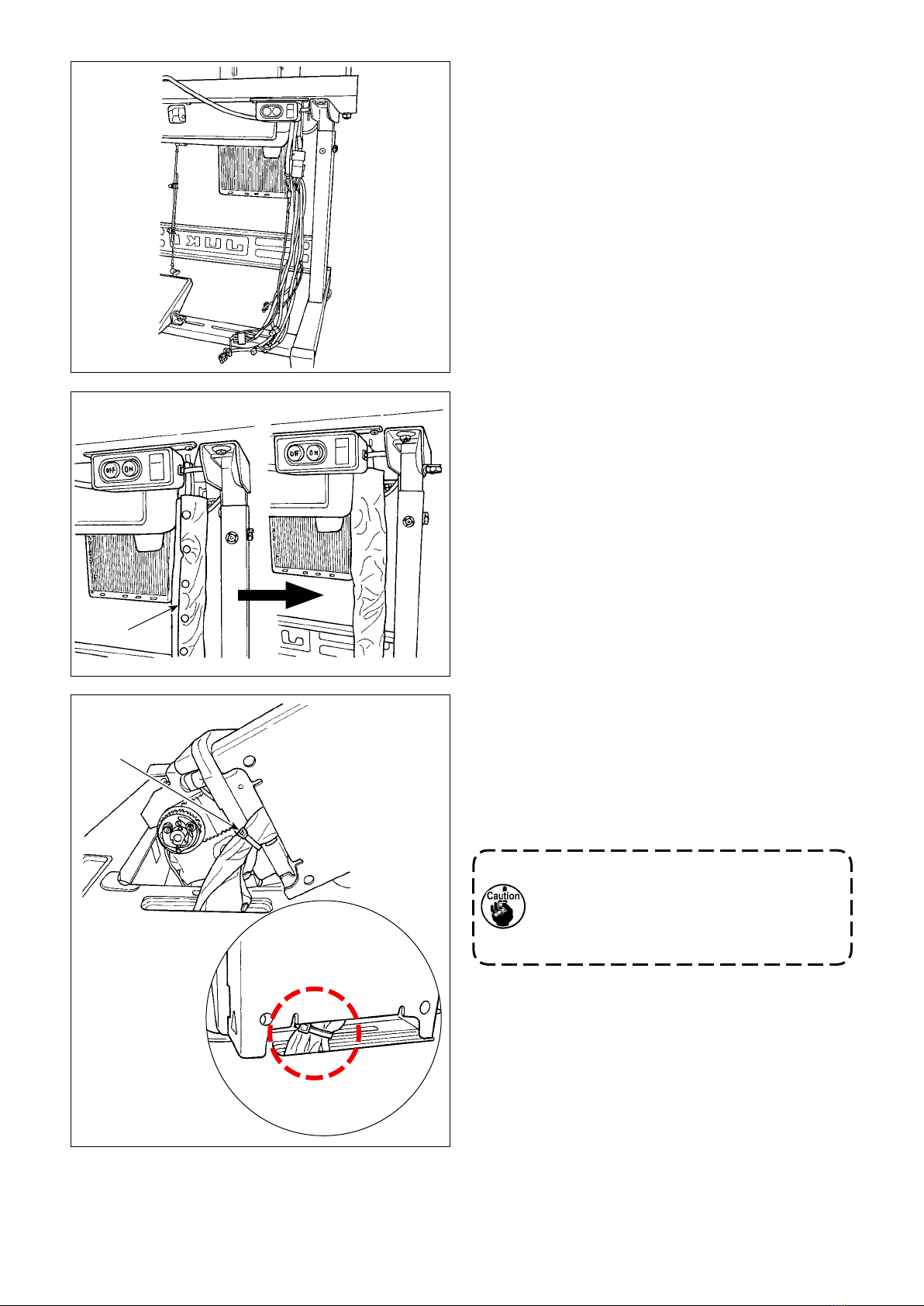

11) Attaching the button tube
Attach the button tube to the cord so as to pre-
vent the cord from coming in contact with the
extension cord connector pin conductive sec-
tion.
Sag the sewing machine cord under the table.
Put button tube (40102736, L = 450 mm)
over the cord.
Position the button tube so that the button of
button tube is brought to the rear side. In order
to prevent the button from slipping o, adjust so
that the button is brought to inside when bend-
ing the cord.
Tilt the machine head. Lift up the button tube
until it enters the machine head cover.
Secure the section between the top and sec-
ond-to-top button with accessory cable clip band
(HX00065000A, L = 200 mm) supplied with
the unit.
Take care not to allow the cable clip band to
enter the table when standing the machine
head as illustrated in the gure, in order to
prevent the band from being caught under
the table.
