Jung FMHS1T Manuale utente
eNet radio hand-held transmitter 1-gang
eNet radio hand-held transmitter 1-gang
Art. no.: FMHS1T
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The radio communication takes place via a non-exclusively available transmission path, and is
therefore not suitable for safety-related applications, such as emergency stop and emergency
call.
These instructions are an integral part of the product, and must remain with the end customer.
2 Battery safety instructions
This device or its accessories are supplied with batteries in the form of button cells.
DANGER! Batteries can be swallowed. This can lead directly to death by suffocation. Danger-
ous substances may cause severe internal burns leading to death within 2 hours.
Keep new and used batteries away from children.
Do not use devices if the battery compartment does not close securely and keep away from
children.
If you suspect that a battery has been swallowed or is in any orifice of the body, seek immediate
medical attention.
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to
leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
3 Device components
Figure1: Radio hand transmitter 1-gang
(1) Status LED
(2) Button
4 Function
Intended use
– Radio hand transmitter for radio transmission of switching, dimming, and blind movement
commands
1 / 6
82582533 20.12.2019
J0082582533
eNet radio hand-held transmitter 1-gang
– Operation with radio actuators from the eNet system
Product characteristics
– A button for switching and dimming a channel
– Status indication with LED
– Battery-powered device
– Signalling of transmission errors can be switched off
Can be set with eNet server:
– Scenes: All On, All Off, individual scenes
– Operation locks
Supplementary functions with eNet Server
– Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
– Update of the device software
– Reading of error memory
5 Operation
When operating with the eNet Server, operation and signalling could vary from what is de-
scribed here.
The radio hand-held transmitter is optimised for switch actuators in push-button operation. But-
ton pressed, push-button actuator switches on, Button released, push-button actuator switches
off.
In addition, the hand-held transmitter can be used in various ways:
– Single-area operation, lighting: Switching lighting on or off or dimming brighter/darker
takes place alternately when the button is pressed repeatedly.
– Single-area operation, Venetian blind: Upward or downward movement takes place altern-
ately when the button is pressed repeatedly.
It may be the case that the button has to be pressed twice, in order to obtain the desired
result.
Function of status LED in operation
As soon as the button is pressed or released, the status LED (1) first signals radio transmission
– LED turns red for 3 seconds
and then the actuator status
– LED turns green for 3 seconds:
At least one actuator is switched on, or one Venetian blind is not in the top end position
– LED remains off:
All the actuators are switched off or the blinds are all in the upper end position
or - if there is no status message from an actuator - a transmission error.
– The LED rapidly flashes red for 5 seconds:
The status message of at least one actuator is missing
Operating light
￭ Switching: Press button for less than 0.4 seconds.
￭ Dimming: Press the button for longer than 0.4 seconds. The dimming process ends when
the button is released.
￭ Switching on at minimum brightness: Press the button for longer than 0.4 seconds.
Operating blind
￭ Moving the Venetian blind: Press the button for longer than 1 second.
Change of direction for moving Venetian blind: Press the button for longer than 1 second.
Change of direction for stationary Venetian blind: First, press the button for less than
1 second, then press the button for longer than 1 second.
2 / 6
82582533 20.12.2019
J0082582533
eNet radio hand-held transmitter 1-gang
￭ Stopping the Venetian blind: Press the button for less than 1 second.
￭ Adjusting the Venetian blind: Press the button for less than 1 second.
If the break between the two button actuations is longer than approx. 1 second, the direc-
tion will change.
Operating push-button actuator
￭ Press the button. The load is switched on for the duration of the button-press.
The maximum actuation length is 60 seconds.
6 Information for electrically skilled persons
DANGER!
Mortal danger of electric shock.
During commissioning, cover the parts carrying voltage on radio transmitters and ac-
tuators and in their surrounding area.
6.1 Commissioning
Inserting the battery
The battery is included.
Obey the battery safety instructions.
￭ Unscrew the battery compartment on the back of the hand-held transmitter. Use a small
flat head screwdriver or Phillips screwdriver PH1 for this.
￭ Keep contacts of batteries and device free of grease.
￭ Apply battery to the positive contact of the battery holder. Observe polarity: the positive
pole of the battery must be at the top.
￭ Press gently on battery to snap it in.
￭ Close and screw the battery compartment with max. 0.3Nm.
Hand-held transmitter is ready for operation.
Connecting to radio actuator

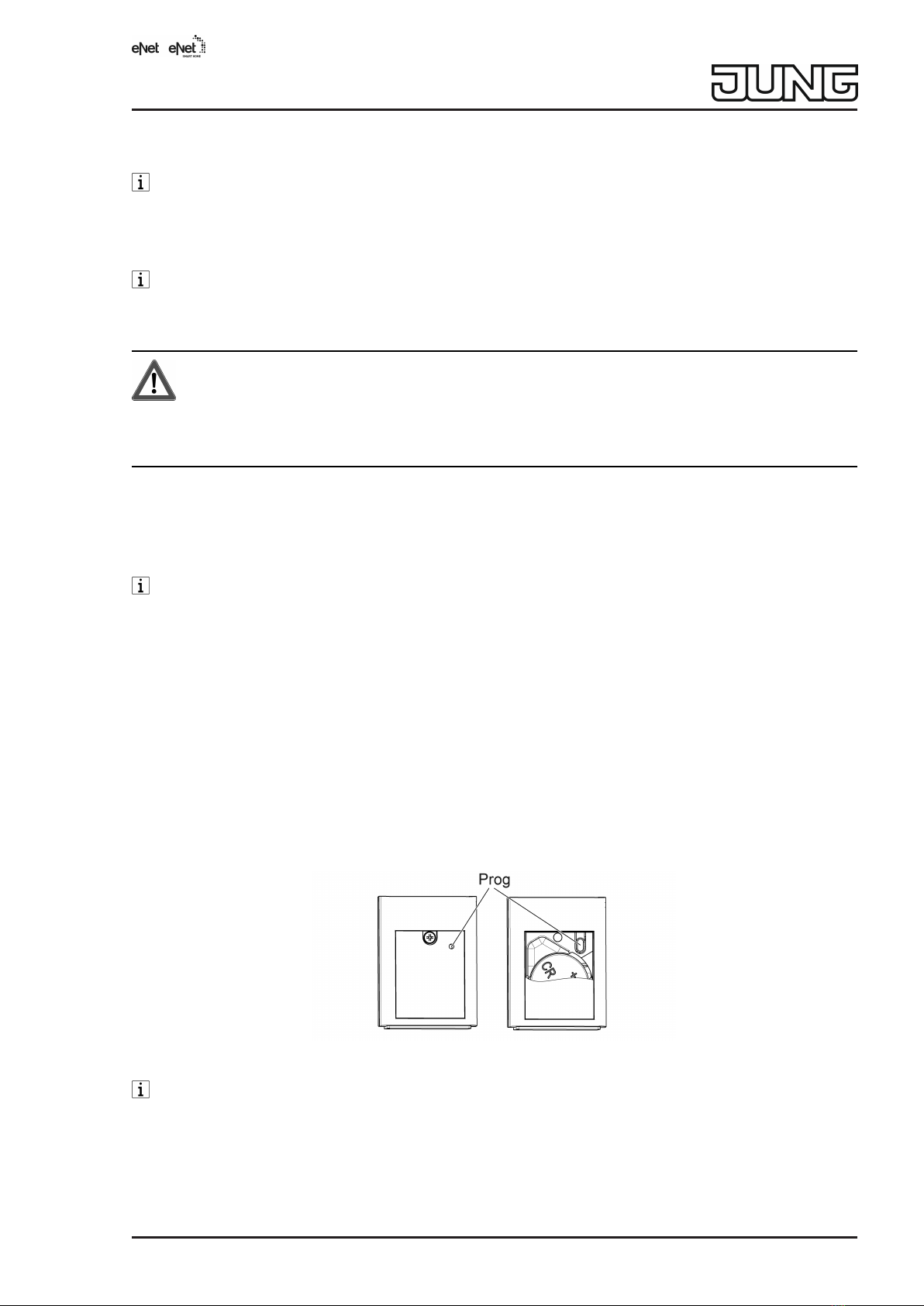

The Prog (Figure 2) button can be pressed with a thin wire or paper clip through the hole in the
battery cover.
Figure2: Button Prog
Up to 10 radio actuators can be connected to a transmitter in a single step.
￭ Switch the actuator to programming mode (see actuator instructions).
￭ Press the Prog (Figure 2) button for longer than 4 seconds.
Status LED (1) flashes red. The hand-held transmitter is in programming mode for approx.
1 minute.
￭ Press button briefly.
3 / 6
82582533 20.12.2019
J0082582533
eNet radio hand-held transmitter 1-gang
The status LED lights up for approx. 5 seconds, and the hand-held transmitter is connec-
ted to the actuator. The hand-held transmitter and actuator exit the programming mode
automatically.
If the status LED of the radio transmitter flashes 3 times at 1-second intervals for approx.
5 seconds, then the programming operation was not successful. The actuator is outside
radio range, not in programming mode or there are radio faults.
If the status LED of the actuator flashes 3 times at 1-second intervals for approx.
5 seconds, then the programming operation was not successful. All the memory locations
in the actuator or radio transmitter are occupied.
Press the Prog button once again for longer than 4 seconds to terminate the programming
mode earlier.
Disconnecting connection to an actuator
￭ Carry out the same steps as when connecting (see the chapter Connecting to radio actu-
ator).
The status LED of the actuator flashes quickly for 5 seconds. The actuator is disconnec-
ted from the radio transmitter. The actuator and radio transmitter exit the programming
mode automatically.
Reset button
All connections of the button (2) to the actuators are disconnected and parameters are reset to
default setting.
The connections in the actuators are preserved and must be deleted separately.
￭ Press the Prog button for longer than 20 seconds.
The status LED (1) flashes red after 4 seconds. The status LED flashes faster after
20 seconds.
￭ Release the Prog button and press the button (2) briefly once again within 10 seconds.
The status LED flashes more slowly for approx. 5 seconds.
The button (2) is reset. The setting as channel button or scene button is retained.
Resetting the hand-held transmitter to the default setting
All connections to actuators are disconnected and parameters are reset to default setting.
The connections in the actuators are preserved and must be deleted separately.
￭ Press the Prog button for longer than 20 seconds.
The status LED (1) flashes red after 4 seconds. The status LED flashes faster after
20 seconds.
￭ Release the Prog button and press the Prog button briefly once again within 10 seconds.
The status LED flashes more slowly for approx. 5 seconds.
The hand-held transmitter is reset to default setting. Button (2) is set as channel button.
7 Disposal of batteries
Remove empty batteries immediately and dispose of in an environmentally friendly
manner. Do not throw batteries into household waste. Consult your local authorities
about environmentally friendly disposal. According to statutory provisions, the end
consumer is obligated to return used batteries.
8 Technical data
Rated voltage DC 3 V
Battery type 1×Lithium CR 2450N
Ambient temperature -5 ... +45 °C
4 / 6
82582533 20.12.2019
J0082582533
eNet radio hand-held transmitter 1-gang
Degree of protection IP20
Dimensions L×W×H 55×40.5×15 mm
Radio frequency 868.0 ... 868.6 MHz
Transmission capacity max. 20 mW
Transmitting range in free field typ. 100 m
Receiver category 2
9 Parameter list
The device parameters can be changed with the eNet server:
Device configuration
Parameter name Setting options, Basic setting Explanations
Function Button, Other modes, Unused
Basic setting: Button
Button
The channel works as a chan-
nel button.
Other modes
The channel works as a scene
button.
Unused
The channel is not displayed
in the eNet SMART HOME
app and is disabled for use in
the commissioning interface.
Operating mode App use, lock-out protection,
forced operation, wind alarm,
sun protection, twilight
Basic setting: App use
Setting the type of scene used
for a scene button.
Advanced device settings
Parameter name Setting options, Basic setting Explanations
Manual commissioning On, Off
Basic setting: On
Disables manual commission-
ing for all device channels.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Extended channel settings
Parameter name Setting options, Basic setting Explanations
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Local Operation On, Off
Basic setting: On
Blocks the device channel for
local operation.
10 Troubleshooting
After a button has been pressed, the status LED flashes red slowly for 3 seconds.
Cause: Battery in the hand-held transmitter is almost empty.
5 / 6
82582533 20.12.2019
J0082582533
eNet radio hand-held transmitter 1-gang
Changing the battery (see chapter Commissioning – Inserting the battery).
Receiver does not react, status LED displays a transmission error. Status LED flashes red
quickly for 3 seconds.
Cause 1: Radio range exceeded. Structural obstacles reduce the range.
Using a radio repeater.
Cause 2: Actuator is not ready for operation.
Check the actuator and mains voltage.
Cause 3: There are radio faults, e.g. through outside radio.
Eliminate radio interference.
The actuator causing the transmission error can be removed from the display of transmis-
sion errors. To do this, briefly press the Prog button of the hand-held transmitter during
signalling. The actuator is automatically taken into account again when it transmits a
status message after radio transmission.
After a button has been pressed, the status LED flashes red quickly for 3 seconds.
Cause: Maximum permitted transmission period (statutory Duty Cycle Limit) has almost been
reached. For the function of the transmitter to continue, the polling and display of the sum status
will be switched off. As soon as sufficient transmission time is available again, the sum status
will again be polled on button actuation.
Actuate the transmitter again after a short waiting time, normally a few seconds.
Reduce the number of actuations.
Reduce the number of actuators connected to the transmitter.
11 Conformity
Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. FMHS1T
meets the directive 2014/53/EU. You can find the full article number on the device. The com-
plete text of the EU Declaration of Conformity is available under the Internet address:
www.jung.de/ce
12 Warranty
The warranty is provided in accordance with statutory requirements via the specialist trade.
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
www.jung.de
6 / 6
82582533 20.12.2019
J0082582533
Indice
Altri manuali Jung Telecomando
