Juniper ACX2000 Manuale utente

ACX2000 and ACX2100 Universal Metro

Routers Quick Start

January 2015

Part Number: 530-062128

Revision 01

This document describes how to install the Juniper Networks®ACX2000 and ACX2100 Universal Metro

Router.

Contents ACX2000 and ACX2100 Quick Start Description | 3

Step 1: Prepare the Site for Installation | 6

Step 2: Install the Router | 8

Tools Required to Install the Router in a Rack | 8

Install the Mounting Brackets | 8

Install the ACX Series Router in the Rack | 9

Step 3: Ground the ACX2000 and ACX2100 Router | 11

Tools Required to Ground the ACX Router | 11

Connect the Grounding Cable | 11

Step 4: Connect External Devices and Cables | 14

Tools Required to Connect External Devices and Cables | 14

Connect the ACX Series Router to a Network for Out-of-Band Management | 14

Connect the ACX Series Router to a Management Console or Auxiliary Device | 15

Connect Network Interface Cables to the ACX Series Router | 15

Step 5: Connect Power to the ACX Series Router | 17

Connect AC Power to an AC-Powered ACX2100 Series Router | 17

Connect DC Power to a DC-Powered ACX2000 or ACX2100 Router | 18

Step 6: Perform Initial Software Configuration | 21

Enter Configuration Mode | 21

Configure User Accounts and Passwords | 22

Configure System Attributes | 22

Commit the Configuration | 23

Safety Warnings | 25

Compliance Statements for NEBS | 26

Compliance Statements for EMC Requirements | 27

Canada | 27

European Community | 27

Israel | 27

Japan | 28

United States | 28

Junos OS Documentation and Release Notes | 29

Requesting Technical Support | 29

Self-Help Online Tools and Resources | 29

Creating a Service Request with JTAC | 30

Revision History | 30

ACX2000 and ACX2100 Quick Start Description

This Quick Start contains information you need to install and configure the router quickly. For complete

installation instructions, see the ACX2000 and ACX2100 Universal Access Routers Hardware Guide at

https://www.juniper.net/documentation/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety Warnings”

on page 25. For a complete list of warnings for this router, including translations, see the

ACX2000 and ACX2100 Universal Access Routers Hardware Guide at

https://www.juniper.net/documentation/.

The ACX Universal Metro Routers are Ethernet-optimized mobile backhaul routers that provide both

switching and carrier-class Ethernet routing. The ACX Series routers enable a wide range of business and

residential applications and services, including microwave cell site aggregation, MSO mobile backhaul

service cell site deployment, and service provider or operator cell site deployment. The ACX2000 routers

have high-density Ethernet interfaces and high-capacity switching throughput.

The routers are single-board routers with a built-in Routing Engine and one Packet Forwarding Engine.

The Packet Forwarding Engine has one “pseudo” Flexible PIC Concentrator (FPC 0). Because there is no

switching fabric, the single Packet Forwarding Engine takes care of packet forwarding.

The compact routers are one rack unit (U; that is, 1.75 in., or 4.45 cm) tall. Several routers can be stacked

in a single floor-to-ceiling rack for increased port density per unit of floor space.

The ACX2000 router contains sixteen T1/E1 ports and eight copper Gigabit Ethernet ports. The ACX2000

router also contains two ports for installing Gigabit Ethernet SFP and two ports for installing 10-Gigabit

Ethernet SFP+ transceivers.

The ACX2100 router contains sixteen T1/E1 ports, and four copper Gigabit Ethernet ports. The ACX2100

router also contains two ports for installing Gigabit Ethernet SFP transceivers and two ports for installing

10-Gigabit Ethernet SFP+ transceivers. The ports labeled COMBO PORTS provide an additional four

copper Gigabit Ethernet ports or four Gigabit Ethernet SFP ports. You can only use one set of combination

ports at a time.

Figure 1 on page 4 shows the front panel of the ACX2000 router. Figure 2 on page 4 and

Figure 3 on page 5 show the front panel of the AC-powered and DC-powered ACX2100 routers.

Figure 1: Front Panel of the ACX2000 Router

ACX2000

MGMT

SYS 0 1

CONSOLE/AUX

ALARM

1PPS 10MHz

IN OUT IN OUT

T1/E1

0/0/4

0/0/12

0/0/5

0/0/13

0/0/6

0/0/14

0/0/7

0/0/15

0/0/0

0/0/8

0/0/1

0/0/9

0/0/2

0/0/10

0/0/3

0/0/11

0/1/0

0/1/4

0/1/1

0/1/5

0/1/2

0/1/6

0/1/3 POE

0/1/7 POE

0/2/0 0/2/1 0/3/0 0/3/1

g006412

EXT REF CLK IN

GE XE

1 2 3 4

1014

1112

8—1—Ten-Gigabit Ethernet SFP+ portsDC terminals

9—2—Gigabit Ethernet SFP portsManagement Ethernet port

10—3—1-PPS and 10-Mhz GPS input and outputConsole or auxiliary port

11—4—External reference clocking portAlarm input and output contacts

12—5—USB portsT1/E1 and RJ-45 Gigabit Ethernet network ports

13—6—System LEDPoE Gigabit Ethernet ports

14—7—Grounding terminalsESD point

Figure 2: Front Panel of the AC-Powered ACX2100 Router

g017846

ACX2100

MGMT CONSOLE/AUX

SYS 0 1 EXT REF CLK IN

ALARM

OUTIN IN OUT

0/0/8

0/0/0

0/0/9

0/0/1

0/0/10

0/0/2

0/0/11

0/0/3

0/0/12

0/0/4

0/0/13

0/0/5 0/0/6

0/0/14

0/0/7

0/0/15

1/0/0

1/0/2

1/0/1 1/1/11/1/0

1/0/3 1/1/2

1/1/3

COMBO PORTS XE

1/3/0 1/3/1

T1/E1

1PPS 10MHz

1/1/0 1/1/1 1/2/0

1/1/2 1/1/3 1/2/1

1215

1 2

14 13

9—1—Ten-Gigabit Ethernet SFP+ portsAC inlets

10—2—Gigabit Ethernet SFP portsManagement Ethernet port

11—3—Combination Gigabit Ethernet SFP portsConsole or auxiliary port

12—4—1-PPS and 10-Mhz GPS input and outputAlarm input and output contacts

13—5—External reference clocking portT1/E1 network ports

14—6—USB portsGigabit Ethernet network ports

15—7—System LEDCombination Gigabit Ethernet RJ-45 ports

8—ESD point

Figure 3: Front Panel of the DC-Powered ACX2100 Router

g017845

ACX2100

MGMT CONSOLE/AUX

SYS 0 1 EXT REF CLK IN

ALARM

OUTIN IN OUT

0/0/8

0/0/0

0/0/9

0/0/1

0/0/10

0/0/2

0/0/11

0/0/3

0/0/12

0/0/4

0/0/13

0/0/5 0/0/6

0/0/14

0/0/7

0/0/15

1/0/0

1/0/2

1/0/1 1/1/11/1/0

1/0/3 1/1/2

1/1/3

COMBO PORTS XE

1/3/0 1/3/1

T1/E1

1PPS 10MHz

1/1/0 1/1/1 1/2/0

1/1/2 1/1/3 1/2/1

12 10

1 2

1114

3 76

16 15

9—1—Ten-Gigabit Ethernet SFP+ portsDC terminals

10—2—Gigabit Ethernet SFP portsManagement Ethernet port

11—3—Combination Gigabit Ethernet SFP portsConsole or auxiliary port

12—4—1-PPS and 10-Mhz GPS input and outputAlarm input and output contacts

13—5—External reference clocking portT1/E1 network ports

14—6—USB portsGigabit Ethernet network ports

15—7—System LEDCombination Gigabit Ethernet RJ-45 ports

16—8—Grounding terminalsESD point

Step 1: Prepare the Site for Installation

Prepare your site for installation by observing the following guidelines:

•You can install the router in a four-post rack or cabinet or an open-frame rack.

•The rack rails must be spaced widely enough to accommodate the chassis's external dimensions: 1.7 in.

(4.4 cm) high, 9.4 in. (24 cm) deep, and 17.5 in. (44 cm) wide. The outer edges of the mounting brackets

extend the width to 19.2 in. (48.7 cm).

•One person must be available to lift the router while another secures the router to the rack.

•The rack must be strong enough to support the weight of the fully configured router, up to 7 lb (3.2 kg).

•For service personnel to remove and install hardware components, allow at least 2.16 in. (5.5 cm) in

front of the router.

•The rack or cabinet must have an adequate supply of cooling air.

•Ensure that the cabinet allows the chassis hot exhaust air to exit from the cabinet without recirculating

into the router.

•When deploying the router in environments where the router may operate between 131° F (55° C) and

149° F (65° C), allow a 1 rack unit (U) gap above and below the router.

•When installing the router in a cabinet, ensure that the bottom of the cabinet is closed and there is no

opening.

•You must install the router into a rack that is secured to the building structure.

•Mount the router at the bottom of the rack if it is the only unit in the rack.

•When mounting the router in a partially filled rack, load the rack from the bottom to the top, with the

heaviest component at the bottom of the rack.

•Install the router only in restricted areas, such as dedicated equipment rooms and equipment closets, in

accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code, ANSI/NFPA 70.

Figure 4: ACX Series Rack Clearance and Chassis Dimensions

RearFront 17.5"

(44.5 cm)

9.4"

(24 cm)

g006404

Front-mounting flange

19.2"

(48.7 cm)

2.16" (5.5 cm)

clearance required

for the cables

.75" (2 cm)

clearance required

for free airflow

3" (7.6 cm)

Step 2: Install the Router

IN THIS SECTION

Tools Required to Install the Router in a Rack | 8

Install the Mounting Brackets | 8

Install the ACX Series Router in the Rack | 9

Tools Required to Install the Router in a Rack

To install the router in a rack, you need the following tools:

•Phillips (+) screwdriver, number 2

•ESD grounding wrist strap

Install the Mounting Brackets

Two mounting brackets for front or rear mounting ship with the router (see Figure 5 on page 9 and

Figure 6 on page 9).

Attach both mounting brackets to either the front or rear of the chassis:

1. Align the bracket with the two sets of mounting holes.

2. Insert the four screws at the top and bottom of the bracket and tighten each partially.

3. Tighten the four screws completely.

4. Repeat the procedure for the other bracket.

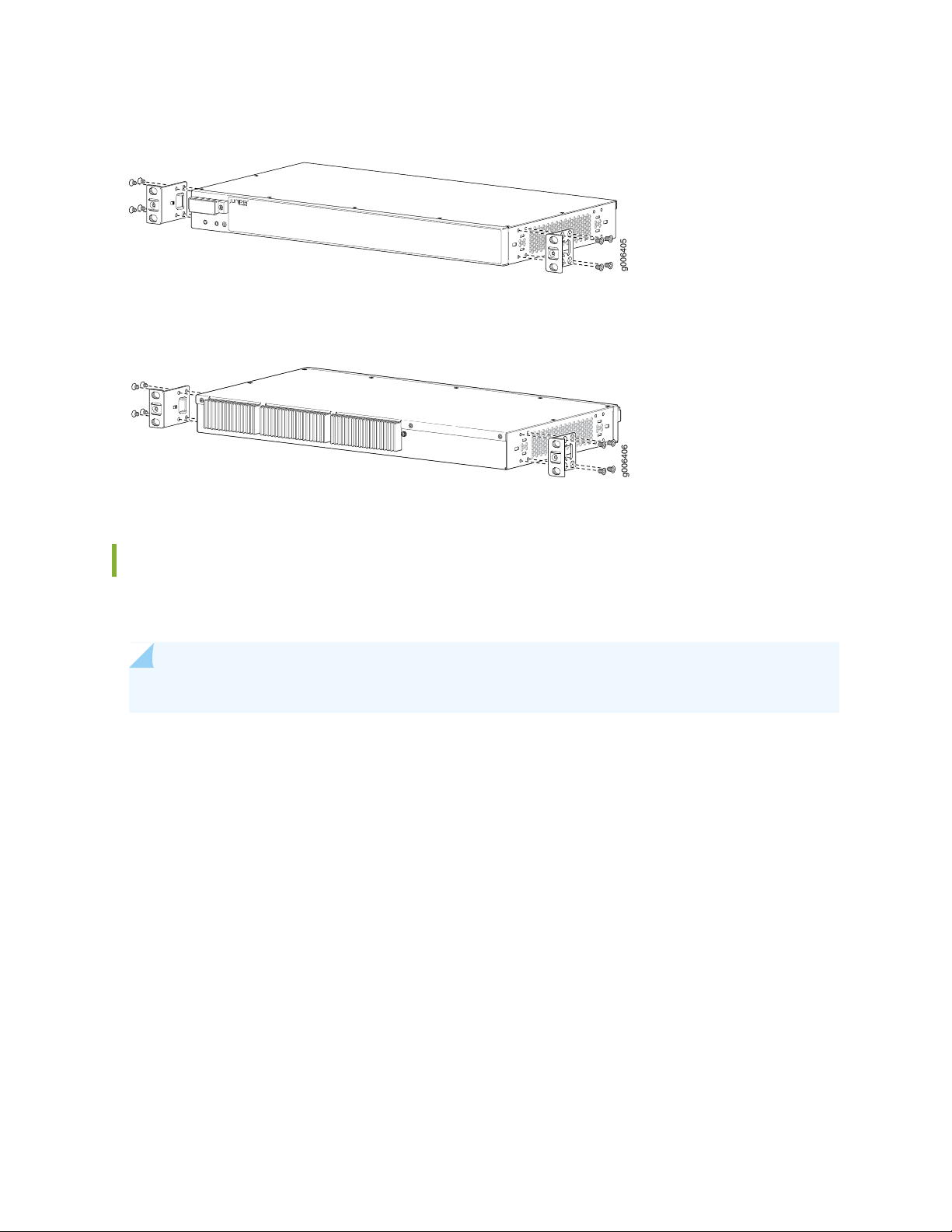

Figure 5: Installing the Mounting Brackets to the Front of the ACX Series Router

g006405

Figure 6: Installing the Mounting Brackets to the Rear of the ACX Series Router

g006406

Install the ACX Series Router in the Rack

The router can be installed horizontally in a rack or cabinet.

NOTE: For additional installation options, contact JTAC.

One person must be available to lift the router while another secures the router to the rack. The chassis

weighs approximately 7 lb (3.2 kg). To install the chassis (see Figure 7 on page 10):

1. Ensure that the rack is in its permanent location and is secured to the building. Ensure that the installation

site allows adequate clearance for both airflow and maintenance.

2. Position the router in front of the rack or cabinet.

3. Have one person grasp both sides of the router, lift the router, and position it in the rack, aligning the

mounting bracket holes with the threaded holes in the rack rails. Make sure the chassis is level.

4. Have the second person install a mounting screw into each of the open mounting holes aligned with

the rack, starting from the bottom.

5. Visually inspect the alignment of the router. If the router is installed properly in the rack, all the mounting

screws on one side of the rack should be aligned with the mounting screws on the opposite side, and

the router should be level.

Figure 7: Installing the Front-Mounted Router in the Rack

g006407

Mounting rack

Mounting bracket

Altri manuali per ACX2000

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Juniper Router di rete

Juniper

Juniper M320 Manuale utente

Juniper

Juniper JUNOS J Series Manuale utente

Juniper

Juniper MX5 Manuale utente

Juniper

Juniper MX2020 Istruzioni per l'installazione

Juniper

Juniper CTP2000 Series Manuale dell'operatore

Juniper

Juniper Day One+ ACX7024 Manuale utente

Juniper

Juniper MX2020 Istruzioni per l'installazione

Juniper

Juniper 6rd Manuale utente

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS 11.3.X - ERX MODULE GUIDE REV... Manuale utente

Juniper

Juniper ACX1000 Istruzioni per l'installazione

Juniper

Juniper T320 Manuale utente

Juniper

Juniper MX240 Manuale utente

Juniper

Juniper EX2500 Manuale utente

Juniper

Juniper Day One+ Manuale utente

Juniper

Juniper ERX - RELEASE 11.1.X MODULE GUIDE 4-6-2010 Manuale utente

Juniper

Juniper M5 Manuale operativo e di manutenzione

Juniper

Juniper PTX10002-60C Manuale utente

Juniper

Juniper Day One+ ACX7509 Manuale utente

Juniper

Juniper J2300 Manuale utente

Juniper

Juniper M10i Manuale utente

Juniper

Juniper MX480 Manuale utente

Juniper

Juniper J4350 Manuale utente

Juniper

Juniper V10000 Manuale utente

Juniper

Juniper J4350 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
