Juniper ACX2000 Manuale utente

ACX2000 Universal Access Routers

Quick Start

June 2012

Part Number: 530-042107

Revision 01

This document describes how to install the Juniper Networks ACX2000 Universal Access

Router.

Contents ACX2000QuickStartDescription.......................................3

Step 1: Prepare the Site for ACX2000 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Step2:InstalltheRouter..............................................6

Tools Required to Install the Router in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . 6

InstalltheMountingBrackets.......................................6

Install the ACX2000 Router in the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Step3:GroundtheACX2000Router....................................8

Tools Required to Ground the ACX2000 Router . . . . . . . . . . . . . . . . . . . . . . . . 8

ConnecttheGroundingCable......................................8

Step 4: Connect External Devices and Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tools Required to Connect External Devices and Cables . . . . . . . . . . . . . . . . . 10

Connect the ACX2000 Router to a Network for Out-of-Band

Management ...............................................10

Connect the ACX2000 Gateway to a Management Console or Auxiliary

Device......................................................11

Connect Network Interface Cables to the ACX2000 Router . . . . . . . . . . . . . . 11

Step 5: Connect Power to the ACX2000 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Tools Required to Connect Power to the ACX2000 Router . . . . . . . . . . . . . . . 12

ConnectPowerCables............................................12

Step 6: Perform Initial Software Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

EnterConfigurationMode.........................................15

Configure User Accounts and Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ConfigureSystemAttributes.......................................16

CommittheConfiguration.........................................16

SafetyWarnings....................................................18

ComplianceStatementsforNEBS......................................19

Compliance Statements for EMC Requirements for the ACX2000 Router . . . . . . 19

Canada........................................................19

EuropeanCommunity............................................19

DeclarationofConformity.........................................19

Junos OS Documentation and Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

RequestingTechnicalSupport.........................................21

Self-Help Online Tools and Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

OpeningaCasewithJTAC........................................22

Revision History ....................................................22

ACX2000 Universal Access Routers Quick Start

ACX2000 Quick Start Description

This Quick Start contains information you need to install and configure the router quickly.

For complete installation instructions, see the ACX2000 Universal Access Routers Hardware

Guide at http://www.juniper.net/techpubs/.

WARNING: This Quick Start contains a summary of safety warnings in “Safety

Warnings” on page 18. For a complete list of warnings for this router, including

translations, see the ACX2000 Universal Access Routers Hardware Guide at

http://www.juniper.net/techpubs/.

The ACX2000 Universal Access Router is an Ethernet-optimized mobile backhaul router

that provides both switching and carrier-class Ethernet routing. The ACX2000 router

enables a wide range of business and residential applications and services, including

microwave cell site aggregation, MSO mobile backhaul service cell site deployment, and

service provider or operator cell site deployment. The ACX2000 router has high-density

Ethernet interfaces and high-capacity switching throughput.

The ACX2000 router is a single-board router with a built-in Routing Engine and one

Packet Forwarding Engine. The Packet Forwarding Engine has one “pseudo” Flexible PIC

Concentrator (FPC 0). Because there is no switching fabric, the single Packet Forwarding

Engine takes care of both ingress and egress packet forwarding.

The ACX2000 router is a compact gateway router that is one rack unit (U) tall. Several

gateway routers can be stacked in a single floor-to-ceiling rack for increased port density

per unit of floor space.

The ACX2000 router contains 16 T1 and E1 ports, 6 Gigabit Ethernet ports, and 2 PoE

ports. The ACX2000 router also supports installation of two Gigabit Ethernet SFP

transceivers and two 10-Gigabit Ethernet SFP+ transceivers.

ACX2000 Quick Start Description

Step 1: Prepare the Site for ACX2000 Installation

Prepare your site for ACX2000 installation by observing the following guidelines:

•You can install the gateway in a four-post rack or cabinet or an open-frame rack.

•The rack rails must be spaced widely enough to accommodate the chassis's external

dimensions: 1.7 in. (4.4 cm) high, 9.4 in. (24 cm) deep, and 17.5 in. (44 cm) wide. The

outer edges of the mounting brackets extend the width to 19.2 in. (48.7 cm).

•Two people are required to install the ACX2000 router. The rack must be strong enough

to support the weight of the fully configured router, up to 7 lb (3.2 kg).

•For service personnel to remove and install hardware components, allow at least

2.16 in. (5.5 cm) in front of the router.

•The rack or cabinet must have an adequate supply of cooling air.

•Ensure that the cabinet allows the chassis hot exhaust air to exit from the cabinet

without recirculating into the router.

•When deploying the router in environments where the router may operate between

131° F (55° C) and 149° F (65° C), allow a 1 rack unit (U) gap above and below the

router.

•When installing the router in a cabinet, ensure that the bottom of the cabinet is closed

and there is no opening.

•The router must be installed into a rack that is secured to the building structure.

•Mount the router at the bottom of the rack if it is the only unit in the rack.

•When mounting the router in a partially filled rack, load the rack from the bottom to

the top with the heaviest component at the bottom of the rack.

•Install the router only in restricted areas, such as dedicated equipment rooms and

equipment closets, in accordance with Articles 110-16, 110-17, and 110-18 of the National

Electrical Code, ANSI/NFPA 70.

ACX2000 Universal Access Routers Quick Start

Figure 1: ACX2000 Rack Clearance and Chassis Dimensions

RearFront 17.5"

(44.5 cm)

9.4"

(24 cm)

g006404

Front-mounting flange

19.2"

(48.7 cm)

2.16" (5.5 cm)

clearance required

for the cables

.75" (2 cm)

clearance required

for free airflow

3" (7.6 cm)

Step 1: Prepare the Site for ACX2000 Installation

Step 2: Install the Router

•Tools Required to Install the Router in a Rack on page 6

•Install the Mounting Brackets on page 6

•Install the ACX2000 Router in the Rack on page 7

Tools Required to Install the Router in a Rack

To install the router in a rack, you need the following tools:

•Phillips (+) screwdriver, number 2

•ESD grounding wrist strap

Install the Mounting Brackets

Two mounting brackets for front or rear mounting ship with the router (see

Figure 2 on page 6 and Figure 3 on page 6).

Attach both mounting brackets to either the front or rear of the chassis:

1. Align the bracket with the two sets of mounting holes.

2. Insert the four screws at the top and bottom of the bracket and tighten each partially.

3. Tighten the four screws completely.

4. Repeat the procedure for the other bracket.

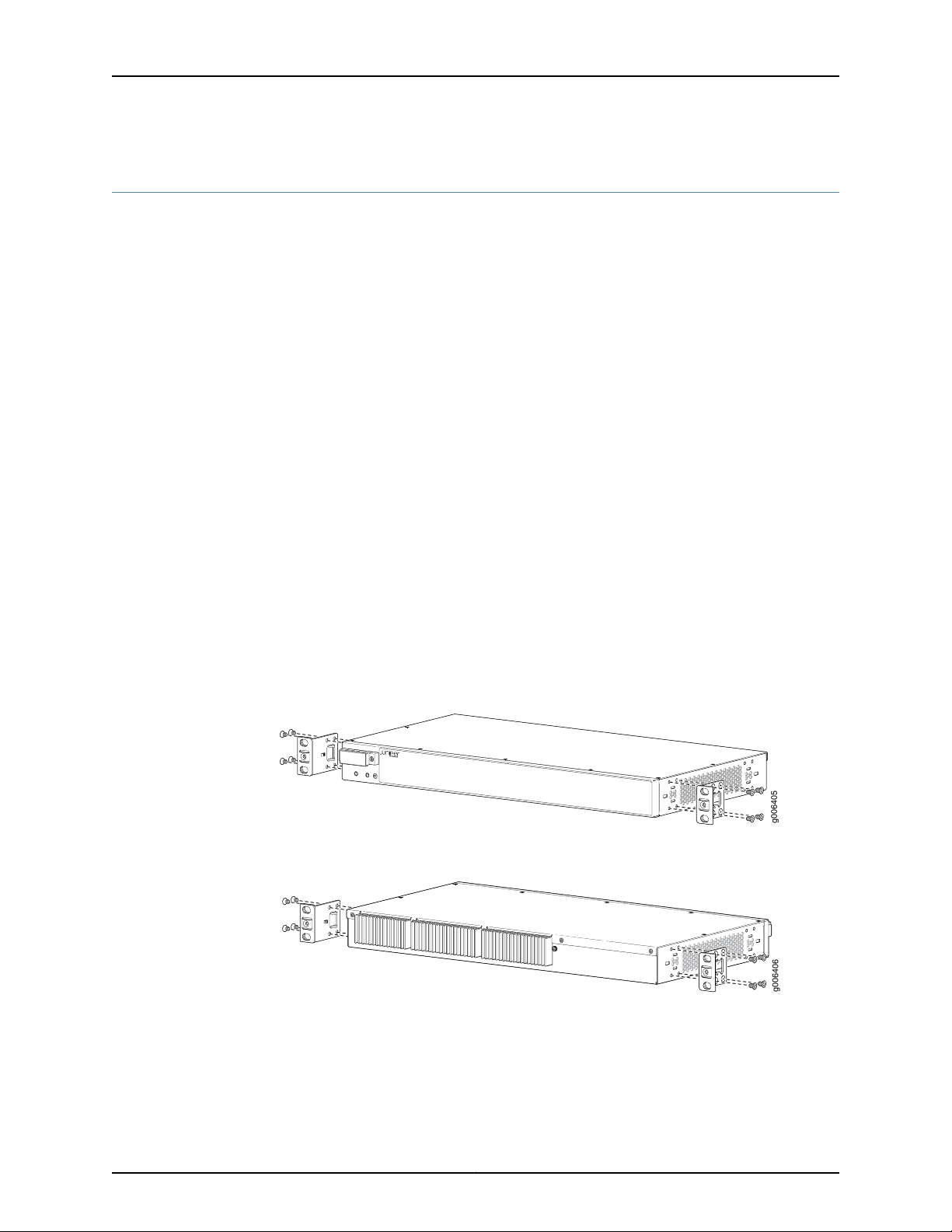

Figure 2: Install the Mounting Brackets to the Front of the ACX2000 Router

g006405

Figure 3: Install the Mounting Brackets to the Rear of the ACX2000 Router

g006406

ACX2000 Universal Access Routers Quick Start

Install the ACX2000 Router in the Rack

The router can be installed horizontally in a rack or cabinet.

NOTE: For additional installation options, contact JTAC.

Two people are required to install the ACX2000 router. The chassis weighs approximately

7 lb (3.2 kg). To install the chassis (see Figure 4 on page 7):

1. Ensure that the rack is in its permanent location and is secured to the building. Ensure

that the installation site allows adequate clearance for both airflow and maintenance.

2. Position the router in front of the rack or cabinet.

3. Have one person grasp both sides of the router, lift the router, and position it in the

rack, aligning the mounting bracket holes with the threaded holes in the rack rails.

Make sure the chassis is level.

4. Have the second person install a mounting screw into each of the open mounting

holes aligned with the rack, starting from the bottom.

5. Visually inspect the alignment of the router. If the router is installed properly in the

rack, all the mounting screws on one side of the rack should be aligned with the

mounting screws on the opposite side and the router should be level.

Figure 4: Install the Front-Mounted Router in the Rack

g006407

Mounting rack

Mounting bracket

2—1— Front-mounted routerTwo-post rack

Install the ACX2000 Router in the Rack

Step 3: Ground the ACX2000 Router

You must ground the router before connecting power.

•Tools Required to Ground the ACX2000 Router on page 8

•Connect the Grounding Cable on page 8

Tools Required to Ground the ACX2000 Router

To ground the router, you need the following tools:

•Phillips (+) screwdriver, number 2

•ESD grounding wrist strap

•Two SAE 10-32 screws and flat washers (not provided)

•Grounding lug, Panduit LCD6-14BH-L or equivalent (not provided)

•Grounding cable, minimum 16 AWG (1.31 mm2) 90° C wire (not provided) for AC systems

Connect the Grounding Cable

You ground the router by connecting a grounding cable to earth ground and then attaching

it to the chassis grounding points. To ground the router:

1. Verify that a licensed electrician has attached the cable lug provided with the router

to the grounding cable.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect

the strap to an approved site ESD grounding point. See the instructions for your site.

3. Ensure that all grounding surfaces are clean and brought to a bright finish before

grounding connections are made.

4. Connect the grounding cable to a proper earth ground.

5. Detach the ESD grounding strap from the site ESD grounding point.

6. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the

ESD points on the chassis.

7. Place the grounding cable lug over the grounding points on the front of the chassis

(see Figure 5 on page 9).

8. Secure the grounding cable lug with the washers and screws. The holes are sized for

SAE 10-32 screws.

9. Dress the grounding cable and verify that it does not touch or block access to router

components, and that it does not drape where people could trip on it.

ACX2000 Universal Access Routers Quick Start

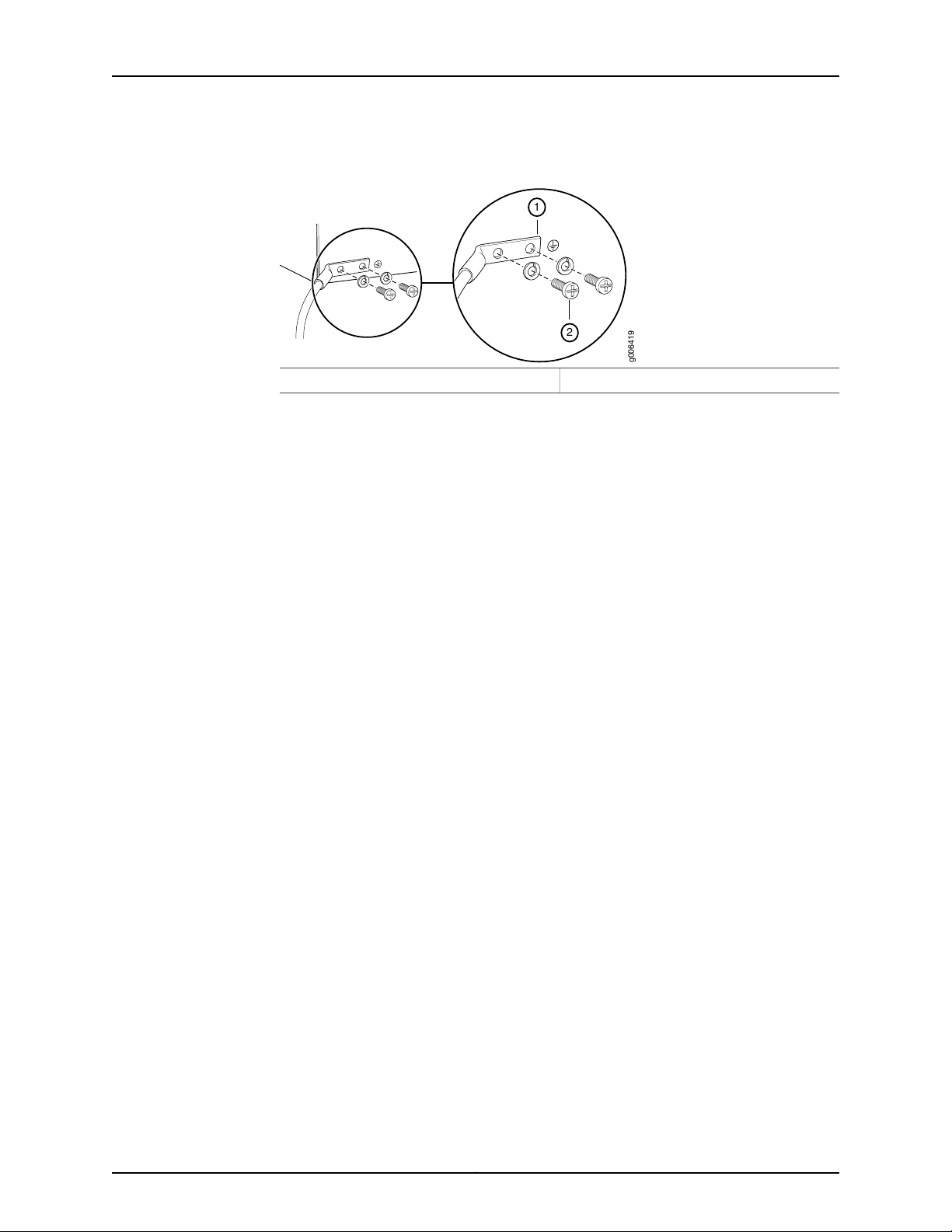

Figure 5: Grounding Points on the ACX2000 Router

g006419

2—1— SAE 10-32 screw and washerGrounding lug

Connect the Grounding Cable

Step 4: Connect External Devices and Cables

Figure 6: Ethernet Cable Connector

Figure 7: Front Panel of the ACX2000 Router

ACX2000

MGMT

SYS 0 1

CONSOLE/AUX

ALARM

1PPS 10MHz

IN OUT IN OUT

T1/E1

0/0/4

0/0/12

0/0/5

0/0/13

0/0/6

0/0/14

0/0/7

0/0/15

0/0/0

0/0/8

0/0/1

0/0/9

0/0/2

0/0/10

0/0/3

0/0/11

0/1/0

0/1/4

0/1/1

0/1/5

0/1/2

0/1/6

0/1/3 POE

0/1/7 POE

0/2/0 0/2/1 0/3/0 0/3/1

g006412

EXT REF CLK IN

GE XE

1 2 3 4

1014

1112

8—1— 10-Gigabit Ethernet SFP+ portsDC terminal

9—2— Gigabit Ethernet SFP portsManagement Ethernet port

10—3— External clocking portsConsole or auxiliary port

11—4— External clocking input portAlarm contact port

12—5— USB portsT1/E1 and RJ45 Gigabit Ethernet network

ports

13—6— System LEDPoE Gigabit Ethernet ports

14—7— Grounding terminalESD point

•Tools Required to Connect External Devices and Cables on page 10

•Connect the ACX2000 Router to a Network for Out-of-Band Management on page 10

•Connect the ACX2000 Gateway to a Management Console or Auxiliary

Device on page 11

•Connect Network Interface Cables to the ACX2000 Router on page 11

Tools Required to Connect External Devices and Cables

To connect external devices and cables to the router, you need the following tools:

•Ethernet cable with an RJ-45 connector attached (provided)

•RJ-45 to DB-9 serial port adapter (provided)

•Management host, such as a PC, with an Ethernet port (not provided)

Connect the ACX2000 Router to a Network for Out-of-Band Management

1. Turn off the power to the management device.

2. Plug one end of the Ethernet cable (Figure 6 on page 10 shows the connector) into

the MGMT port on the front of the chassis. Figure 7 on page 10 shows the port.

ACX2000 Universal Access Routers Quick Start

Altri manuali per ACX2000

Indice

Altri manuali Juniper Router di rete

Juniper

Juniper M10i Manuale utente

Juniper

Juniper EX9200 Series Scheda tecnica

Juniper

Juniper PTX1000 Istruzioni per l'installazione

Juniper

Juniper J2300 Manuale dell'operatore

Juniper

Juniper M10i Istruzioni per l'installazione e il funzionamento

Juniper

Juniper EX6210 Manuale utente

Juniper

Juniper XRE200 - Manuale utente

Juniper

Juniper T4000 - Istruzioni per l'installazione

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS 11.3.X - ERX MODULE GUIDE REV... Manuale utente

Juniper

Juniper T4000 - Istruzioni per l'installazione

Juniper

Juniper ACX Series Manuale utente

Juniper

Juniper MX5 Manuale utente

Juniper

Juniper M-Series Manuale utente

Juniper

Juniper M7i Istruzioni per l'installazione

Juniper

Juniper ACX1000 Istruzioni per l'installazione

Juniper

Juniper J2320 Manuale utente

Juniper

Juniper LN1000 - RELEASE NOTES 8-27-2010 Manuale utente

Juniper

Juniper M320 Istruzioni per l'installazione

Juniper

Juniper ACX1000 Istruzioni per l'installazione

Juniper

Juniper ACX7348 Istruzioni per l'installazione

Juniper

Juniper T4000 - Manuale utente

Juniper

Juniper PTX5000 Istruzioni per l'installazione

Juniper

Juniper MX2010 Manuale utente

Juniper

Juniper PTX1000 Istruzioni per l'installazione

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
