JUNO JKSI603F7 Manuale utente
JKSI603F7
User Manual
Hob
Benutzerin‐
formation
Kochfeld
CONTENTS
Safety information 2
Safety instructions 3
Product description 6
Daily use 7
Hints and tips 10
Care and cleaning 12
Troubleshooting 12
Installation 14
Technical data 17
Energy efficiency 18
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, this should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
General Safety
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
2
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
•Do not operate the appliance by means of an external timer
or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire
blanket.
•CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
•WARNING: Danger of fire: Do not store items on the cooking
surfaces.
•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and do
not rely on the pan detector.
•If the glass ceramic surface / glass surface is cracked,
switch off the appliance to avoid the possibility of electric
shock.
•If the supply cord is damaged, it must be replaced by the
manufacturer, an authorized Service or similarly qualified
persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
3
• Keep the minimum distance from the
other appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware to fall from the appliance
when the door or the window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for air
circulation.
• The bottom of the appliance can get hot.
Make sure to install a non-combustible
separation panel under the appliance to
prevent access to the bottom.
• Make sure that the ventilation space of 2
mm, between the worktop and the front
of the below unit, is free. The warranty
does not cover damages caused by the
lack of an adequate ventilation space.
Electrical Connection
WARNING! Risk of fire and
electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the mains
at all poles. The isolation device must
have a contact opening width of
minimum 3 mm.
Use
WARNING! Risk of injury, burns
and electrical shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
4
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each
use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This to
prevent an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it may
splash.
WARNING! Risk of fire and
explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
WARNING! Risk of damage to
the appliance.
• Do not keep hot cookware on the
control panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware to boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
Care and cleaning
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Deactivate the appliance and let it cool
down before you clean it.
• Disconnect the appliance from the
electrical supply before maintenance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products, abrasive
cleaning pads, solvents or metal objects.
Disposal
WARNING! Risk of injury or
suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
5

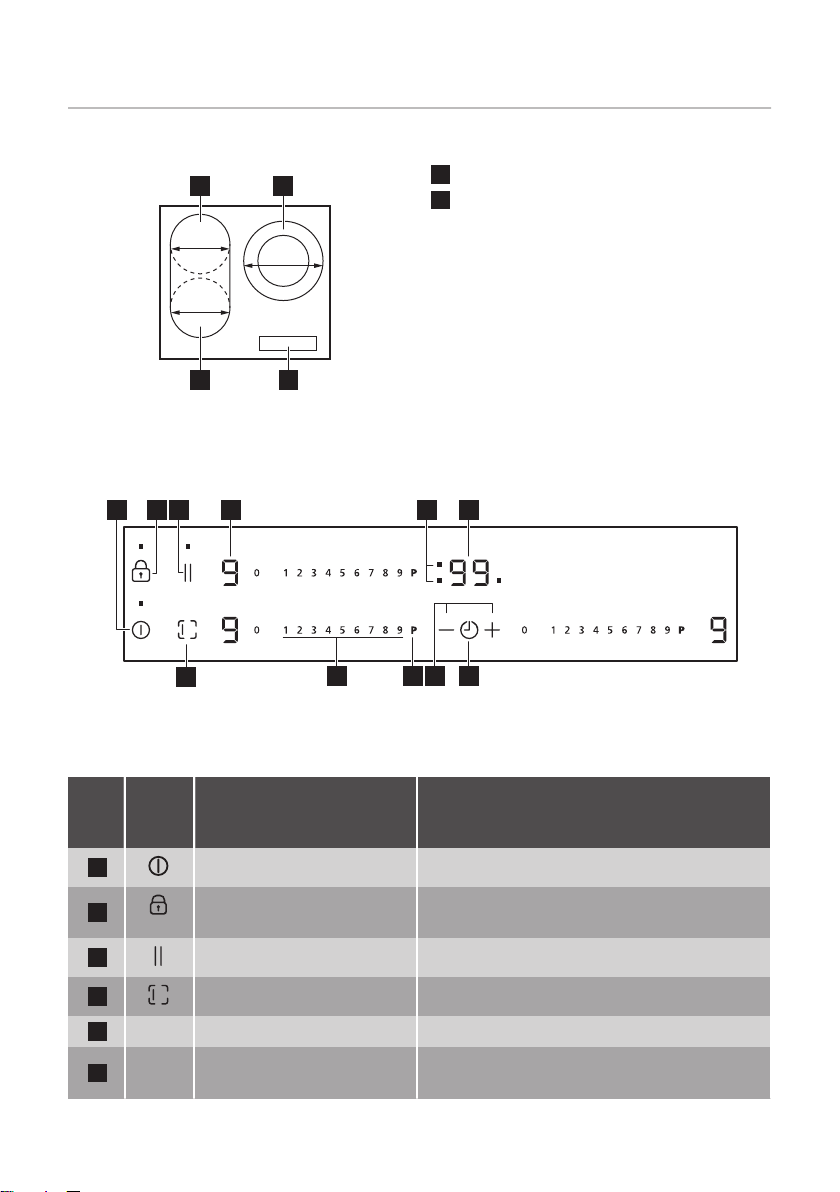

PRODUCT DESCRIPTION
Cooking surface layout
210 mm
180/280
mm
210 mm
1
21
1
1Induction cooking zone
2Control panel
Control panel layout
1 2 3 5 6 7
810
49
11
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.
Sen-
sor
field
Function Comment
1ON / OFF To activate and deactivate the hob.
2Lock / The Child Safety De-
vice
To lock / unlock the control panel.
3STOP+GO To activate and deactivate the function.
4Bridge To activate and deactivate the function.
5- Heat setting display To show the heat setting.
6- Timer indicators of cooking
zones
To show for which zone you set the time.
6
Sen-
sor
field
Function Comment
7- Timer display To show the time in minutes.
8- To select the cooking zone.
9 / - To increase or decrease the time.
10 Power function To activate and deactivate the function.
11 - Control bar To set a heat setting.
Heat setting displays
Display Description
The cooking zone is deactivated.
- The cooking zone operates.
STOP+GO function operates.
Automatic Heat Up function operates.
Power function operates.
+ digit There is a malfunction.
A cooking zone is still hot (residual heat).
Lock / The Child Safety Device function operates.
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off function operates.
Residual heat indicator
WARNING! There is a risk of
burns from residual heat.
The induction cooking zones make the heat
necessary for cooking process directly in
the bottom of the cookware. The glass
ceramic is heated by the heat of the
cookware.
DAILY USE
WARNING! Refer to Safety
chapters.
7

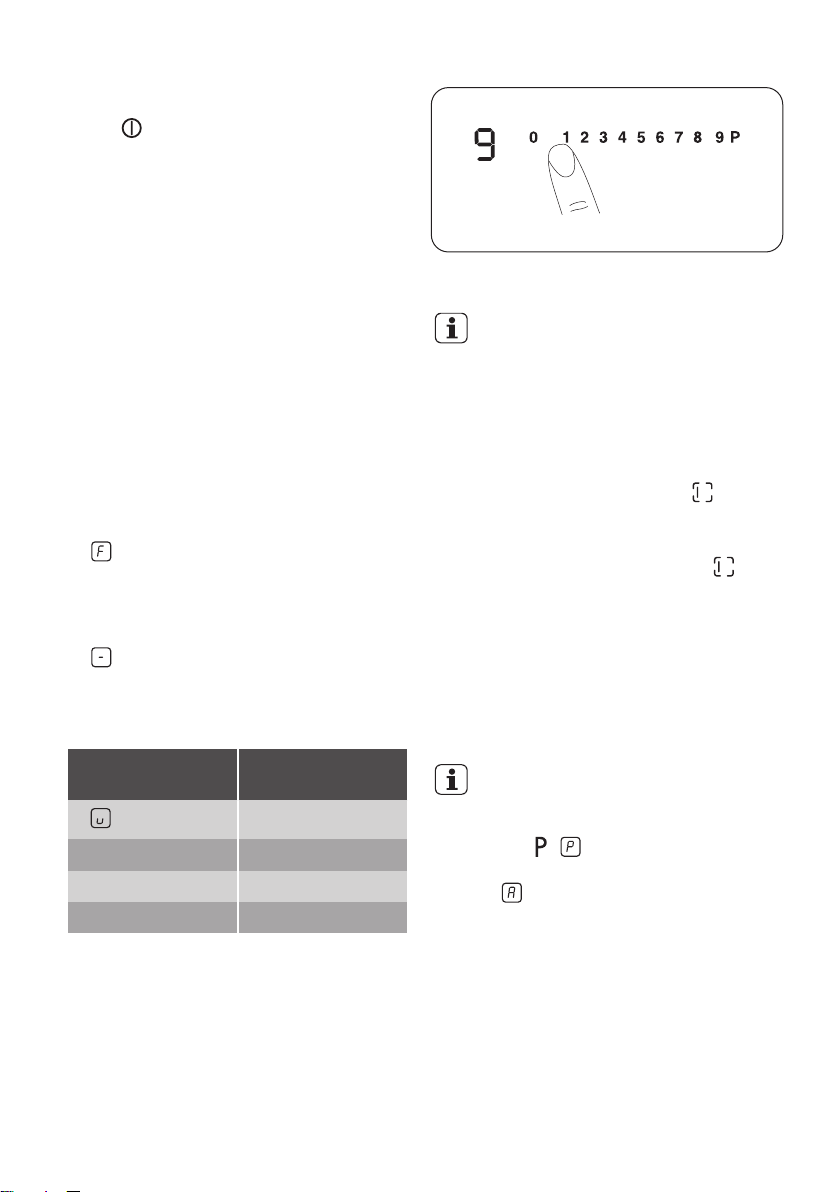

Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.
Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on
the control panel for more than 10
seconds (a pan, a cloth, etc.). An
acoustic signal sounds and the hob
deactivates. Remove the object or clean
the control panel.
• the hob gets too hot (e.g. when a
saucepan boils dry). Let the cooking
zone cool down before you use the hob
again.
• you use incorrect cookware. The symbol
comes on and the cooking zone
deactivates automatically after 2
minutes.
• you do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the hob deactivates.
The relation between the heat setting
and the time after which the hob
deactivates:
Heat setting The hob deacti-
vates after
, 1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour
The heat setting
To set or change the heat setting:
Touch the control bar at the correct heat
setting or move your finger along the
control bar until you reach the correct heat
setting.
Bridge function
The function operates when the
pot covers the centres of the
two zones.
This function connects two left side cooking
zones and they operate as one.
First set the heat setting for one of the left
side cooking zones.
To activate the function: touch . To set
or change the heat setting touch one of the
control sensors.
To deactivate the function: touch .
The cooking zones operate independently.
Automatic Heat Up
Activate this function to get a desired heat
setting in a shorter time. When it is on, the
zone operates on the highest setting in the
beginning and then continues to cook at
the desired heating setting.
To activate the function the
cooking zone must be cold.
To activate the function for a cooking
zone: touch ( comes on). Immediately
touch a desired heat setting. After 3
seconds comes on.
To deactivate the function: change the
heat setting.
Power function
This function makes more power available
to the induction cooking zones. The
function can be activated for the induction
cooking zone only for a limited period of
time. After this time the induction cooking
8
zone automatically sets back to the highest
heat setting.
Refer to “Technical information”
chapter.
To activate the function for a cooking
zone: touch . comes on.
To deactivate the function: change the
heat setting.
Power function with a double
ring cooking zone
The function is activated for the inner ring
when the hob senses the cookware with a
smaller diameter than the inner ring. The
function is activated for the outer ring when
the hob senses the cookware with a bigger
diameter than the inner ring.
Timer
Count Down Timer
You can use this function to set how long
the cooking zone should operate for a
single cooking session.
First set the heat setting for the cooking
zone then set the function.
To set the cooking zone: touch again
and again until the indicator of a necessary
cooking zone comes on.
To activate the function or change the
time: touch or of the timer to set the
time (00 - 99 minutes). When the indicator
of the cooking zone starts to flash slowly
the time counts down.
To see the remaining time: set the
cooking zone with . The indicator of the
cooking zone starts to flash quickly. The
display shows the remaining time.
To deactivate the function: set the
cooking zone with and touch . The
remaining time counts back to 00. The
indicator of the cooking zone goes out.
When the time comes to an
end, the sound operates and 00
flashes. The cooking zone
deactivates.
To stop the sound: touch .
Minute Minder
You can use this function as a Minute
Minder when the hob is activated and the
cooking zones do not operate. The heat
setting display shows .
To activate the function: touch .
Touch or of the timer to set the time.
When the time comes to an end, the sound
operates and 00 flashes.
To stop the sound: touch .
The function has no effect on
the operation of the cooking
zones.
STOP+GO
This function sets all cooking zones that
operate to the lowest heat setting.
When the function operates, you cannot
change the heat setting.
The function does not stop the timer
functions.
To activate the function: touch .
comes on.
To deactivate the function: touch .
The previous heat setting comes on.
Lock
You can lock the control panel while
cooking zones operate. It prevents an
accidental change of the heat setting.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays
on.
To deactivate the function: touch .
The previous heat setting comes on.
9
When you deactivate the hob,
you also deactivate this function.
The Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: activate the hob
with . Do not set the heat setting. Touch
for 4 seconds. comes on. Deactivate
the hob with .
To deactivate the function: activate the
hob with . Do not set the heat setting.
Touch for 4 seconds. comes on.
Deactivate the hob with .
To override the function for only one
cooking time: activate the hob with .
comes on. Touch for 4 seconds. Set
the heat setting in 10 seconds. You can
operate the hob. When you deactivate the
hob with the function operates again.
Power management function
• Cooking zones are grouped according
to the location and number of the
phases in the hob. See the illustration.
• Each phase has a maximum electricity
loading of 3700 W.
• The function divides the power between
cooking zones connected to the same
phase.
• The function activates when the total
electricity loading of the cooking zones
connected to a single phase exceeds
3700 W.
• The function decreases the power to the
other cooking zones connected to the
same phase.
• The heat setting display of the reduced
zones changes between two levels.
HINTS AND TIPS
WARNING! Refer to Safety
chapters.
Cookware
For induction cooking zones a
strong electro-magnetic field
creates the heat in the
cookware very quickly.
Use the induction cooking zones
with correct cookware.
Cookware material
•correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made
of multi-layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if:
• some water boils very quickly on a zone
set to the highest heat setting.
• a magnet pulls on to the bottom of the
cookware.
The bottom of the cookware
must be as thick and flat as
possible.
Cookware dimensions
10
Indice
Lingue:
Altri manuali JUNO Piano cottura
JUNO
JUNO JKFN604F5 Manuale utente
JUNO
JUNO JEC7760B Manuale dell'operatore
JUNO
JUNO JKSN606F5 Manuale utente
JUNO
JUNO JKSI804F5 Manuale utente
JUNO
JUNO JKSI605F9 Manuale utente
JUNO
JUNO JKSI300R1 Manuale utente
JUNO
JUNO JKSI603F9 Manuale utente
JUNO
JUNO JKSI604F5 Manuale utente
JUNO
JUNO JKSI808R5 Manuale utente
JUNO
JUNO JKSI808R9 Manuale utente
JUNO
JUNO JKSN301R6 Manuale utente
JUNO
JUNO JKSN604F5 Manuale utente
JUNO
JUNO JKSI804F9 Manuale utente
JUNO
JUNO JKSI300R8 Manuale utente
JUNO
JUNO JKFN606F5 Manuale utente
JUNO
JUNO JKSN604F5 Manuale utente
JUNO
JUNO JKSI808R9 Manuale utente
JUNO
JUNO JKSI808F9 Manuale utente
JUNO
JUNO JKSN606F5 Manuale utente
JUNO
JUNO JKSN301R1 Manuale utente
