SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result of
incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
2
•WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
General Safety
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service
Centre or similarly qualified persons to avoid an electrical
hazard.
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of electric
shock.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in accessories or
ovenware.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch the
surface, which may result in shattering of the glass.
3
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the oven door opens without restraint. If
not the oven has to be lifted.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power supply.
Cabinet minimum
height (Cabinet un‐
der the worktop mini‐
mum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of
the appliance
598 mm
Height of the back of
the appliance
579 mm
Width of the front of
the appliance
594 mm
Width of the back of
the appliance
558 mm
Depth of the appli‐
ance
561 mm
Built in depth of the
appliance
540 mm
Depth with open
door
1007 mm
Ventilation opening
minimum size. Open‐
ing placed on the
bottom rear side
560x20 mm
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1100 mm
Mounting screws 4x25 mm
Electrical connection
WARNING! Risk of fire and
electric shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by
our Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche
below the appliance, especially when it
operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
4
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
• This appliance is supplied with a main
plug and a main cable.
Cable types applicable for installation or
replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-
F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
Total power (W) Section of the ca‐
ble (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).
Use
WARNING! Risk of injury,
burns and electric shock or
explosion.
• This appliance is for household
(indoors) use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is in
operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
WARNING! Risk of damage to
the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly on
the bottom.
– do not put aluminium foil directly on
the bottom of cavity of the
appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food
in the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance
of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
5
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance operates. Heat and moisture
can build up behind a closed furniture
panel and cause subsequent damage
to the appliance, the housing unit or the
floor. Do not close the furniture panel
until the appliance has cooled down
completely after use.
Care and cleaning
WARNING! Risk of injury, fire,
or damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, follow the
safety instructions on its packaging.
Internal lighting
WARNING! Risk of electric
shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational status
of the appliance. They are not intended
to be used in other applications and are
not suitable for household room
illumination.
• Use only lamps with the same
specifications.
Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
Disposal
WARNING! Risk of injury or
suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable close
to the appliance and dispose of it.
• Remove the door catch to prevent
children or pets from becoming trapped
in the appliance.
6
INSTALLATION
WARNING! Refer to Safety
chapters.
Building in
min. 550
20
600
min. 560 591
598
594
114
19
21540
570
558
min. 550
20
591
598
594
114
19
21540
570
590
min. 560
558
Securing the oven to the cabinet
7
PRODUCT DESCRIPTION
General overview
1 43 52 6
7
8
12
9
10
11
4
3
2
1
13
1Control panel
2Power lamp / symbol
3Knob for the heating functions
4Display
5Control knob (for the temperature)
6Temperature indicator / symbol
7Air vents for the cooling fan
8Heating element
9Lamp
10 Fan
11 Shelf support, removable
12 Cavity embossment - Aqua cleaning
container
13 Shelf positions
Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
CONTROL PANEL
Retractable knobs
To use the appliance press the knob. The
knob comes out.
Sensor fields / Buttons
To set the time.
To set a clock function.
To set the time.
8
Display
A B
A. Clock functions
B. Timer
BEFORE FIRST USE
WARNING! Refer to Safety
chapters.
Before first use
The oven can emit an odour and smoke during preheating. Make sure that the room is
ventilated.
Step 1 Step 2 Step 3
Set the clock Clean the oven Preheat the empty oven
1. , - press to set the
time. After approximate‐
ly 5 sec., the flashing
stops and the display
shows the time.
1. Remove all accessories
and removable shelf
supports from the oven.
2. Clean the oven and the
accessories with a soft
cloth, warm water and a
mild detergent.
1. Set the maximum tem‐
perature for the function:
.
Time: 1 h.
2. Set the maximum tem‐
perature for the function:
.
Time: 15 min.
Turn off the oven and wait until it is cold. Place the accessories and the removable shelf sup‐
ports in the oven.
DAILY USE
WARNING! Refer to Safety
chapters.
How to set: Heating function
Step 1 Turn the knob for the heating
functions to select a heating
function.
Step 2 Turn the control knob to select
the temperature.
Step 3 When the cooking ends, turn
the knobs to the off position to
turn off the oven.

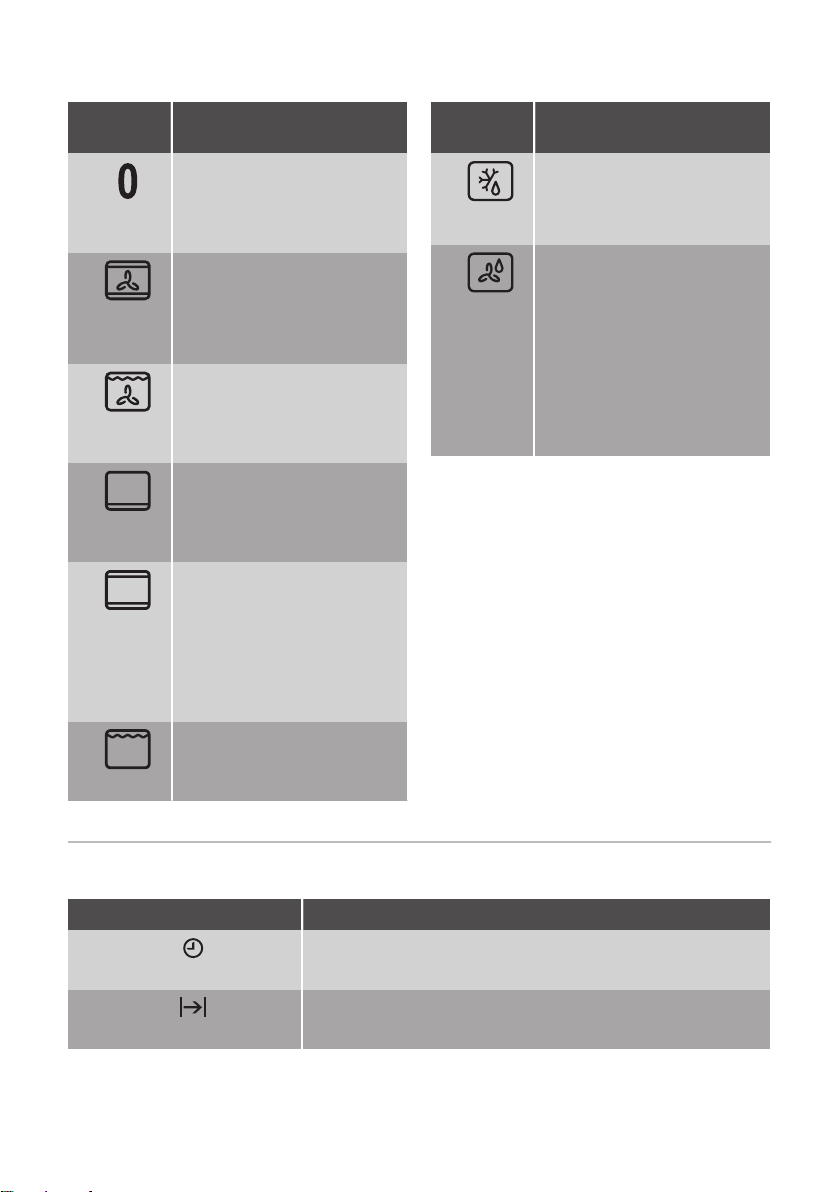

Heating functions
9
Heating
function
Application
Off posi‐
tion
The oven is off.
Fan
Cooking
To roast or roast and bake
food with the same cooking
temperature on more than
one shelf position, without
flavour transference.
Turbo
Grilling
To roast large meat joints or
poultry with bones on one
shelf position. To make gra‐
tins and to brown.
Bottom
Heat
To bake cakes with crispy
bottom and to preserve food.
Conven‐
tional
Cooking /
Aqua
Clean
To bake and roast food on
one shelf position.
Refer to "Care and cleaning"
chapter for more information
about: Aqua Clean.
Grill
To grill thin pieces of food
and to toast bread.
Heating
function
Application
Defrost
To defrost food (vegetables
and fruit). The defrosting
time depends on the amount
and size of the frozen food.
Moist Fan
Baking
This function is designed to
save energy during cooking.
When you use this function,
the temperature in the cavity
may differ from the set tem‐
perature. The heating power
may be reduced. For more
information refer to "Daily
Use" chapter, Notes on:
Moist Fan Baking.
Notes on: Moist Fan Baking
This function was used to comply with the
energy efficiency class and ecodesign
requirements according to EU 65/2014
and EU 66/2014. Tests according to EN
60350-1.
The oven door should be closed during
cooking so that the function is not
interrupted and the oven operates with the
highest energy efficiency possible.
For the cooking instructions refer to "Hints
and tips" chapter, Moist Fan Baking. For
general energy saving recommendations
refer to "Energy Efficiency" chapter,
Energy Saving.
CLOCK FUNCTIONS
Clock functions
Clock function Application
Time of Day
To set, change or check the time of day.
Duration
To set how long the oven works.
10
Altri manuali per JB071B2
2
Questo manuale è adatto per i seguenti modelli
1
Indice
Lingue:
Altri manuali JUNO Forno
JUNO
JUNO JB121D0 Manuale utente
JUNO
JUNO JB070A2 Manuale utente
JUNO
JUNO JH070A2 Manuale utente
JUNO
JUNO JB121D0 Manuale utente
JUNO
JUNO JH061B5 Manuale utente
JUNO
JUNO JB081C5 Manuale utente
JUNO
JUNO JB071B1 Manuale utente
JUNO
JUNO JB121D5 Manuale utente
JUNO
JUNO JB121D0 Manuale utente
JUNO
JUNO JB096B9 Manuale utente
JUNO
JUNO JBD167D0 Manuale utente
JUNO
JUNO JB071B2 Manuale utente
JUNO
JUNO JB126D2 Manuale utente
JUNO
JUNO JB094C7 Manuale utente
JUNO
JUNO JH070A2 Manuale utente
JUNO
JUNO JH084C1 Manuale utente
JUNO
JUNO JH084C1 Manuale utente
JUNO
JUNO JB131D8 Manuale utente
JUNO
JUNO JB084C1 Manuale utente
JUNO
JUNO JB126D5 Manuale utente
