JVC GV-LS2 Manuale di istruzioni

LYT2644-002A

0513YHM-YH-OT

C2N

Live Streaming Camera

GV-LS2 / GV-LS1

Connection Guide

This PDF will give you the steps in order to connect the Live Streaming

Camera to your network and digital devices.

Other information can be found in the Reference Manual.

Connecting wirelessly to the camera (Wi-Fi direct) ⇒Go to page 2

Connecting wirelessly via a Wi-Fi LAN router ⇒Go to page 7

Connecting to the camera from outside the house ⇒Go to page 16

Distribution on Ustream ⇒Go to page 24

Connecting wirelessly to the camera (Wi-Fi direct)

Android and iOS devices (e.g. iPhone, iPad) can be connected to the

camera directly without a Wi-Fi router.

* Before connecting to the camera, install the JVC CAM Control app.

(When connected to the camera, your devices will not be able to access

the Internet.)

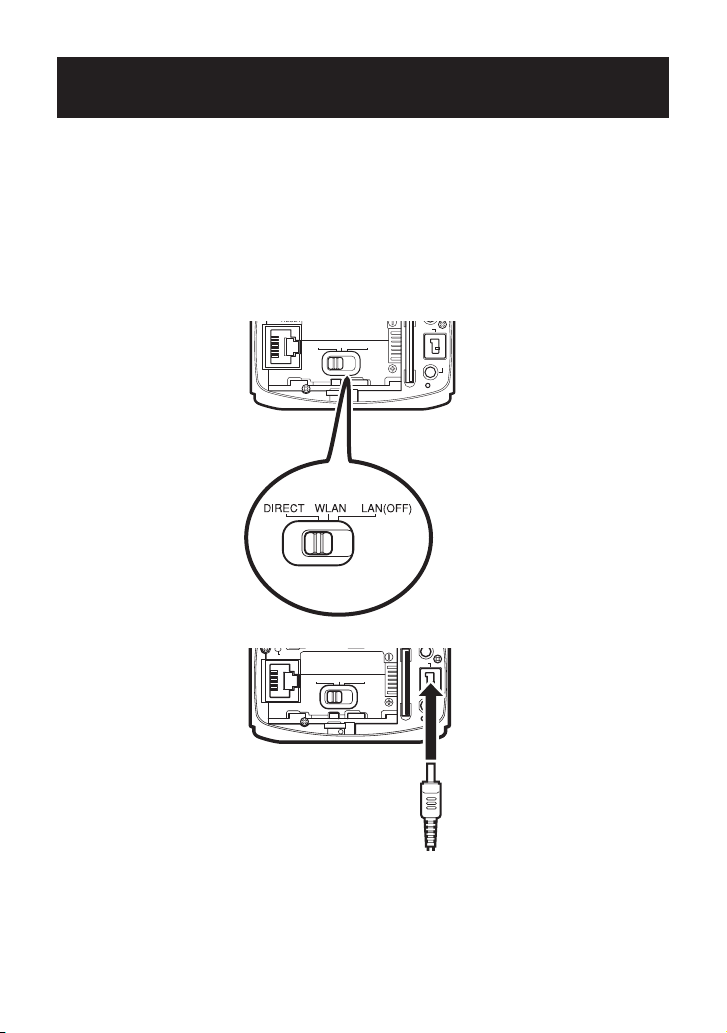

　1. Switch the network mode to

DIRECT

　2. Connect the AC adapter.

　　Once you start the camera, the WPS button will blink slowly.

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

1. Tap on

Settings

on the application

menu screen.

2. Tap on

Wireless & networks

3. Tap on

Wi-Fi settings

4. Tap on

Wi-Fi

Connecting with Android devices

5. Tap on 'DIRECT-**JVCCAM' (where **

indicates alphanumeric characters).

The default name is 'DIRECT-**JVCCAM'

(where ** indicates alphanumeric

characters).

6. Enter your password.

The default password is

password

7. Wait until connection is complete.

Connection is complete when

'Connected' appears on the display.

Now you can launch the app.

Screen images, names and/or steps may

dier depending on the device.

Note

Connecting Wirelessly via a Wi-Fi LAN Router

Please check the packaging or user manual to conrm that your

Wi-Fi router supports Wi-Fi Protected Setup (WPS).

If WPS is supported ⇒ Go to page 8

If WPS is not supported ⇒Go to page 9

If connection fails ⇒Go to Page 15

1. Switch the network mode to 'WLAN'.

2. Connect the AC adapter.

3. Activate WPS on the wireless LAN router.

Refer to your wireless LAN router’s user manual for how to activate WPS.

4. Hold down the WPS button.

Once the WPS button stops blinking, connection is complete.

WPS button does not work during start up.

(The Record button will blink red during start up.

Wait for the Record button to stop blinking, then hold down the WPS button.)

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

If WPS is Supported

Note

1. Use the supplied LAN cable to connect your camera to the computer:

　　(1) Connect the LAN cable to the camera.

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

　　(2) Switch the network mode to 'LAN(OFF)'.

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

　　(3) Connect the AC adapter.

• A LAN cable cannot be used when the network mode is switched to 'DIRECT' or 'WLAN'.

• Settings will not be changed unless you turn the power OFF before switching the

network mode.

DIRECT WLAN

RESET

LAN(OFF)

ETHERNET

MIC

PLUG IN POWER

If WPS is Not Supported

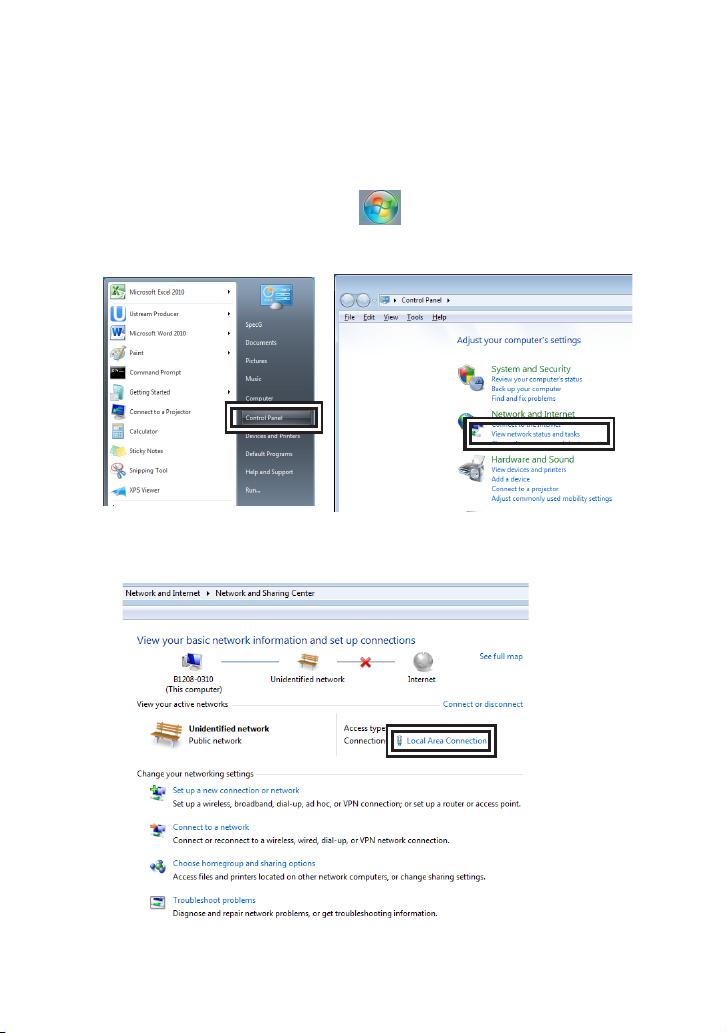

2. Change the network settings on your computer:

Under Windows 7:

* For changing settings on OS versions other than Windows 7,

please refer to your computer’s user manual.

(1) Click on the Windows Start Menu.

(2) Click on [Control Panel] ⇒Click on [View Network Status and Tasks]

(3) Click on [Local Area Connection]

* Button names may dier depending on your computer
