JVC DLA-X900R Manuale
1
D-ILA Home Theater Projector
Initial Setup Manual Ver. 1.3 for Using the Remote Control App
(D-ILA Remote 2)
This manual describes initial setup to remote control JVC D-ILA projector (hereinafter referred to as the projector)
using smartphones and tablets.
DLA-X900R, DLA-X700R, DLA-X500R, DLA-RS67, DLA-RS57, DLA-RS49, DLA-RS6710,
DLA-RS4910, DLA-XC7880R, DLA-XC5880R
The following conditions are necessary to remote control the projector using smartphones and tablets.
䡵iOS
•Compatible device: iPhone4S/5/5S/5C, iPad2 or later, iPod touch(4th generation or later), iPad mini
•Compatible OS: iOS 6 or later
䡵Android
•Compatible device: Android devices
•Compatible OS: Android OS 4.0 or later
* In order to operate the projector, it is necessary to first install an exclusive app on your terminal device. The
exclusive application is available free of charge.
* Operability of all functions is not guaranteed.
•A wireless LAN network environment connected with the projector via wired LAN.
•Compatible projector
•Compatible device
•Wireless LAN router* (hereinafter referred to as router), and LAN cable that connects the projector and router.
* A router with DHCP server function.
1Setting up a device
2Connection and setup of a D-ILA projector and a router
3Installation and setup of app
4Demo mode
Compatible projectors
Operating Conditions
Requirements
Procedures for the initial setup
2

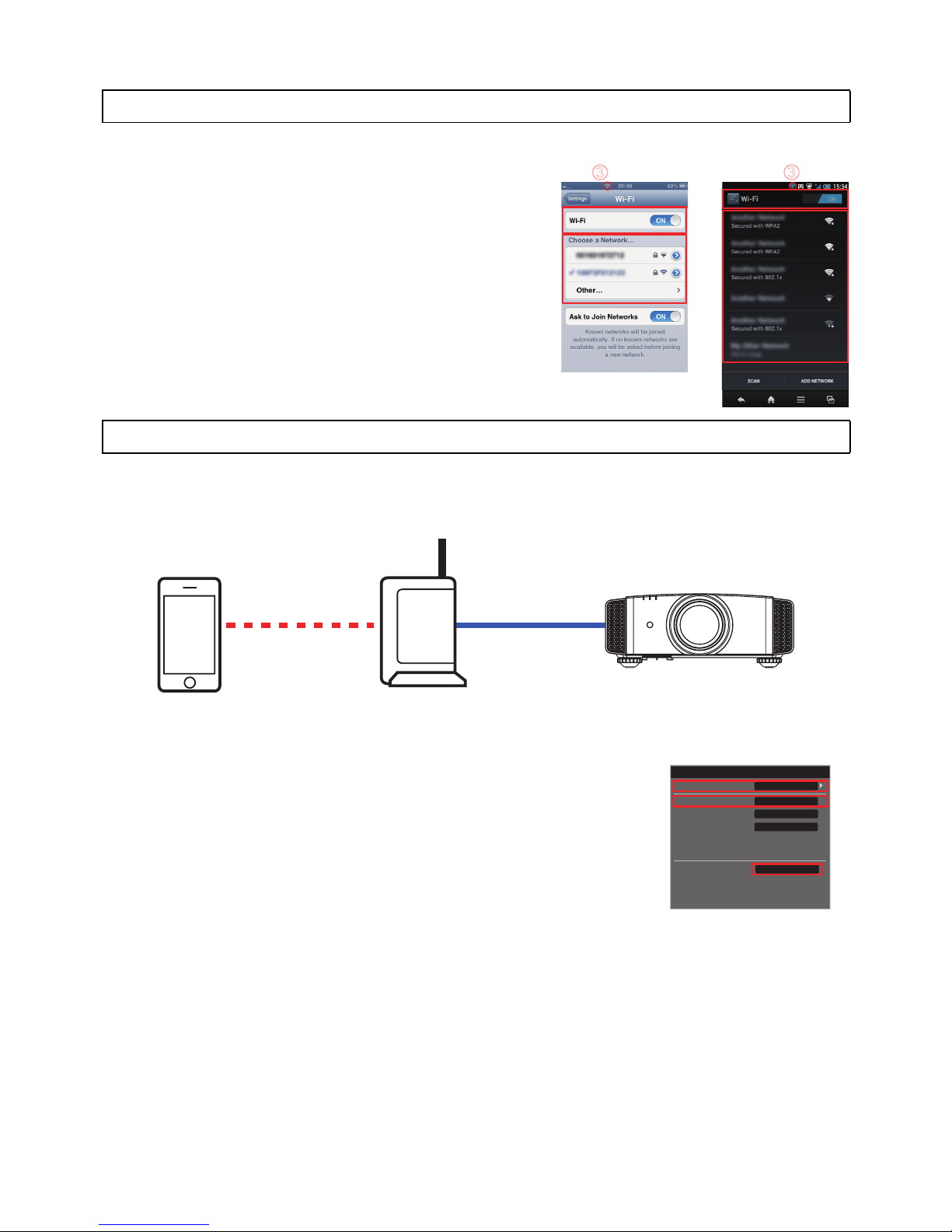

AIn Settings, switch “ON” Wi-Fi.
BInside Choose a Network, look for the router in use and
select it.
CConnection is complete when the Wi-Fi strength indicator
appears at the top next to the signal strength indicator.
䡵Note
Refer to the user manual of router in use on how to select a
router, and connection between the router and your device.
Connection is not possible using 3G or LTE network.
Cable connect the projector to a router for network setup.
Connection image
AOpen the projector menu. Go to “Function” →“Network”, and turn “ON” the
“DHCP Client”.
BSelect “YES” under “Set” →“Apply Network Setting?”
CAn IP address will be automatically assigned when network setup is
successfully achieved. This completes network setup of the projector.
1
Setting up a device
2
Connection and setup of a D-ILA projector and a router
䐠
䐠䐠
䐡䐡
䐟
䐟
iOS Android
Smartphones, tablets Router
LAN cable
Wireless LAN
>
192.168.0.2
255.255.255.0
192.168.0.254
On
Set
MAC Address:AA-BB-CC-DD-EE-FF
Default Gateway
Subnet Mask
IP Address
DHCP Client
Network
䐟
䐡
䐠
3
ADownload the app.
* Please refer to the support page on our website prior to installing the app, which can be downloaded from the
App Store or Play Store.
Search with keywords “D-ILA Remote 2”.
BRun the app, and select your preferred language from the “Language Selection” screen that is displayed.
* Need reinstall to change language.

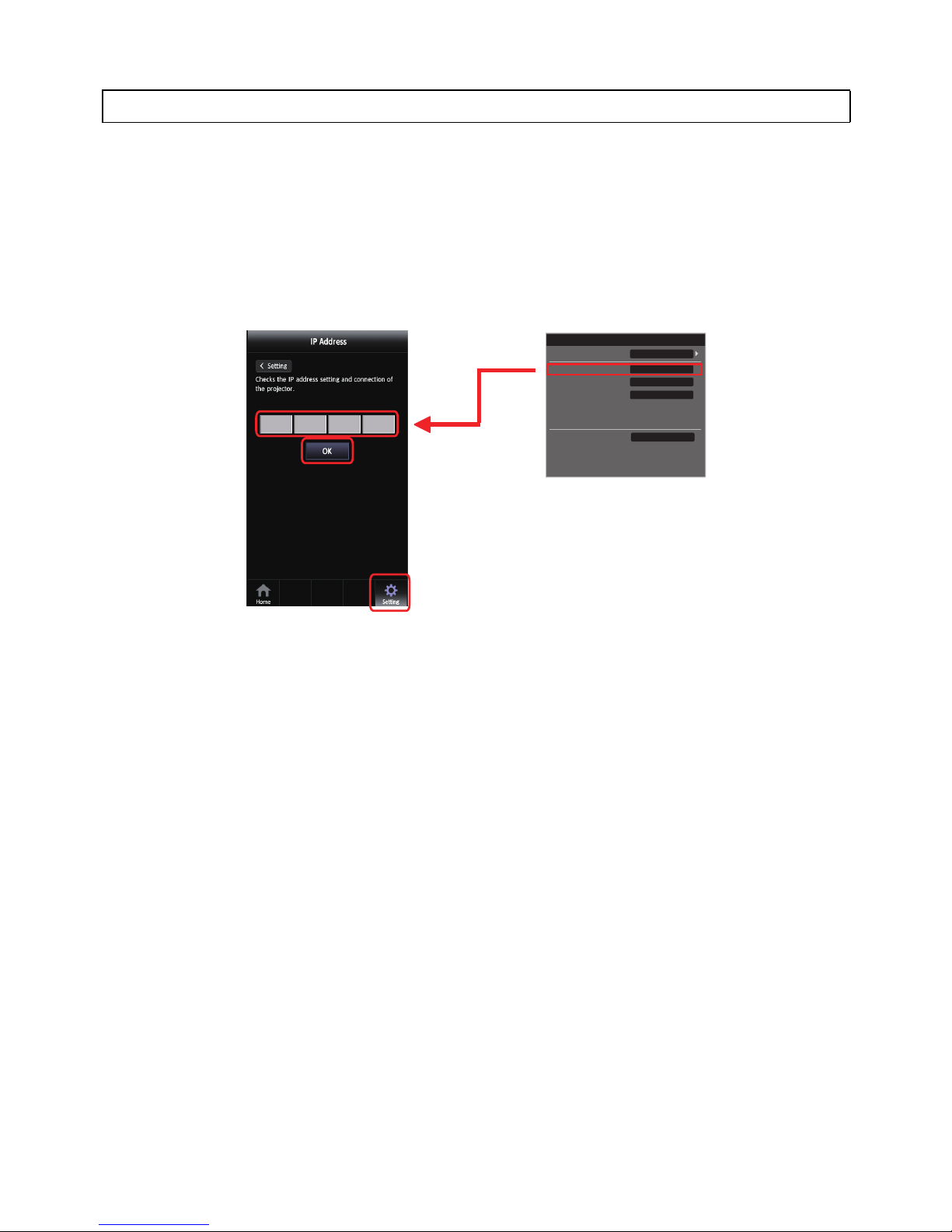

CWhen the installation is complete, the “IP Address” setting screen appears.
DEnter the “IP Address” displayed in “Function” →“Network” of the projector’s menu, then press “OK”.
䡵Note
Communications cannot be achieved when the projector's main power is off with ECO Mode setting on. To
turn on the power via the app, switch off the ECO mode.
3
Installation and setup of app
2
0
168
192
>
192.168.0.2
255.255.255.0
192.168.0.254
On
Set
MAC Address:AA-BB-CC-DD-EE-FF
Default Gateway
Subnet Mask
IP Address
DHCP Client
Network
App Projector Network screen
4

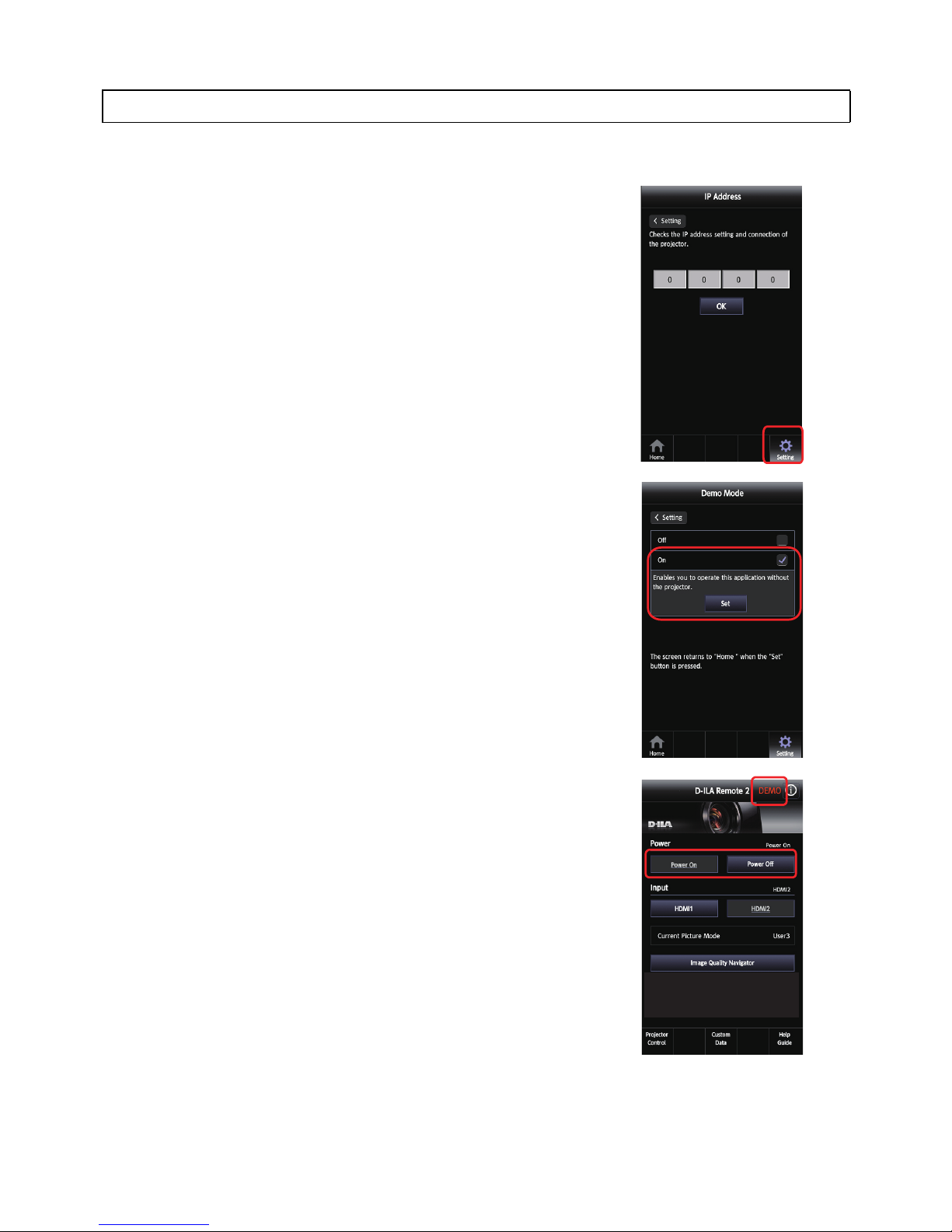

You can experience operating this app.
ASelect “Setting” --> “Demo Mode” at the bottom of the screen.
BSelect “On” and click the “Set” button.
CReturns to the Home screen under power off condition. Press the
“Power On” button to operate using demo mode.
* During Demo mode, “DEMO” blinks on the upper right corner of the
screen.
* You cannot operate the projector using the app when in the demo mode.
For actual operation, turn off the demo mode.
4
Demo mode
5
[Menu]
䡵Notes
Specifications, UI menu, and design are subject change without notice.
App Store and Play Store specifications are subject to change without notice. Refer to App Store or Play Store Help for
details on using the store.
JVC KENWOOD is not liable for any damage to or loss of data on the smartphones or tablets when these terminal
devices are used with the app and/or projector.

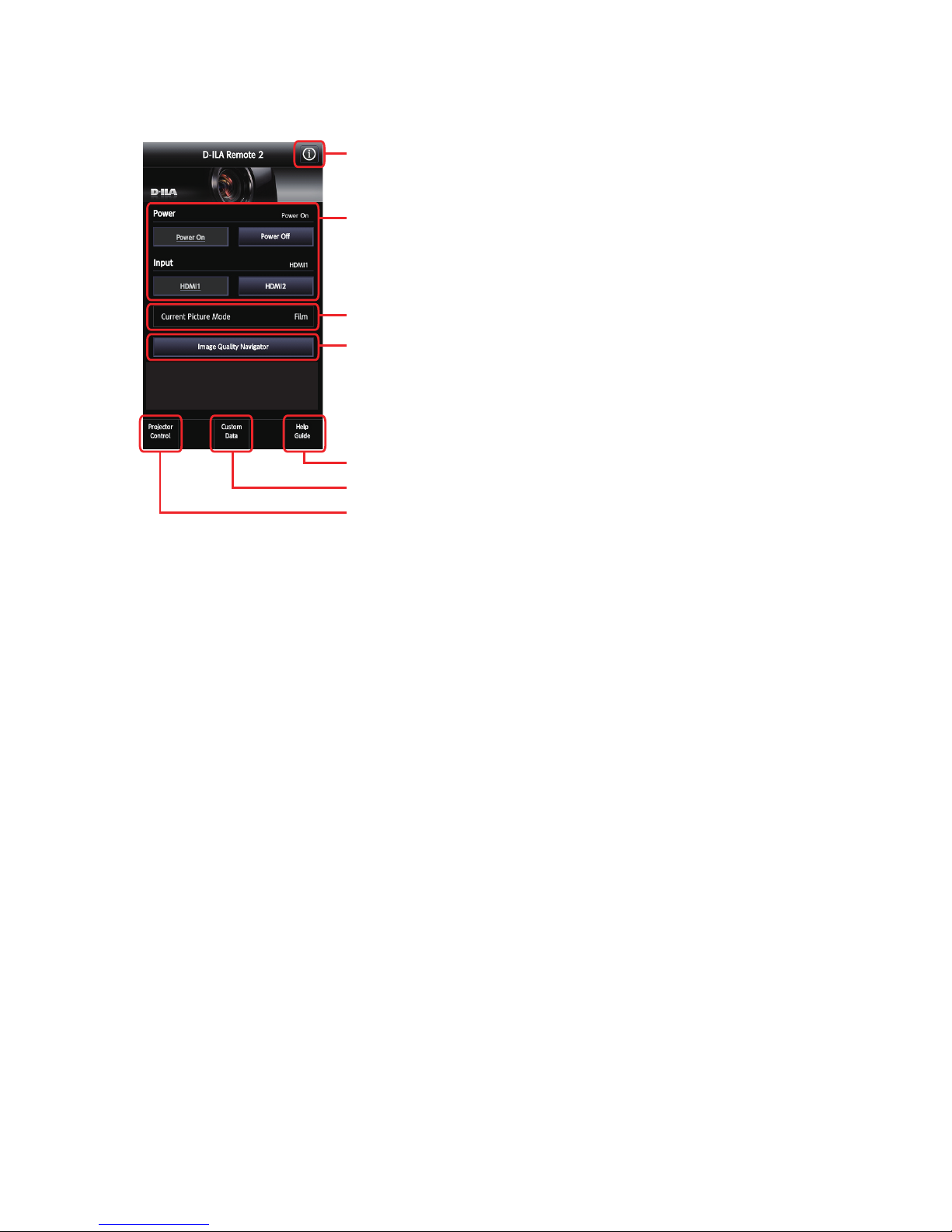

Displays the status of the projector.
For turning on/off the power of the projector and switching the input.
Displays the current picture mode.
Allows you to set the optimal image quality automatically simply by specifying
the image type and preferred color tone etc.
Identifies the problem and guides you through appropriate countermeasures.
Screen that links the basic operations and various setting menus to the
projector.
Allows you to read, save and write all the settings of the projector.
©2014 JVC KENWOOD Corporation
Trademarks
●Apple, iPhone, iPod touch, and iPad are trademarks or registered trademarks of Apple Inc. in the United States and
other countries.
●Android, Android Market, and Google Play are trademarks or registered trademarks of Google Inc.
●Product names, trade names, corporate names and other names are either trademarks or registered trademarks of
their respective holders.
