JVC DLA-X95R Guida utente

D-ILA Home Theater Projector

Initial Setup Manual Ver. 1.1 for Using iOS App

This manual describes initial setup to remote control JVC D-ILA projector (hereinafter referred to as the projector)

using iPhone, iPod touch and iPad.

DLA-X95R, X75R, X55R, X35, XC7800R, XC5800R, XC3800, RS66, RS56, RS4810, RS48, RS46

The following conditions are necessary to remote control the projector using iPhone, iPod touch, and iPad.

•Compatible iOS device: iPhone 4, iPhone 4S, iPhone 5, iPod touch (4th generation), iPod touch (5th generation),

iPad

•Compatible OS: iOS 5.1 or later

* The app is not compatible with Android OS devices.

* Operability of all functions is not guaranteed.

* In order to remote control the projector from an iOS device (e.g. iPhone, iPad, or iPod touch), it is necessary to

first install exclusive app into an iOS device. Exclusive application is available free of charge.

•A wireless LAN network environment connected with the projector via wired LAN.

•Compatible projector

•Compatible iOS device

•Wireless LAN router* (hereinafter referred to as router), and LAN cable that connects the projector and router.

* A router with DHCP server function.

1Setup an iOS device for use

2Connection and setup of a D-ILA projector and a router

3Confirm connection between the projector and iOS device

4Install iOS app (exclusive application)

5Confirm connection status between the projector and iOS app

Compatible projectors

Operating Conditions

Requirements

Procedures for the initial setup

AIn Settings, switch ON Wi-Fi.

BInside Choose a Network, look for the router in use and select it.

CConnection is complete when the Wi-Fi strength indicator appears at the top

next to the signal strength indicator.

䡵Note

Refer to the user manual of router in use for how to select a router, and connection

between the router and iOS device. Connection is not possible using 3G or LTE

network.

Cable connect the projector to a router for network setup.

Connection image

AOpen the projector menu. Go to Function →Communication Terminal, and

choose LAN.

BOpen the projector menu again. Go to Function →Network, and turn ON the

DHCP Client.

CSelect YES under Set →Apply Network Setting?

DAn IP address will be automatically assigned when network setup is

successfully achieved. This completes network setup of the projector.

Setting up an iOS device

Connection and setup of a D-ILA projector and a router

㽳

㽴

㽲

iOS device Router

LAN cable

Wireless LAN

㽳

㽴

㽵

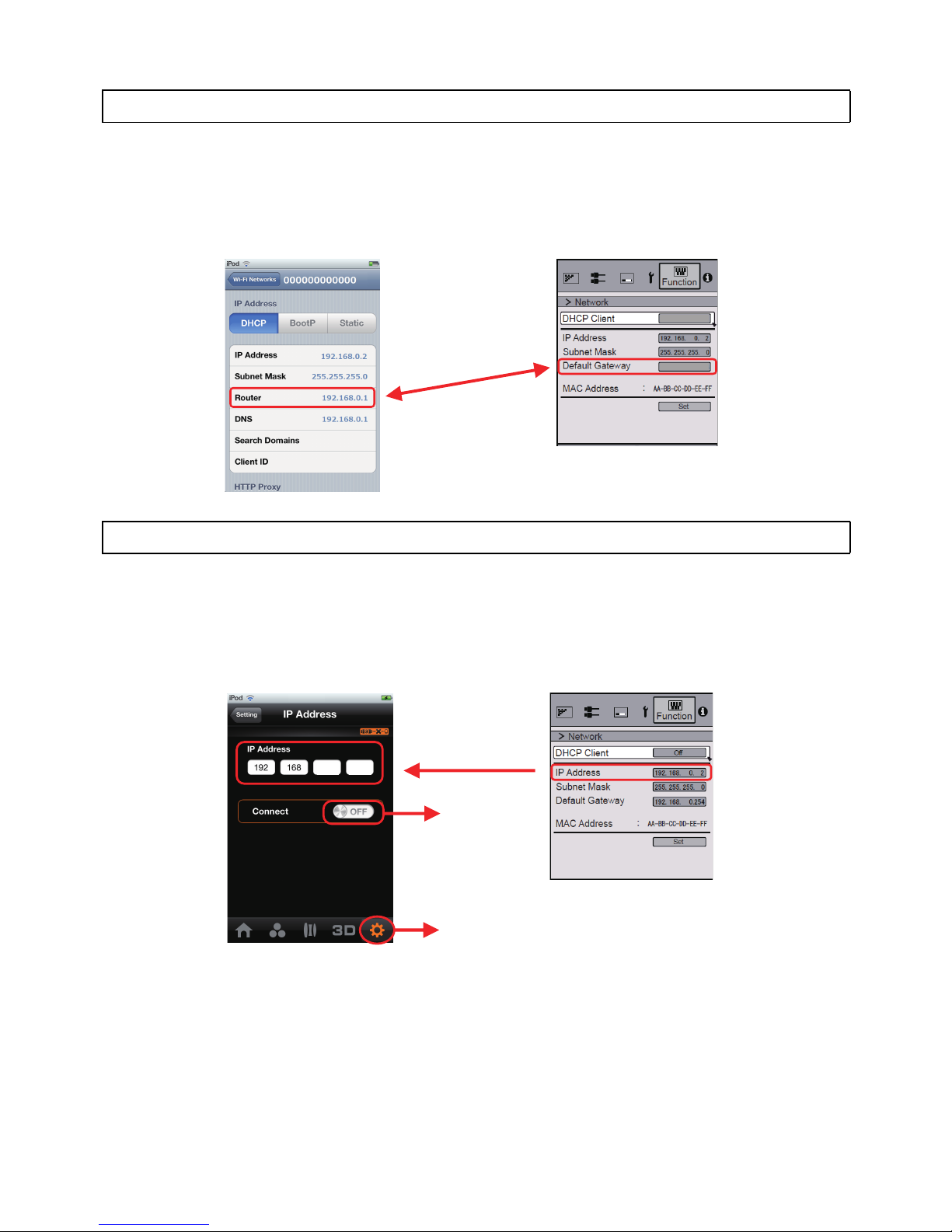

Confirm to see whether the IP address of the Router on iOS device's Wi-Fi network setup, and default gateway

shown on the network setup screen on the projector, are identical.

Confirm by checking these

AInstall iOS app

* Please refer to the support page on our website prior to installing the iOS app, which can be obtained from

the App Store. Search the App Store with a keyword “D-ILA Remote”. The app is available in English only.

BActivate the app, and press Setting icon, then select the IP Address.

CEnter the IP Address shown on the projector's menu screen under Function →Network.

DSwitch ON Connect.

䡵Note

Communications cannot be achieved when the projector's main power is off with ECO Mode setting on. To turn on

the iOS device power via the app, switch off the ECO mode.

Confirming connection between the projector and iOS device

Installation and setup of iOS app

192.168. 0. 1

192 . 1 6 8. 0. 1

Router address Projector's Network screen

The two figures

should be identical.

iOS app Projector Network screen

Setting

Switch ON

Connect

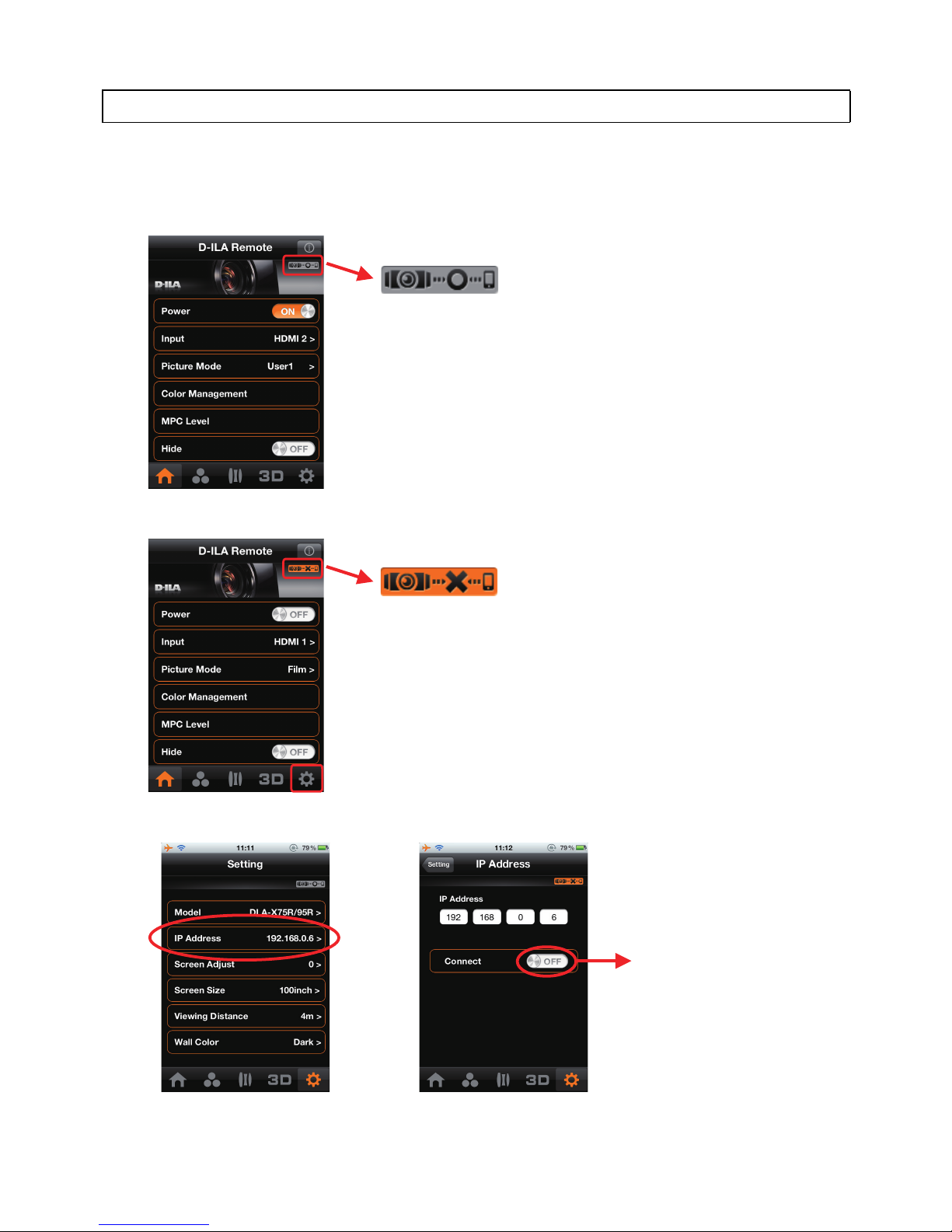

Refer to the following to confirm the connection status.

Connection status can be found at the top right of the app interface. Color of the indicator changes to notify the

projector status to the user.

AConnection is made between the projector and remote (iOS device)

BConnection is deactivated between the projector and remote (iOS device)

CWhen the connection is deactivated (as in Babove), go to Setting →IP Address, and switch ON Connect.

This completes the initial setup.

Confirm connection status between the projector and iOS app

Connection is made with the projector.

Connection with the projector is deactivated.

Switch ON Connect

[Menu]

䡵Notes

Specifications, UI menu, and design are subject change without notice.

App Store specifications are subject to change without notice. Refer to App Store Help for details on how to use the

app.

JVC KENWOOD is not liable for any damage to or loss of data on an iOS device (e.g. iPhone, iPod touch, or iPad)

when such iOS device is used in conjunction with the app and/or projector.

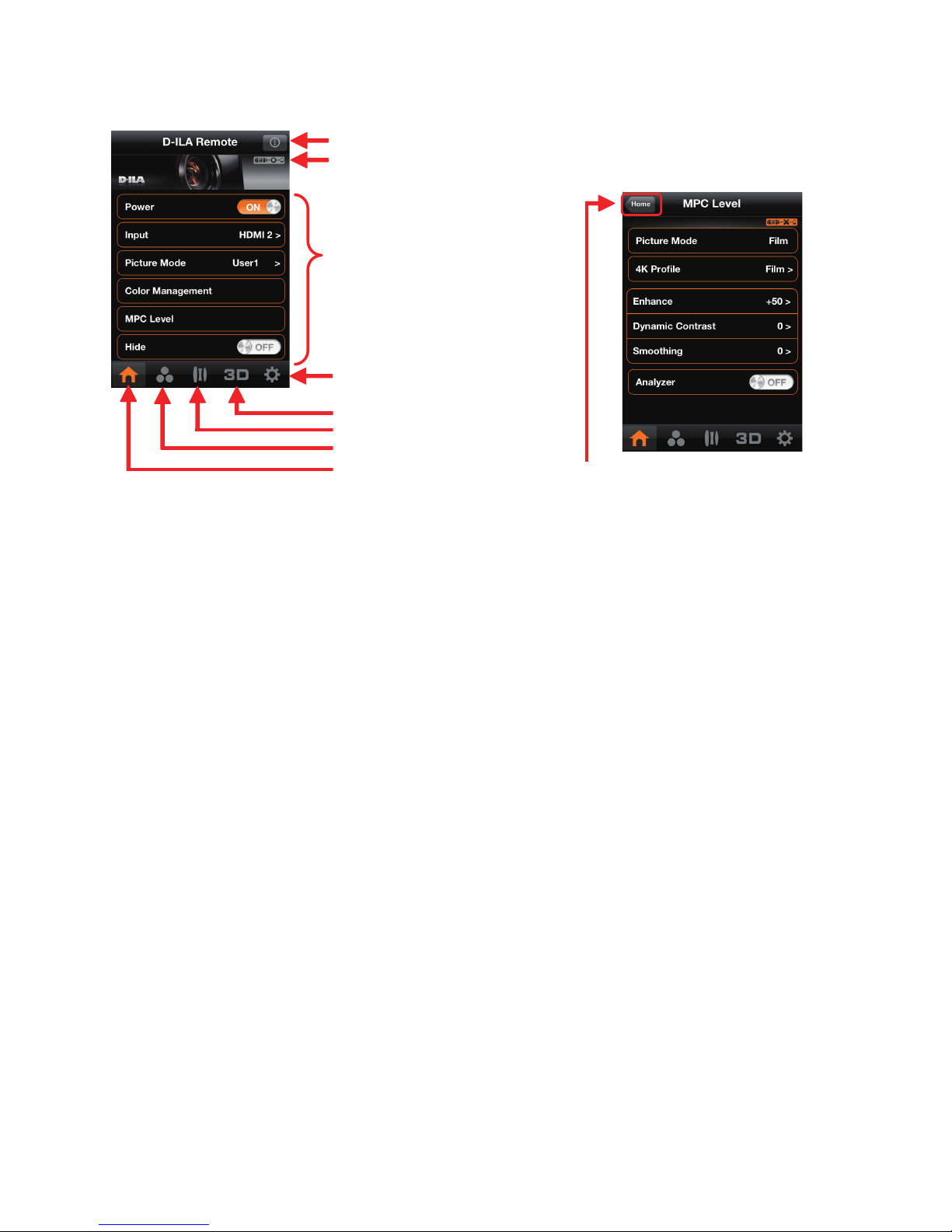

Information: To confirm the projector's information.

Displays connection condition between the projector and application.

Setting menu

3D menu

Lens menu

Picture menu

Home menu

Adjustment (setup) items

When an icon is displayed on the upper left

corner as shown here, tap to go back a menu.

Trademarks

●Apple, iPhone, iPod touch, and iPad are trademarks or registered trademarks of Apple Inc. in the United States and

other countries.

●Product names, trade names, corporate names and other names are either trademarks or registered trademarks of

their respective holders.
