JVC LoLux TK-T2101RU Manuale utente
FIXED IR DOME CAMERA TK-T2101RU
FIXED IR DOME CAMERA TK-T2101RE
Instructions
1
Important Safety Information
Warning and Operating Notes
Installation and serving the camera should be performed only by qualied and
experienced technicians to conform to all local codes and to maintain your warranty.
WARNING! TheuseofCSAcertied/ULListedClass2poweradapters
arerequiredtoensurecompliance.
Note:
This product is intended to be supplied by a Listed Direct Plug-In Power Unit marked
“Class 2” or Listed Adapter marked “L.P.S.” (or “Limited Power Source”) and rated
output DC 12V, 0.415A minimum or AC 24V, 60Hz, 0.415A minimum.
WARNING! Toreducetheriskofreorelectricshock,donotexposethe
producttorainormoisture.
Operating Notes
Power Supply:This dome camera can operate on AC 24V or DC 12V.
Operating Conditions
• Avoid viewing very bright objects (example, light xtures) for extended periods.
• Avoid operating or storing the unit in the following locations:
- Extremely humid, dusty, hot, cold environments (where the operating
temperature is outside the recommended range of 14°F to 122°F [-10°C to
+50°C].)
- Close to sources of powerful radio or TV transmitters
- Close to uorescent lamps or objects reecting light
- Under unstable light sources (may cause ickering)
Note
(for USA)
Note Connectors and field wiring terminals for external Class 2
circuits provided with marking indicating minimum
of wiring to be used.
Caution
Connect only one camera to the power line, AC24V/DC12V.Do
not share the power line with other equipment. The power
cable between power source and the camera must be under 3 m.
Connect only one camera to the power line, AC24V/DC12V.
Do not share the power line with other equipment. The
power cable between power source and the camera must
be under 3 m.
Class
Class 2 shall be marked adjacent to
the field wiring terminals.
2
TABLE OF CONTENTS
1. Introduction.................................................................................. 3
1.1 Before You Begin----------------------------------------------------------------- 3
1.2 Dimensions----------------------------------------------------------------------- 3
1.3 Names of Camera Parts --------------------------------------------------------- 4
1.4 Routine Maintenance ------------------------------------------------------------ 4
2. Installation ................................................................................... 5
2.1 Disassembling the Camera ------------------------------------------------------ 5
2.2 Connecting the wiring ----------------------------------------------------------- 6
2.3 Mounting the Camera------------------------------------------------------------ 6
2.4 Optional Camera Settings ------------------------------------------------------- 7
2.5 Adjusting the Camera Position -------------------------------------------------- 8
2.6 Adjusting the Lens --------------------------------------------------------------- 8
2.7 Completing the Installation ----------------------------------------------------- 9
3. OSD Settings ...............................................................................10
3.1 Lens ----------------------------------------------------------------------------- 10
3.2 SHUTTER/AGC ------------------------------------------------------------------ 10
3.3 WHITE BAL ---------------------------------------------------------------------- 11
3.4 BACKLIGHT---------------------------------------------------------------------- 12
3.5 PICT ADJUST -------------------------------------------------------------------- 12
3.6 ATR* ----------------------------------------------------------------------------- 12
3.7 MOTION DET -------------------------------------------------------------------- 12
3.8 PRIVACY ------------------------------------------------------------------------ 12
3.9 DAY/NIGHT---------------------------------------------------------------------- 13
3.10 NR ------------------------------------------------------------------------------ 13
3.11 CAMERA ID -------------------------------------------------------------------- 13
3.12 LANGUAGE --------------------------------------------------------------------- 13
3.13 CAMERA RESET---------------------------------------------------------------- 13
3.14 SAVE ALL----------------------------------------------------------------------- 13
3
INTRODUCTION
1. Introduction
The dome camera is ideal for indoor installation in commercial and residential
environment. With 3-axis mount support, it provides exible installation on a ceiling
or wall even at an angle.
1.1 Before You Begin
Please read this manual carefully before you install the dome camera. Keep this
guide for future reference.

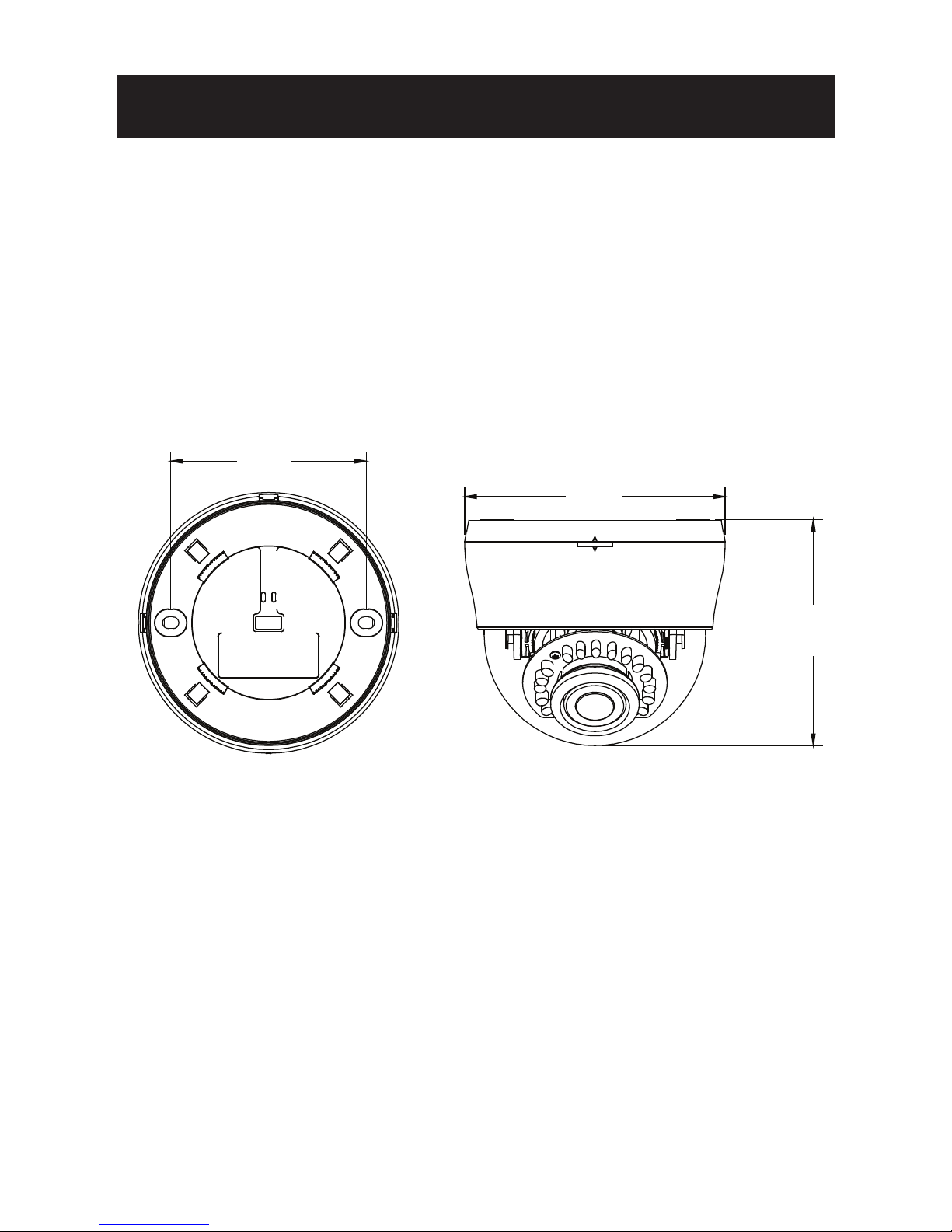

1.2 Dimensions
112mm
84mm
97mm
4

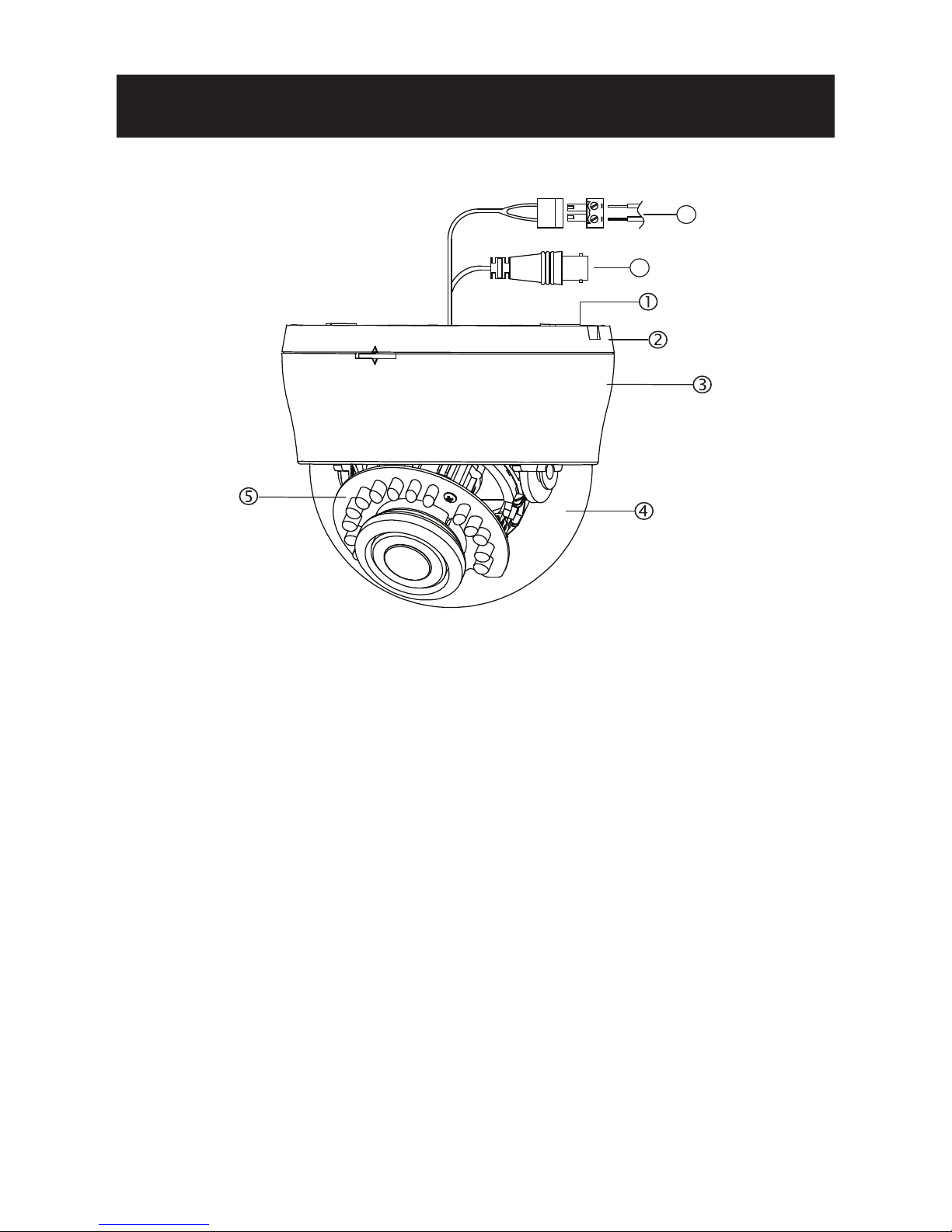

1.3 Names of Camera Parts
a
b
Figure 1-1 Camera parts
1. Conduit hole used for surface run power/video connector
2. Bottom case
3. Camera housing
4. Dome cover
5. IR board
a. AC 24V / DC 12V power input connector (red +, black -)
b. Video output connector
Note:See Figure 2-3 for camera board controls.
1.4 Routine Maintenance
• The dome cover is an optical part. Use a soft, dry cloth to remove any ngerprints
or dust.
• Clean the camera housing with a soft, dry cloth. For more stubborn stains, use a
cloth dampened with a small quantity of neutral detergent, then wipe dry.
Caution: Do not use volatile solvents such as alcohol, benzene or thinners to avoid
damaging the surface nish.
INTRODUCTION
5
INSTALLATION
2. Installation

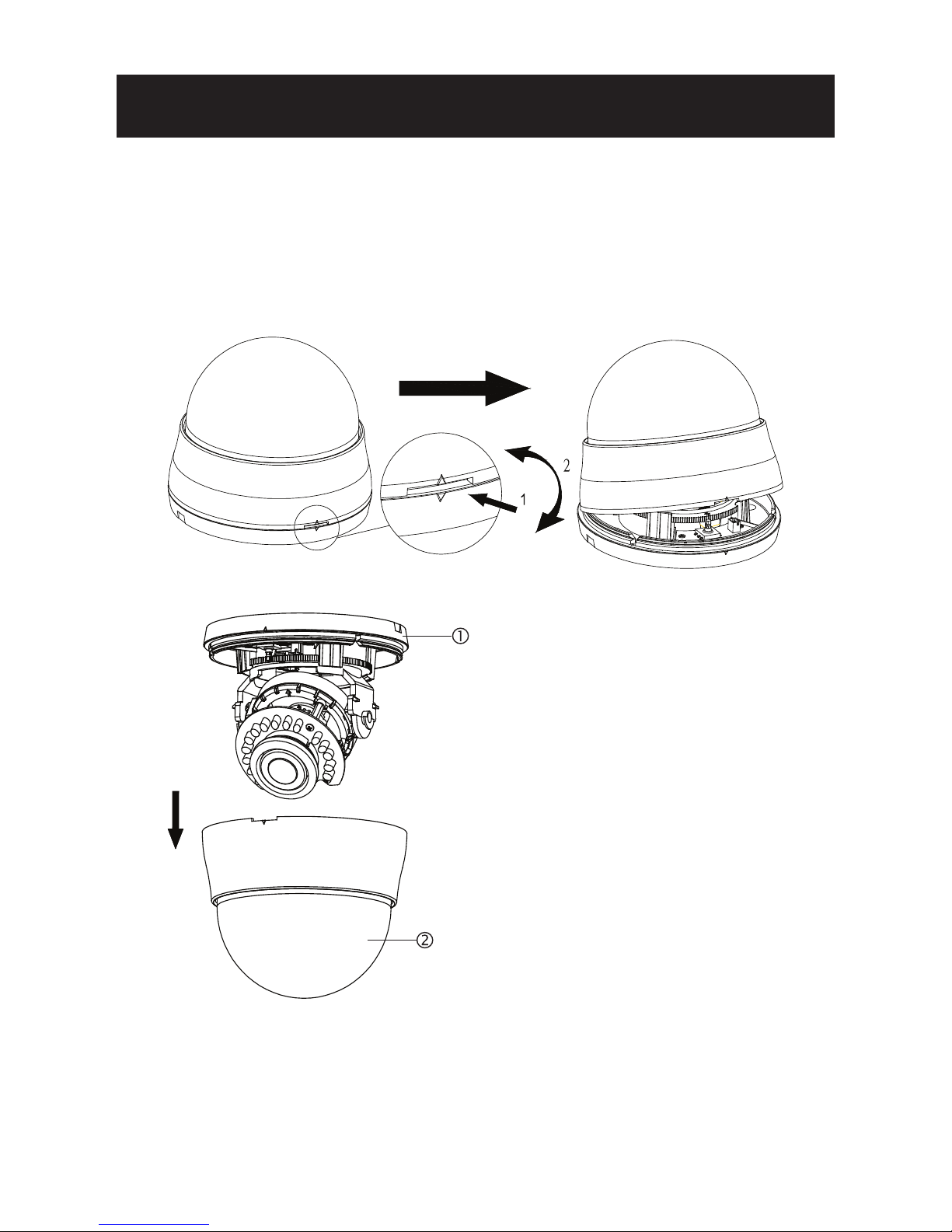

2.1 Disassembling the Camera
Before you mount and adjust the camera, follow these steps to disassemble the
camera.
1. Insert a coin or at tool to the side hole and twist to remove the dome cover.
2. Remove the dome cover (#2).
1. Bottom case
2. Dome cover
Figure 2-1 Disassemble the camera
6
INSTALLATION
2.2 Connecting the wiring
Refer to Figure 1-1 to connect the video connect output connector (#b) and 24
VAC/12 VDC power connector (#a).
Caution:For DC power supply use, make sure the polarity is correct to avoid
malfunction and / or camera damage.

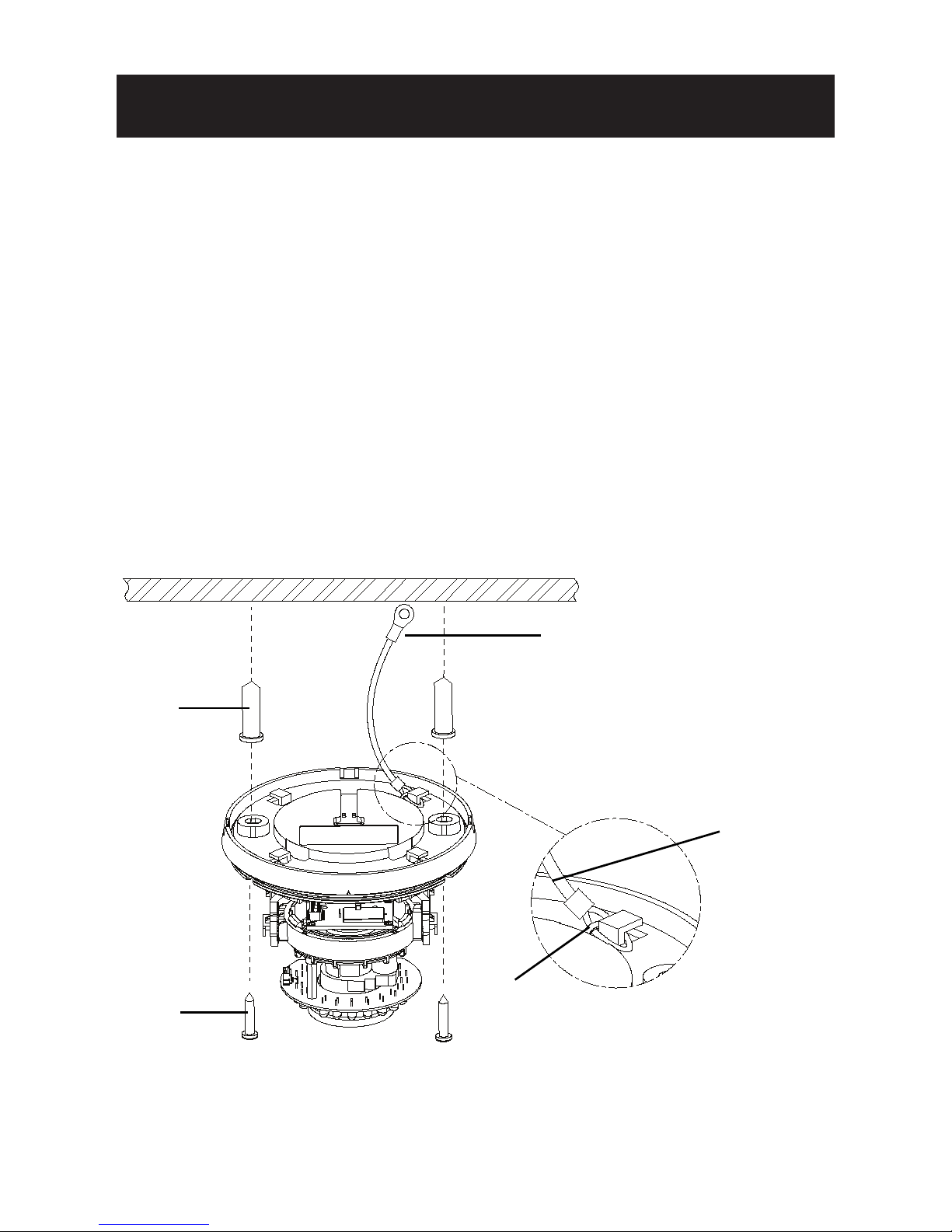

2.3 Mounting the Camera
1. Attach the mounting template to the wall or ceiling.
2. Drill two holes, then insert the screw anchors (#1) into the holes.
3. Secure the bottom case to the wall or ceiling with the TP4 x 15 mm tapping
screws supplied (#2).
Note:Depending on the material of your mounting surface, you may require different
screws and anchors than those supplied.
1. Screw anchors (x2), supplied
2. TP4 x 15 tapping screws (x2),
supplied
Figure 2-2 Camera installation
4. To prevent the camera from falling off, ensures it is connected to a firm place
(ceiling slab or channel) using a Safety Wire (fall prevention wire#3 is not
supplied).
Safety Wire (fall prevention
Please tighten a safety wire
3. Safety Wire(fall prevention
wire, not supplied)
①
②
③
wire#3 is not supplied).
using plastic band on a firm
place as photo.
Safety Wire
Plastic Band
7
INSTALLATION

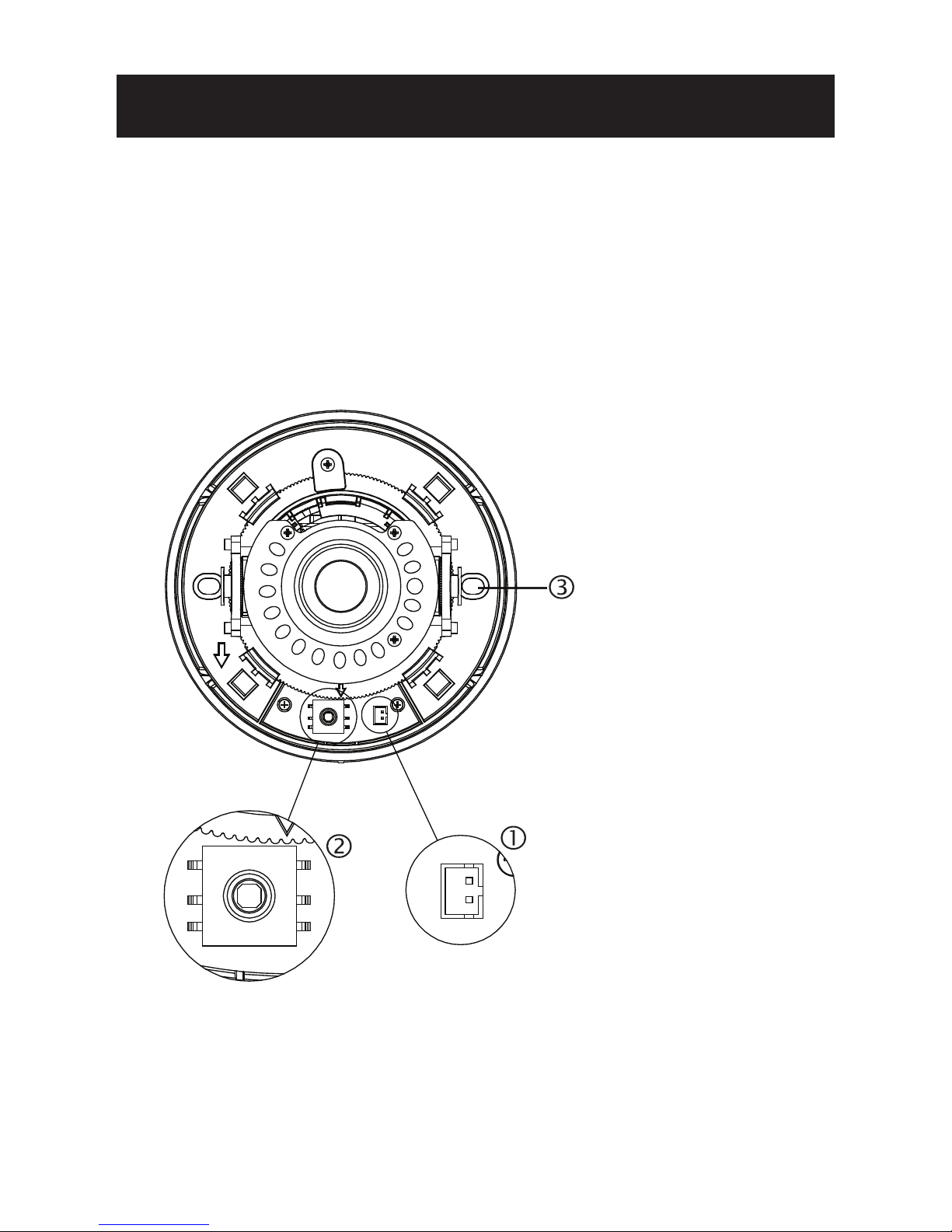

2.4 Optional Camera Settings
Refer to Figure 2-3 to locate the OSD joystick control on the camera board. Use the
joystick to access the OSD menu and congure the camera settings as required.
To use the OSD joystick control:
• Press the OSD joystick control straight down to enter the Main menu or a selected
item.
• Move the OSD joystick control UP, DOWN, LEFT and RIGHT to navigate through
menus and options.
For further information on OSD settings, refere to the “3. OSD Settings” section.
1. Monitor out
2. OSD Joystick Control
3. Camera mounting holes
Figure 2-3 Camera adjustment controls
8

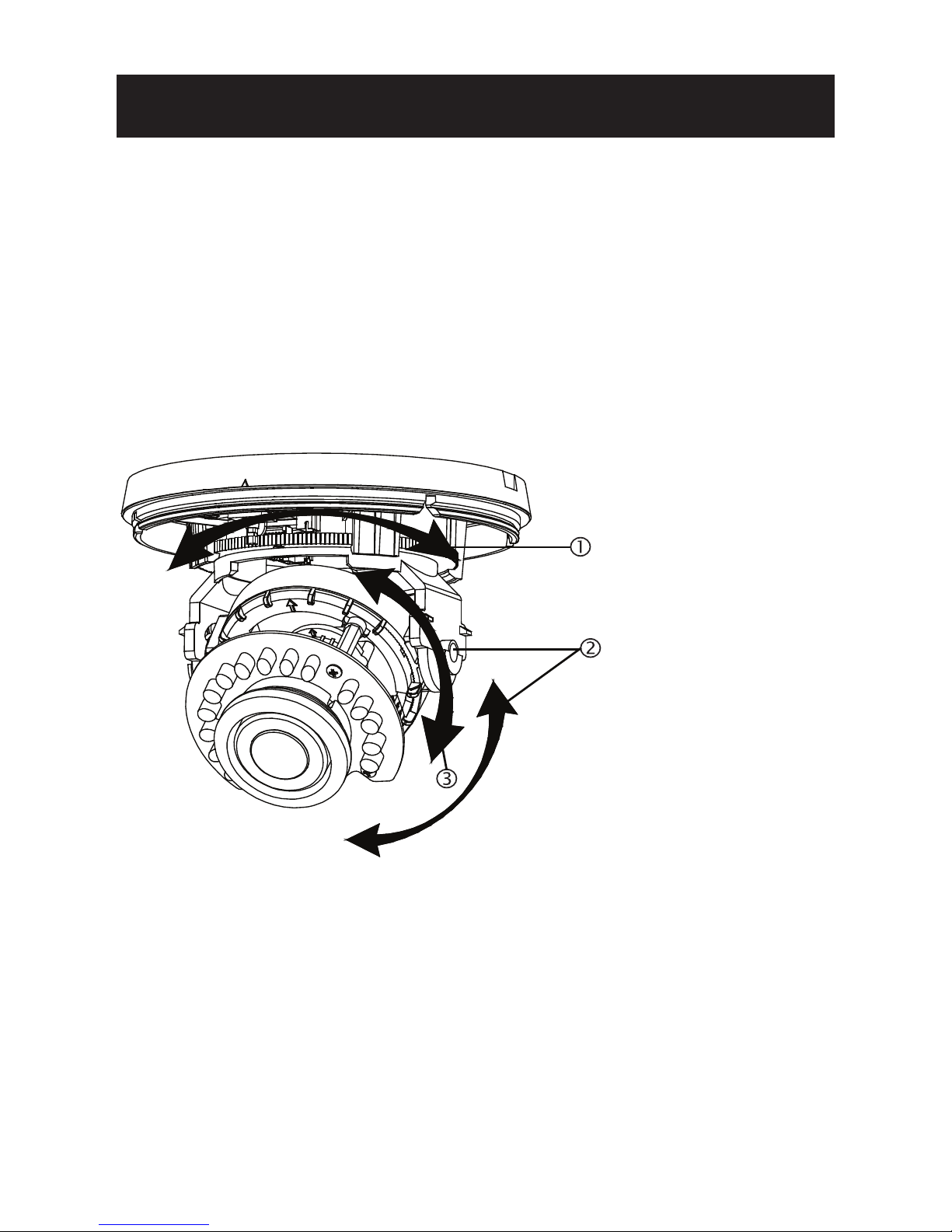

2.5 Adjusting the Camera Position
The dome camera has three axes for positioning the camera. While monitoring the
picture on the monitor, adjust the camera position as follows:
HorizontalAdjustment Rotate 3D assembly in the base. Do not turn assembly
more than 360° as this may cause the internal cables to twist and disconnect or
break. Before making horizontal adjustment, please adjust vertical adjustment to 90
degree (vertical) rst.
VerticalAdjustment After loosening the screw on the bracket, position the camera
as desired, then tighten the screw back to the bracket.
HorizontalRotationFor wall mount and tilted ceilings, rotate the lens base
(maximum 360°) until you are satised with the eld of view.
1. Rotate 3D assembly in base for
horizontal adjustment
2. Tilt adjustment bracket and screw
for vertical adjustment
3. Axis ring for horizontal rotation
for wall mount and tilted ceilings
Figure 2-4 Camera adjustment
2.6 Adjusting the Lens
1. Loosen the focus lever counter-clockwise a little, then adjust the focus for
optimum picture sharpness.
2. Loosen the zoom lever counter-clockwise a little, then rotate the zoom lever and
determine the image view.
3. Re-tighten the zoom lever and focus lever after adjustment.
Note:It is important that you lock the zoom and focus levers after making
adjustments. This will avoid the positions moving (for example, from temperature
changes or vibrations).
INSTALLATION
