KTD-400
Controller Keypad
Installation and Operation
Manual
2 1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
© 2000, Kalatel, a division of Interlogix, Inc.
All Rights Reserved.
ANY KALATEL SO TWARE SUPPLIED WITH KALATEL PRODUCTS IS PROPRIETARY AND
URNISHED UNDER LICENSE AND MAY BE USED OR COPIED ONLY IN ACCORDANCE
WITH THE TERMS O SUCH LICENSE.
This document contains proprietary information that is protected by copyright.
No part of this document may be reproduced or transmitted in any form or by any means without
the prior written permission of Kalatel, a division of Interlogix, Inc.
The information contained in this document is subject to change without notice. Kalatel, in keeping
pace with technological advances, is a company of product innovation. Therefore, it is difficult to
ensure that all information provided is entirely accurate and up-to-date. Kalatel accepts no
responsibility for inaccuracies or omissions and specifically disclaims any liabilities, losses, or
risks, personal or otherwise, incurred as a consequence, directly or indirectly, of the use or
application of any of the contents of this document.
For te hni al support before and after installation, all 800-469-1676.
Kalatel o ers 24-hr technical support 7 days a week.
Call: Te h Support 800-469-1676 (6 a.m. – 5 p.m. PST Monday through riday)
Te h Support 541-740-3589 (all other times)
Main 800-343-3358 or 541-754-9133
ax: Te h Support 541-752-9096 (available 24 hr a day)
Main 541-754-7162
Web: www.kalatel.com
1034790D / January 2001
3
1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
Contents
Introdu tion ........................................................................................................................ 5
Controller Keypad Placement .............................................................................................................5
Installation .......................................................................................................................... 7
KTD-400 & KTD-300R ........................................................................................................................7
Setting the DIP Switch ..................................................................................................................7
Mounting the KTD-300R ...............................................................................................................7
Wiring Connections .......................................................................................................................8
Programming .................................................................................................................... 11
Initial Programming ........................................................................................................................... 11
KTD-400 Programming ..................................................................................................................... 11
Programming Choices for the KTD-400 ...................................................................................... 11
System Component Programming ................................................................................. 15
P/T/Z Receiver Programming ...........................................................................................................16
Accessing the Receiver Setup Menus ........................................................................................16
Receiver Setup ............................................................................................................................16
Setting Electronic Auto Pan Limits ..............................................................................................19
P/T/Z Receiver Preset Position Programming ..................................................................................19
Operation .......................................................................................................................... 21
Key Layouts ......................................................................................................................................21
Key unctions ...................................................................................................................................22
Site Select Keys ..........................................................................................................................22
Pan/Tilt/Zoom Control Keys ........................................................................................................22
Video Switcher Control Keys .......................................................................................................22
Multiplexer unction Keys ...........................................................................................................22
VCR Control Keys .......................................................................................................................23
Keypad Operation .............................................................................................................................24
Monitor Selection ........................................................................................................................24
Camera Selection ........................................................................................................................24
Engaging Auto ocus on CyberDomes .......................................................................................24
inding a Preset ..........................................................................................................................24
Preset Tours ................................................................................................................................24
Camera Sequencing ...................................................................................................................24
Setting Electronic Auto Pan Limits for Kalatel Domes ................................................................25
Video Alarms ...............................................................................................................................25
Clearing Alarms ...........................................................................................................................25
4 1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
Multiplexer Operations ......................................................................................................................25
Switching to Multiplexer Control Mode ......................................................................................25
Selecting an Active Multiplexer ..................................................................................................26
Calling up a Video Input on an Active Multiplexer ......................................................................26
Switching a Multiplexer to Live Video ........................................................................................26
Placing the Active Multiplexer in the Camera Sequence Mode .................................................26
Viewing VCR Output or Playback ..............................................................................................26
Operating Electronic Zoom ........................................................................................................26
Selecting Multiple Camera Views on a Multiplexer ....................................................................26
VCR Operation ..................................................................................................................................26
Switching to VCR Control Mode ................................................................................................26
Selecting an Active VCR ............................................................................................................26
Appendix A: Warranty and Return Information.............................................................. 27
5
1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
Introdu tion This manual covers installation and operation instructions for a KTD-400 series keypad. Designed
for use in a Digiplex™ system (see igure 1), the KTD-400 can address and control 512 pan/tilt/zoom
receiver sites, operate a matrix switcher with 64 monitor outputs, and address and select views from
as many as 64 multiplexers and VCRs. Several models of multiplexers are supported.
igure 2: Placement in a Digiplex System using a KTD-312 Signal Merger
igure 1: Placement in a Digiplex System
NOTE: This produ t was originally alled the KTD-300. It has been updated to the KTD-400.
Although the look of the KTD-400 has been modified, the fun tionality of both versions
remains the same, ex ept for DTMF ompatibility. If you are using a KTS-41A swit her in
your KTD-400 system, you will need to order a DTMF Upgrade Kit (item number
1034782). Instru tions in this manual referring to the KTD-400 are also appli able to the
KTD-300.
To operate and control multiplexers and VCRs, a KTD-93 Auxiliary Device Driver is required
to interface with each device in a Digiplex system.
NOTE:
or CyberDome control from the KTD-400, pan/tilt operation is limited to three speeds.
NOTE:
A Digiplex system's RS422 control signal originates from the controller keypad located at
the head end of the system and travels “down line” via twisted pair cable. When more than
one controller keypad is used, the signal must loop through each keypad or be merged using
KTD-312 Signal Mergers (see igure 2) before being routed to the rest of the components
in the system.
Controller Keypad
Pla ement
6 1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
7
1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
Installation
Mounting the
KTD-300R
The KTD-300R is designed to fit into a standard EIA 19" rack and uses one unit (1.75") of
rack space. Mount the unit using the four holes in its front panel and hardware provided from
the rack manufacturer.
KTD-400 &
KTD-300R
Installing a KTD-400 keypad involves setting the DIP switch, mounting the unit (KTD-300R
only), and making cable connections.
igure 3: KTD-400 and 300R Cover Removal and DIP Switch Location
KTD-300R
KTD-400
Setting: Description:
Digiplex P/T/Z and VCR control only.
Multiplexer control only.
Factory setting: Digiplex P/T/Z, multiplexer, and VCR control.
Controlling a Robot MV96 multiplexer with a KTD-90.
Table 1: DIP Switch Settings
Setting the DIP Swit h The KTD-400 contains a DIP switch that is used to select mode of operation choices as
shown in Table 1. To change the switch from factory settings, refer to igure 3.
NOTE: To in orporate a KTS-41A swit her into a KTD-400 system, refer to the installation
sheet provided with the DTMF Upgrade Kit.
CAUTION: Do not connect power to the unit before all installation steps have been completed.
Do not connect directly to a telecommunication network.
8 1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
Wiring Conne tions The KTD-400 comes with a 6-foot cable that attaches to a modular phone box. All external
connections are made in the phone box. or the KTD-300R, connections are made to the
removable terminal strip located on the rear of the unit. igures 4 and 5 illustrate connection
details.

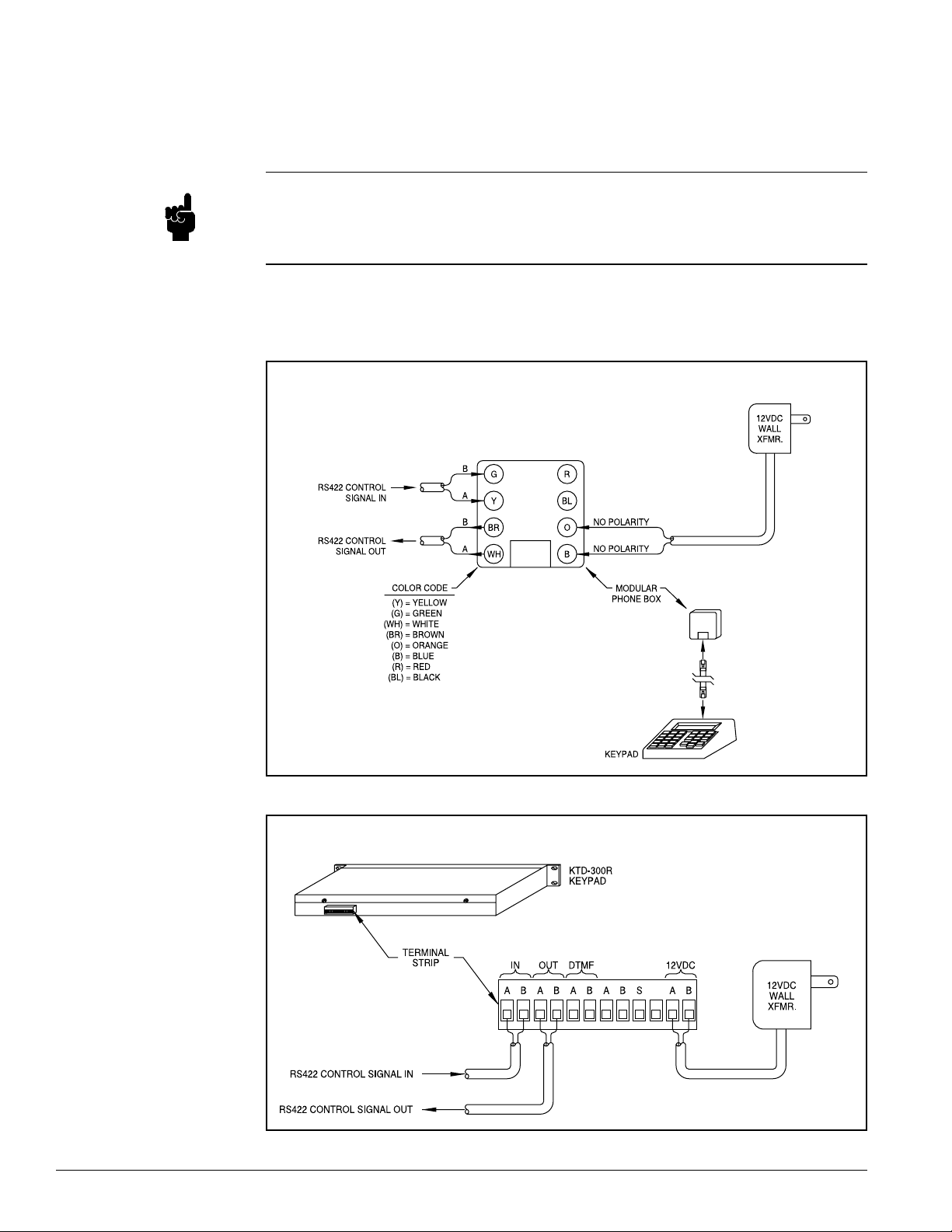

igure 4: KTD-400 Modular Phone Box Connections -
Standard Digiplex Control
igure 5: KTD-300R Terminal Strip Connections - Standard Digiplex Control
Digiplex System
Connections
Wiring the KTD-400 and 300R to control a standard Digiplex system involves connecting
the RS422 input cable (if used), the RS422 output cable, and the 12VDC wall transformer
( igures 4 & 5).
The illustrations below give connection points for an RS422 input cable and an RS422
output cable. Do not confuse the two. The input is used only if other keypads, alarm chassis,
or a time date generator are located ahead of the unit that is being wired.
NOTE:
9
1034790D / January 2001
KTD-400 Controller Keypad Installation and Operation Manual
After all the connections are made, the KTD-400 or KTD-300R is ready for operation. Plug
the 12VDC wall transformer into a power outlet. The LCD window will briefly display keypad
setting information, and then it will enter the operating mode.
Powering Up
KTS-41 System
Control
Wiring the KTD-300R to control a KTS-41A system involves connecting the RS422 input
cable (if used), the RS422 output cable (if used), the DTM output cable (to the KTS-41A),
and the 12VDC wall transformer. See igure 6.
igure 6: KTD-300R terminal strip connections with KTS-41A control
10 1034790D / January 2001
