KTD-404 Controller Keypad Installation and Operations Guide
© 1999, Kalatel, a division of Interlogix, Inc.
ANY KALATEL SOFTWARE SUPPLIED WITH KALATEL PRODUCTS IS
PROPRIETARY AND FURNISHED UNDER LICENSE AND MAY ONLY BE
USED OR COPIED IN ACCORDANCE WITH THE TERMS OF SUCH LI-
CENSE.
This docum nt and th information disclos d h r in contains trad s cr ts,
comp titiv , s nsitiv , and/or privil g d, confid ntial and propri tary data of
Kalat l, and is b ing furnish d in confid nc . N ith r this docum nt, nor th
information contain d h r in shall b r produc d, us d or disclos d to oth rs
without th prior writt n authorization of Kalat l. All rights r s rv d.
Th Cyb rDom product and logo ar trad marks of Kalat l.
This docum nt is int nd d to provid accurat information; how v r, th
information contain d h r in is subj ct to chang without notic . Kalat l, in
k ping pac with t chnological advanc s, is a company of product innovation.
Th r for , it is difficult to nsur that all information provid d is ntir ly accu-
rat and up-to-dat . Kalat l acc pts no r sponsibility for any inaccuraci s or
omissions and sp cifically disclaims any liabiliti s, loss, or risk, p rsonal or
oth rwis , which is incurr d as a cons qu nc , dir ctly or indir ctly, of th us
and/or application of any of th cont nts of this docum nt.
For technical support before and after installation, call 800-469-1676.
Mail: PMB-225, P.O. Box 004, Corvallis, OR, USA 97 9
Shipping: 728 SW Wake Robin Ave, Corvallis, OR, USA 97
Phone: (Toll Free) 800-469-1676
(In Oregon) 541-754-91
Fax: (Office) 541-754-7162
(Sales) 541-752-9097
(Tech Support) 541-752-9096
Web: www.kalatel.com
Kalatel offers 24-hour technical support assistance seven days a week.
Please call 1-800-469-1676 during normal business hours: 6 a.m. to 5 p.m. (PST).
If calling after hours (between 5 p.m. and 6 a.m. PST) or on weekends,
please call 541-740- 589.
Document Number D0404SG0_B
This product was designed and manufactured in the U.S.A. by Kalatel
D0404SG0_B
KTD-404 Controller Keypad Installation and Operations Guide
Table of Contents
Introduction .......................................................................................................................... 5
Controller Keypad Placement ...............................................................................................................5
Installation ............................................................................................................................ 6
KTD-404 & KTD-304R ..........................................................................................................................6
Cable Connections ..........................................................................................................................6
Programming ........................................................................................................................
Initial Pro rammin ...............................................................................................................................9
KTD-404 Pro rammin .........................................................................................................................9
Pro rammin Choices for the KTD-404 ..........................................................................................9
System Component Pro rammin ........................................................................................................15
P/T/Z Receiver Pro rammin ...............................................................................................................16
Accessin the Receiver Setup Menus ............................................................................................16
Receiver Setup ................................................................................................................................16
Settin Electronic Auto Pan Limits for Kalatel Domes ....................................................................19
P/T/Z Receiver Preset Position Pro rammin ................................................................................19
Operation .............................................................................................................................. 21
Key Layouts.....................................................................................................................................21
Key Functions .................................................................................................................................22
Site Select Keys ..............................................................................................................................22
Pan/Tilt/Zoom Control Keys ............................................................................................................22
Video Switcher Control Keys ...........................................................................................................22
Access Control Keys .......................................................................................................................22
Special Application Keys .................................................................................................................22
Multiplexer Function Keys ...............................................................................................................23
Keypad Operation .................................................................................................................................24
Monitor Selection ............................................................................................................................24
Camera Selection ............................................................................................................................24
En a in Auto Focus on CyberDomes ...........................................................................................24
Findin a Preset ..............................................................................................................................24
Preset Tours ....................................................................................................................................24
Camera Sequencin .......................................................................................................................25
Settin Electronic Auto Pan Limits for Kalatel Domes ....................................................................25
Video Alarms ...................................................................................................................................25
Clearin Alarms ...............................................................................................................................25
4D0404SG0_B
KTD-404 Controller Keypad Installation and Operations Guide
Annunciation ...................................................................................................................................26
2-Way Audio ....................................................................................................................................26
Multiplexer Operations ..........................................................................................................................26
Switchin to Multiplexer Control Mode ............................................................................................26
Selectin an Active Multiplexer .......................................................................................................26
Callin up a Video Input on an Active Multiplexer ...........................................................................26
Switchin a Multiplexer to Live Video ..............................................................................................27
Placin the Active Multiplexer in the Camera Sequence Mode.......................................................27
Viewin VCR Output or Playback ...................................................................................................27
Operatin Electronic Zoom .............................................................................................................27
Selectin Multiple Camera Views on a Multiplexer .........................................................................27
Appendix A: (Locatin the Dip Switch) .................................................................................................29
Appendix B: (Keycap Replacement) ....................................................................................................31
Appendix C: (Current Parameters Display) ..........................................................................................33
Appendix D: (Warranty and Return Information) .................................................................................35
5
D0404SG0_B
KTD-404 Controller Keypad Installation and Operations Guide
Introduction This manual covers installation and operation instructions for a KTD-404 series keypad.
NOTE: This product was originally called the KTD-304. It has een updated to the KTD-404;
although the look of the KTD-404 has een modified, the functionality of oth versions
remains the same. All instructions in this manual referring to the KTD-404 are also applica le
to the KTD-304 version.
Designed for use in a DIGIPLEX system, the KTD-404 can address and control 512 Pan/
Tilt/Zoom receiver sites, operate a matrix switcher with 64 monitor outputs, and address and
select views from as many as 64 multiplexers. The KTD-404 series is also available with
an audio option (designated KTD-404A) or rack-mounted (KTD- 04RA) in which the
keypad contains a 2.5 watt audio amplifier for 2-way voice communication. To operate and
control multiplexers, a KTD-9 is required to interface with each device in a Digiplex system.
A DIGIPLEX system's RS422 control signal originates from the controller keypad located
at the head end of the system, and travels down line via twisted pair cable. When more
than one controller keypad is used, the signal must loop through each keypad or be merged
using KTD- 12 Signal Mergers before being routed to the rest of the components in the
system. Figures 1-4 show typical system configurations.
Controller Keypad
Placement
Figure 1: Typical System with Single Keypad
Figure 2: System with Two Keypads and a Multiplexer
Figure : Placement in a DIGIPLEX System using a KTD-46 Alarm Chassis
6D0404SG0_B
KTD-404 Controller Keypad Installation and Operations Guide
Installation
CAUTION
Installation of the KTD-404 series keypad involves mounting the unit (KTD- 04R only), and
making cable connections.
Cable Connections
NOTE
The KTD-404 Controller Keypad is designed for desktop use, and is provided with a 6-foot
cable that connects to a modular phone box. All external connections are made in the phone
box, as shown in Figure 5. If the audio option was selected, use Figure 6.
The following illustrations give connection points for an RS422 input cable and an RS422
output cable. Do not confuse the two. The input is only used if other keypads, alarm chassis,
or time/date generators are located ahead of the KTD-404 being wired.
KTD-304R
(KTD-304RA)
KTD-404
(KTD-404A)
NOTE
DTMF cable is used for call-in requests from auxiliary door and gate receivers. This input
is only used in installations using DTMF call-in for keypad annunciation.
Figure 4: Two Keypads using a KTD- 12 Signal Merger
The KTD- 04R Controller Keypad is designed for rack-mount installation. All cable
connections are made to the removable terminal strip located on the rear of the unit, as
illustrated in Figure 7.
Do NOT connect power to the unit until all installation steps are completed.
Do NOT connect directly to a telecommunication network.
7
D0404SG0_B
KTD-404 Controller Keypad Installation and Operations Guide
KTD-404A

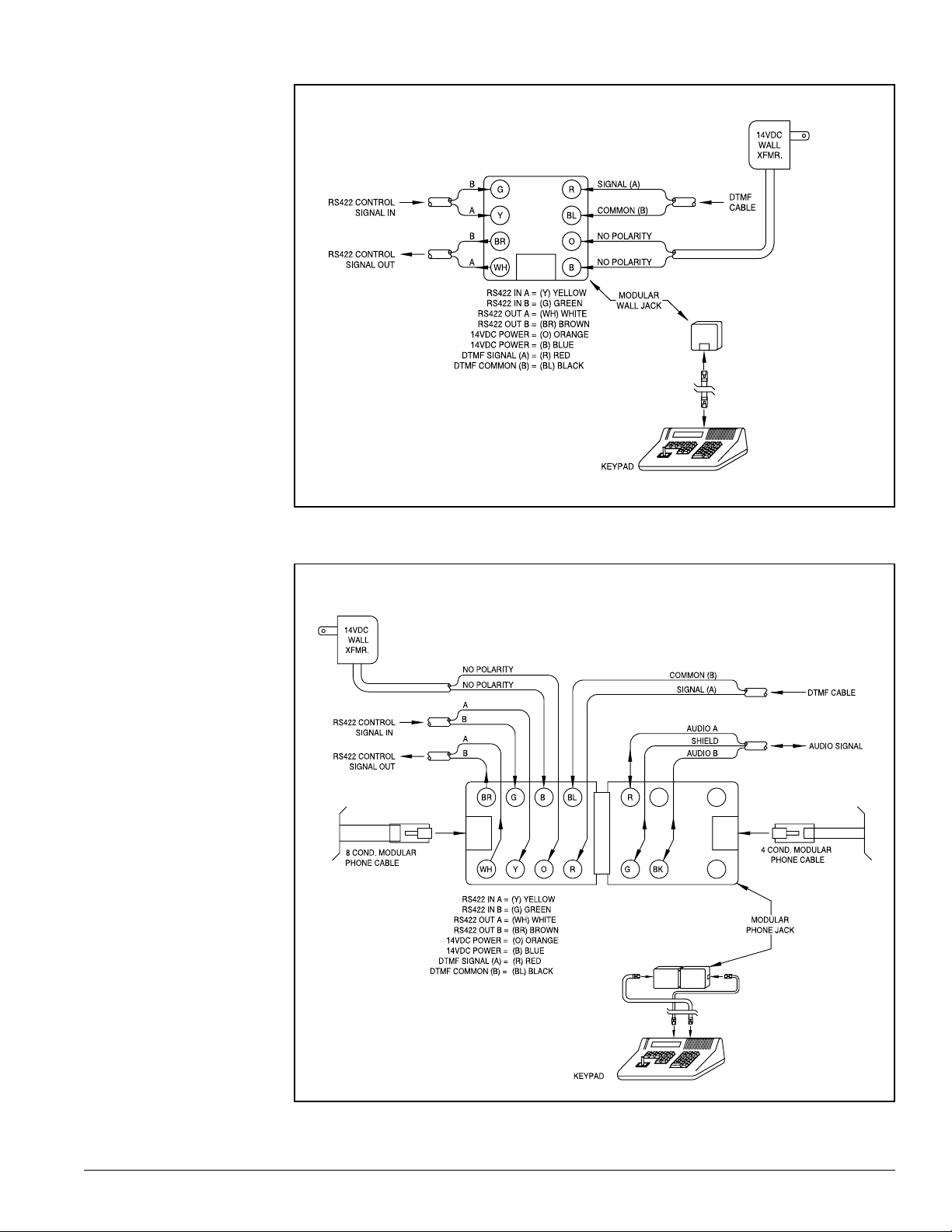

KTD-404 Figure 5: KTD-404 Connections
Figure 6: KTD-404A Connections
8D0404SG0_B
KTD-404 Controller Keypad Installation and Operations Guide
After all the connections are made, the KTD- 04(R) is ready for operation. Plug the 14VDC
wall transformer into a power outlet. The LCD window will briefly display the Kalatel name
along with keypad information, then it will enter the operating mode.
Pow ring Up
KTD-304R(A) Figure 7: KTD- 04R(A) Connections
