Kambrook ARCTIC KFA835 Manuale utente

Instruction Booklet

Arctic

Remote Controlled

Tower Fan

KFA835

Important

Please retain your instruction

book for future use.

In the event that you need some assistance with your

Kambrook appliance, please contact our Customer Service

Department on 1300 139 798 (Australia) or 09 271 3980 (New

Zealand). Alternatively, visit us on our website at

www.kambrook.com.au

Contents

Kambrook Recommends p4

Safety First

Your Kambrook Arctic p6

Remote Controlled Tower Fan

Using Your Kambrook p7

Arctic Remote Controlled Tower Fan

Care and Maintenance p10

Warranty p12

Kambrook Recommends Safety First

IMPORTANT: Please retain your

instruction book for future use.

At Kambrook, we believe that safe performance is the ﬁrst priority in any

consumer product, so that you, our valued customer can conﬁdently

use and trust our products. We ask that any electrical appliance that

you use be operated in a sensible fashion with due care and attention

placed on the following important operating instructions.

Important Safeguards For Your Kambrook

Arctic Remote Controlled Tower Fan

• Carefully read all instructions before

operating the Kambrook Arctic Remote

Controlled Tower Fan for the ﬁrst time

and save for future reference.

• To protect against electric shock, do no

immerse the fan, cord or plug in water

or any other liquid

• This fan is intended for household

use only and not for commercial or

industrial use.

• Disconnect the power plug

before dismantling, assembling

or before cleaning.

• Avoid touching mobile parts of the fan.

• Ensure the fan is on a dry and

even surface.

• Never insert ﬁngers, pencils or any other

objects through the guards whenever

the power plug is connected, in

particular while the fan is switched on.

• The fan must not be used if the guards

are not fastened correctly, according

to these instructions.

• Do not operate in the presence of

explosives and/or ﬂammable fumes

or liquids.

• Do not unplug the fan by pulling on

the cord.

• Never carry the fan by the cord or yank

to disconnect from an outlet; instead,

grasp the cord and pull to disconnect.

Do not pull the cord around sharp

edges or corners.

Important Safeguards For All

Electrical Appliances

• Fully unwind the power cord before use.

• Do not let the power cord hang over

the edge of a bench or table, touch

hot surfaces or become knotted.

• To protect against electric shock do not

immerse the power cord, power plug or

housing in water or any other liquid.

• The appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised

to ensure that they do not play with

the appliance.

• It is recommended to regularly inspect

the appliance. To avoid a hazard do

not use the appliance if power cord,

power plug or appliance becomes

damaged in any way. Return the

entire appliance to the nearest

authorised Kambrook Service Centre

for examination and/or repair.

• Any maintenance other than cleaning

should be performed at an authorised

Kambrook Service Centre.

• This appliance is for household use only.

Do not use this appliance for anything

other than its intended use. Do not use

in moving vehicles or boats. Do not use

outdoors. Misuse may cause injury.

• The installation of a residual current

device (safety switch) is recommended

to provide additional safety protection

when using electrical appliances. It

is advisable that a safety switch with

a rated residual operating current

not exceeding 30mA be installed in

the electrical circuit supplying the

appliance. See your electrician for

professional advice.

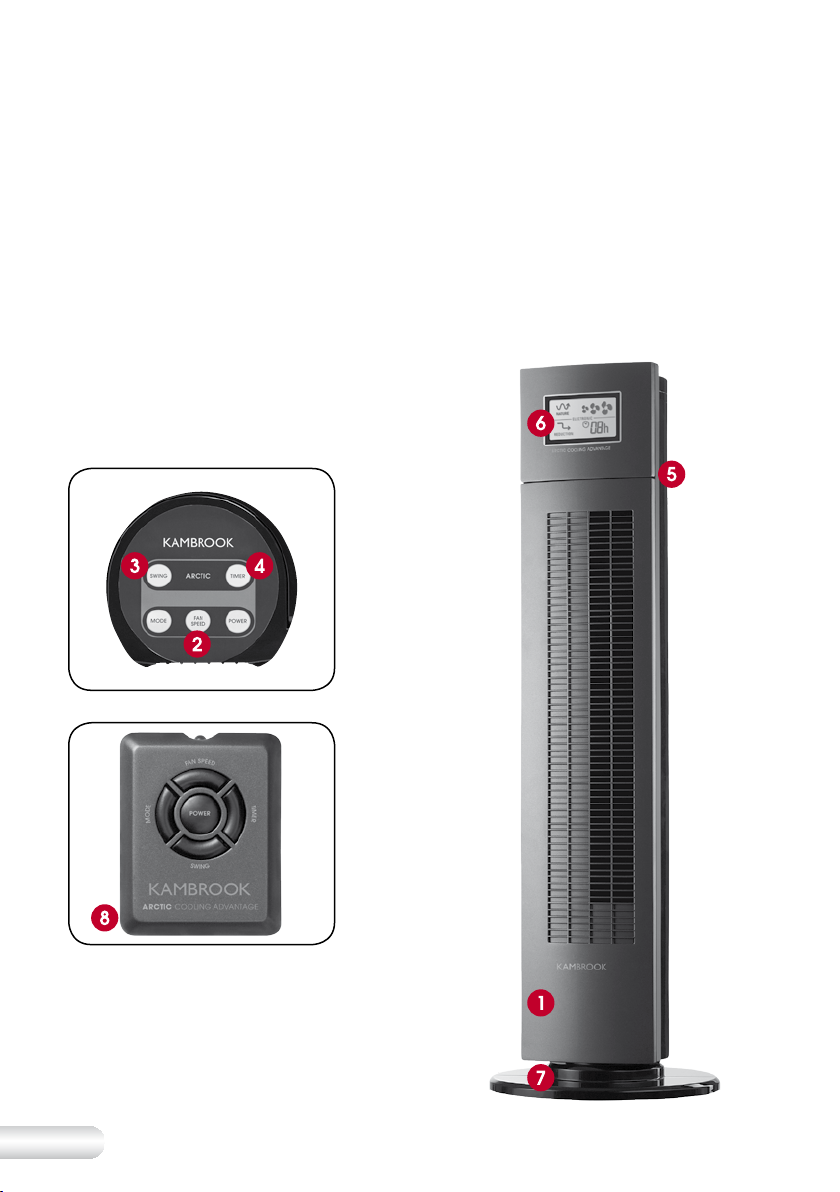

Your Kambrook Arctic Remote

Controlled Tower Fan

1. Tower fan body

2. Choice of 3 speed settings,

nature and reduction mode

3. 60° oscillation to disperse the air

throughout the room

4. Eight hour auto-off timer

5. Convenient carry handle for

easy portability

6. LCD screen

7. Small footprint

8. Remote control

Parts List

• Tower body

• 2 piece base

• Remote control

Not Shown

• Fastening screws attached in the

base of the tower

Using Your Kambrook Arctic Remote

Controlled Tower Fan

Before First Use

Remove any promotional material

from the fan.

IMPORTANT: When

unpacking the fan, check

to see you have received

all the items listed in the

Parts List, before discarding

the packaging.

Assembling Your Arctic

Remote Controlled

Tower Fan

Base Assembly

1. Turn the Tower body upside down,

and remove the fastening screws

from the bottom of the tower.

2. Thread the power cord through

the half base (a) square opening.

Position the half base (a) onto

the support posts, located on the

bottom of the tower body.

Fig. 1

3. Pull and place the power cord

across the already positioned

half base (a), positioning it into

the cord track. Then align the

other half base (b) over the

support posts, and slightly over the

already positioned half base (a).

Firmly push down on the half base

(b) until the bases are locked in

place and ﬂush. (Fig. 2)

Fig. 2

4. Secure the joint base to the Tower

Body with the fastening screws.

5. Check the power cord is still

located in the cord track.

6. Turn the tower over to the upright

position, it is now ready for use.

(a)(b)

Using Your Kambrook Arctic Remote Controlled

Tower Fan continued

To Operate the Arctic

Remote Controlled

Tower Fan

Plug the cord into a 230V or 240V

power point and switch on.

NOTE: To avoid an electrical

circuit overload, it is

recommended that no other

appliances are plugged into the

same circuit as your fan, when it

is in use.

To turn the fan on simply press the

POWER button.

The Arctic Tower Fan has three fan

speed settings; (LOW), (MED) and

(HIGH).

Press the Fan Speed button once for

LOW speed, a second time for MED

and a third time for HIGH. The fan

speed selected will be displayed on

the LCD screen.

To turn the fan off, simply press the

POWER button.

Your Arctic Tower Fan also features a

NATURE and REDUCTION setting.

Fig. 3

Setting the Oscillation

The oscillation function works in all air

ﬂow settings.

Press down the Swing button to

activate. The fan will begin to

oscillate from side to side.

Press the Swing button again to stop

the fan from oscillating.

Setting the Timer

The Arctic Tower Fan incorporates an

eight hour, count down timer, which

allows you to set the fan to turn off

after 1, 2, 4 or 8 hours.

Press the Timer button once to

activate the timer setting. The timer

will then be set to turn off in 1 hour

and 1h will appear on the LCD screen.

Press the Timer button again, to have

the fan switch off after 2 hours, and

2h will appear on the LCD screen.

Similarly, pressing the Timer button

a 3rd or 4th time will set the fan to

switch off after 4 or 8 hours, and the

relevant setting will appear on the

LCD screen.

STOP

1 hour 2 hours 4 hours 8 hours

Using the Nature and

Reduction Settings

Both the NATURE and REDUCTION

settings can be used on any fan

speed. The LCD screen will indicate

what mode the fan has been set in.

The NATURE mode simulates the

natural rise and fall of the wind

over time.

NATURE:

Random speed cycles (90-second cycles)

REDUCTION:

Speed cycles (90-second cycles) Speed steps down

every 30 minutes for MED and HIGH settings.

Pre-select speed / (LOW)

speed

Pre-select speed / (MED)

speed

Pre-select speed / (HIGH)

speed

variation speed

variation

speed

variation

speed

variation

speed

variation speed

variation

speed

Pre-select speed / (LOW)

Pre-select speed / (MED)

Pre-select speed / (HIGH)

Once a fan speed setting is selected,

press the MODE button once to

activate the NATURE setting. The

fan will now alternate between the

pre-selected setting, all lower settings

and OFF.

To switch the NATURE mode off, press

the MODE button twice, until the

indicator light disappears.

The REDUCTION mode allows you to

decrease the fan speed over time.

Once a fan speed setting is selected,

press the MODE button twice to

activate the REDUCTION setting. After

30 minutes, the selected setting will

drop to the next lowest setting. For

example if the fan speed is set at

MED, after 30 mins it will drop down

to LOW, and remain on LOW until the

unit is turned off.

To switch the REDUCTION mode off,

press the MODE button once. The fan

will now be in normal operation.

Using the Remote Control

The remote control buttons operate

in the same way as those on the fan

control panel.

Your remote control takes 2xAAA

batteries, and can be conveniently

stored in the compartment on the

rear housing of the unit.

Care and Maintenance

Always switch the Arctic Remote

Controlled Tower Fan off, prior to

cleaning the housing.

To clean the outside of the fan, wipe

the exterior with a soft, damp cloth.

Never use an abrasive cleaner.

When not in use, store the fan

(preferably in its original box) in a

cool, clean and dry location.
