Thank you for purchasing Kapro’s 872 Prolaser®Plus. You

now own one of the most advanced laser tools available. This

manual will show you how to get the most out of your laser tool.

APPLICATIONS

The 872 Prolaser®Plus is innovatively designed for a very broad

range of professional and DIY jobs, including:

• Aligning tiles, cabinets, borders, moldings and trimmings

• Doors and windows installation

• All types of DIY jobs, including hanging shelves, pictures and

NOTE

Keep this user manual for future reference.

3AA

165'/50m INCLUDED

Up to 50m/165'

CONTENTS

• Features 4

• Safety instructions 5-6

• Battery installation & Safety 7-8

• Overview 9

• Operating instructions 10-12

• Maintenance 13

• Field calibration test 14-19

• Speciﬁcations 20

• Warranty 21

FEATURES

• This laser tool is automatically determines the horizontal

and the vertical plans

• The laser projects intersecting horizontal and vertical lines

• Self-level in automatic mode when the laser is positioned

within its self-leveling range.

• Visual and audible “out of leveling range” warning

• Pulse mode emits pulses that can be detected by a

detector.

• The max. Detectable range of the laser in pulse mode is

50m (165’).

• Manual mode allows angular layout/marking

• Strong and adjustable metal folding legs allow extreme

angles mounting and height adjustment

• Locking mechanism to protect the pendulum during

transportation.

• 1/4" tripod adaptor

• Shock resistant rubber casing

• Compact size – ts in your toolbox

NOTE

This device contain precision components

that are sensitive to external shock, impact or

drop that may compromise its functionality –

handle with care to maintain its accuracy.

SAFETY INSTRUCTIONS

WARNING

This product is emitting radiation that is classiﬁed

As class II according to EN 60825 -1

The laser radiation can cause serious eye injury

• Do not stare into the laser beam

• Do not position the laser beam so that it unintentionally

blinds you or others.

• Do not operate the laser level near children or let children

operate the laser level.

• Do not look into a laser beam using magnifying optical

devices such as binoculars or a telescope, as this will

increase the level of eye injury.

WARNING: This product contains lead in solder and

certain Electrical parts contain chemicals which are

known to the State of California to cause cancer, birth

defects or other Reproductive harm.

(California Health & Safety Code Section 25249.6- Proposition 65)

NOTE

The red goggles are intended to enhance the

visibility of the Laser beam. They will not

protect your eyes against laser radiation.

• Do not remove or deface warning labels on the laser level.

• Do not disassemble the laser level, laser radiation can

cause serious eye injury.

• Do not drop the laser.

• Do not use solvents to clean the laser.

• Do not use in temperatures below -10°C or above 45°C

(14°F / 113°F)

• Do not operate the laser in explosive atmospheres such as

ammable liquids, gases or dust. Sparks from the tool can

cause ignition.

• When not in use, turn off the power, engage the pendulum

lock and place the laser in the carrying pouch.

• Make sure the pendulum lock mechanism is engaged

before transporting the laser.

NOTE

If the Pendulum lock mechanism is not

engaged before Transportation, internal

mechanical damage can occur.

1. Press down on the latch and remove the battery cover.

2. Insert 3 new AA batteries of the same brand according to

the polarity diagram on the inside of the battery compartment.

3. Reclose the battery cover.

BATTERY INSTALLATION & SAFETY

NOTE

If the laser level will not be used for a long

period, remove the batteries from the battery

compartment. This will prevent batteries from

leaking and corrosion damage.

WARNING: Batteries can deteriorate, leak or explode, and

can cause injury or re.

1. Do not shorten the battery terminals.

2. Do not charge Alkaline batteries.

3. Do not mix old and new batteries.

4. Do not dispose of batteries into household waste.

5. Do not dispose batteries in re.

6. Defective or dead batteries must be disposed according to

local Regulations.

7. Keep the batteries out of reach from children.

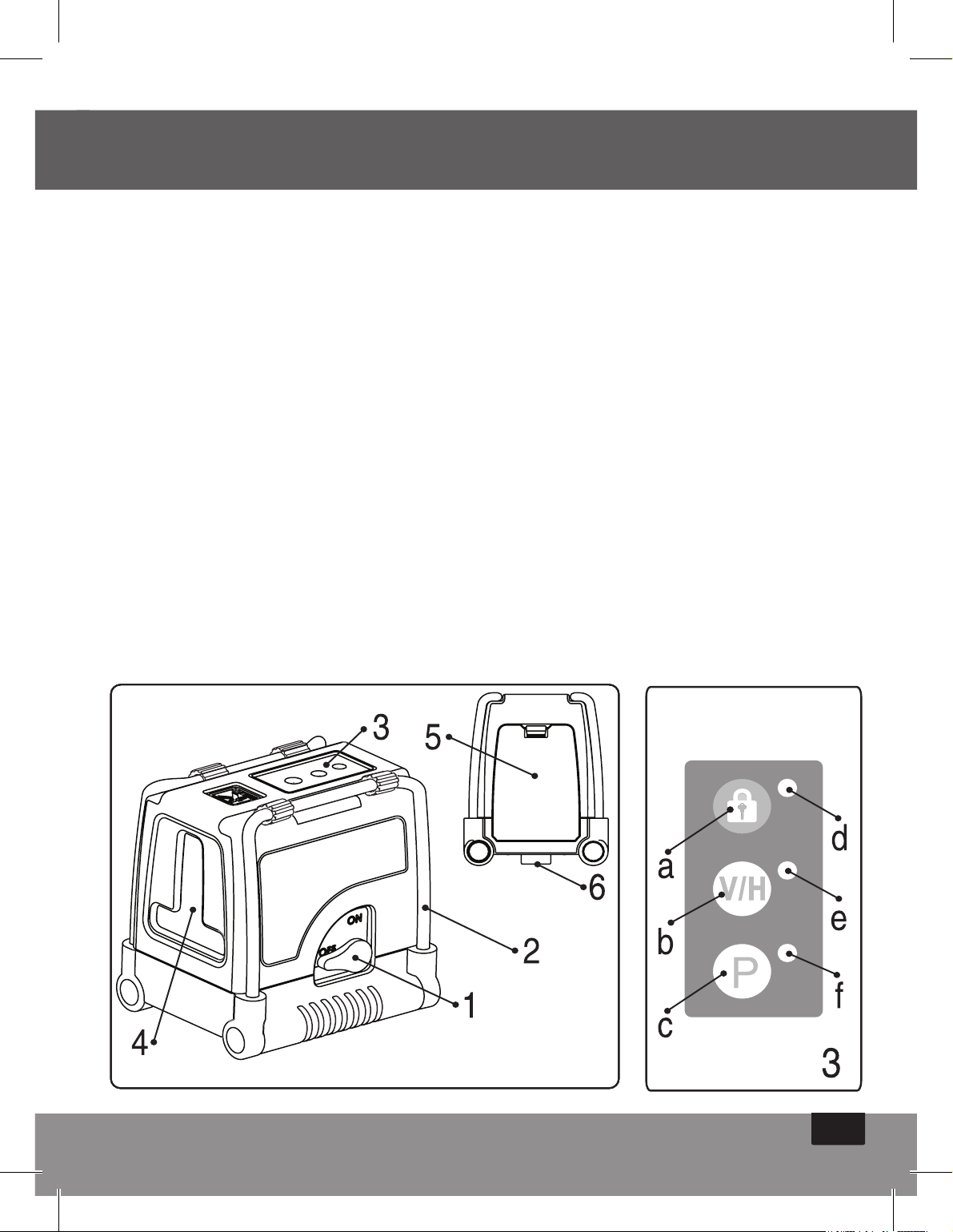

OVERVIEW

1. On/Off Locking Switch

2. Metal legs

3. Keypad

a. Manual Mode button d. Manual Mode LED

b. Beam Selector button e. Laser beam LED

c. Pulse Mode button f. Pulse mode LED

4. Laser output window

5. Battery cover

6. ¼” tripod mount

OPERATING INSTRUCTIONS

Working in Automatic mode (self-leveling):

In automatic mode the laser level will level itself in the range

of ± 3° and will project horizontally or vertically or both lines

simultaneously.

1. Remove the laser from the case and place it on a solid

at Vibration free surface or on a tripod.

2. Turn the locking switch #1 clockwise to the ON position

the laser level will generate the crossed horizontal and

vertical lines and the green LED near the V/H push

button will light up.

3. Choose the beams that you want to work with by pushing

the Beam push button V/H

4. Use the adjustable metal legs #2 to adjust the height of

the horizontal line.

5. If the initial slope of the laser is beyond ± 3°and the

automatic mode is activated the laser lines will ash and a

beeping alarm will be heard. In this case reposition the

laser on a more leveled surface.

6. Before moving the laser level switch the locking switch #1

to the OFF position, this will lock the pendulum and protect

your laser.
