Kargo Master 40020 Manuale utente

Assembly Guide

40020

Kargo Master

Rancho Cordova, CA 95742

800-343-7486

CustomerService@KargoMaster.com

20210614R2 DATE: ______________

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 1

Instructions –40020

* PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,

INSTALLING, AND USING THIS PRODUCT. *

Warning

Always check for wires, fuel tanks and lines, brake lines and other important vehicle

functionality items prior to drilling and installing all products.

Tools Needed

7/16”Wrench and Socket

Phillips driver

Table of Contents

Parts List ..............................................................................................................................2

Hardware List .......................................................................................................................2

Step 1 –Determine Location of Door Kit ..............................................................................3

Step 2 –Bolt Door to Shelf Below ........................................................................................3

Step 3 –Determine Locking Door Stop Orientation ...........................................................4-5

Step 4 –Attach Locking Door Stop to Shelf Above ...............................................................5

Before You Begin

Be sure to have 32”shelf assembled prior to door kit installation.

Some images in the following instructions show using 42” shelf. Instructions are the same

for the 32” shelf.

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2

Instructions –40020

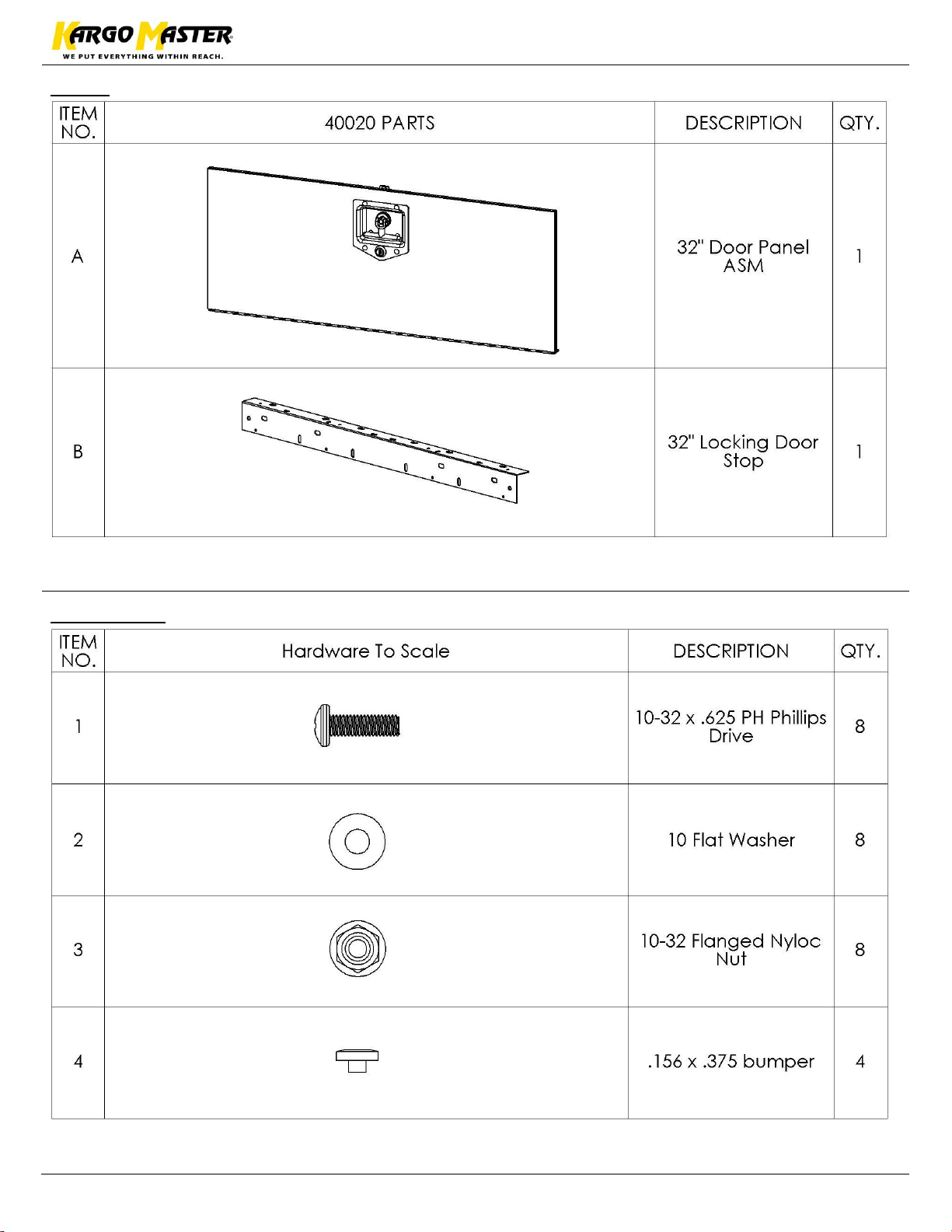

Parts

Hardware

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3

Instructions –40020

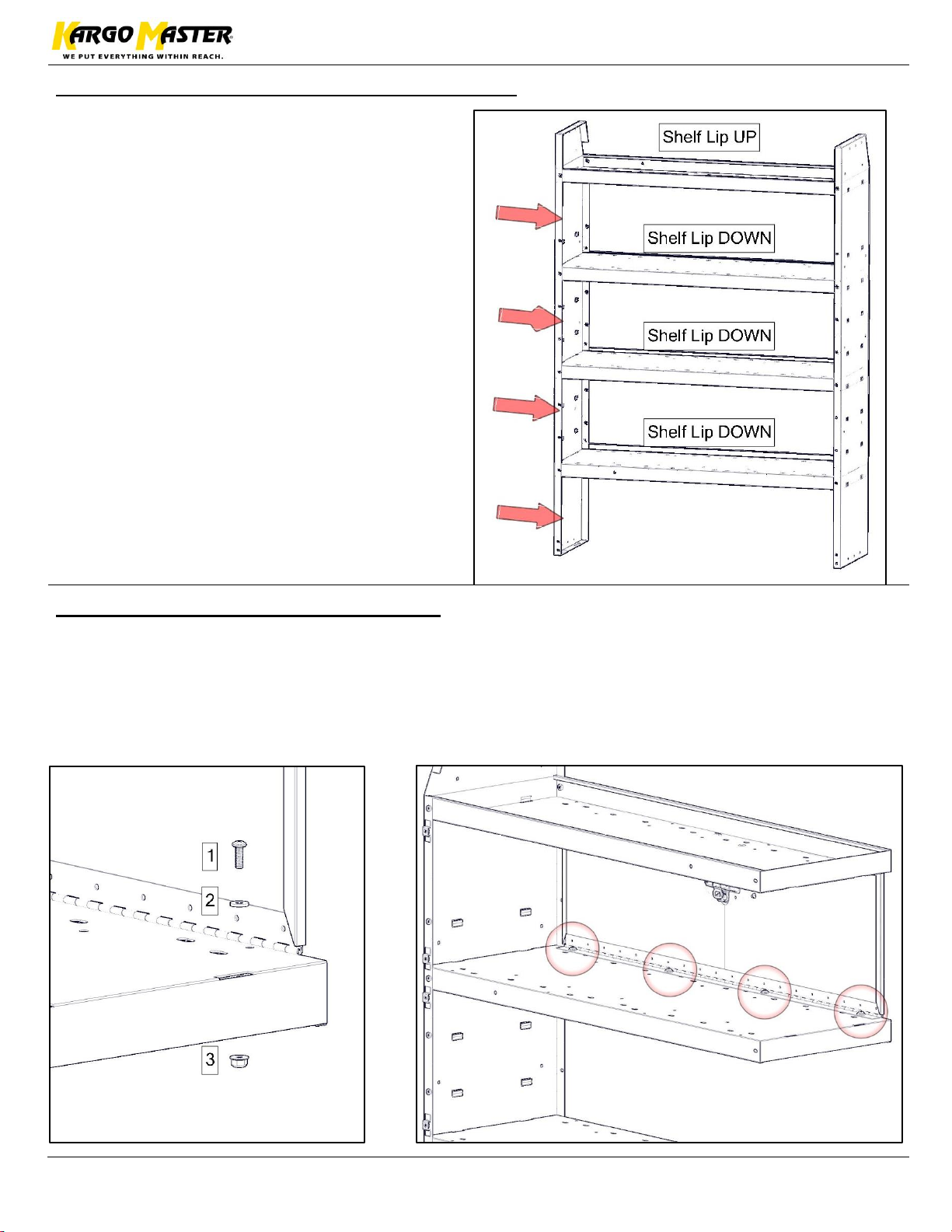

Step 1 –Determine Location of Door Kit

Decide where you want the door kit to be

installed. Be sure there is the correct

spacing between shelves. The bottom shelf

of the desired opening must have the shelf

lip facing downward.

Bottom position can only be used with

purchase of additional 32”floor lip

(48215).

Standard shelf placing and orientation

shown.

Step 2 –Bolt Door to Shelf Below

Bolt door kit to flat space on shelf below using a #10 x 5/8” machine screw, a #10 flat

washer, and a #10 flanged lock nut.

Repeat 3 more times along shelf and door kit assembly.

Be sure when the door kit is folded up, it sits flush with the outside of the shelf.

Snug tighten but allow for movement.

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 4

Instructions –40020

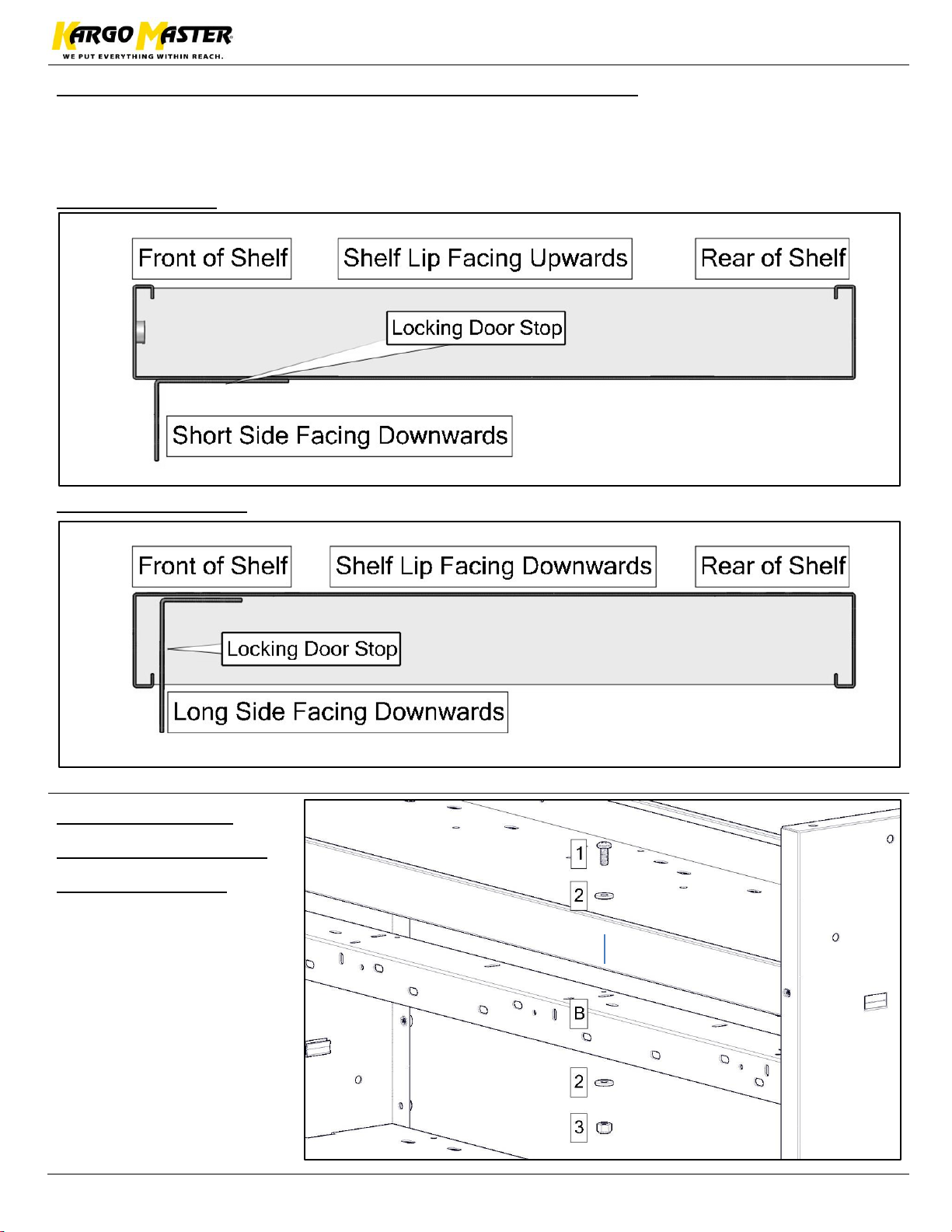

Step 3 –Determine Locking Door Stop Orientation

Locate the shelf that is directly above the shelf used in the previous step.

Determine if it is an upward or downward facing shelf lip. This will determine orientation of

door stop.

Facing Upwards

Facing Downwards

Step 4 –Attach

Locking Door Stop

to Shelf Above

Bolt locking door stop

to bottom of shelf

using using a

#10 x 5/8” machine

screw, two #10 flat

washers, and a

#10 flanged lock nut.

Snug tighten but allow

for movement.

For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 5

Instructions –40020

Repeat 3 more times along shelf and locking door stop.

Insert rubber bumpers in holes along locking door stop where they will encounter the door.

GO BACK AND TIGHTEN ALL

HARDWARE.

YOUR INSTALLATION IS NOW

COMPLETE.
