Kargo Master 40670 Manuale utente
40670 Transit Connect/NV200/City Express/ProMaster City Partition
Top Panel (1) Bottom Panel (1)
Transit Connect (2014) Top Angle (1) TC Top MNT BRKT (2) TC Bottom MNT PLT (2)
NV200/City Express Top Mount Panel (1) ProMaster City Top Panel (1)
Upper Wing (2) Lower Wing (1 Left+ 1Right) PC Top Pillar Mount (1) Side Bracket (2)
1

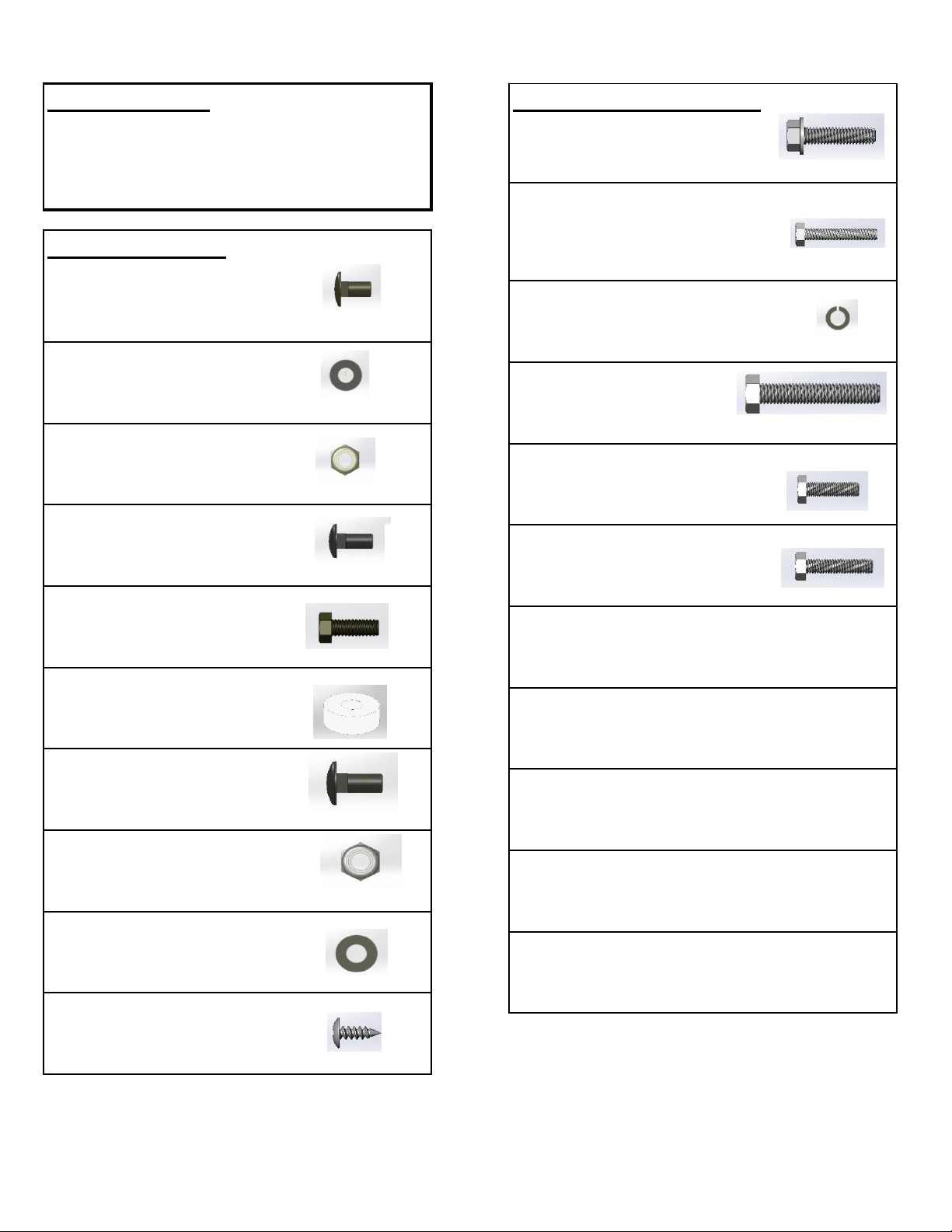

Tools Needed Hardware Pack Cont'
7/16" Socket 7/16" End Wrench (k)
1/2" Socket 1/2" End Wrench Qty 4 -
10MM Socket 10MM End Wrench 5/16"-18 x 1 1/4" Hex Thread Cutting Bolt
12MM Socket 12MM End Wrench
(l)
Hardware Pack Qty 4 -
1/4"-20 x1 1/4" Hex Bolt
(a)
Qty 18 - (m)
1/4"-20 x1/2" Carriage Bolt Qty 4 -
1/4" Lock Washer
(b)
Qty 50 - (n)
1/4" Flat Washer Qty 4
M8 x 45mm Hex Bolt
( c)
Qty 38 - (o)
1/4" Nylock Qty 2 -
M6 x 25mm Hex Bolt
(d)
Qty 12 - (p)
1/4"-20x 5/8" Carriage Bolt Qty. 2 -
M6 x 35mm Hex Bolt
(e)
Qty 4 -
1/4"-20 x 7/8" Hex Bolt
(f)
Qty 8 -
3/8"x1" Nylon Spacer
(g)
Qty 4 -
5/16"x3/4" Carriage Bolt
(h)
Qty 4 -
5/16" Nylock nut
(i)
Qty 4 -
5/16" Flat Washer
(j)
Qty 2 -
1/4"-14 x3/4" Truss Head Screw
40670 Hardware List
For TECHNICAL SUPPORT Call: 800-343-7486 Monday - Friday 7:00 A.M. to 4:00 P.M (PST)

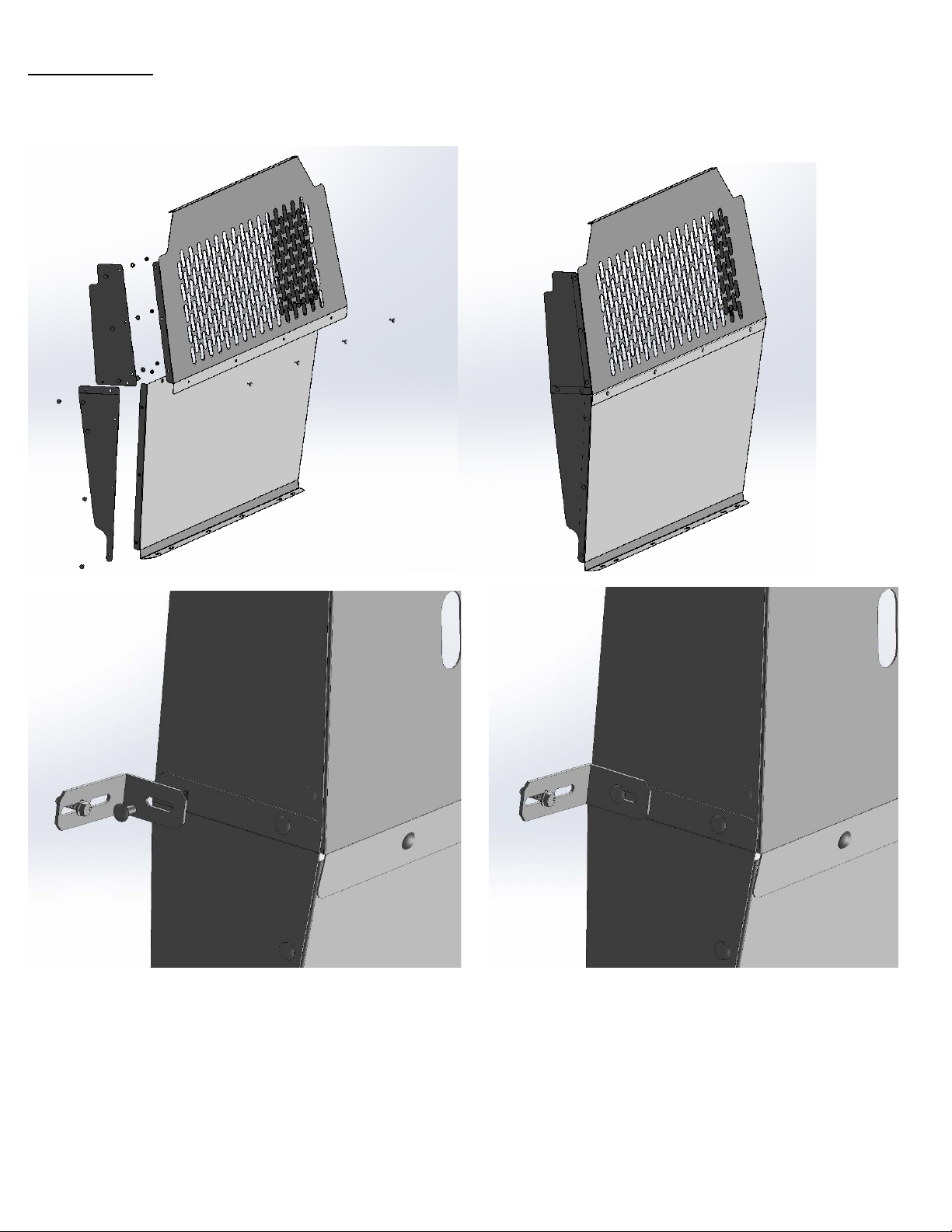

Step 1-All Models
Bolt “Bottom Panel” to “Top Panel” using ¼”x ½” Carriage bolts with flat washers and nylock nuts as shown. Then bolt the
“upper Wing” and “Lower Wing” as shown, you can also bolt the “Side Bracket” (use ¼”x5/8” Carriage bolts if using this) for
extra support to attach to the “B” pillar on any model vehicle, shown at bottom. DO NOT FULLY TIGHTEN at this point.
2
Step 2-2014 and Newer Transit Connect-Skip This Step for NV 200, City Express & ProMaster City

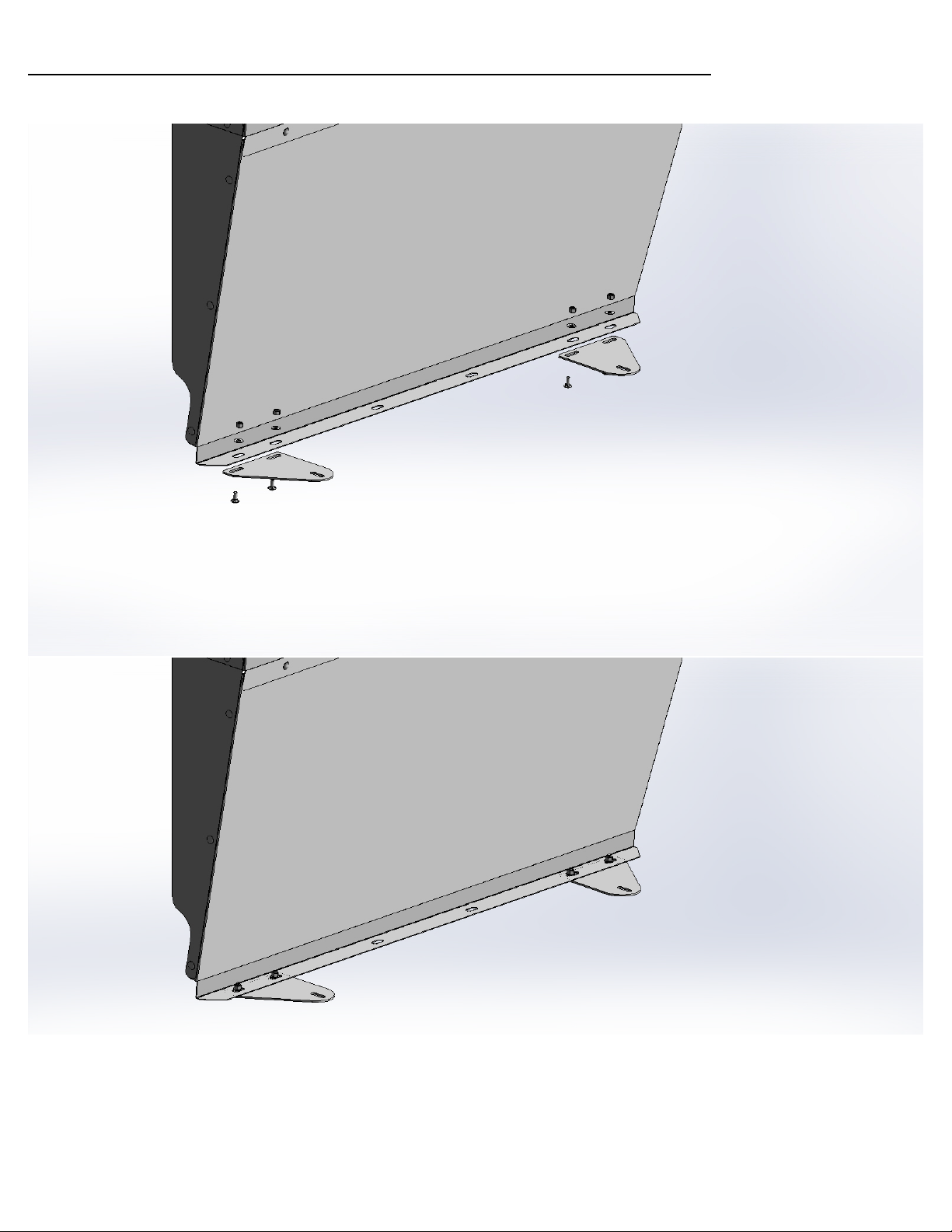

Bolt “Bottom Mount Plate” to the “Partition Assy.” Using 5/16”x3/4” Carriage bolts with flat washers and nylock nuts from the
bottom as shown so the head of the bolt is against the floor mat.
3

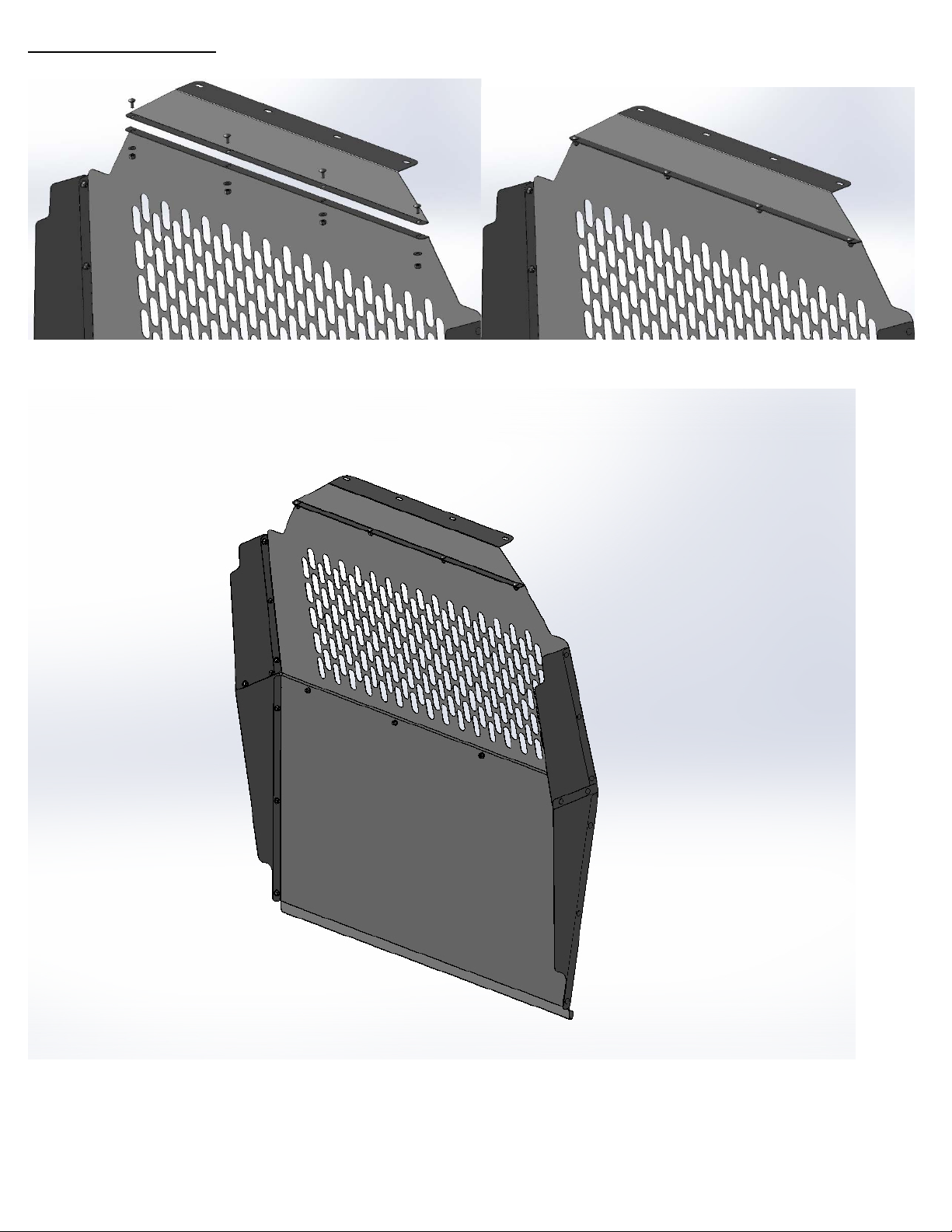

Step 3-2014 and Newer Transit Connect (NV200/ProMaster City go to Step 3 NV200 or Step 3 ProMaster City)
Bolt “Top Mounting Angle” to the top of the “Partition Assy.” With the angle going down and to the front of the van, using
¼”x5/8” Carriage bolts with flat washers and nylock nuts as shown. Now attach the “Upper Mount Brackets” pointing to the rear
of the van using ¼”x5/8” Carriage bolts with flat washer and nylock nuts as shown.
4
Step 4-2014 and Newer Transit Connect
Remove factory foam inserts from above sliding side door and factory “D” rings from the floor. Place Partition in the van and line
up the “Upper Mounting Brackets” as shown. Use 5/16”x3/4” Self Tapping Screws in existing holes as shown.
5
Step 5-2014 and Newer Transit Connect

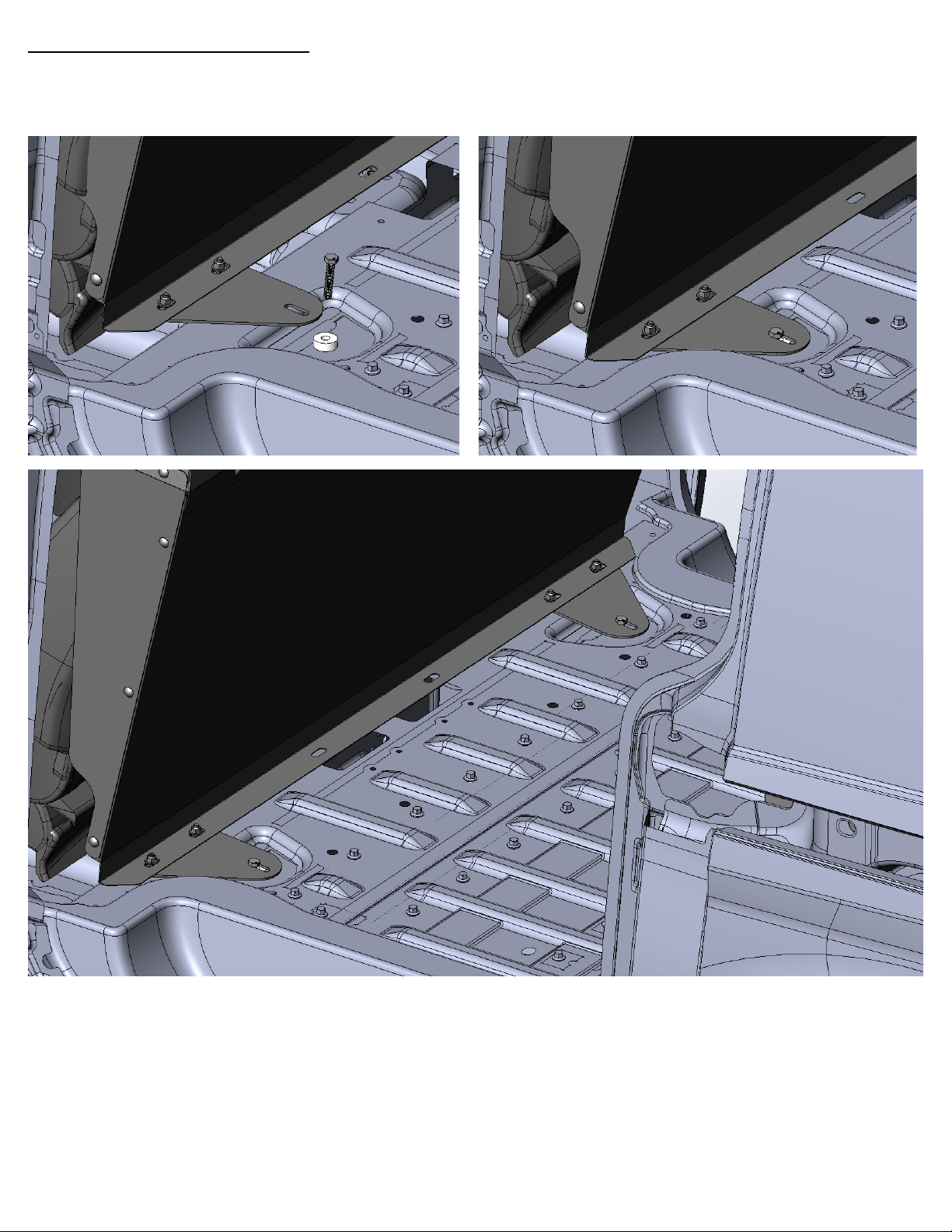

Now put the 3/8” nylon spacer where the factory “D” ring was and slide the partition into place. Using the factory hardware, bolt
the bottom of the partition assembly in place (bolt shown is for reference). You can now go through and tighten all the
hardware. The installation is complete.
6
Step 3 NV200/City Express

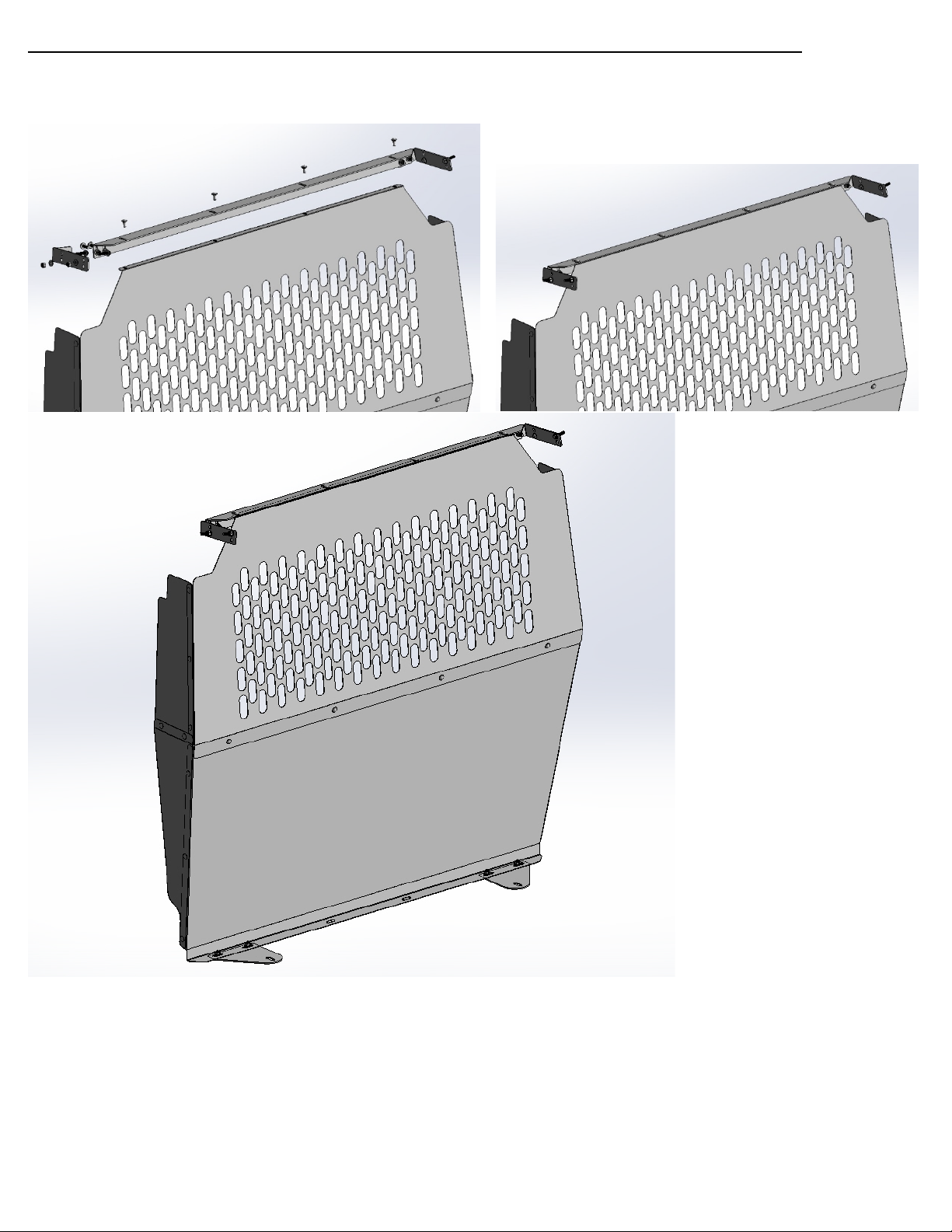

Attach “NV Top Mounting Panel” as shown using ¼”x5/8”Carriage bolts with flat washers and nylock nuts as shown.
7
Step 4 NV200/City Express (Shown With Wire Partition For Reference-THE STEPS ARE THE SAME WITH WIRE OR SOLID )
Remove rear headliner fasteners and factory “D” rings. Place Partition Assembly in van, line up the “Top Mount Panel” with the
holes in the headliner where you removed the fasteners. Loosely insert a 5/16”x1 ¼” self tapping screw in one of the side holes.
Use the nylon spacers for the center 2 holes between the “Top Mount Panel” and the headliner (you can put them under the
headliner for a better appearance) and start the other 3 5/16”x1 ¼” self tapping screws. DO NOT TIGHTEN fully until you get the
bottom bolts started.
8

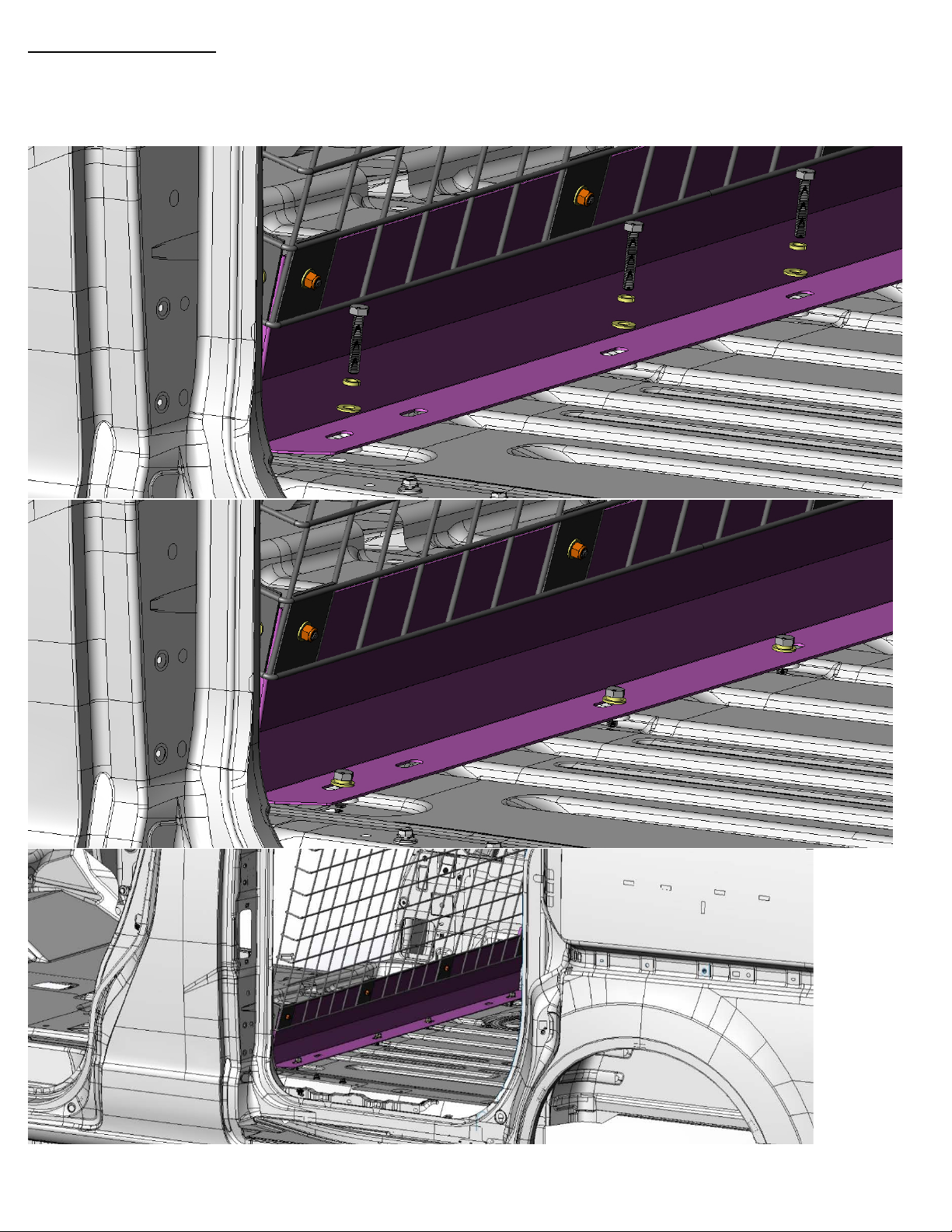

Step 5 NV200/City Express
Line up the “Bottom Mount Panel” with the outer holes that you removed the “D” rings from, this will tell you where the center
ones are located. Cut holes in the mat to expose the center 2 mounting holes and remove the factory hardware. Place the nylon
spacers under the “Partition Assembly” and install the 4 M8x45MM bolts. You can now tighten the top first, and then the
bottom. The installation is complete.
9
