Kargo Master 40291 Manuale
Kargo Master
Rancho Cordova, CA 95742
800-343-7486
CustomerService@KargoMaster.com
20210519R1 DATE: ________________
Instruction Guide
40291
Instructions –40291
For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 1
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING,
AND USING THIS PRODUCT. *
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
7/16” Socket and Wrench
7/16”, 9/16” Box Wrenches
9/32”, 25/64” Drill Bits
Drill
#2 Phillips Screwdriver
Drill Bit Stop Collar
Plus Nut Installation Tool (P9902)*
*Sold Separately.
Table of Contents
Before You Begin............................................................................................................................................... 1
Parts List............................................................................................................................................................ 2
Hardware .......................................................................................................................................................... 2
Step 1 –Find Mounting Location...................................................................................................................... 3
Step 2 –Install Plus Nuts................................................................................................................................... 3
Step 3 –Mount Binder/Bin Holder to Shelf...................................................................................................... 4
Step 4 –Mount Binder Holder to Floor ............................................................................................................ 4
Before You Begin
Read all instructions prior to assembling or installing any Kargo Master product.
Always locate your installation locations prior to performing any work.
ENSURE SAFETY WHILE INSTALLING OR DRILLING INTO VEHICLE.
Plus Nut Installation Tool Kit (P9902) is not included and must be purchased separately.
Instructions –40291
For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2

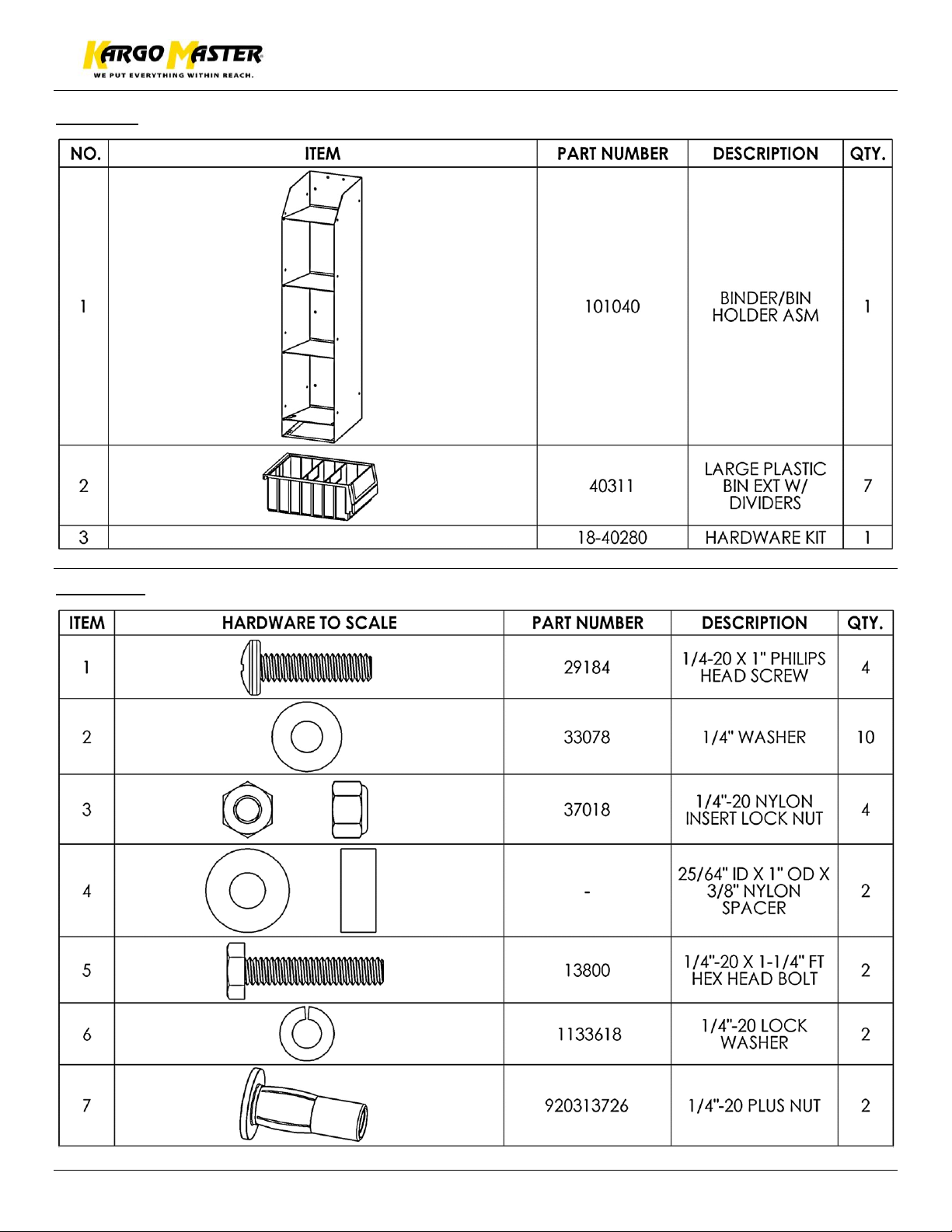

Parts List
Hardware
Instructions –40291
For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3
Step 1 –Find Mounting Location
There are holes in both sides and the rear of binder/bin holder to allow for a variety of mounting positions.
Determine installation location. We recommend installing binder/bin holder to the side of shelf or to a
partition in addition to the floor. Some holes in shelf sides may align with holes in binder/bin holder.
Position binder/bin holder in desired installation location and position.
Mark onto floor location of TWO holes in bottom of binder/bin holder to be used for installation.
Mark onto shelf (or other installation location) the position of FOUR holes in side of binder/bin holder.
Step 2 –Install Plus Nuts
DO NOT drill beyond depth of floor or upper installation surface. Always check for
wires, fuel tanks and lines, brake lines and other important vehicle functionality
items prior to drilling and installing all products.
At each marked location, drill hole using 25/64” drill bit and appropriate sized drill-bit stop collar. If
25/64” drill bit is not available, a 3/8” drill bit can be used, although it may be necessary to tap in the plus
nuts.
Insert 1/4” x 2-1/4” hex head bolt through 1/4” flat washer and plus nut installation tool, and then screw
bolt into plus nut. Knurled end of plus nut tool must be directed away from bolt head and contacting plus
nut.
Insert plus nut into hole with plus nut tool attached.
Using the 9/16” box wrench, hold the plus nut tool stationary and then tighten hex head bolt until plus
nut is tightly gripping and does not spin when hex bolt is loosened.
DO NOT overtighten plus nut.
Using the 9/16” box wrench, hold the plus nut tool stationary to remove the 1/4” hex head bolt.
HOLD
Sample installation
onto floor shown.
Instructions –40291
For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 4
Step 3 –Mount Binder/Bin Holder to Shelf
At each location marked on shelf or other mounting location,
drill through surface using a 9/32” drill bit.
Using four 1/4” x 1” Phillips head screws, eight 1/4” flat
washers, and four 1/4” lock nuts, LOOSELY bolt through the
binder/bin holder and shelf.
DO NOT TIGHTEN hardware yet.
Step 4 –Mount Binder Holder to Floor
If a gap exists between the binder/bin holder and the
installation location in the floor, nylon spacers are
provided to fill the gap.
Press assembly firmly against the floor.
Using 1/4” x 1-1/4” hex head bolts, 1/4” lock
washers, 1/4” flat washers, and, if necessary, nylon
spacers, bolt through the base of the assembly into
the plus nuts.
Tighten hardware.
GO BACK AND TIGHTEN ALL HARDWARE.
INSTALLATION IS COMPLETE.
SPACERS AS
NEEDED
