KaVo EWL 35 Manuale utente
Operating Instructions
EWL 35, 35 U-S
Always on the safe side.
KaVo Elektrotechnisches Werk GmbH
Wangener Straße 78
D-88299 Leutkirch
Tel.: 0 75 61 / 86-150 • Fax: 0 75 61 / 86-265
1
EWL 35, 35 U-S
A 1 User information ................................................................................................................................................................2
A 1.1 Meaning of the pictograms ........................................................................................................................................2
A 1.2 Important information ..................................................................................................................................................2
A 1.3 Precautions ................................................................................................................................................................2
A 1.4 Requirements of the user ............................................................................................................................................2
A 2 Scope of delivery-Accessories ........................................................................................................................................3
A 2.1 Scope of delivery ........................................................................................................................................................3
A 2.2 Accessories ................................................................................................................................................................3
A 3 Mounting ............................................................................................................................................................................4
A 3.1 Waste bin EWL 35 with support frame in EWL table mounting without suspended cupboard ..................................4
A 3.2 Waste bin EWL 35 with support frame in EWL table mounting with suspended cupboard ......................................5
A 3.3 Waste bin EWL 35 with support frame in EWL floor-mounted cupboard ..................................................................6
A 3.4 Waste bin EWL 35 U-S with pull- out support in suspended cup- board ..................................................................7
A 3.5 Waste bin EWL 35 U-S with pull-out support in floor-mountedcupboard 83 for table height 87 ................................8
A 3.6 Waste bin EWL 35 U-S with pulI-out support in fIoor-mounted cupboard 91 for table height 95 ..............................9
A 4 Technical data ..................................................................................................................................................................10
Guarantee conditions ........................................................................................................................................................11
Spare parts..........................................................................................................................................................................12
2
EWL 35, 35 U-S
A 1.2 Important information
The instructions for use should be read
by the user before starting up the unit
for the first time, in order to avoid incorrect
operation and other damage. If other language
versions are required, please request these
from your responsible KaVo agent. Dupli-
cation and distribution of the instructions
for use (I ) require KaVo's prior consent.
All technical data, information and properties
of the product described in the I correspond
to the state on going to press. Modifications
and improvements to the product as a result
of new technical developments are possible.
This does not imply any right to retrofitting
of existing units.
KaVo assumes no responsibility for damage
arising through:
• external influences (poor quality of the
media or inadequate installation)
• use of incorrect information
• improper use
• improperly performed Repair and
maintenance work.
Repair and maintenance work - apart from
the activities described in these instructions
for use - may be performed only by qualified
technical personnel.
In the event of modifications by third parties,
the approvals become null and void. KaVo
recommends using only original spare parts
for operation and for repair.
A 1.3 Precautions
Safe operation and protection of the unit are
ensured only through proper use in accor-
dance with the instructions for use and
using the tools approved for the purpose.
The following should also be observed:
• the work safety regulations,
• the accident prevention regulations.
■
Each time before switching on, check the
set speed.
■ Observe the permissible maximum speed
and maximum pressure of the tools
(according to tool manufacturer's
instructions).
According to these provisions, it is the
user’s obligation:
• to use only fault-free operating materials
• to ensure that it is used for the correct
purpose
A 1 User information
A 1.1 Meaning of the pictograms
Situations where failure to follow the
instructions may lead to danger,
damage to material or operating faults.
Important information for operator
and engineer.
Automatic mode
Automatic sequence
Close, screw in, fasten, etc.
Open, release, loosen
++
more, higher
--
less, lower
∞Continuous operation
Time, time sequence
Disconnect mains plug
3
EWL 35, 35 U-S
A 1.4 Requirements of the user
The described product may be used only by
service personnel with an appropriate
technical qualification, and who have
received specialised training in the use of
the product.
In accordance with these requirements, it is
the duty of the user
• to use only flawless materials
• to observe the correct applications
• to working not with demaged functional
parts.
A 2 Scope of delivery-Accessories
A 2.1 Scope of delivery
Check the completeness of the delivery.

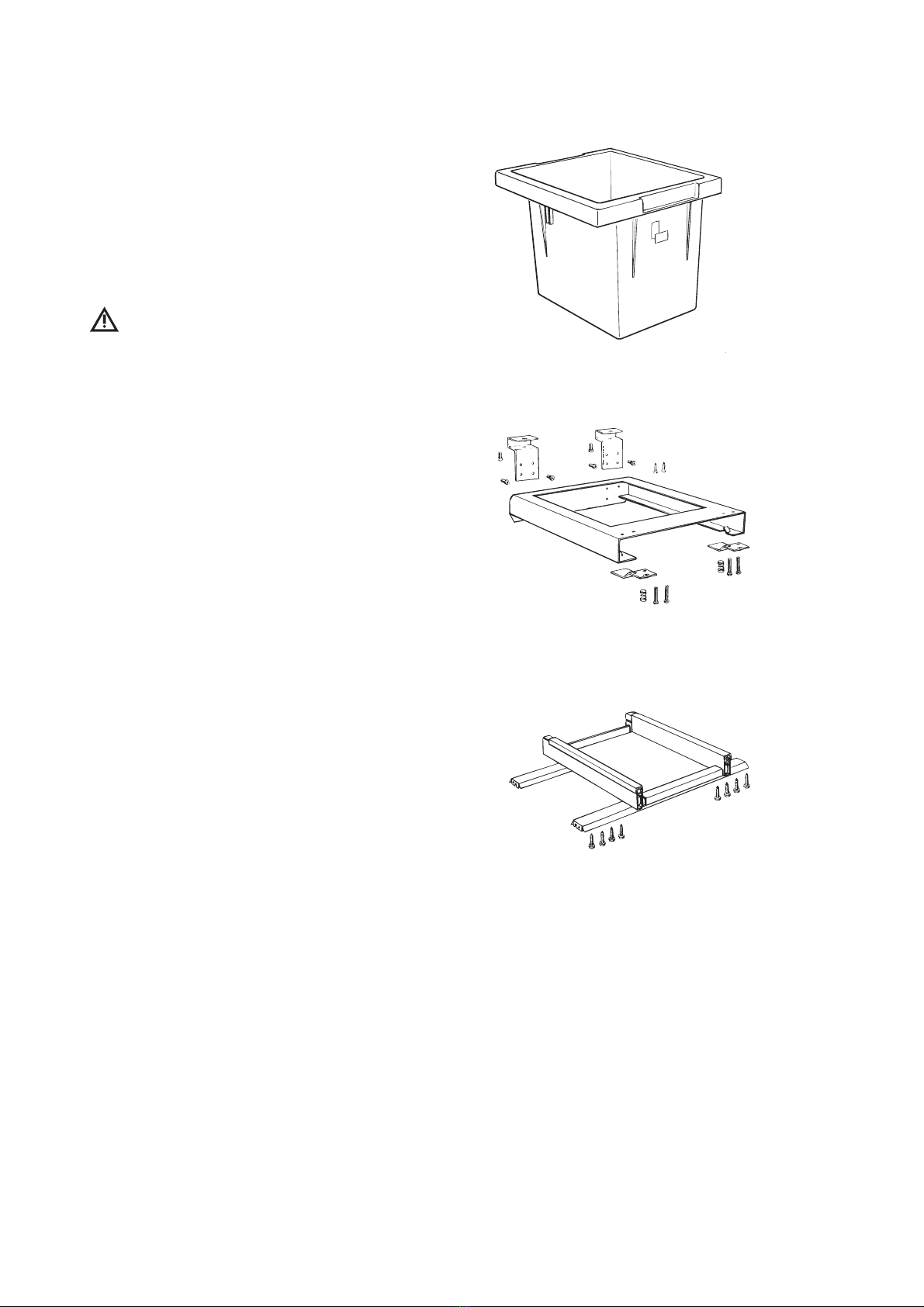

The waste bin EWL 35 consists of:
1 Waste bin
1 Support frame
1 Installation set
Operating Instructions
The waste bin EWL 35 U-S consists of:
1 Waste bin
1 Pull-out support
1 Installation set
Operating Instructions
A 2.2 Accessories
Optional accessories:
Waste disposal bags, packs of 50 (not
illustrated). Mat. No.0.228.3060
4
EWL 35, 35 U-S
A 3 Mounting

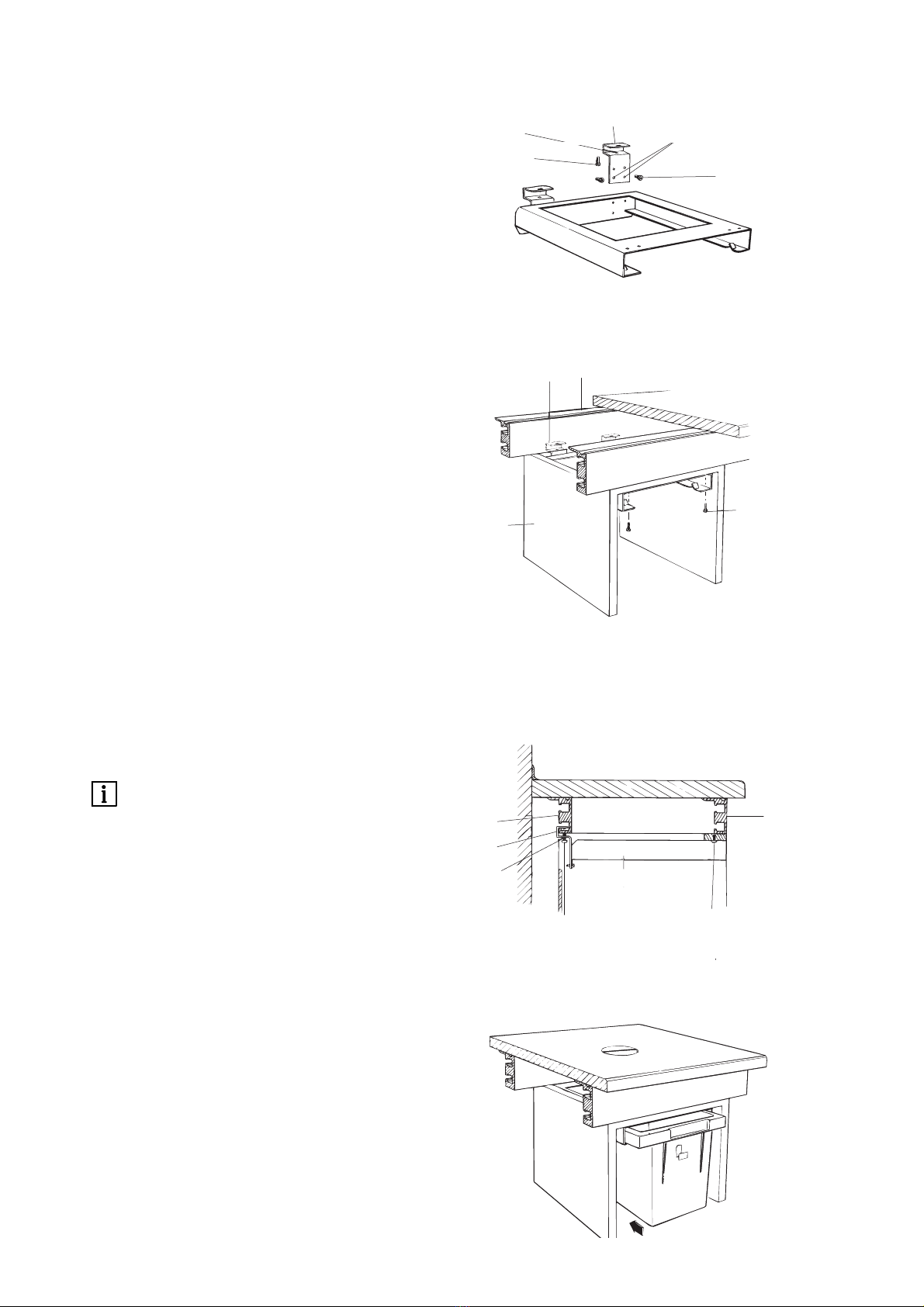

A 3.1 Waste bin EWL 35 with support
frame in EWL table mounting without
suspended cupboard
Screw the support bracket 1to the back of
the support frame using the holes Aand
screws 2M 5 x 20 mm
Screw in the screws 4M 5 x 20 mm by
about 4 turns in thread 5.
Screw the plate 6loosely in position with
screws 7 M 5 x 30 mm and spring 8.
Hook the support frame 3centrally in
support 9under the cut-out in the bench
top.
Firmly screw on the support frame 3so
that it comes flush at the front edge and
also the support 9using screws 7.
Secure the support bracket 1with screws
4.
Insert the waste bin with the KaVo EWL
sign facing the front in the support frame
3and push until the limit stop is reached.
For removing, the waste bin must be
lifted as soon as the limit stop is
reached.
1
8
6
7
2
4
9
5
9
3
9
9
@
5
437
3
5
EWL 35, 35 U-S

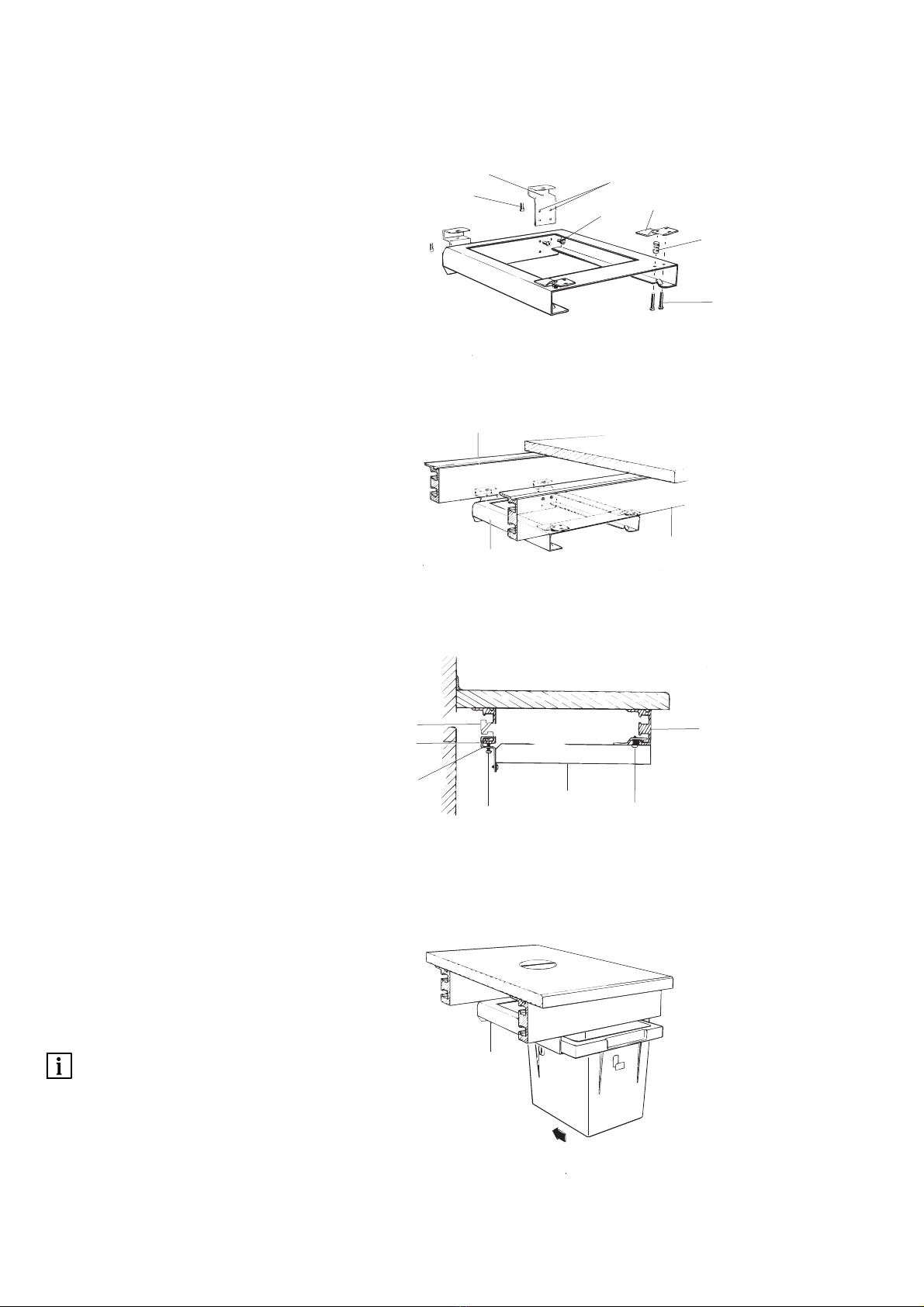

A 3.2 Waste bin EWL 35 with support
frame in EWL table mounting with
suspended cupboard
Screw the support bracket 1to the back ot
the support frame using the holes Band
screws 2M 5 x 20 mm.
Screw in the screws 4M 5 x 20 mm by
about 4 turns in thread 5.
Hook the support frame 3in the support
9at the back so that it is central to the
suspended cupboard and firmly screw it to
the suspended cupboard 0with screws 7
M 5 x 30 mm.
Secure the support bracket 1with screws
4.
Insert the waste bin with the KaVo EWL
sign facing the front in the support frame
3and push until the limit stop is reached.
For removing, the waste bin must be
lifted as soon as the limit stop is
reached.
42
B
1
5
9
1
07
9
7
3
4
9
1
5
6
EWL 35, 35 U-S

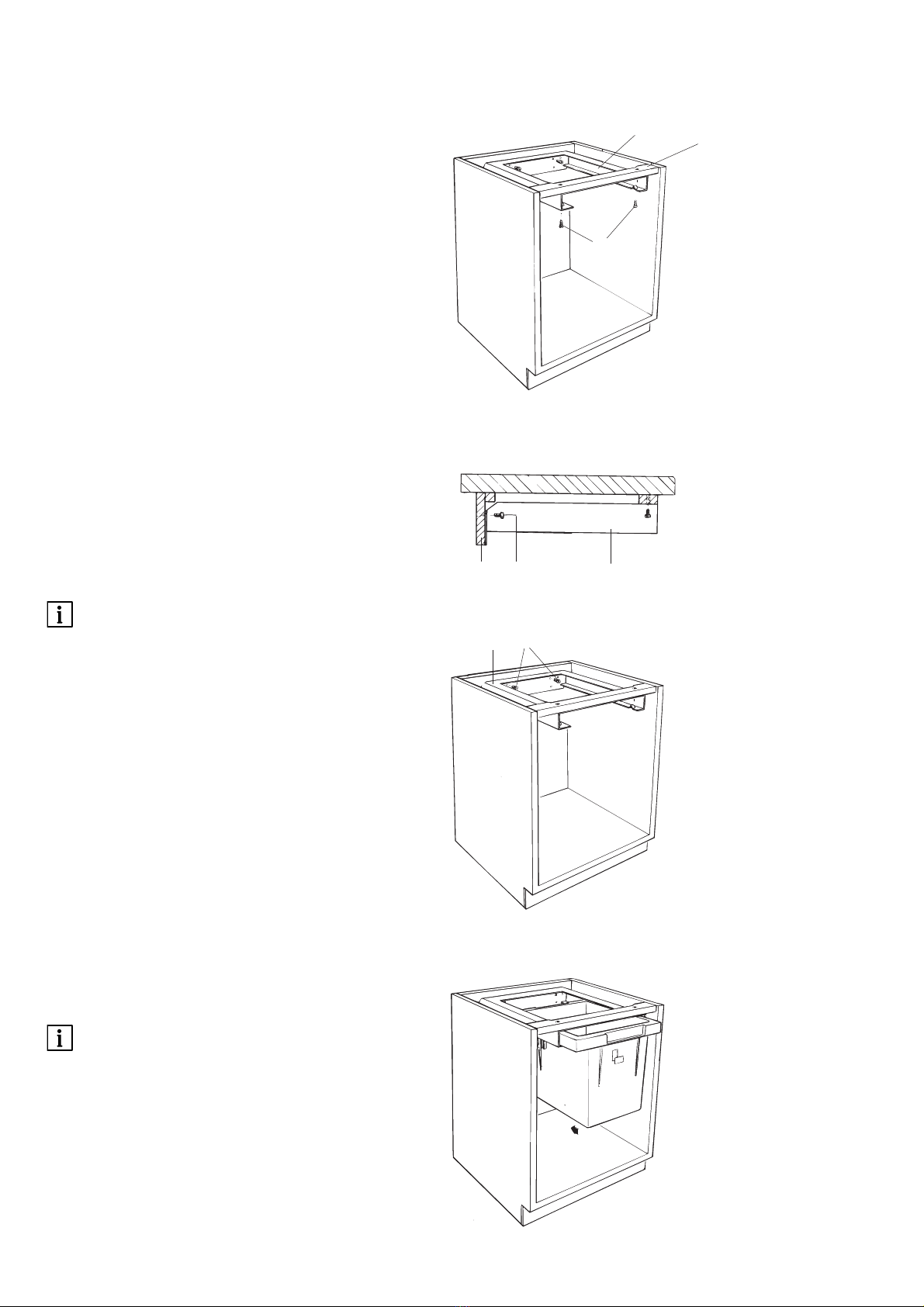

A 3.3 Waste bin EWL 35 with sup-
port frame in EWL floor-mounted
cupboard
Loosely screw the support frame 3to the
front cross member qwith screws 7
M 5 x 30 mm.
Firmly screw the support frame 3to the
rear cross member ewith wood screws
w(diameter of 6 x 13,5 mm)
Holes are pre-drilled with a diameter
of 5 x 16 mm in the EWL floor-
mounted cupboard.
Firmly screw on the support frame 3at
the front with screws 7.
Insert the waste bin with the KaVo EWL
sign facing the front in the support frame
3and push until the limit stop is reached.
For removing, the waste bin must be
lifted as soon as limit stop is reached.
q
3
7
3
we
w
e
7
EWL 35, 35 U-S

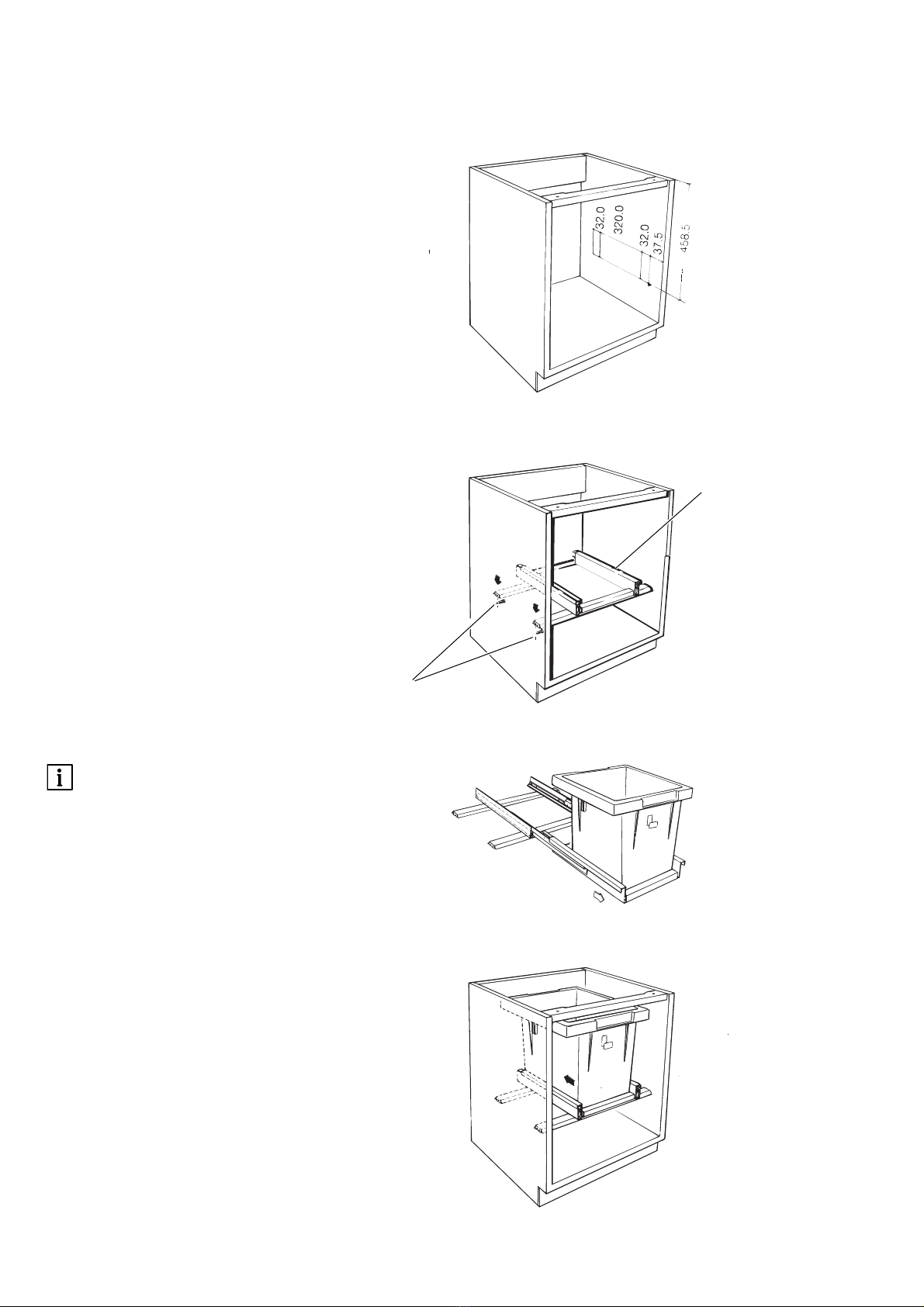

A 3.4 Waste bin EWL 35 U-S with
pull- out support in suspended cup-
board
Measure out and mark 8 fastening points
A/B.
Fastening points A/B are predrilled in the
EWL suspended cupboard (diameter
5 x 14 mm).
Screw wood screws t (diameter
6,3 x 16 mm) in holes Aby about 4 turns.
Hook in the pull-out support r.
Screw wood screws tin holes Band then
tighten also the wood screws in holes A.
Adjust the drawer unit
r
so that it
can be drawn out towards the front.
Draw out the pull-out support rand insert
the waste bin with the KaVo EWL sign
facing the front.
Push the waste bin back into the suspended
cupboard until the limit stop is reached.
r
BB
B
B
AAAA
t
t
B
A
B
A
8
EWL 35, 35 U-S

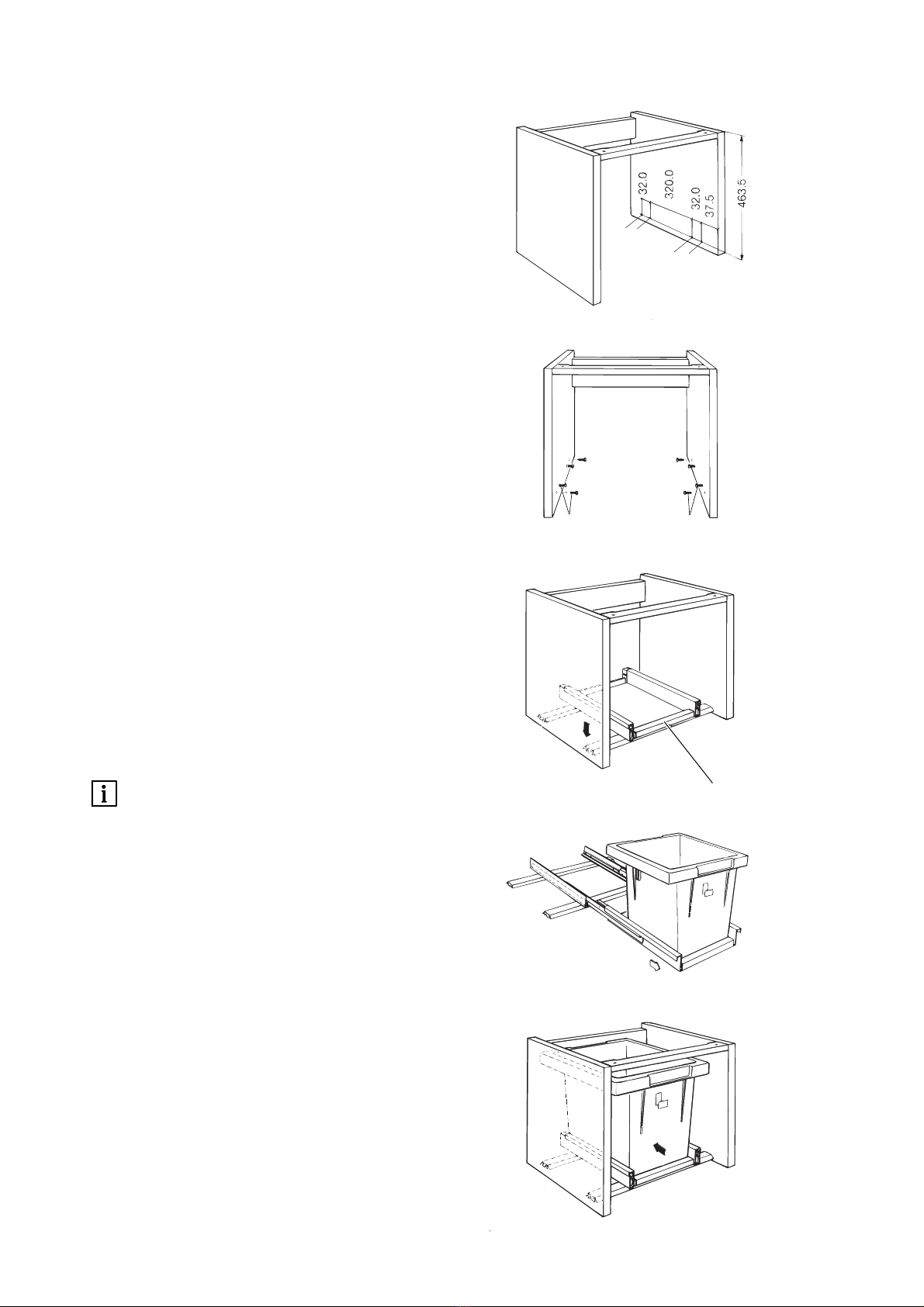

A 3.5 Waste bin EWL 35 U-S with
pull-out support in floor-mounted-
cupboard 83 for table height 87
Measure out and mark 8 fastening points
A/B.
Fastening points A/B are predrilled in the
EWL suspended cupboard (diameter
5 x 14 mm).
Screw wood screws t (diameter
6,3 x 16 mm) in holes Aby about 4 turns.
Hook in the pull-out support r.
Screw wood screws tin holes Band then
tighten also the wood screws in holes A.
Adjust the drawer unit
r
so that it
can be drawn out towards the front.
Draw out the pull-out support rand insert
the waste bin with the KaVo EWL sign
facing the front.
Push the waste bin back into the suspended
cupboard until the limit stop is reached.
r
t
