Keating Of Chicago MIRACLEAN Guida all'installazione

Table of Contents

MIRACLEAN®GRIDDLE

Warranty Registration .................................................................................... 1

Calibration Not Required ................................................................................ 2

Quick Disconnect........................................................................................... 3

Gas Pressure................................................................................................ 4

Lighting ................................................................................................. 5 - 10

Cooking .............................................................................................. 11 - 13

Cooking Load Placement ............................................................................. 14

Care of the Miraclean®Surface ..............................................................15 - 16

Cleaning ..............................................................................................17 - 19

Shut Down .......................................................................................... 20 - 23

Daily Maintenance....................................................................................... 24

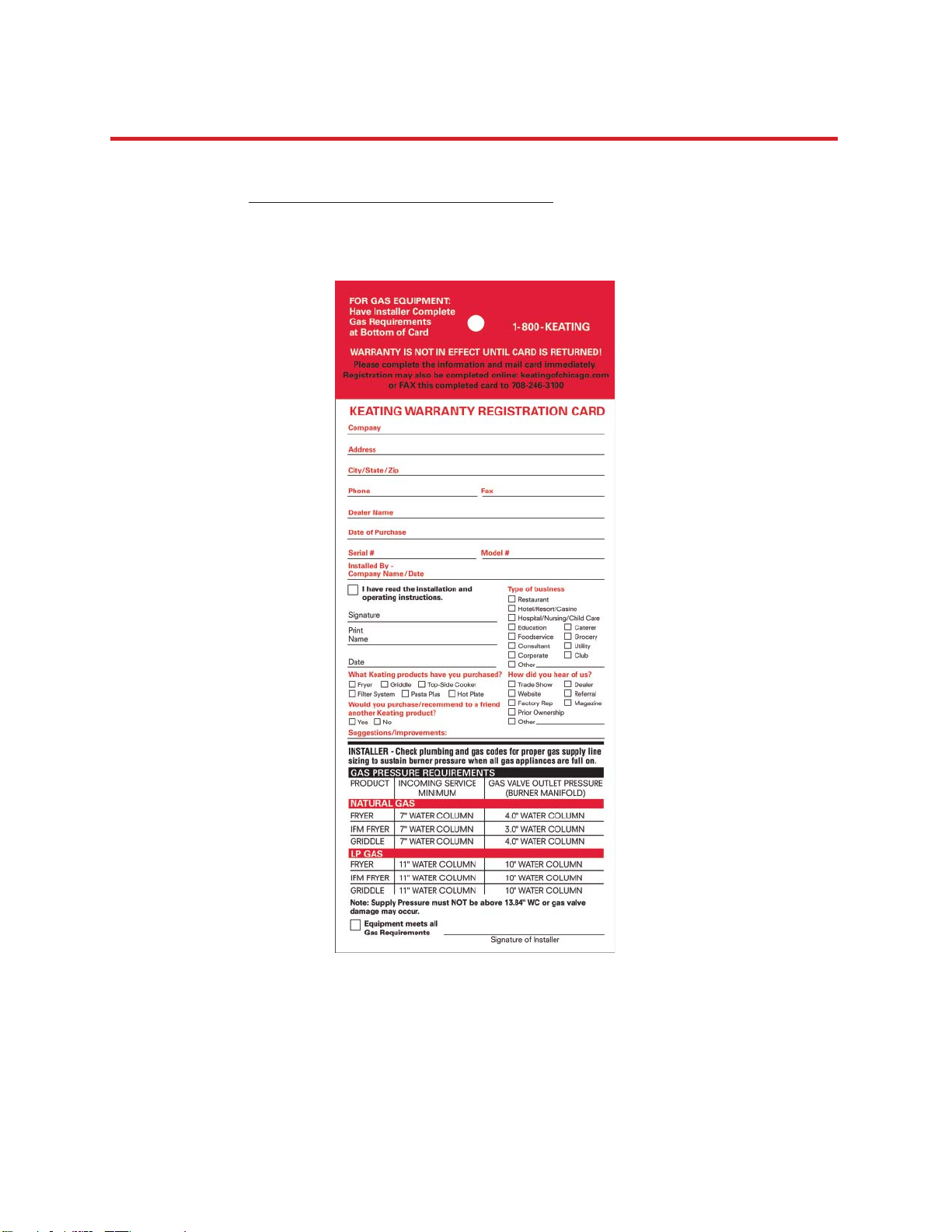

Warranty Registration

NOTE: Be sure to return your warranty registration card attached to the griddle, or ﬁll out

the form on the warranty page of our website, keatingofchicago.com.

Have your installer sign the bottom of the card.

Calibration Not Required

CALIBRATION NOT REQUIRED -

All equipment has been tested at the factory before shipping:

- Thermostat was calibrated at our factory

- The test charts are packed in your accessory box with the manual

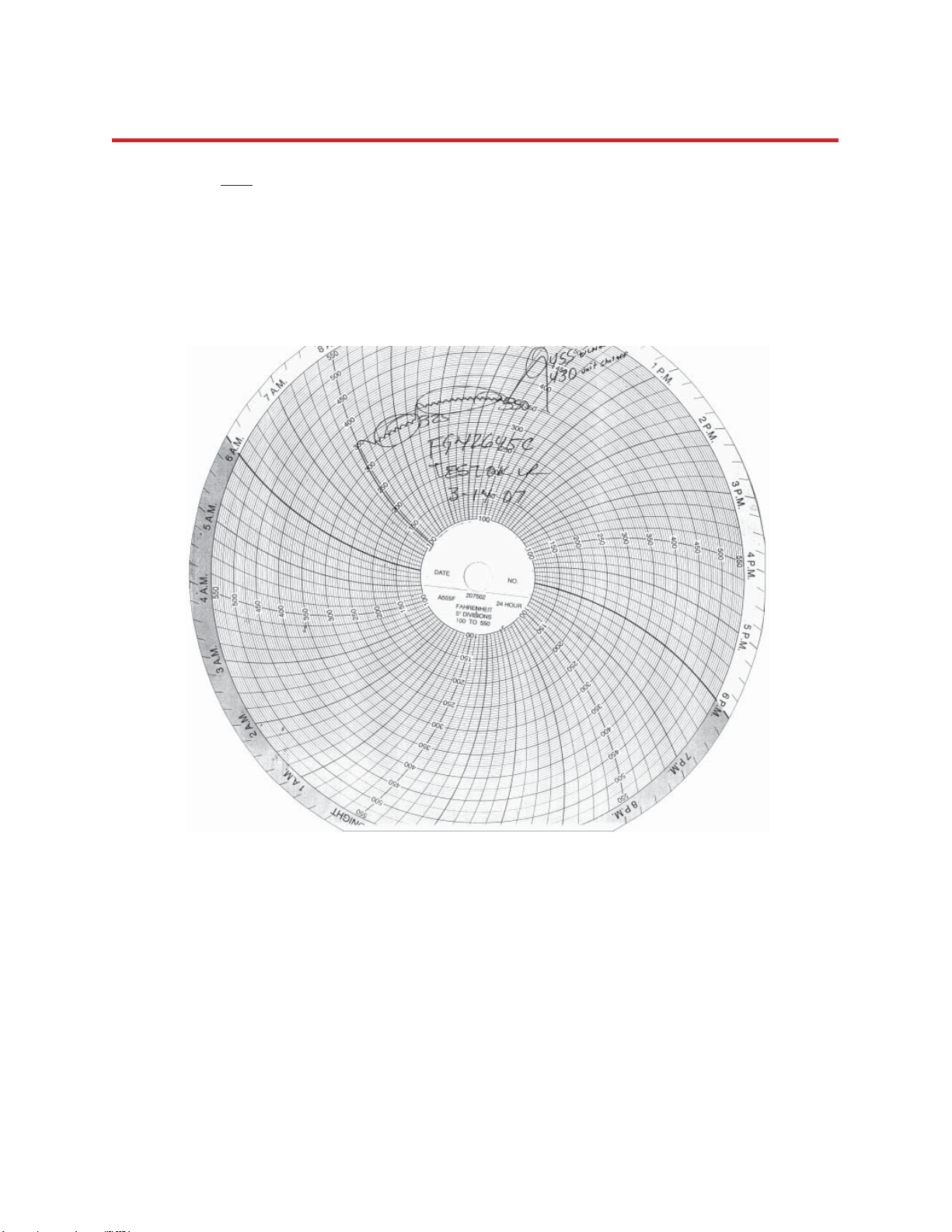

Example of test chart

Quick Disconnect

NOT!

This griddle installation is incorrect - the quick disconnect should connect directly to the griddle.

This griddle installation is correct.

Gas Pressure

GAS PRESSURE -

NOTE: Be sure your installer has veriﬁed:

1. The incoming gas pressure.

2. The manifold pressure.

3. Signed the Warranty Registration Card (return to Keating of Chicago).

NATURAL GAS PRESSURE REQUIREMENTS:

Incoming Service Maximum: 7" Water Column

Gas Valve Outlet Pressure (Burner Manifold) : 4.0" Water Column

NOTE: Supply pressure must not be above 13.84" WC or gas valve damage may occur.

If your incoming gas pressure is excessive, you will need to install an in-line gas pressure

regulator.

1. Have the installer verify the incoming gas pressure.

2. Have the installer verify the gas valve outlet pressure at the burner manifold.

Lighting the Miraclean®Griddle

(See lighting instructions plate attached to front of Miraclean®Griddle)

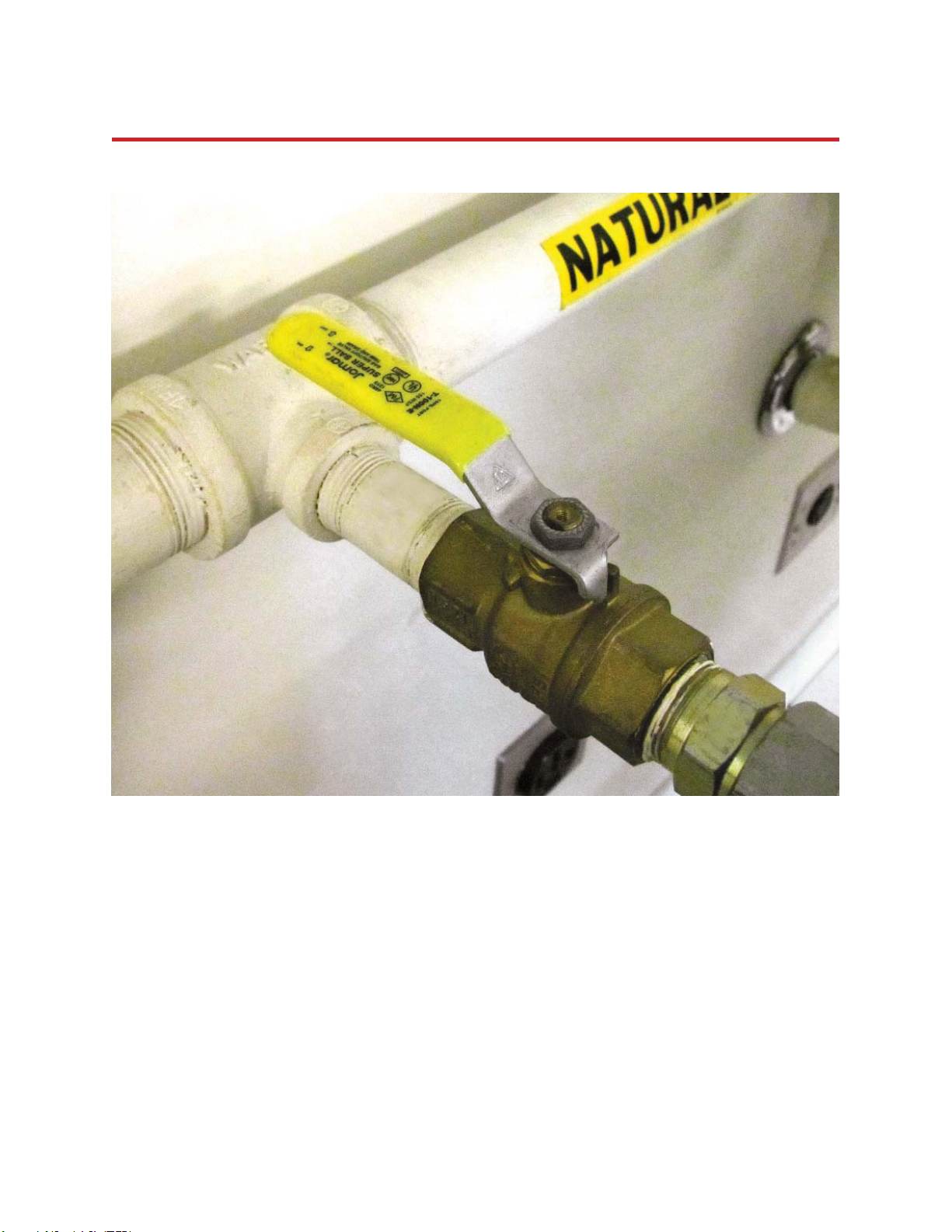

Make sure that the main gas valve on the gas supply line to the Miraclean®Griddle is

in the “ON” position. Make sure your ﬂexible connector is connected.

NOTE: AIR IN THE SUPPLY LINE MAY REQUIRE A LONGER THAN NORMAL PERIOD OF

TIME TO LIGHT YOUR MIRACLEAN®GRIDDLE DURING INITIAL INSTALLATION, AFTER

OVERNIGHT SHUT DOWN, OR WHEN RE-LIGHTING.

Lighting the Miraclean®Griddle

Note: We recommend lighting the burner on the side farthest from the incoming gas

ﬁrst (left side when facing griddle). When the farthest burner receives gas, gas is

available for other burners.

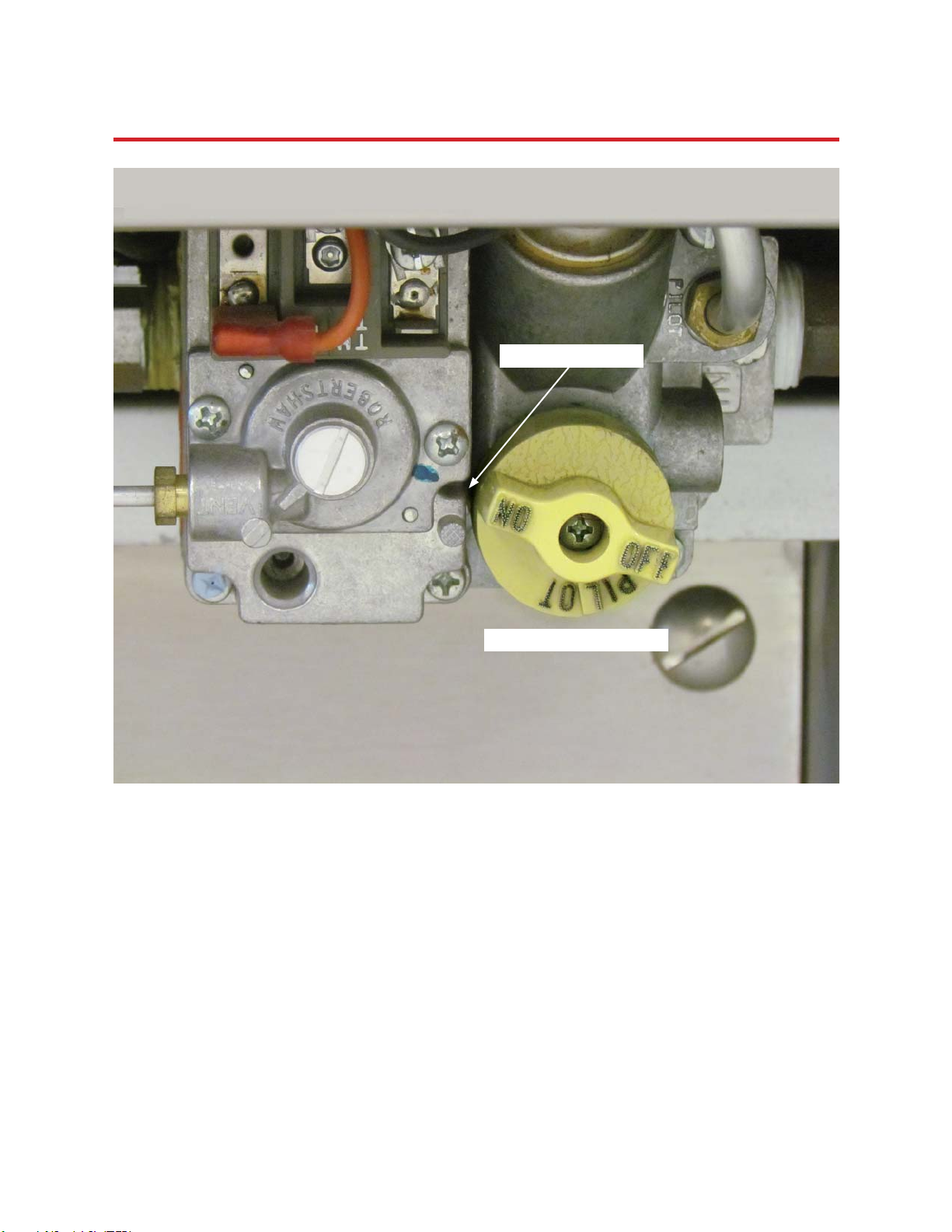

1. Turn pilot gas valve knob to “PILOT” position.

“Pilot” Position

Pilot Gas Valve Knob

Lighting the Miraclean®Griddle

2. Push in and hold the pilot gas valve knob,

and while holding, push the red spark

ignition button to light the pilot. (When

griddle is ﬁrst installed, it may take longer

than 90 seconds to bleed the air from the

gas line.)

Spark Ignition Button

Pilot Gas Valve Knob

Push knob inwards

3. When the spark ignites the pilot, continue to hold in for 60 seconds. Then release

the pilot gas valve knob; the pilot should remain burning. Turn the knob to the

“ON” position.

Lighting the Miraclean®Griddle

“On” Position

Pilot Gas Valve Knob
