PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
KSPZ25V9CS0KSPZ25V9C R134a System stain/blk 220
MARKET
Export
Publication No.
EK30503990
041222
JAD
SIDE BY SIDE
REFRIGERATOR
Model No.
KSPZ25V9C
©2003 Electrolux Home Produst, Inc.
All rights reserved
WIRING DIAGRAM - 240420906
OWNER’S GUIDE - 240417300
SERVICE DATA SHEET - 240420906
FACTORY
PARTS CATALOG
International
3 Parkway Center
Pittsburg, PA 15220
KELVINATOR INTERNATIONAL
05/03 2
Publication No. KSPZ25V9C
EK30503990

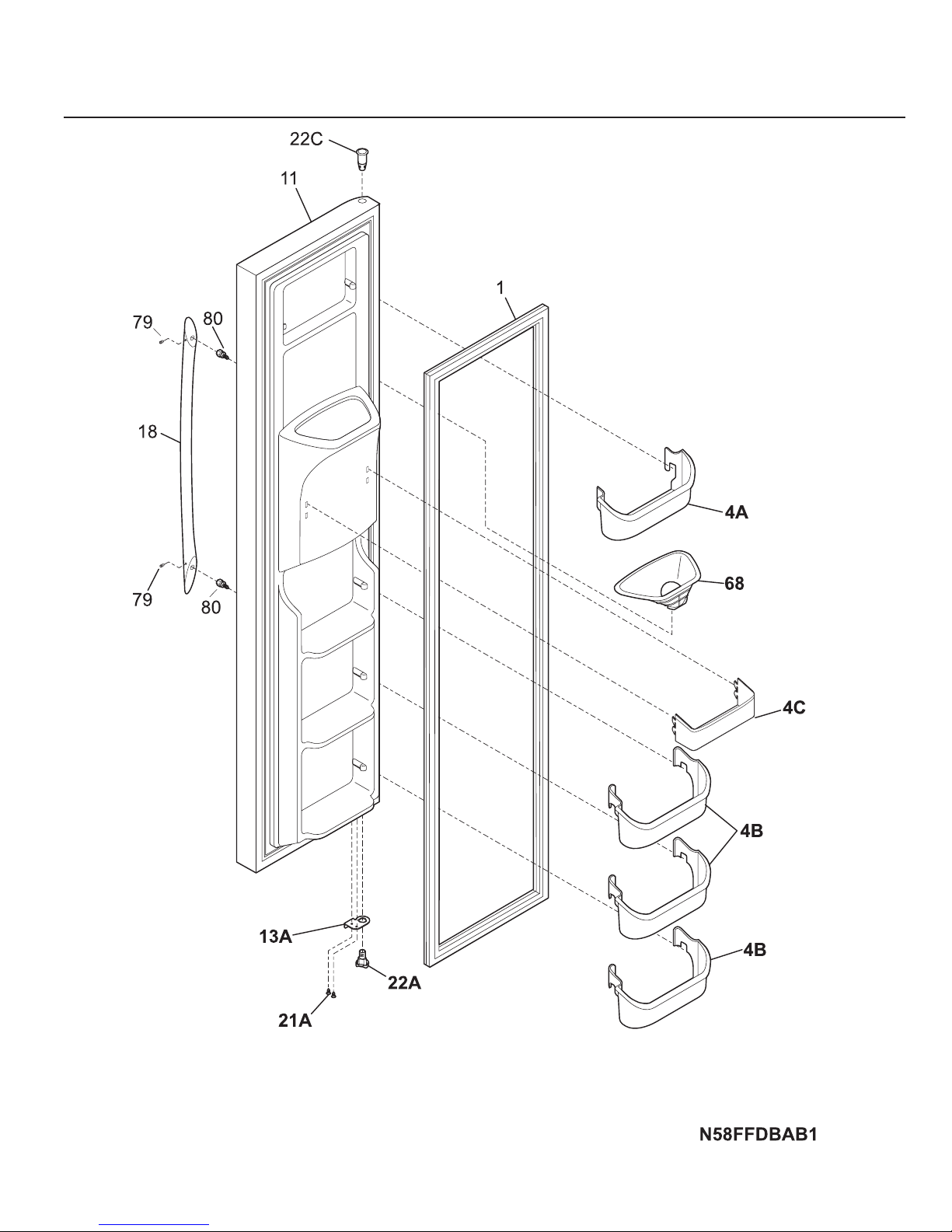

FREEZER DOOR
# = Fast-moving Parts 3 03/03
* = Non-Illustrated Parts
KSPZ25V9C Publication No.
EK30503990
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 240390608 Gasket-frzr door,black ,magnetic
4A 240367302 Bin-door,frzr-upper
4B 240359002 Bin-door
4C 240358402 Bin-door, frzr-dispenser
11 240554215 Door-frzr, stainless steel, complete assy
13A 240537106 Door Stop, black, frzr
18 218756505 Handle-door, stainless steel, with insert & set screw
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
22A 240561602 Bearing-hinge,closer
22C 240328404 Bearing-hinge,black ,upper
68 240465801 Chute-ice
79 218755401 Screw-set,10-32 x 0.375
80 218755503 Screw-shoulder,#10 AB ,handle mounting
* 218490900 Cleaner,stainless steel
* 240545101 Connector-water,straight
* 240552102 Harness-wiring,door
* 240470401 Connector-amp
* 5303918273 Dispenser heater kit,220
05/03 4
Publication No. KSPZ25V9C
EK30503990

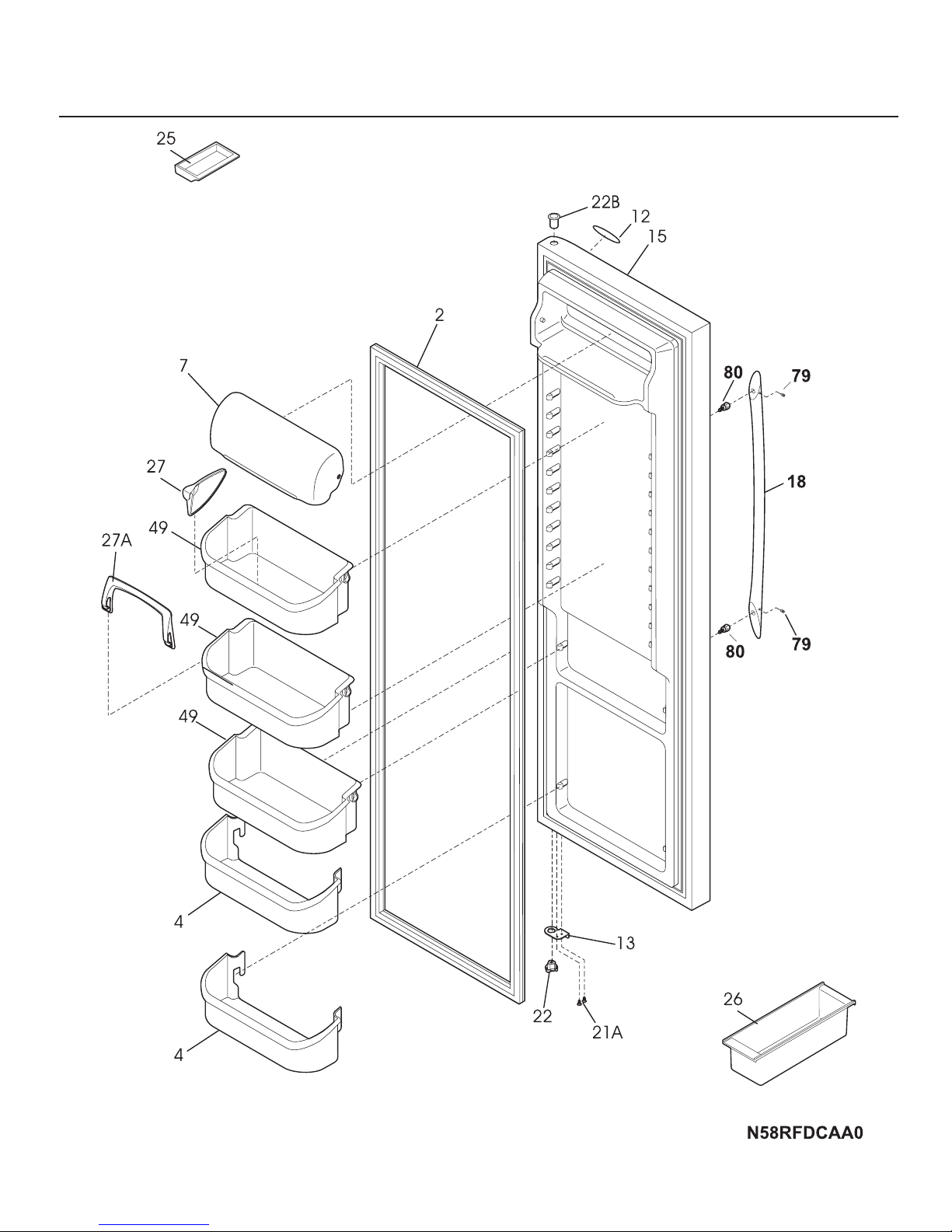

REFRIGERATOR DOOR
# = Fast-moving Parts 5 05/03
* = Non-Illustrated Parts
KSPZ25V9C Publication No.
EK30503990
REFRIGERATOR DOOR
POS. NO PART NO DESCRIPTION
2 # 240390607 Gasket-refr door,black ,magnetic
4 240363702 Bin-door,2-liter
7 240338309 Door-dairy
12 240578001 Label-nameplate -KIC
13 240537105 Door Stop,black ,ref
15 240451971 Door-refr, stainless steel, complete assy
18 218756505 Handle-door, stainless steel, with insert & set screw
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
22 240561601 Bearing-hinge,closer
22B 240328403 Bearing-hinge,upper
25 5308000716 Dish,butter
26 3204522 Container,egg
27 240396302 Snugger,paddle type
27A 240396102 Retainer,tall bottle
49 240324502 Bin-door,gallon
79 218755401 Screw-set,10-32 x 0.375
80 218755503 Screw-shoulder,#10 AB ,handle mounting
* 218490900 Cleaner,stainless steel
05/03 6
Publication No. KSPZ25V9C
EK30503990

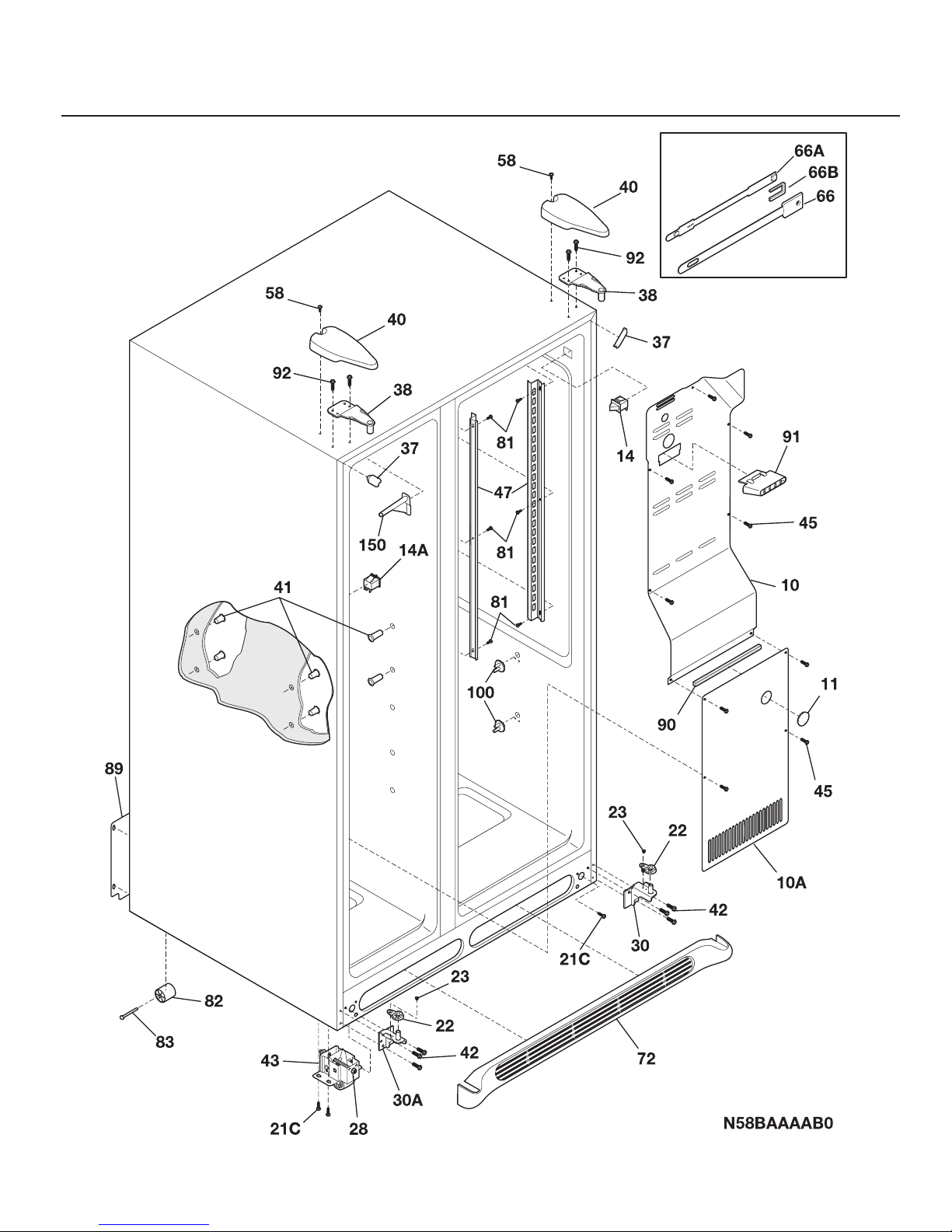

CABINET
# = Fast-moving Parts 7 05/03
* = Non-Illustrated Parts
KSPZ25V9C Publication No.
EK30503990
CABINET
POS. NO PART NO DESCRIPTION
10 240435901 Cover-air duct
10A 240475901 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
14 # 240505801 Switch,light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj,hex washer head, 1/4-20 x 4.020, (2), special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337603 Trim-cabinet corner,black ,(2)
38 240327202 Bracket-upper hinge
40 240327007 Cover-upper hinge,black
41 240358701 Grommet-shelf mtg,1.40" long
41* 240358801 Grommet-shelf mtg,.875" long
42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8
43 240335003 Roller Assy,front ,(2)
45 241500301 Screw,hex washer head ,8-18AB x 0.500
47 240349402 Channel-shelf mtg,side ,(2)
58 218749600 Screw, #10 pan hd, 8-18 x .5
66 240504901 Cover-damper
66A 240505001 Damper-meat keeper
66B 240355901 Insulation-damper
66B* 240518802 Pin-push,push-in, plastic
72 240324405 Grille/Kickplate, black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326112 Cover-access,with label
90 218249807 Seal-coil cover
92 216850900 Screw,hex washer hd ,1/4 x 7/8, hinge mtg
91 240380101 Duct-ice maker
100 240423701 Support,crisper cover ,front ,(4)
100* 240350802 Support,crisper cover ,rear ,(4)
150 240368701 Guide-control bulb
* 218515401 Clip
* 240396801 Clamp,tube/wiring ,nylon ,black/natural
* 240479601 Plug,button ,cab liner holes
* 5303305345 Paint,touch-up ,black
* 240481601 Shim-lower hinge
05/03 8
Publication No. KSPZ25V9C
EK30503990

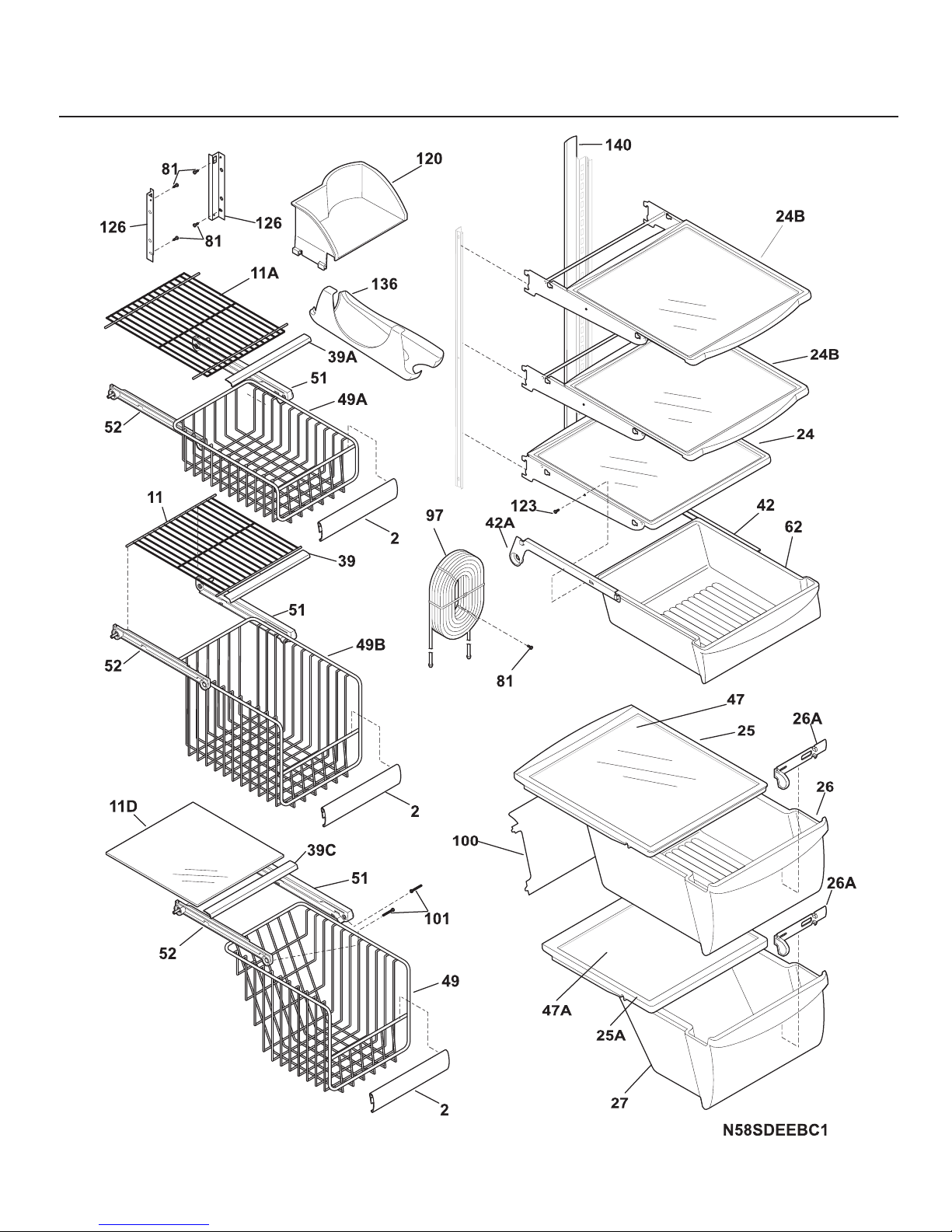

SHELVES
# = Fast-moving Parts 9 05/03
* = Non-Illustrated Parts
KSPZ25V9C Publication No.
EK30503990
SHELVES
POS. NO PART NO DESCRIPTION
2 240434603 Trim-basket
11 240338801 Shelf-freezer,flip-up
11A 240338703 Shelf-freezer,fixed wire
11D 240350642 Shelf-freezer,glass
24 240355230 Shelf-"Spill-Safe",fixed
24B 240350124 Shelf-"Spill-Safe",cantilever ,sliding
25 240354502 Cover-crisper pan,upper
25* 240362101 Clip-slide,cover-crisper
25A 240354602 Cover-crisper pan,lower
26 240354711 Pan-crisper,upper
26* 240349801 Clip-slide,pan-crisper
26A 240351101 Control-humidity
27 240354812 Pan-crisper,lower
39 240430705 Trim-shelf,front
39A 240430701 Trim-shelf,front
39C 240367601 Trim-shelf,front
42 240356501 Track,meat pan hanger ,RH
42A 240349701 Hanger-meat pan,LH
42A* 240349901 Block-meat pan rail,LH
42A* 240350001 Spring-meat pan rail
42A* 240356701 Seal-meat pan
47 240443302 Insert-pan cover,glass ,upper
47A 240350614 Insert-pan cover,glass
49 240530401 Basket-sliding
49A 240530501 Basket-sliding,upper ,half
49B 240530503 Basket-sliding,upper ,full
51 240343002 Hanger-basket,RH
52 240343102 Hanger-basket,LH
62 240355510 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy, coiled tubing, front filter
100 240326301 Cover-water tank
101 218493100 Screw,hex washer head ,8-18AB x 1-3/4
120 240342901 Shelf-ice cream
123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438
126 218867405 Channel,auger mtg ,LH
126 218867406 Channel,auger mtg ,RH
136 240424501 Dispenser-can,white
140 240430501 Channel,wtr tube cover
05/03 10
Publication No. KSPZ25V9C
EK30503990

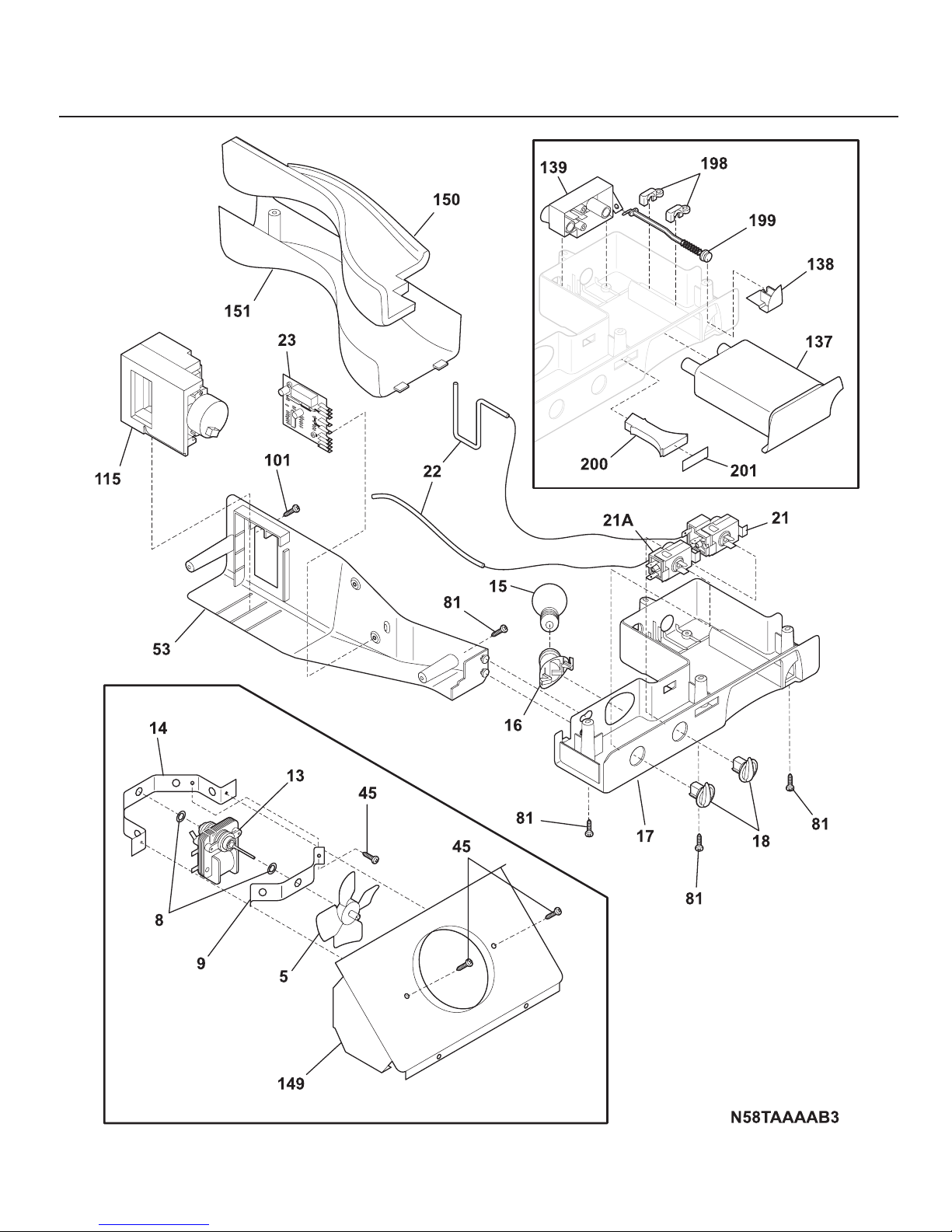

CONTROLS
