READ AND SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

C.E.T.L. LISTED MODEL: CF570ER-BRD

Weight of Fan: 12.30Kgs

KENDAL LIGHTING

Kendal Lighting (BC) Inc.

#110, 6780 Dennett Place

Delta, BC V4G 1N4

Canada

Tel: (604) 952-5510

Fax: (604) 952-5513

Model: AC-20070

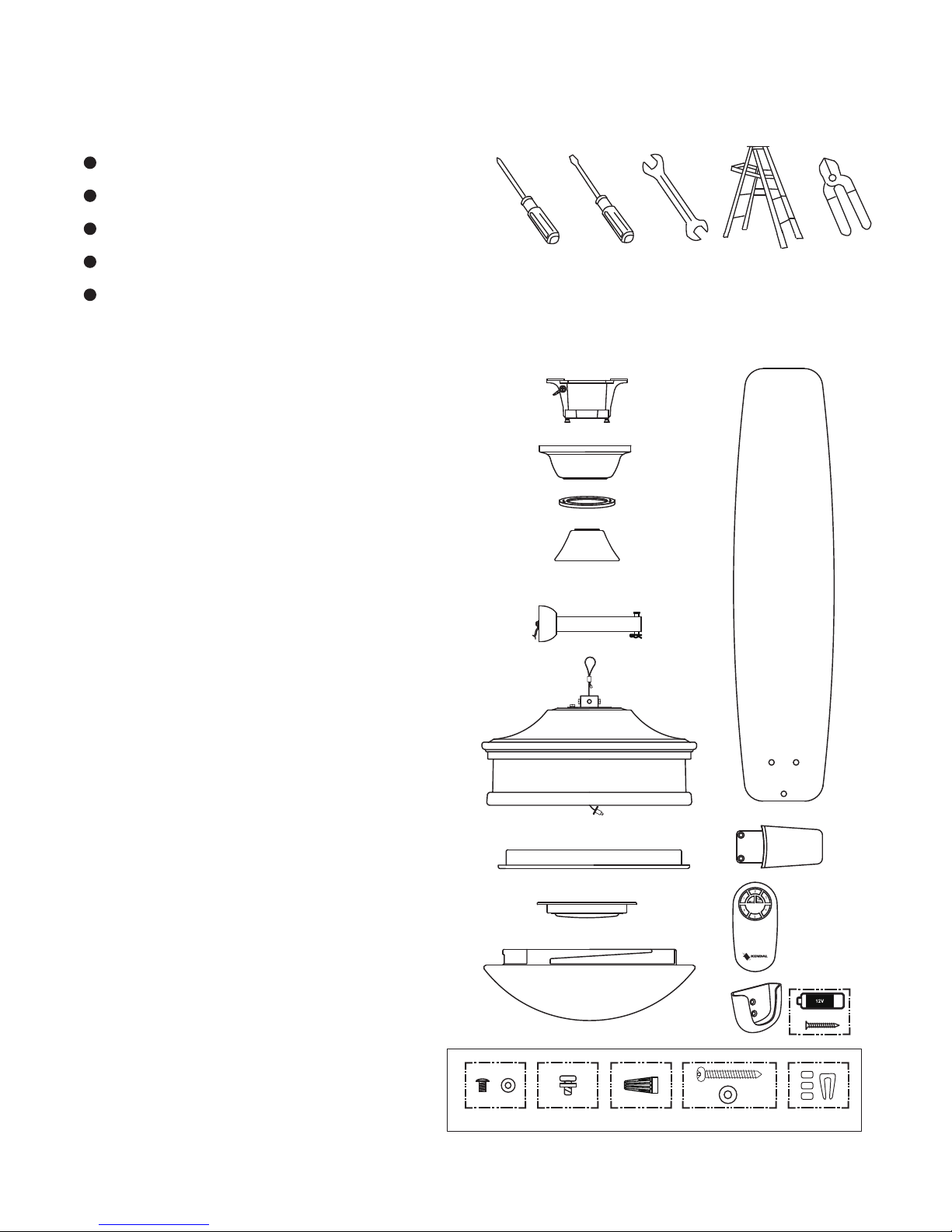

2. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items;

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

1. TOOLS AND MATERIALS

REQUIRED

a. Hanger bracket

b. Canopy

c. Canopy cover

d. Coupling cover

e. Downrod assembly

f. Fan motor assembly

g. Mounting plate

h. 17W LED assembly

i. Glass shade

j. Blade set(5)

k. Blade holder(5)

l. Transmitter

m. Transmitter holder

Transmitter holder mounting screw(2)

12V Battery

n. Package hardware

1) Blade attachment hardware:

screw(16), fiber washer(16)

2) Blade holder hardware:

screw(11)

3) Wire nuts(3)

4) Mounting hardware:

wood screw(2),washer(2)

5) Balancing kit (1)

3. SAFETY RULES

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualified

licensed electrician.

3. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

4. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

5. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

6. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

7. Avoid placing objects in the path of the

blades.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX

MARKED "ACCEPTABLE FOR FAN

SUPPORT".

8. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

9. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the grounded conductor and

the equipment - grounding conductor on

one side of the outlet box.

11. Electrical diagrams are reference only.

Light kit that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS

If there isn't an existing CUL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

Figures 1,2 and 3 are examples of different

ways to mount the outlet box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. (Fig. 3)

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

Outlet box

Provide strong

support

Recessed

outlet box

Ceiling

mounting

plate

Outlet box

Figure 1

Figure 3

Figure 4

Outlet box

Figure 2

Angled ceiling

maximum

20 angle

Figure 7

Groove

Tab

5. HANGING THE FAN

Figure 6

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly:

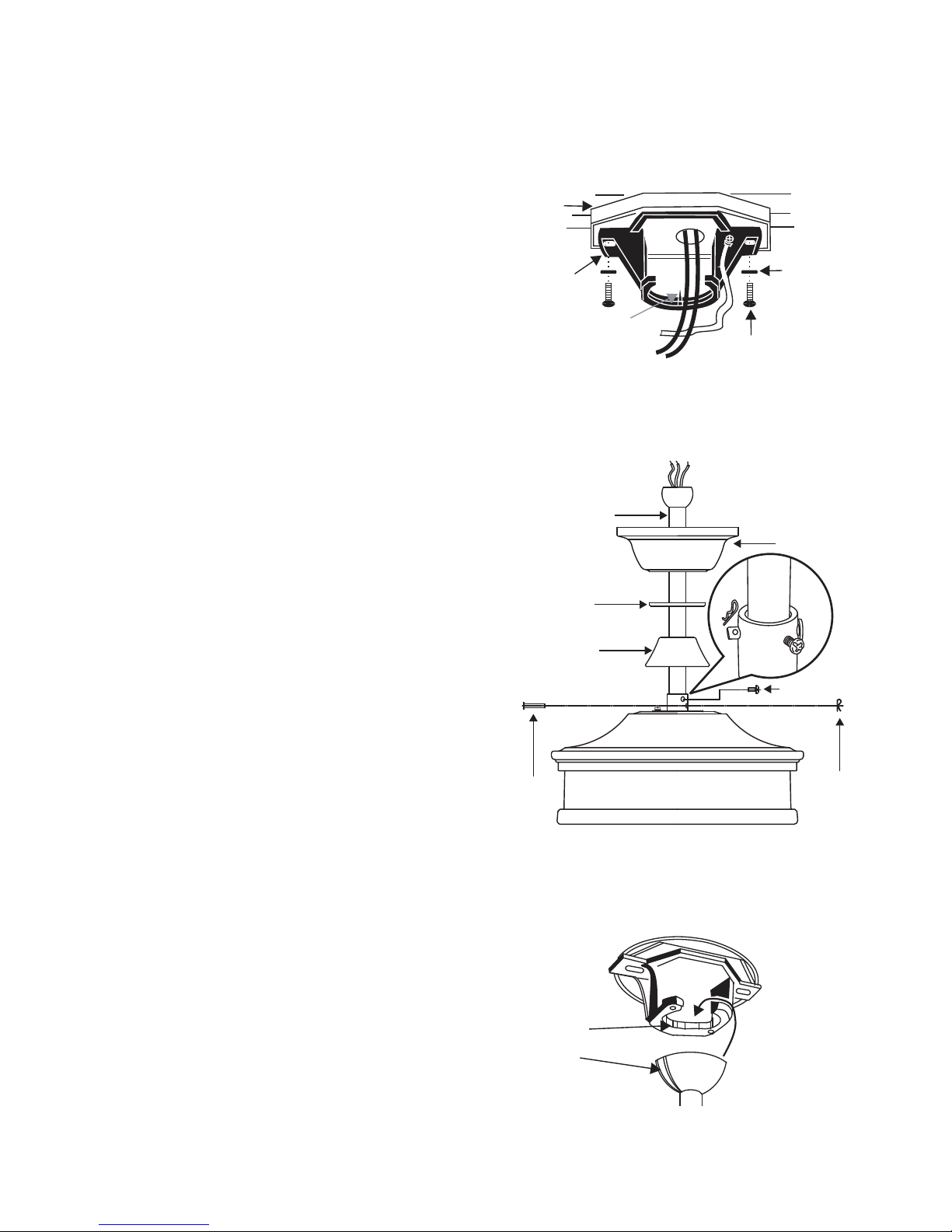

Step 1. Pass the 120-volt supply wires through

the center hole in the ceiling hanger bracket as

shown in Fig. 5.

Step 2. Secure the hanger bracket to the

ceiling outlet box with the screws and washers

provided with your outlet box.

Step 3. Remove the hanger pin, locking pin

from downrod and remove the set screws from

the top of the motor assembly.

Step 4. Route wires exiting from the top of the

fan motor through the couping cover, canopy

cover and canopy, then through the ball/

downrod. (Fig. 6)

Step 5. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig.6). Carefully insert the

hanger pin through the holes in the collar and

downrod. Be careful not to jam the pin against

the wiring inside the downrod. Insert the

locking pin through the hole near the end of

the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 6.

Step 6. Tighten two set screws on top of the

fan motor firmly. (Fig. 6)

Downrod

Canopy

Set screws

Locking

Hanger pin

Coupling cover

Canopy cover

Figure 5

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

plate

CUL Listed

electrial

box

120V Wires

Washers

Step 7. Place the downrod ball into the hanger

bracket socket. And rotate until groove in

hanger ball lines up with tab in hanger bracket.

(You will feel hanger ball drop into place as

you rotate.) (Fig. 7)

6. MAKE THE ELECTRIC

CONNECTIONS

WARNING: To avoid possible electrical

shock, be sure electricity is turned off at the

main fuse box before wiring.

Figure 8

Figure 9

Note: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit

for proper signal transmission between the

transmitting unit and the fan's receiving unit.

Hanger bracket Safety cable

Step 1. (Figure 8) Motor to House Supply Wires

Electrical Connections: Connect the black wire

from the fan to the black (hot) wire from the

ceiling. Connect the White wire from the fan to

white (neutral) wire from the ceiling. Secure wire

connections with the plastic wire nuts provided.

Step 2. (Figure 8) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise, connect the hanging

bracket ground wire to the hanger ball ground

wire. Secure the wire connection with a plastic

nut provided. After connecting the wires, spread

them apart so that the green and white wires are

on one side of the outlet box and black wires are

on the other side. Carefully tuck the wire connec-

tions up into the outlet box.

7. INSTALLATION OF

SAFETY CABLE

White (neutral)

Green or bare

copper (ground)

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black (motor)

An additional safety cable is provided to prevent

the fan from falling. Secure the safety cable to

the ceiling joist with screw and washer, as

illustrated in Figure 9.

Figure 11

Figure 12

9. ATTACHING THE FAN

BLADES

CAUTION: Make sure all screws are

tightened securely.

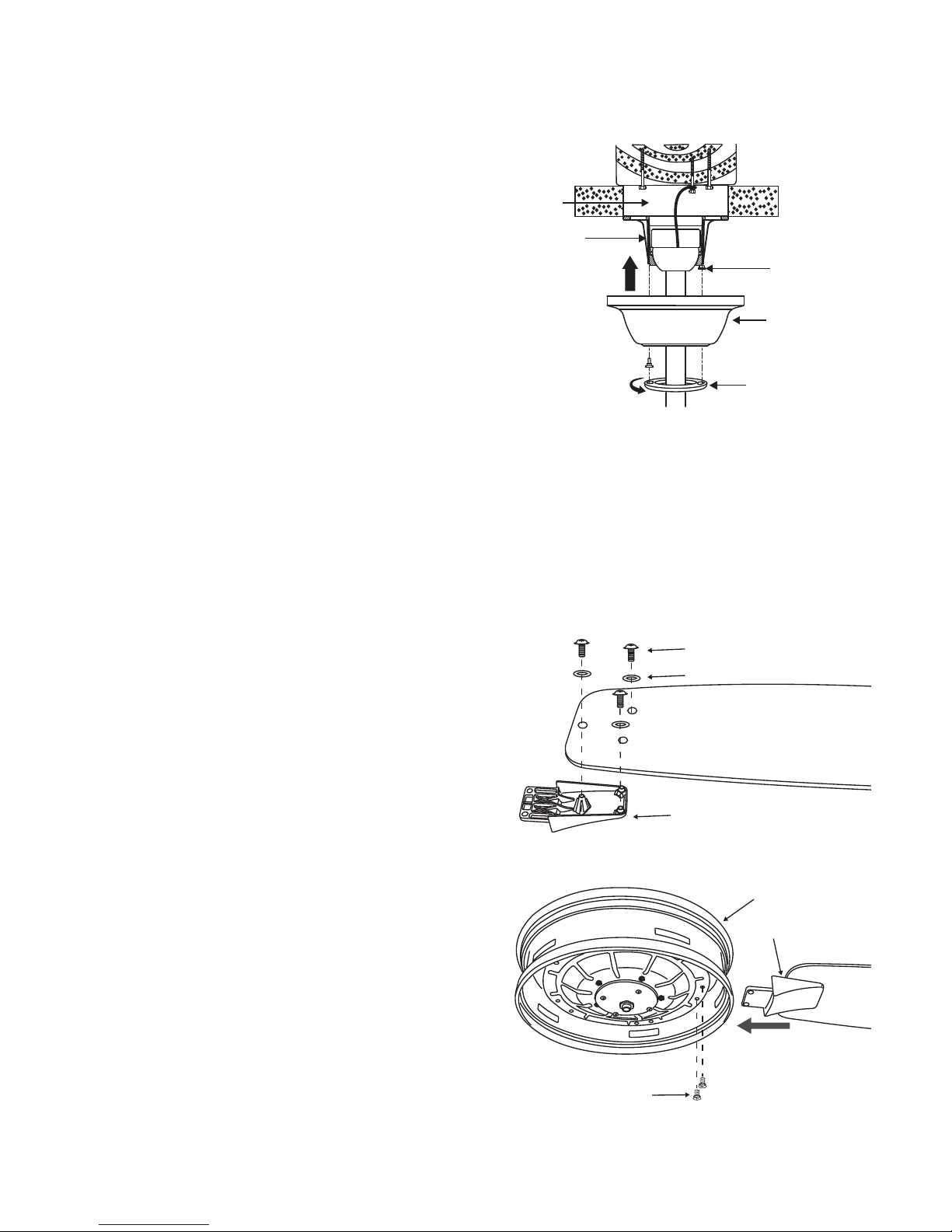

Step 1. Attach the fan blades to the blade holders

by using three screws and fiber washers as

shown in Figure 11. Start a screw into the blade

holder, do not tighten. Repeat for the 2 remaining

screws and washers.

Step 2. Tighten each screw securely starting with

the center screw. Make sure the blade is straight.

Step 3. Attach the blade assembly to the fan

motor assembly by tightening the two screws

previously the package hardware. (Figure 12)

8. FINISHING THE

INSTALLATION

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to hanger bracket

and place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until

it locks in place at the narrow section of the

key holes. (Fig.10)

Step 3. Align the circular hole on canopy with

the remaining hole on the hanger bracket,

secure by tightening the two set screws. Note:

Adjust the canopy screws as necessary until

the canopy and canopy cover are snug.

WARNING: Make sure tab at bottom of

hanger bracket is properly seated in groove of

hanger ball before attaching canopy to

bracket. Failure to properly seat tab in groove

could cause damage to electrical wiring.

Figure 10

Outlet box

Hanger

bracket

Canopy

Canopy cover

Screws

Fiber washers

Blade

Blade holder

Screws

Fan motor assemby

Blade assembly

10. INSTALLATING THE

MOUNTING PLATE

Step 1. Remove 1 of 4 screws from the

mounting ring and loosen the other 3 screws.

(Do not remove)

Step 2. Place the key holes on the mounting

plate over the 3 screws previously loosened

from the mounting ring, turn mounting plate

until it locks in place at the narrow section of

the key holes. Secure by tightening the 3

screws previously loosened and the one

screw previously removed. (Fig. 13)

Figure 13

Mounting

plate

Mounting

ring

Screws

11. ATTACHING THE

17W LED ASSEMBLY

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box. Turning power

off using the fan switch is not sufficient to

prevent electric shock.

Figure 14

Screw

Mounting

plate

17W LED assembly

White wire

connectors

Step 1. Remove 1 of 3 screws from the

mounting plate and loosen the other 2

screws(Do not remove). (Fig 14)

Connect white wire from motor to white wire

from the 17W LED assembly. Connect black

wire from motor to black wire from the 17W

LED assembly.

Step 2. Place key holes on the 17W LED

assembly over the 2 screws previously

loosened from the mounting plate, turn the

17W LED assembly until it locks in place at the

narrow setion of the key holes. Secure by

tightening 2 screws previously loosened and

the one previously removed. (Fig 14)

Black wire

connectors

Figure 15

Figure 16

12. ATTACHING THE

GLASS SHADE

Install the glass shade by carefully

turning it clockwise until snug. DO NOT

OVERTIGHTEN. (Fig. 15)

Glass shade

13. INSTALLING THE

TRANSMITTER

HOLDER

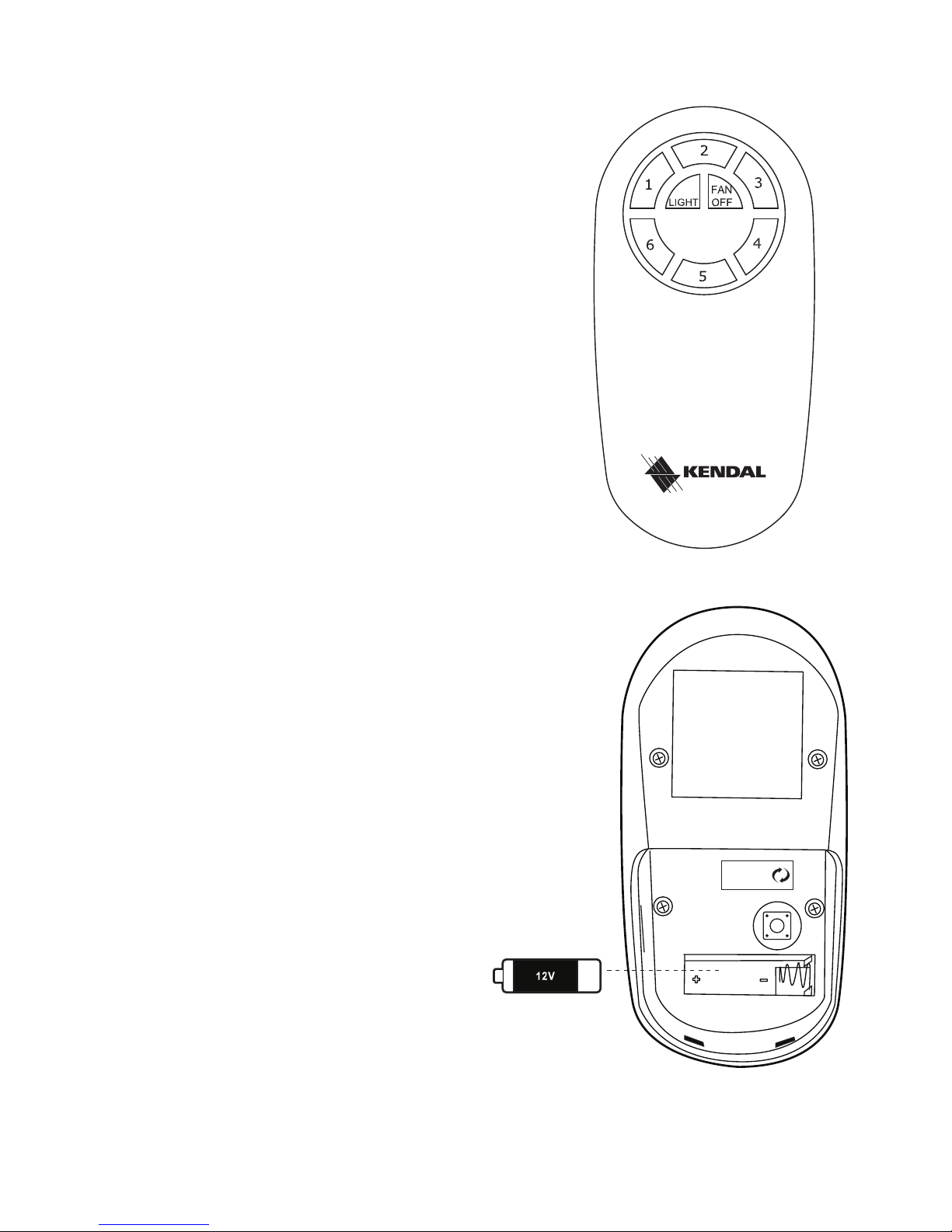

Attach the remote control holder with the two

remote control holder mounting screws.

(Fig.16)

Figure 17

Figure 18

14. Operation of your

Ceiling Fan:

Step 1: Make sure power is restored to the fan

unit as during installation it was most likely

turned off at the wall switch or breaker box.

Note: The fan is controlled by the remote

system only. No other wall control devices such

as dimmers, fan controls, etc. are compatible

with this system. If there is a switch that controls

the power to this unit make sure it is only an

on/off toggle or rocker switch.

Step 2: Install the 12volt battery into the hand

held transmitter (Figure 17) as shown in (Figure

18). Make sure the battery is secure with the

matching +/- terminals. The remote hand set

will have illumination lights that will come on

once a function is pressed. This light indicates

the remote has a good battery. If you do not see

this illumination please change out the battery.

Step 3: Begin testing the fan functions with the

remote control (Figure 17). See operation

details below.

• Fan Buttons 1-6: The higher the number the

faster the fan should turn. Press one time on

each button to the desired speed. #1 is the

lowest speed and #6 is the highest speed.

• Fan Off Button: Press once to turn fan off.

• Light Button: Press once to turn light on/off.

• Reverse Button: Is in the back of the hand

held by the battery compartment (Figure 18).

Press once to reverse the fan. Reverse Button

Bouton à Inverser

Indice

Altri manuali Kendal Lighting Fan

Kendal Lighting

Kendal Lighting AC-22656 Manuale utente

Kendal Lighting

Kendal Lighting AC-20244 Manuale utente

Kendal Lighting

Kendal Lighting AC-19544 Manuale utente

Kendal Lighting

Kendal Lighting AC-20152 Manuale utente

Kendal Lighting

Kendal Lighting AC-30052 Manuale utente

Kendal Lighting

Kendal Lighting AC-22852 Manuale utente

Kendal Lighting

Kendal Lighting AC-24060 Manuale utente

Kendal Lighting

Kendal Lighting AC-22160 Manuale utente

Kendal Lighting

Kendal Lighting AC-24246 Manuale utente

Kendal Lighting

Kendal Lighting AC-30952 Manuale utente

Kendal Lighting

Kendal Lighting AC-30252 Manuale utente

Kendal Lighting

Kendal Lighting AC-19752 Manuale utente

Kendal Lighting

Kendal Lighting AC-22054 Manuale utente

Kendal Lighting

Kendal Lighting AC-20452 Manuale utente

Kendal Lighting

Kendal Lighting AC11152P-ORB/WN Manuale utente

Kendal Lighting

Kendal Lighting AC-21454 Manuale utente

Kendal Lighting

Kendal Lighting AC-24144 Manuale utente

Kendal Lighting

Kendal Lighting AC-16652 Manuale utente

Kendal Lighting

Kendal Lighting AC-22552 Manuale utente

Kendal Lighting

Kendal Lighting AC-24344 Manuale utente

Kendal Lighting

Kendal Lighting AC-21750 Manuale utente

Kendal Lighting

Kendal Lighting AC-22452 Manuale utente

Kendal Lighting

Kendal Lighting AC-30152 Manuale utente

Kendal Lighting

Kendal Lighting Triax AC-22352 Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
