REFRIGERATOR

SERVICE MANUAL

Sears, Roebuck and Co., Hoffman Estates, IL60179 U.S.A. www.sears.com

CAUTION

BEFORE SERVICING THE UNIT,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

MODELS:

795.58812.900

795.58813.900

795.58814.900

795.58816.900

795.58819.900

SXS REFRIGERATOR

CONTENTS

WARNINGS AND SAFETY PRECAUTIONS .......................................................................

1. SPECIFICATIONS ............................................................................................................

2. PARTS IDENTIFICATION .................................................................................................

3. HOW TO INSTALL REFRIGERATOR ..............................................................................

4. MICOM FUNCTION ..........................................................................................................

5. CIRCUIT ............................................................................................................................

6. EXPLANATION FOR MICOM CIRCUIT ...........................................................................

7. ICEMAKER AND DISPENSER WORKING PRINCIPLES AND REPAIR.........................

8. TROUBLE DIAGNOSIS ....................................................................................................

9. HOW TO DISASSEMBLE AND ASSEMBLE....................................................................

10. EXPLODED VIEW AND .................................................................................................

795.58812/58813/58814/58816/58819.900 ....................................................................

- 2 -

Please observe the following safety precautions to use the

refrigerator safely and correctly and to prevent accident or

injury when servicing.

1. Be careful of an electric shock. Disconnect power cord

from wall outlet and wait for more than three minutes

before replacing PWB parts. Shut off the power

whenever replacing and repairing electric components.

2. When connecting power cord, please wait for more than

five minutes after power cord was disconnected from the

wall outlet.

3. Please check if the power plug is pressed by the

refrigerator against the wall. If the power plug was

damaged, it could cause fire or electric shock.

4. If the wall outlet is overloaded, it may cause a fire.

Please use a dedicated circuit for the refrigerator.

5. Please make sure the outlet is properly grounded.

Particularly in a wet or damp area.

6. Use standard electrical components.

7. Make sure hooks are correctly engaged.

Remove dust and foreign materials from the housing

and connecting parts.

8. Do not fray, damage, run over, kink, bend, pull out, or

twist the power cord.

9. Please check for evidence of moisture intrusion in the

electrical components. Replace the parts or mask with

insulation tape if moisture intrusion was confirmed.

10. Do not touch the icemaker with hands or tools to

confirm the operation of geared motor.

11. Do not suggest that customers repair their refrigerator

themselves. This work requires special tools and

knowledge. Non-professionals could cause fire, injury,

or damage to the product.

12. Do not store flammable materials such as ether,

benzene, alcohol, chemicals, gas, or medicine in the

refrigerator.

13. Do not put anything on top of the refrigerator,

especially something containing water, like a vase.

14. Do not put glass bottles with full of water into the

freezer. The contents will freeze and break the glass

bottles.

15. When you scrap or discard the refrigerator, remove the

doors and dispose of it where children are not likely to

play in or around it.

WARNINGS AND PRECAUTIONS FOR SAFETY

- 3 -

- 4 -

1. SPECIFICATIONS

1-1 DISCONNECT POWER CORD BEFORE SERVICING

IMPORTANT - RECONNECT ALL GROUNDING DEVICES

All parts of this appliance capable of conducting electrical current are grounded. If grounding wires, screws, straps, clips,

nuts or washers used to complete a path to ground are removed for service, they must be returned to their original position

and properly fastened.

This information is intended for use by individuals possessing adequate backgrounds of electrical, electronic and mechanical

experience. Any attempt to repair a major appliance may result in personal injury and property damage. The manufacturer or

seller cannot be responsible for the interpretation of this information, not can it assume any liability in connection with its use.

1-3 ELECTRICAL SPECIFICATIONS

Temperature Control (Position: MID)........................................................................................................................-6°F to +8°F

Defrost Control.............................................................................................................................................................Automatic

Defrost Thermostat...............................................................................................................................................................50°F

Electrical Rating: 115VAC, 60Hz..........................................................................................................................................1-7 A

Maximum Current Leakage................................................................................................................................................0.5mA

Maximum Ground Path Resistance.............................................................................................................................0.1 Ohms

Energy Consumption...............................................................................................................27 cu.ft. 590kWh/yr (Energy Star)

1-4 NO LOAD PERFORMANCE

Control Position: MID/MID

And ambient of:...........................................................................70°F ...............................................................................90°F

Fresh Food, °F................................................................33°F to 41°F ..................................................................33°F to 41°F

Frozen Food, °F..............................................................-4°F to +4°F .......................................................................45%-60%

Percent Running Time.....

1-5 REFRIGERATION SYSTEM

Minimum Compressor Capacity Vacuum.................................21 in

Minimum Equalized Pressure

@ 70°F ...............................................................49PSIG

@ 90°F ...............................................................56PSIG

Refrigerant R134a..................................................................6.5 oz

Compressor....................................................................950BTU/hr

For proper air circulation, best cooling and

energy consumption results, maintain a

minimum distance of 2 inches (5.08cm) from

adjacent items and surfaces.

CLEARANCE

AT TOP....................................................................2 in

AT SIDES................................................................2 in

AT REAR.................................................................2 in

1-6 INSTALLATION

1-2 IMPORTANT NOTICE

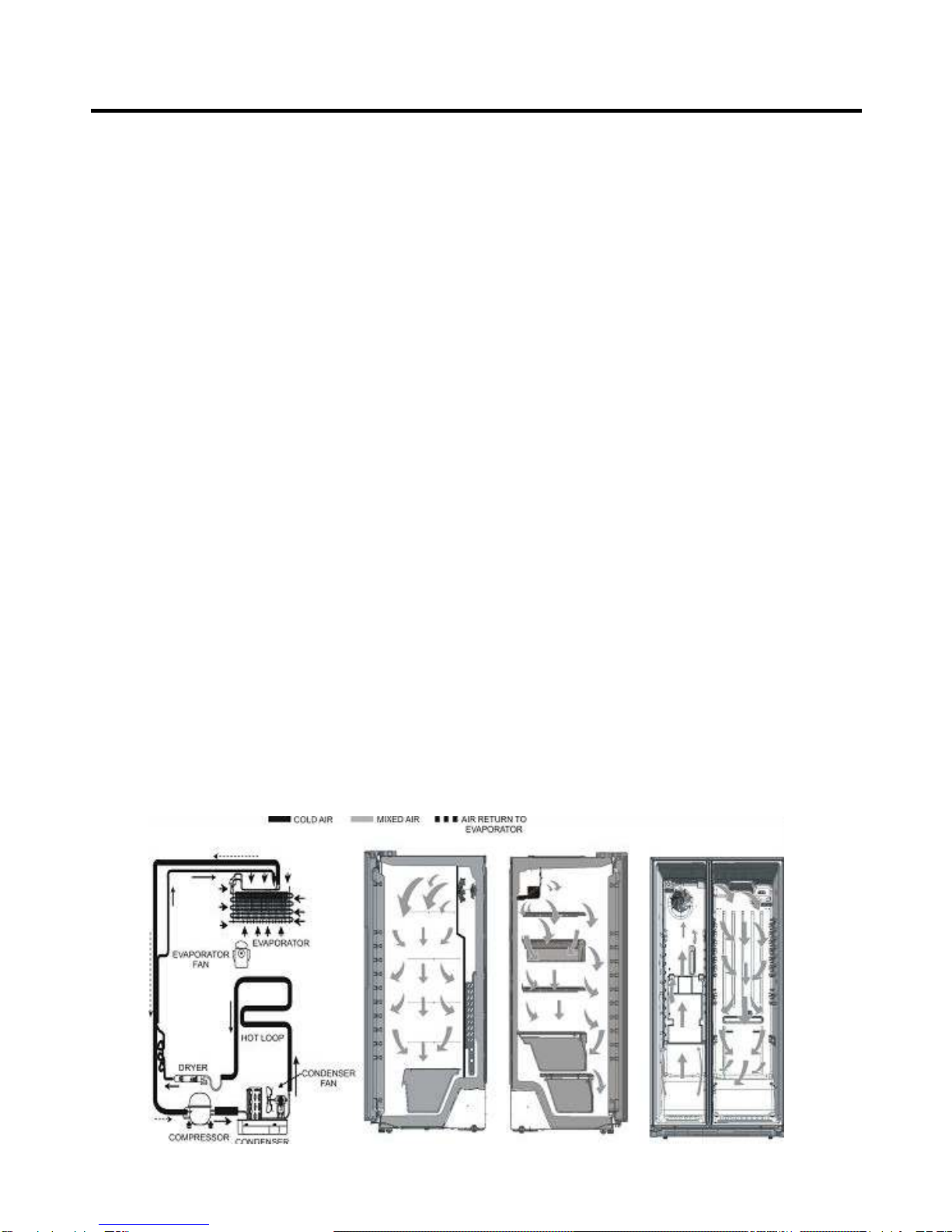

1-7 AIR FLOW

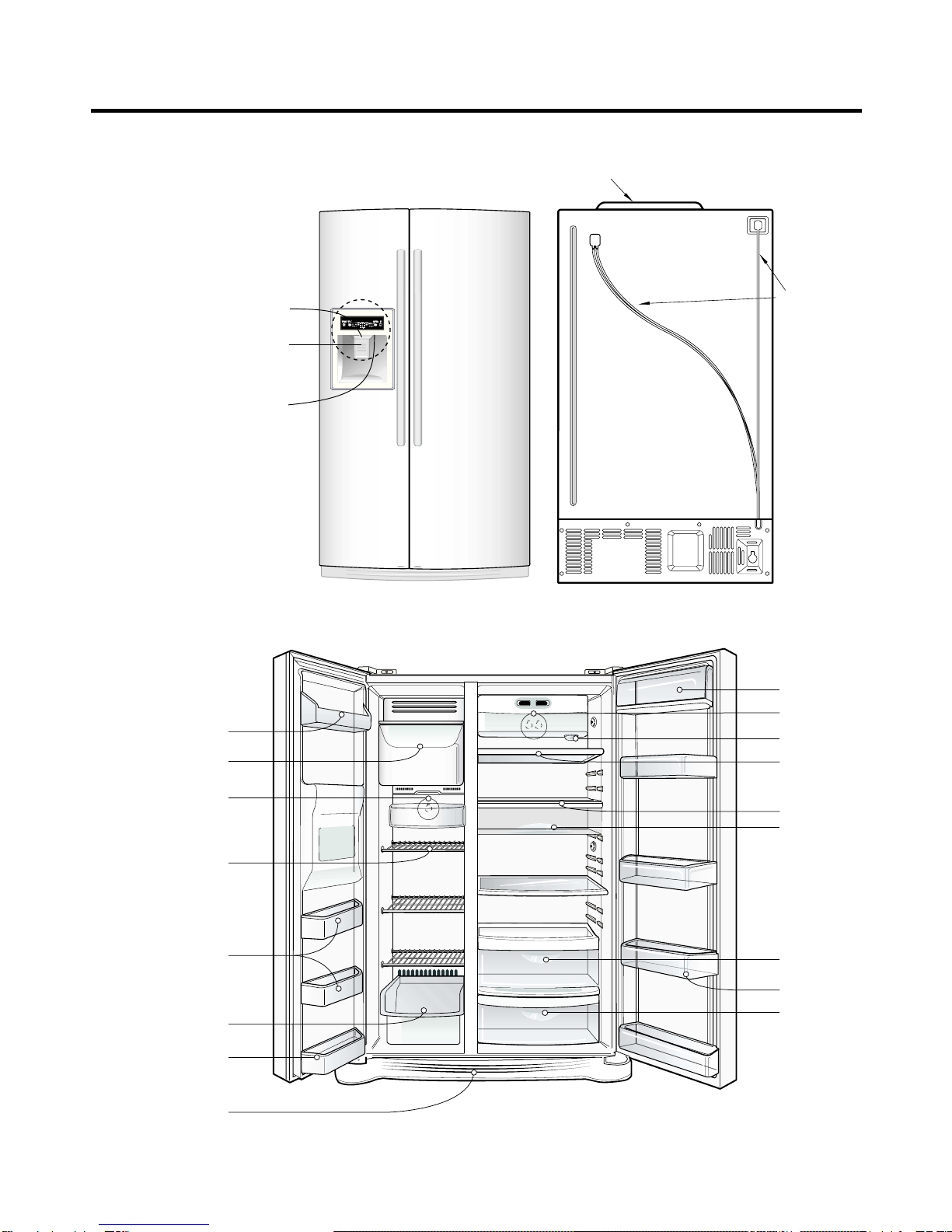

2. PARTS IDENTIFICATION

PWB Cover

Water Tubes

- 5 -

CCompartment Compartment

Dairy Corner

Water Filter

Lamp

Door Rack

Lamp

Shelf (steel)

Drawer

Lower Cover

Shelf

Snack Drawer

Automatic Ice maker

Door Rack

Vegetable Drawer

Shelf

Door Rack

Vegetable Drawer

Freezer Refrigerator

Water-Ice output

Dispenser push switch

Dispenser lamp (Bottom ceiling

of function display board)

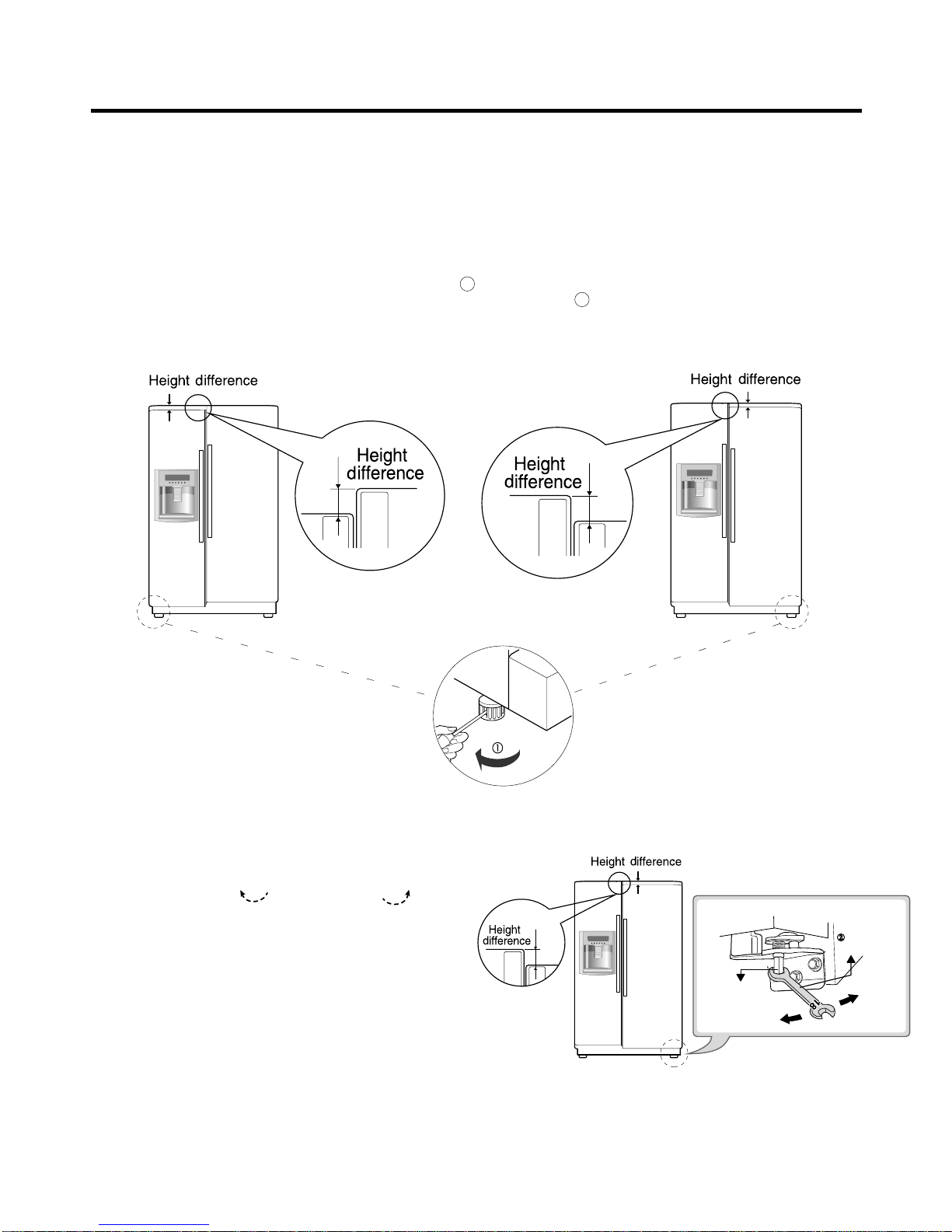

1.How to adjust the Refrigerator Door Height

(First identify your screw type, it could vary)

Make the refrigerator level first. (If the refrigerator is not installed on a flat floor, the height of freezer and

refrigerator door may not be the same

1) If the freezer door is lower than the refrigerator 2) If the freezer door is higher than the refrigerator door:

door: - Type 1

Make them level by inserting flat ( - type) driver into the groove Make them level by inserting flat (- type) driver into the

of the left height adjusting screw and rotating it clockwise ( 1 ) groove of the right height adjusting screw and rotating it

clockwise ( 1 )

3. HOW TO INSTALL THE REFRIGERATOR

Adjust the level when the refrigerator door is lower than the

freezer door during the use of the refrigerator.

1. Using the narrow side of the tool for adjustment, turn the

adjustment hinge pin 2 ( ) clockwise or ( )

counterclockwise to level the refrigerator and freezer door.

2. After setting the level of the door, turn the keeper nut

Counterclockwise to tighten.

Do not force too hard to level the height. The hinge pin can be

pulled out. (Adjustable range of height is a maximum of

½”(1,27cm)).

The refrigerator door will close smoothly by raising the front side

by adjusting the height adjusting screw. If the door does not close

properly because it is improperly adjusted, the performance of

the refrigerator will be affected.

- 6 -

Down

Tool for

adjustment

¬ Adjustment

hinge pin

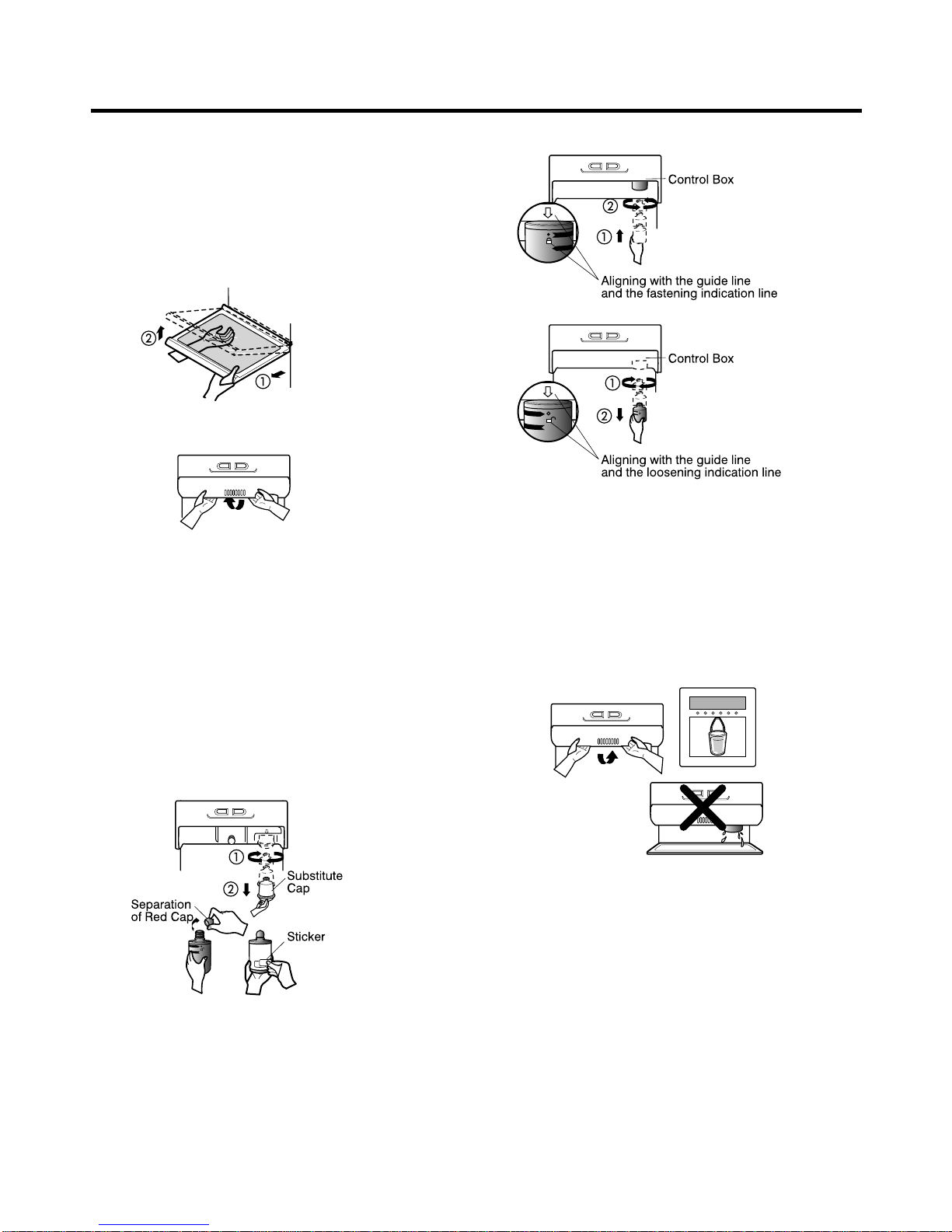

2.Install Water Filter (Applicable to some models only)

Before Installing Water Filter

1. Before installing the filter, take out the top shelf of the

refrigerator after tilting it to the direction and lifting it to the

direction and move it to the lower part.

2. Remove the lamp cover by pressing the protrusion under

the cover and pulling the cover to the front.

Installing water filter

1. Initial installation of water filter

Remove the filter substitute cap by turning it

counterclockwise by 90 degrees and pulling it down.

Note: Keep the cap safe to use it later when you do not use

the filter.

Remove the red cap from the filter and attach the sticker.

Insert the upper part of the filter after aligning with the

guideline marked on the control box, and fasten it by turning it

clockwise by 90 degrees.

Note: Check that the guideline and the fastening indication

line are aligned.

2. Replacement of water filter

While holding the lower part of thefilter, turn it

counterclockwise by 90 degrees and pull it down.

Note: Check that the guideline and the loosening indication

line are aligned.

After installing water filter

Reassemble the lamp cover and the top shelf of the

refrigerator. To place the top shelf of the refrigerator, raise the

front part of the shelf a bit so that the hook of the shelf is fits into

the groove.

To purge the water filter system, let the water run for at least 3

minutes.

NOTE: Open the refrigerator and check for water droplets on

the shelf under the filter.

- 7 -

3. How to Control the Amount of Water Supplied to Icemaker.

3-1. Confirm the amount of water supplied to the icemaker.

1. Pull out the ice bin shelf in the upper part of the freezer compartment.

Caution: •Do not put hands or tools into the chute to confirm

the operation of geared motor.

It may damage the refrigerator or hurt your hands.

2. Turn on the electricity after connecting water pipe.

1) Press the test switch under the icemaker for two seconds as shown below.

2) The bell rings (ding ~ dong), the ice tray rotates, and water comes out the icemaker water tube.

3) The water is supplied into the tray two or three times. The amount is small each time.

Put a container under the ice tray and press test switch.

4) When the ice tray rotates,the water in it will spill. Collect the spilled water and discard it.

5) When ice tray has finished rotation, water comes out the water tube. Check the amount that goes into the ice tray. (Refer

to the drawing below. The optimum amount is 110cc. (Almost 4 oz.)).

* It is acceptable is the adjusted water level is less than the optimum level.

- 8 -

S1 S2

1OFF OFF 6.5SEC

2ON OFF 5.5SEC

3OFF ON 7.5SEC

4ON ON 8.5SEC

* (Refer to appendix)

No DIP SWITCH SETTING Water Supply Time

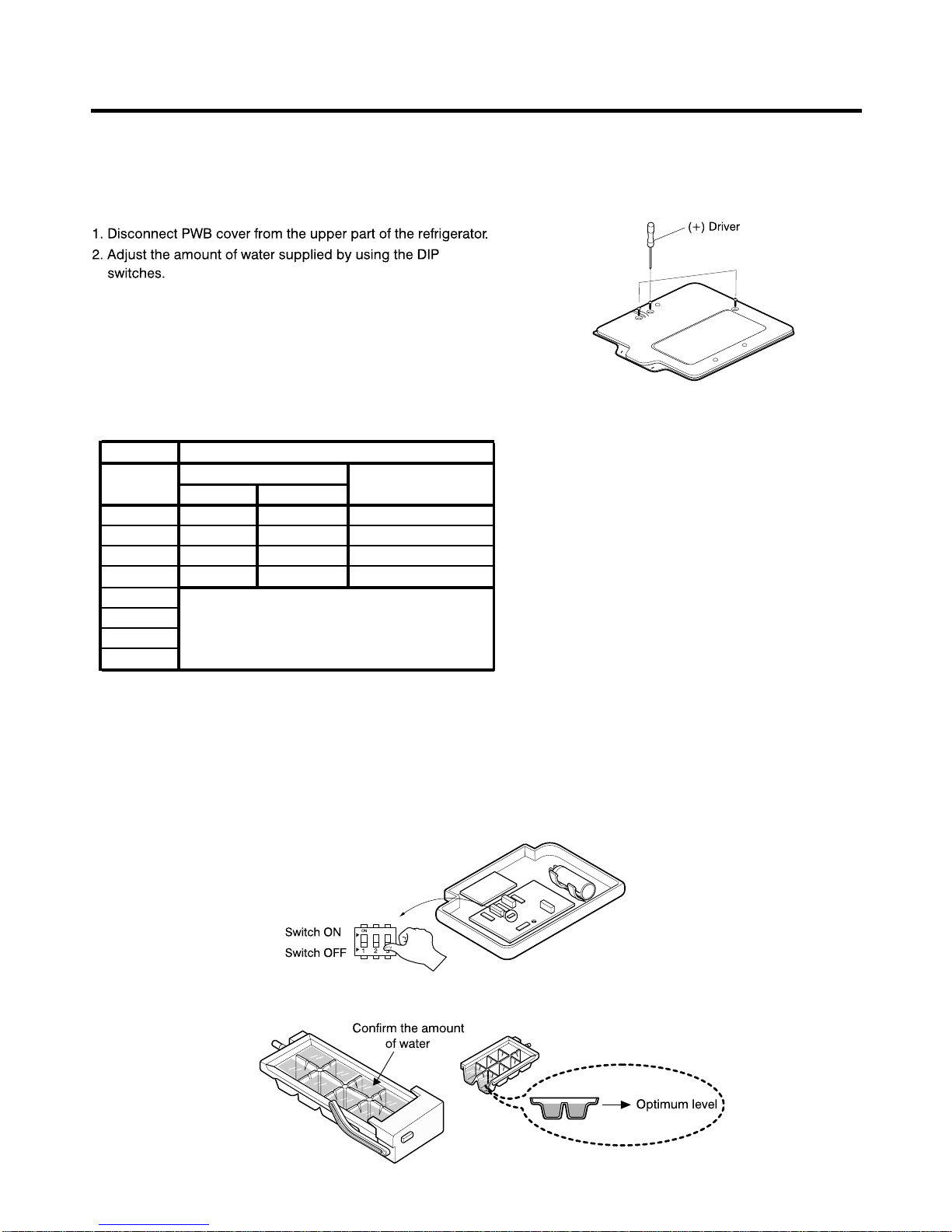

3-2 Control the amount of water supplied to the icemaker.

Caution: • Unplug the power cord from the wall outlet and wait at least three minutes before removing the main PWB cover.

310 Volts are present in the control panel.

Water Supplying Time Control Option

1) The water supplying time is set at five seconds when the refrigerator is deivered.

2) The amount of water supplied depends on the setting time and water pressure (city water pressure).

3) If the ice cubes are too small, increase the water supplying time. This happens when too little water is supplied into the ice

tray.

4) If the ice cubes stick together, decrease the water supplying time. This happens when too much water is supplied into the ice

tray.

Caution: When adjusting the amount of water supplied, adjust step by step. Otherwise the water may spill over.

3. When the adjustment of the control switch for the amount of water supplied is complete, check the level of water in the ice.

- 9 -

LSC27910*

Ultra Ice

4. MICOM FUNCTION

1. Monitor Panel

- 10 -

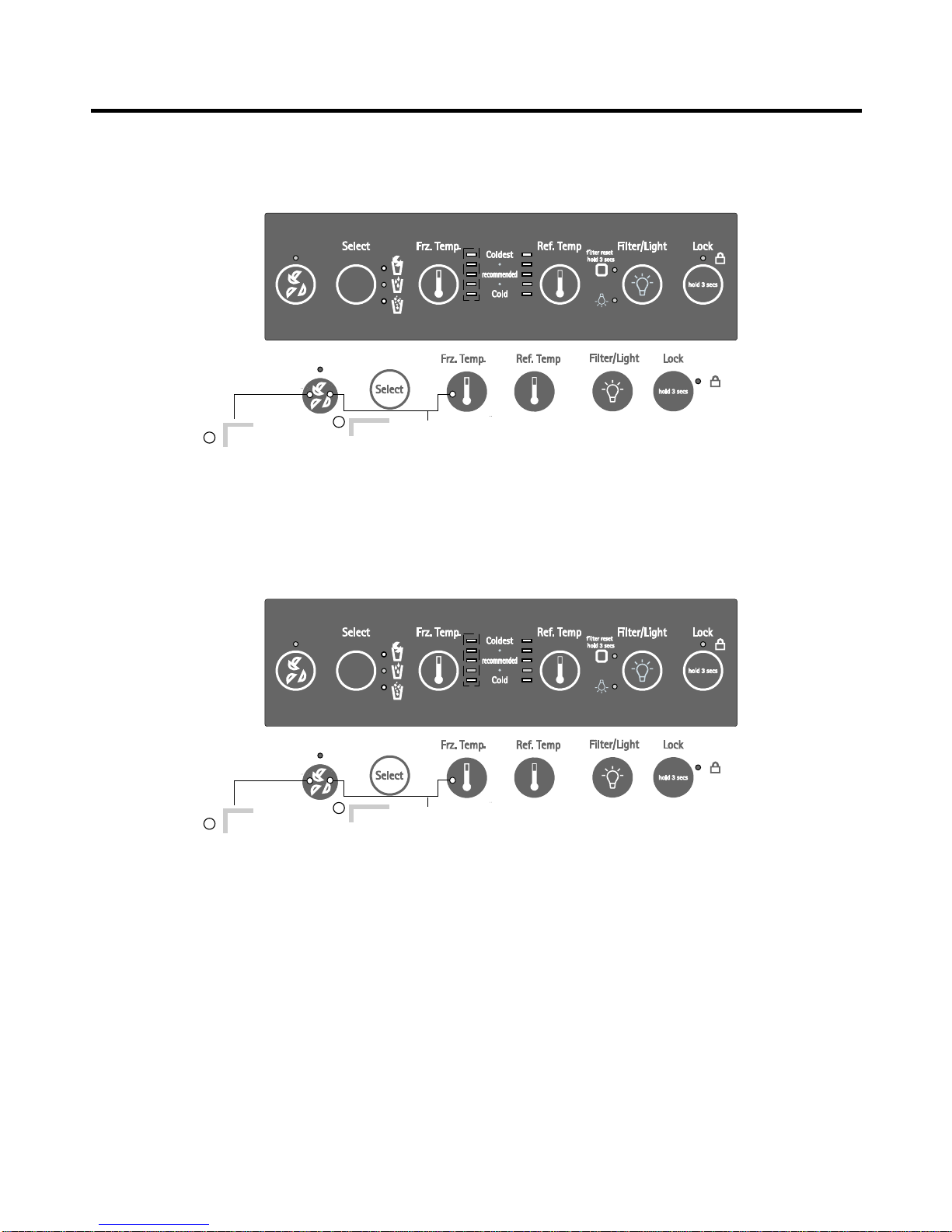

1-1. Display Second Function

1. Buzzer sound mute Mode

The buzzer sound is set to OFF.

It activates by sounding the recognition sound of “Ding ~” after pressing and holding ULTRA ICE” button more than 5

seconds. It inactivates when resetting the mode power.

2. Display OFF mode.

Display off mode puts the display into standby mode until the door is opened.

To put the display into Display off Mode, press and hols the FRZ. TEMP. And ULTRA ICE buttons simultaneously for 5 seconds

until the Ding~sounds. (Use both buttons for this to work.) When Display off Mode is activated, the display remains OFF unless a

door is opened or a button is pressed. The display will return to the OFF position after 20 seconds inactivity.

To remove the display from Display off Mode, press and hold the FREEZER and ULTRA ICE buttons simultaneously for 5 seconds

until the Ding~sounds. The Display off Mode default setting is OFF after a power interruption.

1 2

Display Off Mode

Buzzer sound

mute Mode

DISPENSER

Ultra Ice

1 2

Display Off Mode

Buzzer sound

mute Mode

DISPENSER

Ultra Ice

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kenmore Frigorifero

Kenmore

Kenmore 94689 Manuale utente

Kenmore

Kenmore 5912 - 21.7 cu. Ft. Refrigerator Manuale utente

Kenmore

Kenmore 596.6931 Series Manuale utente

Kenmore

Kenmore Sears refrigerator Manuale utente

Kenmore

Kenmore Kenmore Side by Side Refrigerator Manuale utente

Kenmore

Kenmore 111.9905 Series Manuale utente

Kenmore

Kenmore 795.7209 Manuale utente

Kenmore

Kenmore 795.78712.801 Manuale utente

Kenmore

Kenmore 106.5176 Manuale utente

Kenmore

Kenmore 4666812 Manuale utente

Kenmore

Kenmore Side by side refrigerator Manuale utente

Kenmore

Kenmore trio 795.7978 Series Manuale utente

Kenmore

Kenmore 795.7237 Series Manuale utente

Kenmore

Kenmore W10215710A Manuale utente

Kenmore

Kenmore 795.7132 Series Manuale utente

Kenmore

Kenmore 253 Series Manuale utente

Kenmore

Kenmore 795.76082.600 Manuale utente

Kenmore

Kenmore 970-7070 SERIES Manuale utente

Kenmore

Kenmore 25370889404 Manuale utente

Kenmore

Kenmore 111.2215 Series Manuale utente

Kenmore

Kenmore 795.79012.901 Manuale utente

Kenmore

Kenmore 795.5103 Series Manuale utente

Kenmore

Kenmore 10644432600 Manuale utente

Kenmore

Kenmore 63158 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
