KENTMASTER 500E Manuale utente

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 1 of 18

500E

INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK

IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR

SERVICING THIS TOOL.

BEEF BRISKET SAW - ELECTRIC

TOOL DATA

MODEL: KENTMASTER 500E

ASSEMBLY NO: 1050000

TYPE: ELECTRICAL OPERATED

NET WEIGHT: 80 LB (36 KG)

MOTOR HORSEPOWER: 1HP / 50Hz, 60Hz

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 2 of 18

OPERATING AND SAFETY INSTRUCTIONS

DO NOT OPERATE THIS TOOL UNTIL YOU HAVE READ AND UNDERSTOOD THE SAFETY

INSTRUCTIONS AND OPERATING MANUALS.

DO NOT OPERATE THIS TOOL UNTIL YOU HAVE RECEIVED TRAINING IN THE HANDLING,

OPERATION AND USE OF THIS TOOL.

STOP USING A MALFUNCTIONING OR DEFECTIVE TOOL IMMEDIATELY. REPORT ANY

PROBLEMS OR DEFECTS TO YOUR SUPERVISOR FOR REMOVAL OF THE TOOL FROM

SERVICE.

DO NOT ATTEMPT TO REPAIR THE TOOL YOURSELF.

DO NOT ALLOW UNAUTHORIZED PERSONS TO USE TOOL.

REMOVE AND DISCONNECT POWER FROM THE TOOL WHEN TOOL IS LEFT

UNATTENDED OR IS NOT IN USE.

NEVER TIE DOWN, BYPASS, ALTER OR MODIFY THE ACTIVATING SWITCHES OR

TRIGGERS OF THIS TOOL.

NEVER MAKE ALTERATIONS OR MODIFICATIONS TO THIS TOOL.

BE CONSTANTLY AWARE AND ALERT FOR UNSAFE CONDITIONS AND REPORT THEM

IMMEDIATELY TO YOUR SUPERVISOR.

NEVER PLACE YOUR HAND OR ANY PART OF YOUR BODY IN THE CUTTING PATH OF

THE TOOL.

NEVER ALLOW ANYONE ELSE TO PLACE THEIR HANDS OR ANY PART OF THEIR BODY IN

THE CUTTING PATH OF THE TOOL.

DO NOT ACTIVATE CONTROL SWITCHES OR TRIGGERS OF THIS TOOL UNLESS YOU

INTEND TO TEST OR OPERATE THIS TOOL.

DO NOT USE THIS TOOL FOR ANY PURPOSE OTHER THAN IT’S INTENDED PURPOSE.

WHEN OPERATING THIS TOOL WEAR THE PROTECTIVE GEAR AND SAFETY EQUIPMENT

SUPPLIED TO YOU.

THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED

80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED.

= Hazards or unsafe practices which could result in severe personal injury,

death or substantial property damage.

= Hazards or unsafe practices which could result in minor personal injury,

product or property damage.

= Important installation, operation or maintenance information.

!WARNING

!CAUTION

!WARNING

!CAUTION

!NOTICE

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 3 of 18

OPERATING INSTRUCTIONS

ONLY TRAINED PERSONNEL ARE TO OPERATE THIS TOOL.

1. TO ENSURE TOOL IS OPERATING PROPERLY, PERFORM FOLLOWING STEPS AT START OF EACH

SHIFT:

•MAKE SURE TOOL MOVES UP AND DOWN FREELY WHILE HANGING FROM BALANCER OVERHEAD.

•WITH POWER TO TOOL TURNED ON, TEST TRIGGER FOR PROPER OPERATION.

2. TO PERFORM WORK, HOLD TOOL FIRMLY AT BOTH HANDLES. SQUEEZE TRIGGERS TO ACTIVATE

TOOL.

3. POSITION TOOL AND PERFORM CUTTING OPERATION.

BLADE REMOVAL AND CLEANING.

ALWAYS DISCONNECT POWER SUPPLY FROM TOOL BEFORE INSTALLING OR

REMOVING BLADE FROM TOOL.

ALWAYS WEAR WIRE MESH GLOVES WHEN INSTALLING OR REMOVING BLADE FROM

TOOL.

1. REMOVE NUT AND BOLT (ITEM NO. 2, 4, FIG. NO. 1).

2. REMOVE BLADE (ITEM NO. 1, FIG. NO. 1).

3. CLEAN ALL PARTS REMOVED WITH SOAP AND

WATER.

4. SHARPEN OR REPLACE BLADES WHEN NECESSARY.

5. REASSEMBLE IN REVERSE ORDER.

Figure 1 MODEL 500E – BLADE REPLACMENT

SERVICE

1. KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE

MAINTENANCE PROGRAM.

2. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF

TOOL.

3. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE

INFORMATION.

!WARNING

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 4 of 18

INSTALLATION INSTRUCTIONS

ALL ELECTRICAL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN IN

ACCORDANCE WITH THE NATIONAL, STATE AND LOCAL ELECTRICAL CODES.

(REFER TO NAMEPLATE ON TOOL FOR PROPER POWER CONFIGURATION).

1. A BALANCER IS REQUIRED FOR OPERATION AND USE OF THIS TOOL. WEIGHT OF TOOL MUST FALL WITHIN

WEIGHT RANGE OF BALANCER

2. INSTALL BALANCER ABOVE WORK AREA. BALANCER MUST HAVE SUFFICIENT VERTICAL TRAVEL SO

OPERATOR CAN REACH ENTIRE WORK AREA WITH TOOL WITHOUT STRAIN

3. ADJUST BALANCER ACCORDING TO THE OPERATOR'S PREFERENCE AND COMFORT.

WE STRONGLY SUGGEST THAT AN ADDITIONAL SAFETY CHAIN BE USED TO CHAIN

BALANCER TO OVERHEAD TROLLEY. THIS ADDITIONAL MEASURE OF SAFETY WILL

HELP REDUCE INJURIES.

MAINTENANCE

ONLY TRAINED AND QUALIFIED PERSONNEL ARE TO PERFORM MAINTENANCE

AND SERVICE TO THIS TOOL.

OIL LUBRICATION: THE FAT OF THE CARCASS PROVIDES SUFFICIENT LUBRICATION FOR THE BLADE GUIDES AND

OIL LUBRICATION OF BLADE IS NOT NECESSARY WHEN MACHINE IS IN OPERATION.

SAW SHAFT REQUIRES CONTINUOUS LUBRICATION. VERIFY OILER CUP AT THE END OF EACH SHIFT AND ENSURE

THAT THE OILER CONTAINS LIGHT-WEIGHT, FOOD-GRADE OIL, ENOUGH TO COVER BOTTOM OF OILER CUP.

RECOMMENDED LUBRICANT CAN BE PURCHASED FROM “KENTMASTER MFG., CO., INC.”

!WARNING

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 5 of 18

PARTS BOOK

“500E” MAIN ASSEMBLY

Figure 2 MODEL “500E"

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 6 of 18

1050000: 500E - BRISKET SAW

ITEM PART # DESCRIPTION QTY ITEM PART # DESCRIPTION QTY

1 10512__ MOTOR ASSEMBLY OPTIONS 1 31 3601200 BEARING 1

1002420 POWER CORD ASSEMBLY, NON 42V 1 32 4100170 BLADE, 13.6" LONG 1

2 1002430 POWER CORD ASSEMBLY, 42V 1 33 5001370 RETAINING RING 2

3 1052010 HOUSING 1 34 5001500 RETAINING RING 2

4 1052040 BOTTOM COVER 1 35 5002060 RETAINING RING 2

5 1052120 BALANCE 1 36 5100780 RETAINING RING 1

6 1052140 GUIDE - SAW SHAFT 1 37 6000620 SPRING 1

7 1052150 SHAFT - CONNETING ROD 1 38 6001660 WASHER 2

8 1052220 SAW SHAFT 1 39 7236030 OILER 1

9 1052380 COVER 1 40 7681220 O-RING 2

10 1052390 TRIGGER 1 41 7681330 O-RING 1

11 1052420 HANGER 1 42 8023060 SCREW 2

12 1052430 BRACKET 1 43 8029020 SCREW 2

13 1052640 STEP BOLT 1 44 8029040 SCREW 6

14 1052680 BLADE GUIDE 1 45 8071200 SCREW 4

15 1052710 FORWARD HANDLE 1 46 8081020 SCREW 4

16 1052760 SEAL 2 47 8211220 SCREW 4

17 1052840 WASHER 2 48 8410040 SCREW 1

18 1052880 COVER - WIRE BOX 1 49 8411080 SCREW 4

19 1052920 INSULATION PLATE 1 50 8413080 SCREW 2

20 1053000 PLATE, SPRING BACK UP 1 51 8413120 SCREW 5

21 1053010 ROD ACTUATOR 1 52 8415600 SCREW 1

22 1053220 GASKET 1 53 8500100 NUT 1

23 1053230 GASKET 1 54 8500130 NUT 1

24 1070040 CONNECTING ROD 1 55 8506160 WASHER 1

25 1071324 LUBRICATING FELT 1 56 8506600 WASHER 4

26 2000040 NAME PLATE 1 57 8507090 WASHER 4

27 2000180 SWITCH 1 58 8507100 WASHER 4

28 3000020 WASHER 1 59 8507150 WASHER 6

29 3001020 NUT 1 60 8611600 PIN 1

30 3304040 BEARING 1 61 8613180 PIN 1

Figure 3 BOM FOR MODEL “500E”

Figure 4 1052140: GUIDE – SAW SHAFT

1052140: GUIDE - SAW SHAFT

ITEM PART # DESCRIPTION QTY

1 1052140-M GUIDE - SAW SHAFT 1

2 3819120 BUSHING 2

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 7 of 18

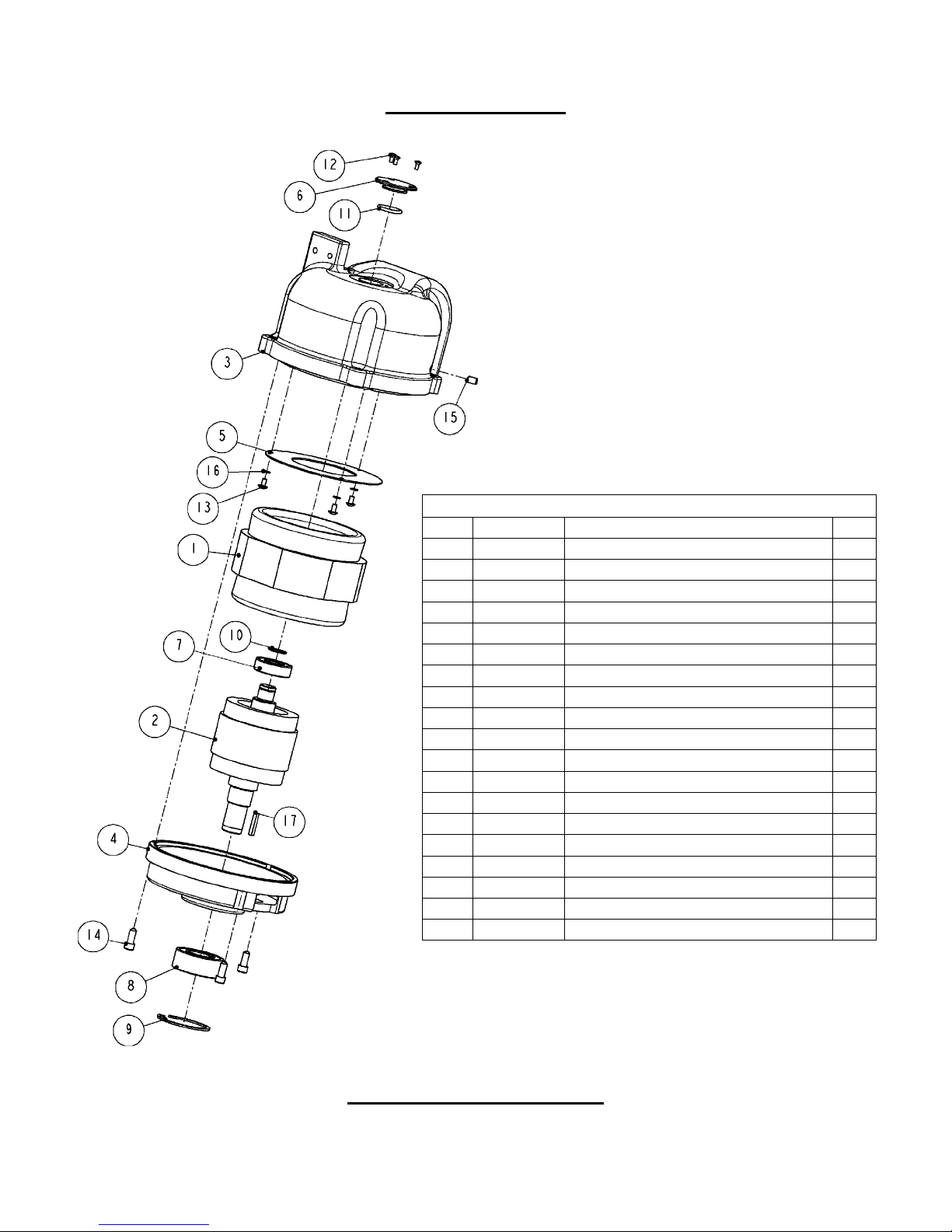

MOTOR ASSEMBLY

Figure 5 MOTOR ASSEMBLY

MOTOR ASSEMBLY

ITEM PART # DESCRIPTION QTY

1 OPTIONS STATOR 1

2 1051110 ROTOR ASSEMBLY 1

3 1051120 MOTOR SHELL 1

4 1052050 MOTOR BEARING HOUSING 1

5 1052110 PLATE 1

6 1052830 COVER 1

7 3204040 BEARING 1

8 3522060 BEARING 1

9 5002440 RETAINING RING 1

10 5100780 RETAINING RING 1

11 7682140 O-RING 1

12 8048030 SCREW 3

13 8110030 SCREW 3

14 8213060 SCREW 3

15 8313040 SET SCREW 1

16 8507090 WASHER 3

17 8603090 SQUARE KEY 1

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 8 of 18

MOTOR ASS'Y 1HP, 550 V, 3 PHASE, 60Hz, 1051250-550-360 2340550 1051110

MOTOR ASS'Y 1HP, 380 V, 3 PHASE, 60Hz, 2.5 AMPS 1051240-380-360 2340540 1051110

MOTOR ASS'Y 1HP, 460 V, 3 PHASE, 60Hz, 2.5 AMPS 1051230-460-360 2340530 1051110

MOTOR ASS'Y 1HP, 230 V, 3 PHASE, 60Hz, 5.0 AMPS 1051230-230-360 2340530 1051110

MOTOR ASS'Y 1HP, 380 V, 3 PHASE, 50Hz, 2.5 AMPS 1051220-380-350 2340520 1051110

MOTOR ASS'Y 1HP, 230 V, 3 PHASE, 50Hz, 5.3 AMPS 1051210-230-350 2340510 1051110

MOTOR ASS'Y 1HP, 115 V, 3 PHASE, 50Hz, 10.6 AMPS 1051210-115-350 2340510 1051110

MOTOR ASS'Y 1HP, 42 V, 3 PHASE, 50Hz, 25 AMPS 1051200 2340500 1051110

DESCRIPTION MOTOR ASS'Y STATOR ROTOR

500E: 1HP MOTOR ASSEMBLY OPTIONS

Figure 6 MOTOR ASSEMBLY OPTIONS

Figure 7 1051110: ROTOR –SHAFT ASSEMBLY

1051110: ROTOR SHAFT ASSEMBLY – 3 PHASE

ITEM PART # DESCRIPTION QTY

1 1051100 SHAFT - MOTOR 1

2 2340660 ROTOR – 3 PHASE 1

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 9 of 18

POWER SUPPLY

Figure 8 1002420: POWER SUPPLY, NON 42V, 3 PHASE

Figure 9 1002430: POWER SUPPLY, 42V, 3 PHASE

1002430: POWER CORD ASSEMBLY, 42V

ITEM PART # DESCRIPTION QTY

1 2001270 CABLE CONNECTOR 1

2 2001700 GROMMET 1

3 2007030 POWER CORD 1

1002420: POWER CORD ASSEMBLY, NON 42V

ITEM PART # DESCRIPTION QTY

1 2001240 POWER CORD 1

2 2001270 CABLE CONNECTOR 1

3 2001610 PLUG, MALE 1

4 2001620 SOCKET, FEMALE 1

5 2008220 CORD GRIP 1

REV E: 04/08

KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

TELEPHONE: (818) 359-8888 FAX: (818) 303-5151 Page 10 of 18

WIRING DIAGRAMS

3-PHASE, DIFFERENT CONTROL AND MOTOR VOLTAGE

(IF APPLICABLE)

NOTES:

1. DO NOT ATTEMPT OR MAKE RAPAIRS ON THE MACHINE WHILE POWER IS ON.

2. ALL ELECTRICAL WORK MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN.

3. THE ELECTRICAL DIAGRAM SHOWS THE MACHINE IN THE “OFF” POSITION.

4. THE GROUND WIRE (GREEN) OF THE POWER CABLE IS CONNECTED TO THE FRAME OF THE

MACHINE.

To obtain the correct Kentmaster part number for 3-pole contactor and overload

relay, please contact the Kentmaster representative.

Figure 10 WIRING DIAGRAM – different control and motor voltage

Indice

Altri manuali KENTMASTER Sega

KENTMASTER

KENTMASTER 180-JB-A Manuale utente

KENTMASTER

KENTMASTER ABB-II Manuale utente

KENTMASTER

KENTMASTER HKM-III Manuale utente

KENTMASTER

KENTMASTER 160-JB Manuale utente

KENTMASTER

KENTMASTER 210-JB-A Manuale utente

KENTMASTER

KENTMASTER SL-1100 Manuale utente

KENTMASTER

KENTMASTER 75 Manuale operativo e di manutenzione

KENTMASTER

KENTMASTER 160-JB-A Manuale utente

KENTMASTER

KENTMASTER Super Speed Manuale utente

KENTMASTER

KENTMASTER 160-JI Manuale utente

KENTMASTER

KENTMASTER ZIP Manuale di istruzioni

KENTMASTER

KENTMASTER 203 Guida del prodotto

KENTMASTER

KENTMASTER BANDMASTER BM-V-LD Manuale operativo e di manutenzione

KENTMASTER

KENTMASTER AD Manuale utente

KENTMASTER

KENTMASTER 77 Manuale utente

KENTMASTER

KENTMASTER 210-JB Manuale utente

KENTMASTER

KENTMASTER HSC-650 Manuale operativo e di manutenzione

KENTMASTER

KENTMASTER 210-JI Manuale utente

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente
