Setting-Up and Using Your

KB-IR1 InfraRed keyboard

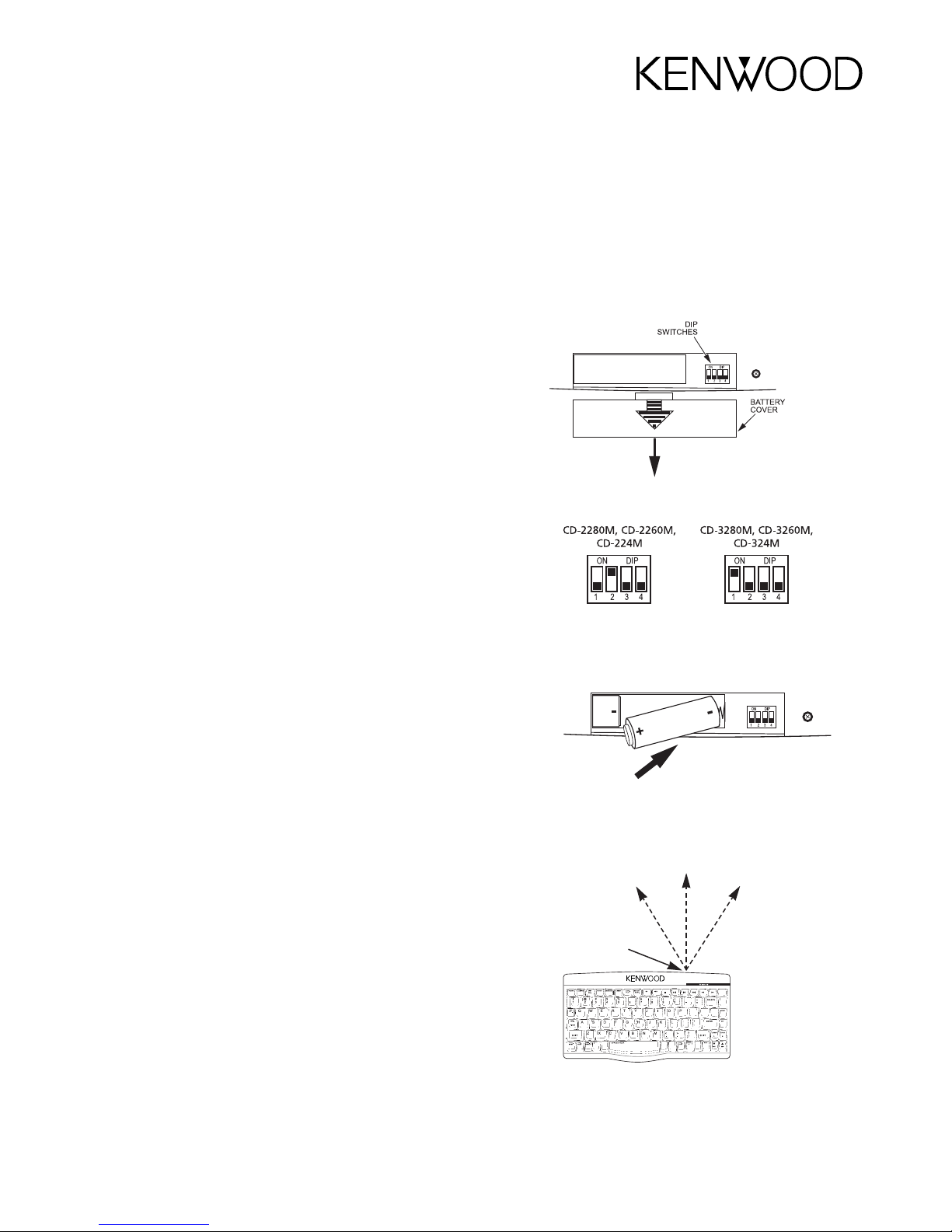

1. Removing the Battery Cover

Remove the battery cover by pressing down on the embossed

arrow and sliding the cover off in the direction indicated by the

arrow in the diagram to the right.

2. Selecting the Model

Important: Your keyboard is designed to be used with several

different models of Kenwood CD players.

Before installing the batteries you must set the “DIP”

switches located beneath the battery cover to match your par-

ticular changer model.

Set the DIP switches to match your changer’s model according

to the diagram to the right.

3. Installing the batteries

After removing the battery cover and setting the DIP switches

as described above, insert 2 “AA” batteries (not included) as

shown in the diagram to the right.

Replace both batteries with fresh ones when the “Batt Low”

indicator (located on the top of the keyboard) is lit.

Battery Information

To maximize battery life, your keyboard has a Sleep Mode, and

is only “on” when you are pressing a key. When you are not

using your keyboard store it so that the keys are not accidental-

ly being pressed.

If you’re not going to be using your keyboard for a long period

of time, remove the batteries.

4. Operating Range

When using your keyboard, point its front edge (where the IR

transmitter is located) towards the CD changer.

The keyboard will operate up to 20 feet away and 30 degress

off-axis from your CD player. If you use the keyboard outside of

this range, it may not function properly. See the diagram to the

right.

Congratulations! Your KB-IR1 IR keyboard will make it quicker and easier for you to program disc and track titles into your

Kenwood 200 disc CD changer.

Since your keyboard duplicates the functions of the remote control that was included with your CD changer, before using it you

should read your CD changer’s instruction manual to become familiar with all of the different functions that can be controlled by

the remote and keyboard.

4. 30° 30°

20 ft

IR TRANSMITTER

IMPORTANT NOTES A

1: Press the MODE key.

The display flashes:

TITLE INPUT

2: Press the SET

D--- T--

disc number

DXXX

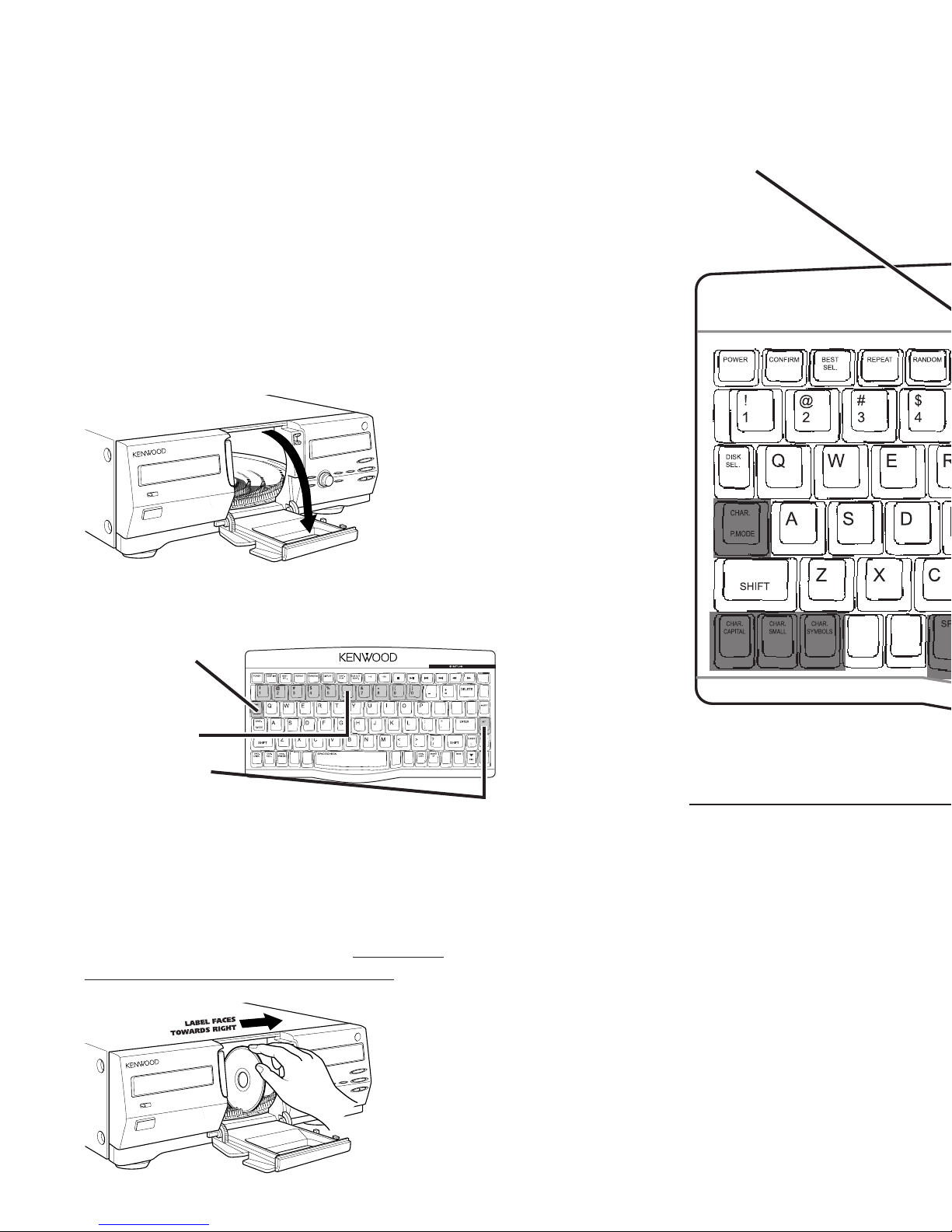

A. Open the loading door and leave

it open for this entire operation

B. Select an empty disc slot

C. Insert a CD in the empty slot. Make sure

the label faces towards your right.

NAMING DISCS AND TRACKS D. Enter the Disc Name

All models:

• Instead of the SHIFT key, use

the CHARACTER/P.MODE key to

shift between capital letters,

lowercase letters and num-

bers/symbols.

• Use the SHIFT key to select

the secondary symbols on

the number and symbol

keys.

• Use the

enter sp

• If you m

the CURS

keys to h

rect char

DELETE ke

1. Press the DISK SEL.

key.

2. Use the number

keys to enter the

disc number.

3. Press the SET key.

4. The disc tray will

spin around until

the disc slot you’ve selected is

in the open loading doorway.

For other ways to select a disc slot, refer to the changer’s instruction manual.

Discs can be given names (up to 25 characters). On the CD-3280M,

CD-3260M, CD-2280M and CD-2260M, up to 20 tracks per disc can

also be named (up to 15 characters each).

Although the most convenient time to enter disc and track names is

when you insert the discs into the player for the first time, (that way

the player keeps track of the disc names for you as you insert the

discs), you can use this procedure to enter or change disc and track

names any time you want.

These instructions explain how to enter disc names when you insert

the discs into the player for the first time.

ABOUT TYPING (keys shown in dark gray)

Tkey. The display reads:

- SELECT, then the

r you selected will flash:

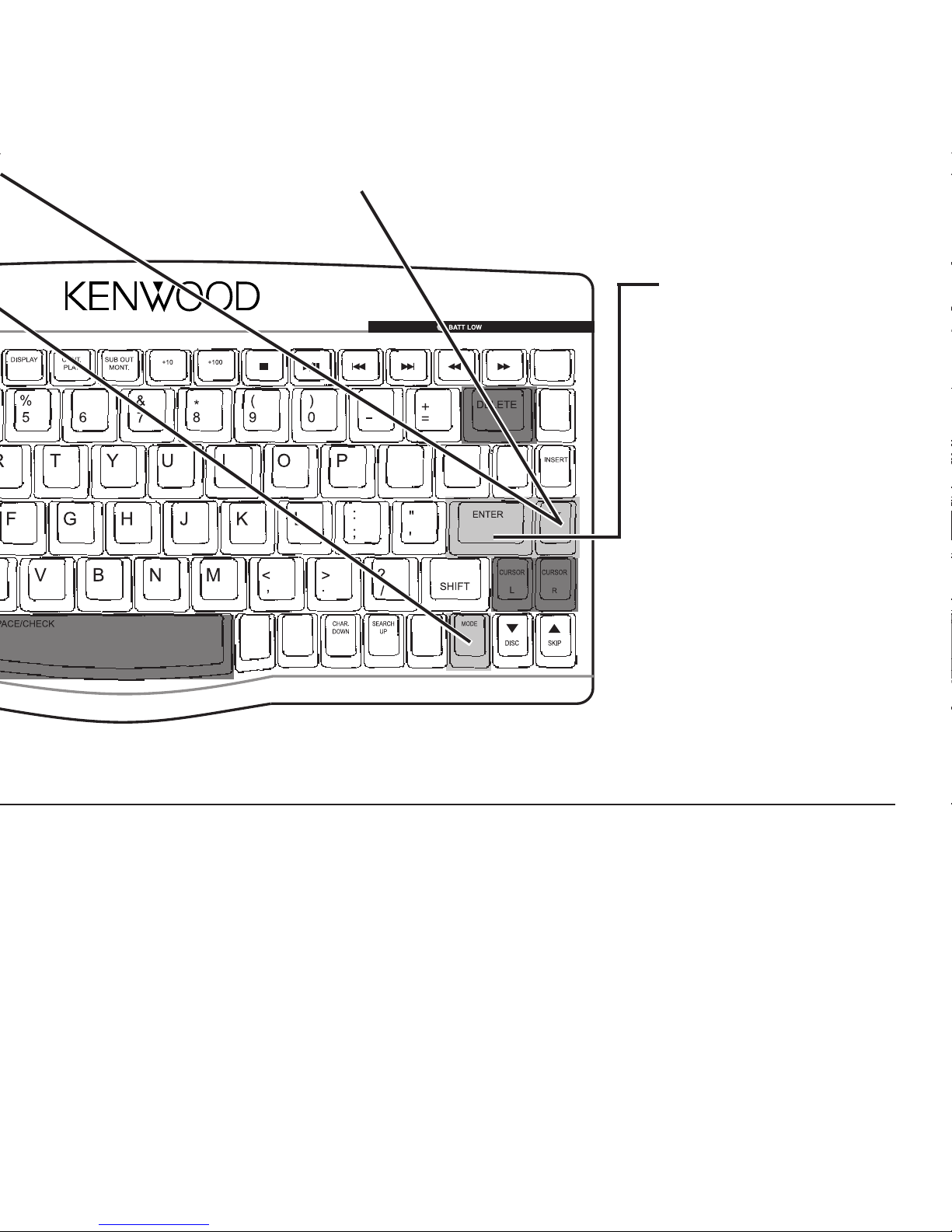

5: After you have typed-in the

entire title, press the ENTER

key. The display reads:

TITLE STORE!!

6: The display then switches to

show the disc number, and

the first track number flashes:

DXXX T01

7. Repeat steps 3 - 5 to enter a

title for the disc’s first track.

8. Repeat steps 3 - 5 for each

track title you want to enter.

3: Press the SET key again. The display

will stop flashing and will change

to the alphanumeric character dis-

play: ð <=ZABC

SPACE/CHECK key to

aces.

make a mistake, use

SOR L and CURSOR R

highlight the incor-

racter, then use the

ey to erase it.

• Additional symbols not

found on the keyboard can

be accessed by selecting the

number/symbol mode, and

then using the CHAR. SEARCH

UP/DOWN keys to scroll-

through the available sym-

bols.

4: Use the keyboard to type the disc name. Wait until you

see the alphanumeric character list on the changer’s dis-

play before typing. Typing too soon can cause undesired

operation of the changer.

For more information about typing, see the notes at the

bottom of the page.

CD-3280M, CD-3260M, CD-324M:

• You can also use the CHAR CAPITAL,

CHAR SMALL and CHAR SYMBOLS keys to

shift between capital letters, lower-

case letters and numbers/symbols.

CD-2280M, CD-2260M, CD-224M:

• To store a number as part of a title,

press the SET key after typing the num-

ber.

• You cannot access yellow-colored sec-

ondary symbols.

• Since the keyboard must transmit a

series of commands each time you

press a key, it may seem to respond a

bit more slowly than a typical wired

computer keyboard.

Discs with CD Text

Some record companies encode

CD Text information (titles, artists,

musical genre, etc.) onto their

CDs. Your Kenwood changer will

read this CD Text information and

it will overwrite any title or musi-

cal genre information that you

input into the changer.

Repetitive Stress Injury

Continuous use of a keyboard may cause Repetitive Stress injuries or related injuries. If you

feel any aching, numbing or tingling in your arms, wrists or hands, consult a qualified health

professional. To reduce your risk of repetitive stress injury:

• Take frequent breaks from typing

• Maintain a straight wrist position

• Avoid resting on your wrists while typing

• Use a light touch on the keys

• Maintain good health habits

Some studies suggest that long periods of repetitive motion coupled with an improper work

environment and incorrect work habits may be linked to certain types of physical discomfort

or injury. These include Carpal Tunnel Syndrome (CTS), Tendonitis, and Tenosynovitis. To help

avoid these conditions, follow the instructions above. These instructions may not only help

minimize your chances of experiencing one of these conditions, but will also help you work

more comfortably and effectively. It is very important that your chair, work surface, and key-

board are in the proper position.
