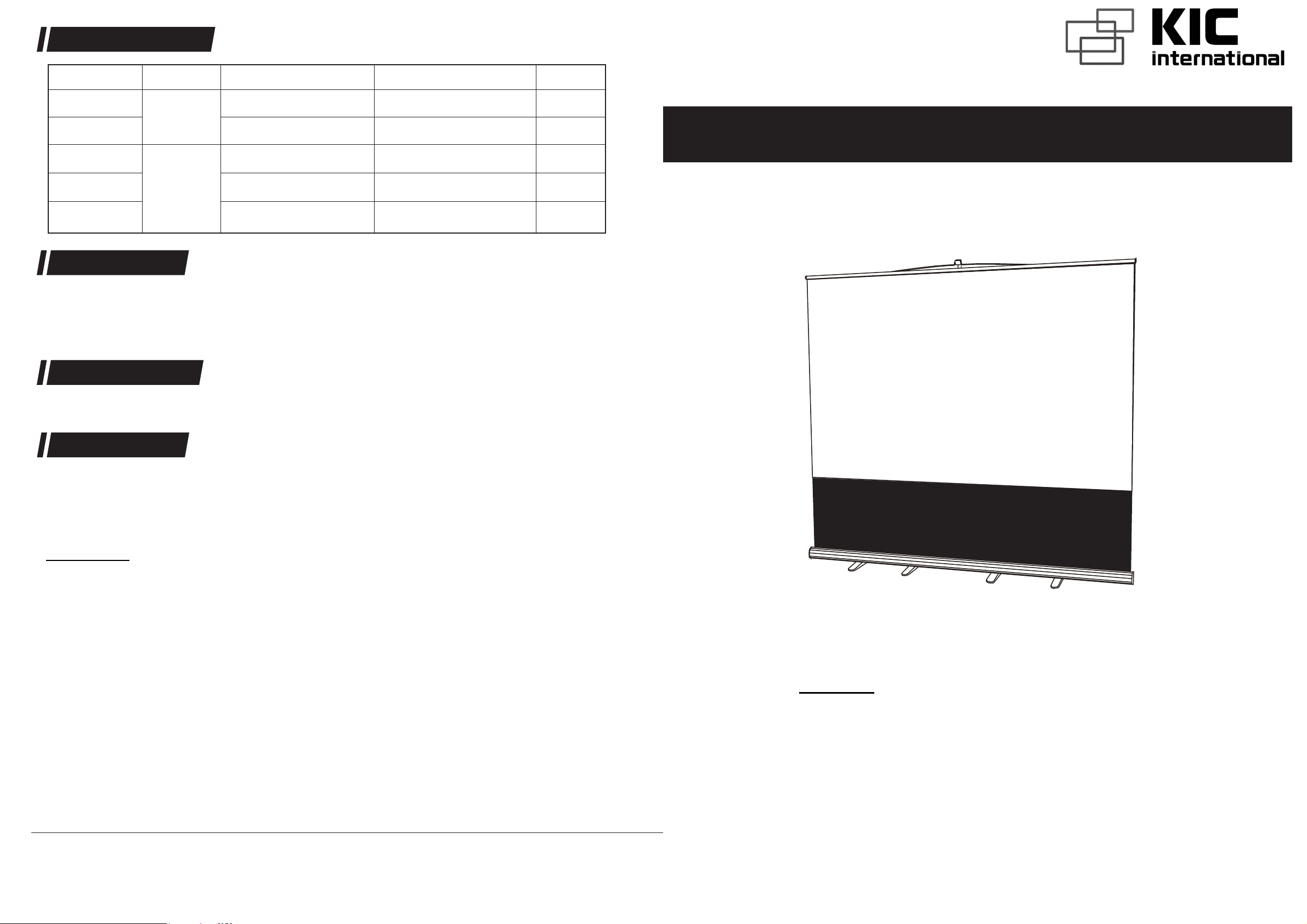

KIC CBMR-WX80 Istruzioni per il montaggio
Keep this document
VMR-WX80
VMR-WX100
VMR-WX120
for CBMR / VMR screen
KIC International Inc.
6600 Kennedy Blvd. East, 11E, West New York, NJ 07093
E-mail: [email protected] URL: http://www.kicint-inc.com
CBMR-WX80
CBMR-WX100
Model No. Aspect Ratio Image Area (W x H)
67.8"x 43.7" (1,723x1,110mm)
84.8"x 53" (2,154x1,346mm)
67.7"x 42.5" (1,720x1,080mm)
84.6"x 53.1" (2,150x1,350mm)
101.5"x 63.6"(2,580x1,625mm)
Product size in storage (WxHxD)
70.2" x 3.78" x 5.12"
(1,783 x 96 x 130mm)
87.2" x 3.78" x 5.12"
(2,215 x 96 x 130mm)
72.4" x 3.78" x 5.12"
(1,840 x 96 x 130mm)
89.4" x 3.78" x 5.12"
(2,270 x 96 x 130mm)
106.3" x 3.78" x 5.12"
(2,700 x 96 x 130mm)
Wgt.
16:10
16:10
14.3lb (6.5kg)
17.4lb (7.9kg)
12.6lb (5.7kg)
15.7lb (7.1kg)
18.3lb (8.3kg)
Product Specification
Maintenance
Stains, dusts on screen surface shall be gently cleaned by swiping with soft and damped cloth, then take moist out by dried
cloth. You may apply diluted neutral cleanser with soft cloth for heavy stain, and completely clean out the cleanser with damped
cloth by pure water.
Applying any oil-based liquid such as benzine or thinner, or touching with hard material such as metal substances
may cause damage on screen surface. Keep away from those materials.
Please keep this document along with the product always for assistance.
This product has 6-month limited warranty from the date of purchase.
For your safety
User Operation Manual
Thank you for your purchase of this product. Please read through this document before use the product
for safety and efficient operation. Please keep this document always with the product for reference
anytime while using and storing.
You must use this product according to this document and always pay attention to safety.
Please read through this document before use of the product.
Any improper use/operations/storages caused by not following this document will not only be covered by the product
warranty, but also any physical injuries to persons and any damages on this product and/or any other associated damages
on properties and assets will not be compensated.
WARNING !
Do not place/install the product by any heat sources.
Placing/installing/using the product near heating systems may cause fire and/or damages on screen film quality.
Keep away from heaters.
Do not place/install the product unstably.
Placing/installing/using the product on not flat nor even/level floor may cause falling the product and cause of injuries that
is out of the product liability and out of warranty condition.
Do not disassemble/break apart/reverse engineer the product.
Any unauthorized those actions may cause defectives and/or malfunctions, which will not be warranted.
Use the product only for the purpose of picturing projector image for viewing.
This product is a screen to picture a projector image. Any defects or damages including harms/injuries to person caused
by any usage other than what the product is for as indicated above will not be warranted.
Do not release the pole lock lever without holding by your hand. Make sure the lever
is locked before your hand is released.
Do not lean on the product. Do not eat/bite the product.
CAUTION:
Do not install the product under/near wind conditions,
including natural wind, air conditioners and ventilation.
Please install the product in enough space without any
contacts by surrounding obstacles.
Keep away from children.
a.
b.
警告
b.
a.

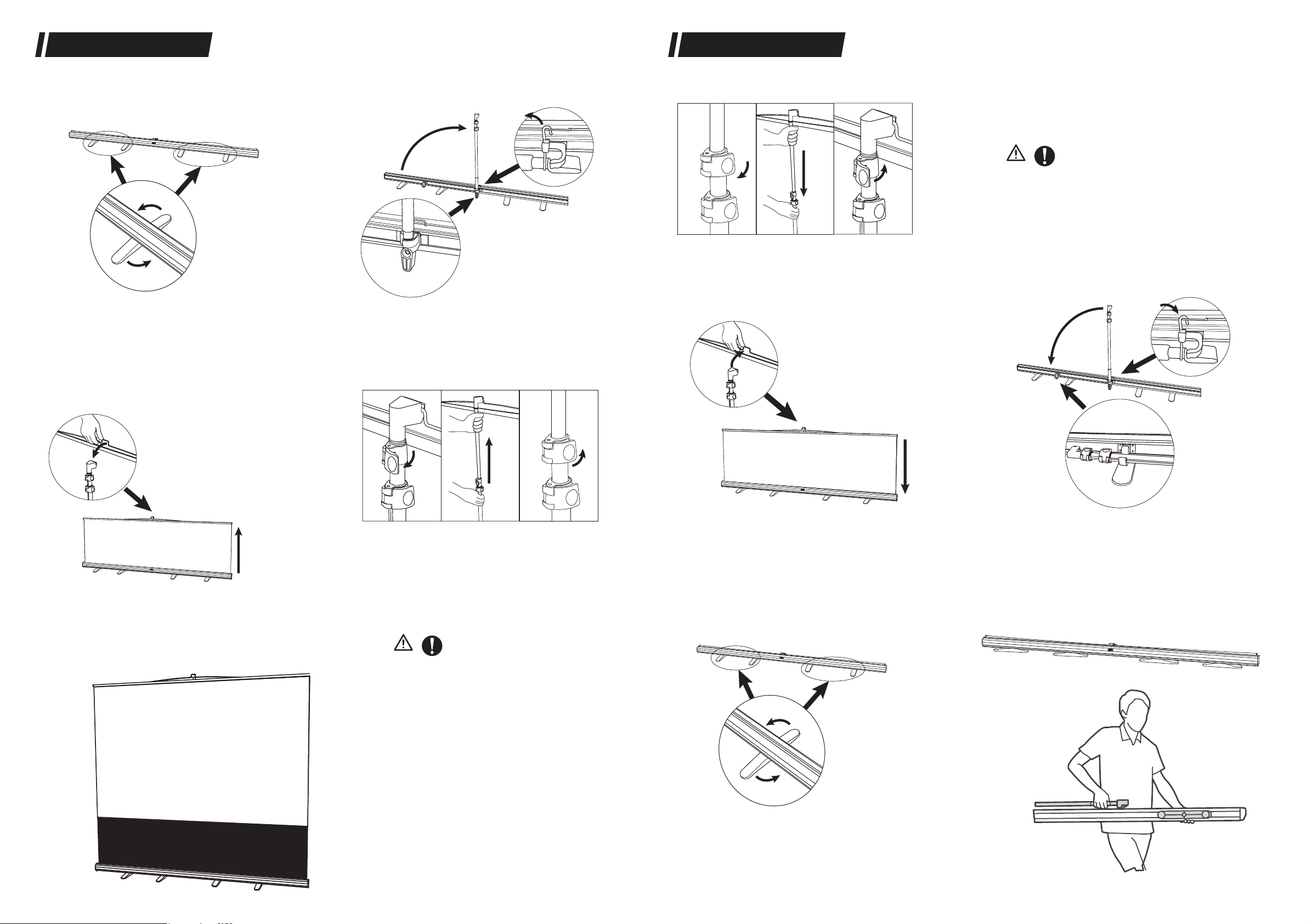

Instruction for assembly Instruction for storage
1) Turn around the bottom legs as picture below
(2 legs for 80", 4 legs for 100").
2) a. Off the hook, and
b. Raise the screen hanging pole
Make sure the raised pole is
securely locked to prevent falling.
3) Lift up the screen gently from the screen case
by holding the screen hanger and hitch to the
edge hook of the raised pole.
4) Extend the screen pole to your desired position.
a. Release the upper lock lever to extend the upper pole
b. Fasten the lever when the pole extends to the limit.
c. Likewise extend the lower pole.
When the screen height needs to be lowered, adjust
the extension of the lower pole.
Attention:
When you lift the screen, securely hold the lock lever with one
hand while pulling up the pole with the other hand.
Do not release the hand holding the pole until you lock the lever
to fix the extension.
Failure to this instruction may cause falling the screen with
physical injury and/or damage to the product.
5) Assembly completed !
1) Put back the extended poles.
a. Release the lower lock lever to put the middle pole
into the bottom pole.
b. When the pole is completely put in, lock the lever.
c. Likewise put back the upper pole into the middle
pole.
警告
Attention:
When you fold the screen, securely hold the lock lever with one
hand while pulling down the pole with the other hand.
Do not release the hand holding the pole until you lock the lever
after folding the pole.
Failure to this instruction may cause falling the screen with
physical injury and/or damage to the product.
2) Unhook the screen hanger to completely
roll the screen back into the case.
3) a. Lay down the pole , and
b. hook the pole to lock.
! Make sure the laid pole is securely locked
by the pole holder !
4)Turn back the bottom legs to the
parallel position of the screen case. 5) Storage completed !
Use both hands to carry the screen
by holding the screen pole and the
screen case
