INSTRUCTION MANUAL

Product images may vary slightly from actual product.

56” ICON CEILING FAN

Model #300395

READ AND SAVE THESE INSTRUCTIONS

KICHLER.COM

Net Weight: 8.63 kg (19.02 lb)

Gross weight: 10.45 kg (23.04 lb)

56” ICON | 3

SAFETY RULES

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

MOUNTING OPTIONS

HANGING THE FAN

INSTALLATION OF SAFETY SUPPORT

(CANADA ONLY)

ELECTRICAL CONNECTIONS

FINISHING THE INSTALLATION

ATTACHING THE FAN BLADE ARMS

ATTACHING THE FAN BLADES

INSTALLING THE LIGHT KIT FIXTURE

INSTALLING GLASS SHADE

CONTROL SYSTEM SET-UP

BUTTON INSTRUCTIONS

INSTALLING WALL PLATE

INSTALLING THE TRANSMITTER

OPERATING INSTRUCTIONS

TROUBLESHOOTING

FCC INFORMATION

TABLE OF CONTENTS

Read all instructions BEFORE assembly and USE of product

KEEP INSTRUCTIONS FOR FUTURE USE

| KICHLER.COM

SAFETY RULES

WARNING: FOR CANADA, THIS FAN MUST BE SECURED

DIRECTLY TO THE BUILDING STRUCTURE/CEILING

JOIST. DON’T SECURE THIS FAN TO AN OUTLET BOX.

1. CAUTION - RISK OF SHOCK -

Disconnect power at the main circuit breaker panel

or main fusebox before starting and during the

installation.

2. WARNING: This fixture is intended for installation in

accordance with the National Electrical Code (NEC) and

all local code specifications. If you are not familiar with

code requirements, installation by a certified electrician

is recommended.

3. WARNING: To reduce the risk of fire, electric shock, only

use the control provided with fan.

4. WARNING: To reduce the risk of fire, electric shock,

or Personal Injury mount to an outlet box marked

“Acceptable For Fan Support of up to 15.9 kg (35 lb)”.

For outlet box mounting, use mounting screws (and

lock washers) provided with the outlet box. Most outlet

boxes commonly used for the support of light fixtures

are not acceptable for fan support and may need to

be replaced. Due to the complexity of the installation

of this fan, a qualified licensed electrician is strongly

recommended.”

5. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70 and local electrical codes.

Electrical installation should be performed by a qualified

licensed electrician.

6. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of

15.9 kg (35 lb). Use only CUL Listed outlet boxes marked

“FOR FAN SUPPORT”.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN TO OUTLET

BOX MARKED “ACCEPTABLE FOR FAN SUPPORT”.

7. CAUTION: The fan must be mounted with a minimum

of 2.1m (7 feet) clearance from the trailing edge of the

blades to the floor.

8. To operate the reverse function on this fan, press the

reverse button while the fan is running.

9. Avoid placing objects in the path of the blades.

10. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the

fan.

11. WARNING: Make sure the power is disconnected before

cleaning the fan.

READ AND SAVE THESE INSTRUCTIONS

56” ICON | 5

12. Do not use water or detergents when cleaning the fan

or fan blades. A dry dust cloth or lightly dampened

cloth will be suitable for most cleaning.

13. After making the electrical connections, spliced

conductors should be turned upward and pushed

carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the

outlet box and the ungrounded conductor on the

other side of the outlet box.

14. Electrical diagrams are reference only. Light Kits

that are not packed with the fan must be cULus listed

and marked suitable for use with the model fan you

are installing. Switches must be cULus General Use

Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

15. All set screws must be checked, and re-tightened

where necessary, before installation.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO REFERRED

TO AS BLADE ARMS) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH

OF BLADES.

16. WARNING: Chemical Burn Hazard. Keep batteries

away from children.; and

This product contains a lithium button/coin cell

battery. If a new or used lithium button/coin cell

battery is swallowed or enters the body, it can cause

severe internal burns and can lead to death in as little

as 2 hours. Always completely secure the battery

compartment. If the battery compartment does

not close securely, stop using the product, remove

the batteries, and keep it away from children. If you

think batteries might have been swallowed or placed

inside any part of the body, seek immediate medical

attention.

a) The cells shall be disposed of properly, including

keeping them away from children; and

b) Even used cells may cause injury.

SAFETY RULES (continued)

| KICHLER.COM

TOOLS REQUIRED PACKAGE CONTENTS

• Philips screw driver

• Blade screw driver

• 11mm wrench

• Step ladder

• Wire cutters

Unpack your fan and check the contents.

You should have the following items:

a. Fan blades (5)

b. Canopy

c. Ball/Downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Blade arms (5)

g. Light kit assembly

h. Glass shade assembly

i. Receiver

j. Wall transmitter

k. Parts bag contents:

1) Mounting hardware:

Star washers (2), wire nuts (3),

machine screws (2), washers (2),

wood screws (2)

2) Blade attachment hardware:

blade screws (16), blade arm

screws (11), fiber washers (16)

3) Safety cable hardware:

wood screw, lock washer, flat

washer

4) Balancing kit

56” ICON | 7

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting plate

Outlet box

ANGLED CEILING

MAXIMUM 20°

ANGLE

MOUNTING OPTIONS

If there isn’t an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and its

support must be able to fully support the full weight of the fan (up

to 15.9 kg (35 lb)). Do not use plastic outlet boxes.

Figures 1, 2, and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A minimum

clearance of 12” is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist Hanger”

for the support of the outlet box. Make sure the joist hanger you

purchase has been designed for use with ceiling fans. (Fig. 4)

Fig. 2

Fig. 1

Fig. 3

Fig. 4

| KICHLER.COM

HANGING THE FAN

NOTE: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY

TO THE BUILDING STRUCTURE/CEILING JOIST. DON’T SECURE

THIS FAN TO AN OUTLET BOX. (see Fig. 6A)

REMEMBER to turn o the power before you begin.

To properly install your ceiling fan, follow the steps below.

Step 1. Remove the decorative canopy bottom cover from the

canopy by turning the cover counterclockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by

removing (and save) one of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box

through the center of the ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to the outlet box using

the screws and washers included with the outlet box. (Fig. 6)

Step 4A. Secure the mounting bracket directly to a joist from the

building structure. Use only the appropriate wood screws and lock

washers included with your fan. (Fig. 7)

NOTE: THIS STEP IS ONLY FOR CANADA.

CAUTION: The hanger bracket must be installed directly to the

building joist using the two wood screws and washers provided.

(Fig. 7)

Fig. 6

Fig. 5

Fig. 7

Ceiling

mounting

bracket

Canopy

Canopy cover

120V Wires

Ceiling

hanger

bracket

Mounting screws

(supplied with electrical box)

UL Listed

electrical box

Washers

120V Wires

Hanger bracket

Ceiling joist

#10 Wood screws

Lock washers

56” ICON | 9

Step 5. Remove the hanger ball from the downrod assembly by

loosening the set screw, unscrewing and removing the cross pin and

unscrewing the ball o the rod. (Fig. 8)

Step 6. Loosen the two set screws and remove the hitch pin and

retaining clip from the coupling on top of the motor assembly. (Fig. 9)

Step 7. Carefully feed the electrical lead wires from the fan up

through the downrod. Thread the downrod into the coupling until the

hitch pin holes align.

Next, replace the hitch pin and retaining clip. Tighten both set screws.

(Fig. 9)

Fig. 8

Fig. 9

HANGING THE FAN (continued)

Cross pin

Hanger ball

Downrod

Supply wire &

Safety cable

Downrod

Retaining

clip

Hitch pin

Set screws

Coupling

Set screws

| KICHLER.COM

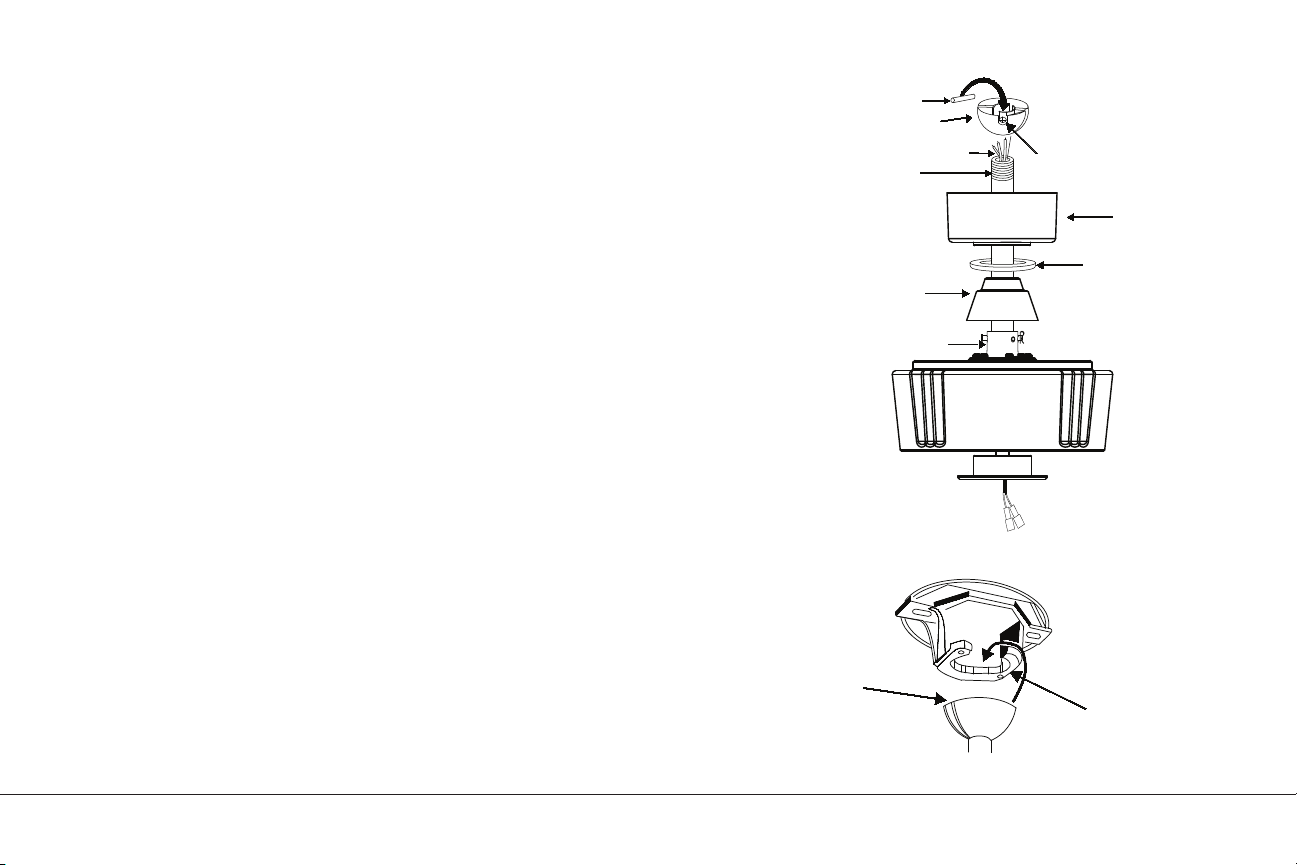

Step 8. Slip the coupling cover, canopy cover and canopy onto the

downrod. (Fig. 10)

Thread the hanger ball onto the downrod, insert the cross pin

through the downrod and tighten. Tighten the set screw.

Step 9. Lift the motor assembly into position and place the

hanger ball into the ceiling mounting bracket.

Rotate the entire assembly until the “Check Tab” has dropped into

the “Registration Slot” and seats firmly. (Fig. 11)

The entire motor assembly should not rotate (left or right) when

seated properly.

WARNING: Failure to reattach the cross pin and seat the

“Check Tab” can cause the fan to fall from the ceiling during

operation. Take special care to make sure this pin is reattached.

HANGING THE FAN (continued)

Registration

slot

Check

tab

Cross pin

Hanger ball

Set screw

Downrod

Coupling

Canopy

Canopy cover

Coupling cover

Supply wires & Safety cable

Fig. 10

Fig. 11

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Kichler Lighting Fan

Kichler Lighting

Kichler Lighting VASSAR Manuale utente

Kichler Lighting

Kichler Lighting Spyn Lite Manuale utente

Kichler Lighting

Kichler Lighting Select Sutter Place Manuale utente

Kichler Lighting

Kichler Lighting Terna 300215 Manuale utente

Kichler Lighting

Kichler Lighting Riggs 300143 Manuale utente

Kichler Lighting

Kichler Lighting Canfield Manuale utente

Kichler Lighting

Kichler Lighting Lucian II 330241 Manuale utente

Kichler Lighting

Kichler Lighting Lehr II Manuale utente

Kichler Lighting

Kichler Lighting 35153 Manuale

Kichler Lighting

Kichler Lighting Maor 310136 Manuale utente

Kichler Lighting

Kichler Lighting Arkwright Manuale utente

Kichler Lighting

Kichler Lighting FRYST Manuale utente

Kichler Lighting

Kichler Lighting 52 inch Colerne LED Manuale utente

Kichler Lighting

Kichler Lighting Olympia Manuale utente

Kichler Lighting

Kichler Lighting Basics 404 Manuale utente

Kichler Lighting

Kichler Lighting BASICS PRO SELECT 330017MWH Manuale utente

Kichler Lighting

Kichler Lighting Lehr Decor 80" Manuale utente

Kichler Lighting

Kichler Lighting Decor InnesII 300130 Manuale utente

Kichler Lighting

Kichler Lighting 35166 Manuale utente

Kichler Lighting

Kichler Lighting Seaside Manuale utente

Kichler Lighting

Kichler Lighting Deckard Manuale utente

Kichler Lighting

Kichler Lighting 65" GENTRY Manuale utente

Kichler Lighting

Kichler Lighting Celino Manuale utente

Kichler Lighting

Kichler Lighting Select Dorset Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
