TOOL TROLLEY K7367

7 Drawer

680mm

OPERATION MANUAL

PARTS LIST

INCLUDED:

IMPORTANT:

MEASUREMENTS:

SMALL DRAWER:

MIDDLE DRAWER:

LARGE DRAWER:

DEEP DRAWER:

WEIGHT: 60 KG

This operating manual contains important safety information,

read carefully & understand all information before operating

the trolley. Save this manual for future use.

WIDTH 679mm DEPTH 461 mm HEIGHT 959 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 60 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 78 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 106 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 163mm

People

TOOLS & ASSISTANCE

REQUIRED FOR TROLLEY: 12mm Spanner

For Castors:

Non-Locking

Castors (2)

Locking

Castors (2)

12mm x 16 Bolts

for Castors 7 x Liners

Keys x 2

BENCH RATING: 75KG

DRAWER RATING: 25KG (PER DRAWER)

CASTOR RATING: 600KG (4 PIECES)

Removing the Drawers

• Fully extend the empty drawer.

• Push up the right release lever while

pushing down the left release lever.

• Pull the drawer outward until it is

released from the drawer slide.

Re-Inserting The Drawers

• Extend the drawer slides.

• Insert the brackets on each side of the

drawer into the slots on the slides, being

careful that they are properly positioned.

• Once properly inserted, completely close

the drawer to set the slides in their

proper positions.

• Periodically tighten all hardware

• Periodically lubricate castors

• Lubricate the slides twice a year

• Lubricate the lock with graphite annually

• Use a damp Microﬁbre cloth to clean all surfaces

• Use stainless steel cleaner, to clean stainless

steel surfaces

Push up the

right release lever

Pull down the

left release lever

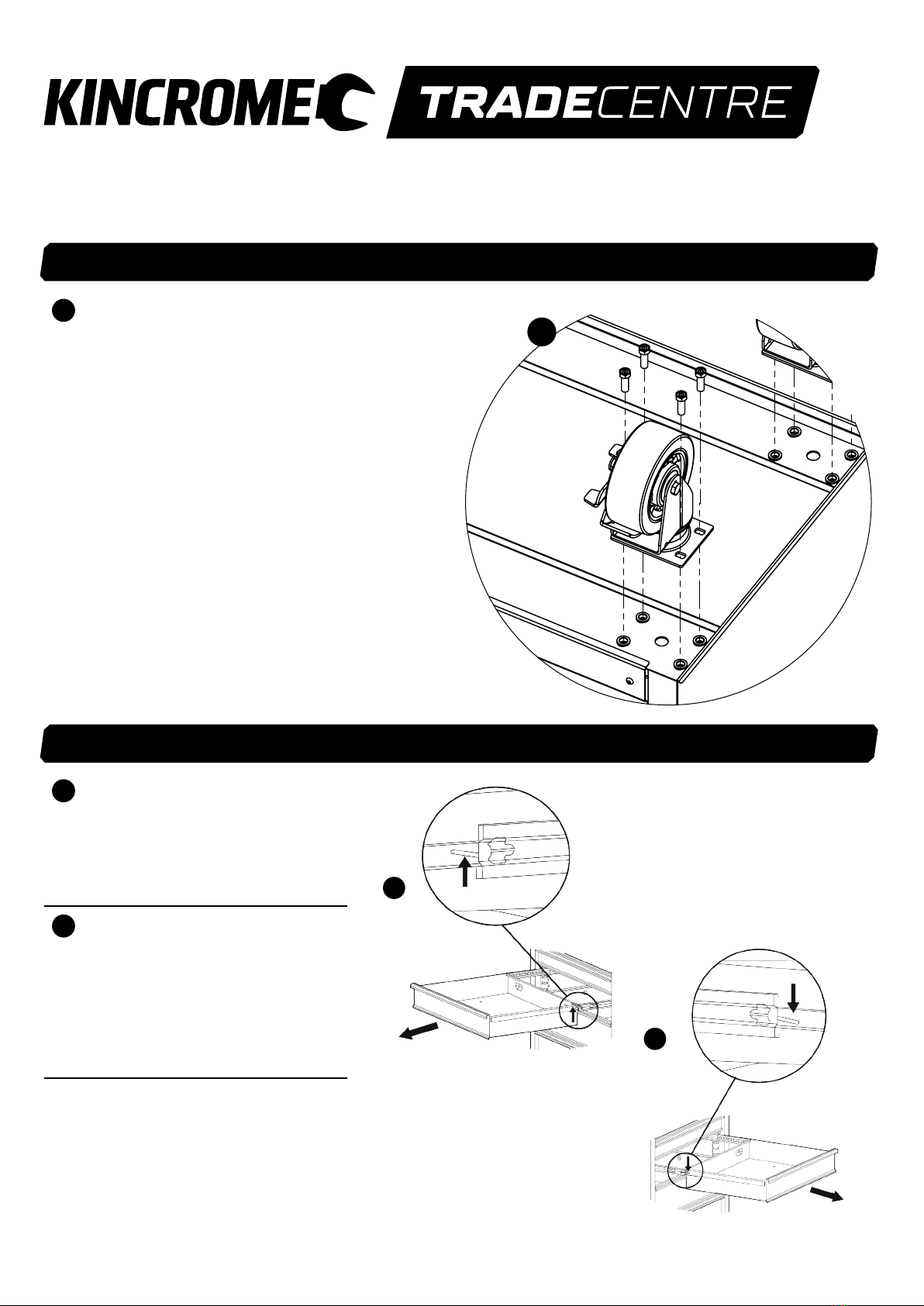

Castor Installing (If applicable)

• Be sure the drawers are locked and lay

the trolley upside down.

• Secure castors to the unit using the

12mm bolts provided.

• Tighten with a 12mm Spanner.

• Repeat this process for the castors on

the opposite of the trolley.

• Return the trolley to its upright position.

Caution: Do not over tighten the bolts.

Caution: Both locking castors must be

ﬁtted to front of trolley.

TOOL TROLLEY K7367

7 Drawer

680mm

ASSEMBLY INSTRUCTIONS

MAINTENANCE

数量

QTY

名称

Designation

TOOL TROLLEY K7367

7 Drawer

680mm

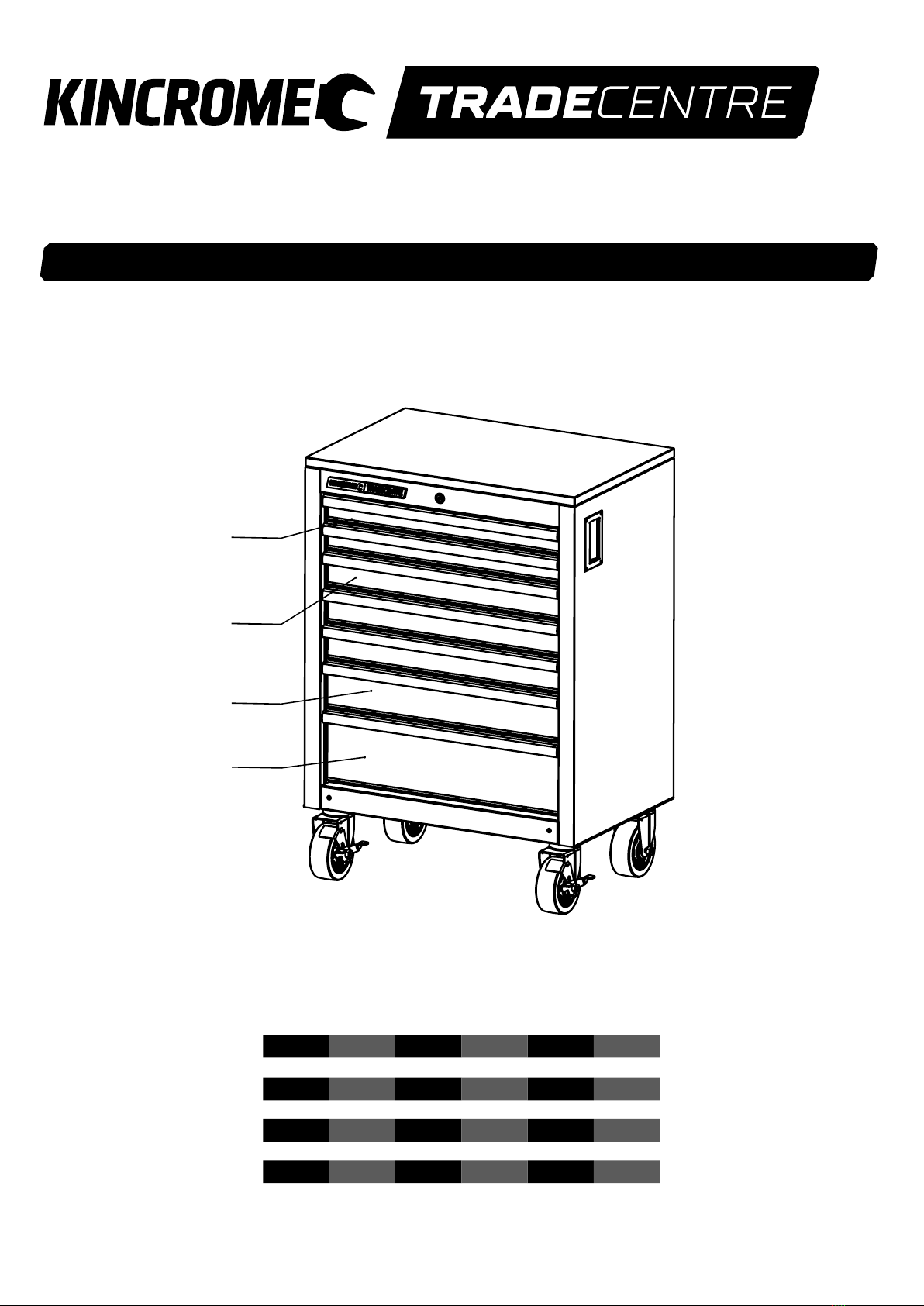

TECHNICAL SPECIFICATIONS

SMALL DRAWER:

MIDDLE DRAWER:

LARGE DRAWER:

DEEP DRAWER:

WIDTH 590mm DEPTH 416 mm HEIGHT 60 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 78 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 106 mm

WIDTH 590mm DEPTH 416 mm HEIGHT 163mm

Small Drawer

Middle Drawer

Large Drawer

Deep Drawer

National Head Office

National Distribution and Showroom

3 Lakeview Dve, Caribbean Business Park

Scoresby Victoria 3179 Australia

E enquiries@kincrome.com.au

W kincrome.com.au

Administration

T(03) 9730 7100 F(03) 9730 7199

ABN 41 007 185 006

Customer Service Centre

T1300 657 528 F1300 556 005

National Head Office

National Distribution and Showroom

3 Lakeview Dve, Caribbean Business Park

Scoresby Victoria 3179 Australia

E [email protected]

W kincrome.com.au

Administration

T(03) 9730 7100 F(03) 9730 7199

ABN 41 007 185 006

Customer Service Centre

T1300 657 528 F1300 556 005

TOOL TROLLEY K7367

7 Drawer

680mm

PARTS LIST

SPARE PARTS

Made to Kincrome Tools & Equipment Pty Ltd global

specifications and quality standards in China

Australia & Global

www.kincrome.com.au

enquiries@kincrome.com.au

ITEM PART NO. DESCRIPTION QUANTITY
