Kingston Technology KNS1600/R Manuale utente
KINGSTON TECHNOLOGY
FAST ETHERX10/100BASE-TX
19” RACK-MOUNTABLE
FAST ETHERNET SWITCH
USER’S GUIDE
MODEL(S): KNS800/R
KNS1600/R
KNS1600/R User’s Guide - Rev. B00 Kingston Technology Company
Kingston Technology’s
Fast EtheRx 8-Port
10/100BASE-TX 19” Rack-Mountable
Fast Ethernet Switch
User’s Guide
Part No. 4460072-001.B00
Kingston Technology Company
17600 Newhope
Fountain Valley, CA 92708
(714) 435-2600
http://www.kingston.com
Kingston Technology Company Fast EtheRx KNS1600/R - Rev. B00
Important Safety Instructions
1. Read all these instructions.
2. Save these instructions for later use.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. This product should be operated from the type of power
source indicated on the marking label. If you are not sure of
the type of power available, consult your dealer or local
power company.
6. Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage
points or other risk. Refer all servicing to service personnel.
Wichtige Sicherheitshinweise
1. Diese Hinweise sollten vollständig durchgelesen werden.
2. Diese Hinweise für einen späteren Gebrauch aufbewahren.
3. Allen auf dem Gerät angebrachten Warnungen und
Hinweisen folgen.
4. Das Gerät nicht in der Nähe von Wasser verwenden.
5. Das Gerät nur mit dem Aufkleber bezeichneten
Netzspannung betreiben. Bei Fragen über die Art der
Netzspannung sollte der Händler oder das
Energieversorgungsunternehmen zu rate gezogen werden.
RJ Nicht versuchen das Produkt selbst zu reparieren. In allen
Produkten existieren gefährliche elektrische Spannugen.
Nicht das Gehäuse öffnen.
i
KNS1600/R User’s Guide - Rev. B00 Kingston Technology Company
Table Of Contents
Introduction...........................................................................1
Model Types .............................................................2
Special Features.......................................................3
Package Contents.....................................................3
Compliance Standards.........................................................4
Design Features...................................................................4
Switching Function....................................................4
Auto-Negotiation.......................................................4
Full-Duplex................................................................4
Store-and-Forward Switching...................................4
Flow Control..............................................................4
Hardware Installation............................................................5
Front Panel ...............................................................5
Power LED...................................................5
100BASE-TX (100TX) LED .........................5
LINK/RX LED (for both 10 and 100Mbps)...5
TX LED (Model KNS800/R Only).................6
Full Duplex and Collision LED.....................6
UTP Ports ....................................................6
ii
Kingston Technology Company KNS1600/R User’s Guide - Rev. B00
Rear Panel................................................................8
Power Switch...............................................8
AC Power Connector...................................8
Fuse.............................................................8
Fan Units.....................................................8
Appendices ..........................................................................9
Appendix A Pin Assignments..............................10
Appendix B Cabling Guidelines...........................11
UTP Cable Wiring Standards....................12
UTP Cable Rating Codes..........................13
Appendix C Specifications...................................14
Appendix D Frequently Asked Questions ...........16
Appendix E Mounting Templates ........................18
Rubber Feet for Desktops .........................18
Brackets for Rack Mounting......................18
Appendix F Product Warranties and Notices......19
Limited Warranty Statement......................19
Duration of Warranty .................................19
Free Technical Support.............................20
Disclaimers................................................20
F.C.C. Certification....................................21
CE Notice ..................................................21
Introduction 1
KNS1600/R User’s Guide - Rev. B00 Kingston Technology Company
Introduction
Intended Audience: This manual assumes that the user has a general working
knowledge of networking principles and architecture and is familiar with
network systems in general.
Congratulations on the purchase of your new Kingston Fast EtheRx
10/100BASE-TX 19” Rack-Mountable Fast Ethernet Switch. There are two
models: the KNS800/R and the KNS1600/R, 8-port and 16-ports respectively.
The Fast EtheRx Switch is a high-performance 10/100BASE-TX switch ideal
for the small-to-medium businesses. The Fast EtheRx Switch has eight (8) or
sixteen (16) UTP ports that auto-negotiate speed detection for 10/100BASE-TX
and half-duplex / full-duplex mode operation. It is basically designed to allow
Standard 10BASE-T Ethernet networks to communicate with 100BASE-TX
Fast Ethernet networks and to segment both 10Mbps and 100Mbps networks.
The Fast EtheRx Switch complies with IEEE802.3u 100BASE-TX, IEEE802.3i
10BASE-T, and IEEE802.3 CSMA/CD Ethernet Standards.
The Fast EtheRx Switch may be used in both standard desktop and 19” rack-
mount installations (using the mounting brackets provided with the unit) and
requires no hardware or software configuration.
The last port on the Fast EtheRx Switch has two RJ-45 connectors to support
UTP cabling in the straight through and/or crossover wiring configurations.
For easy recognition of network status and troubleshooting, the front panel
includes a variety of diagnostic LEDs including Power, 100TX Speed
Detection, Link, Receive, Transmit, Collision, and Full-Duplex status.
For the remainder of this manual, the KNS800/R and KNS1600/R will be
referred to collectively as the Fast EtheRx Switch.
2 Model Types
Kingston Technology Company KNS1600/R User’s Guide - Rev. B00

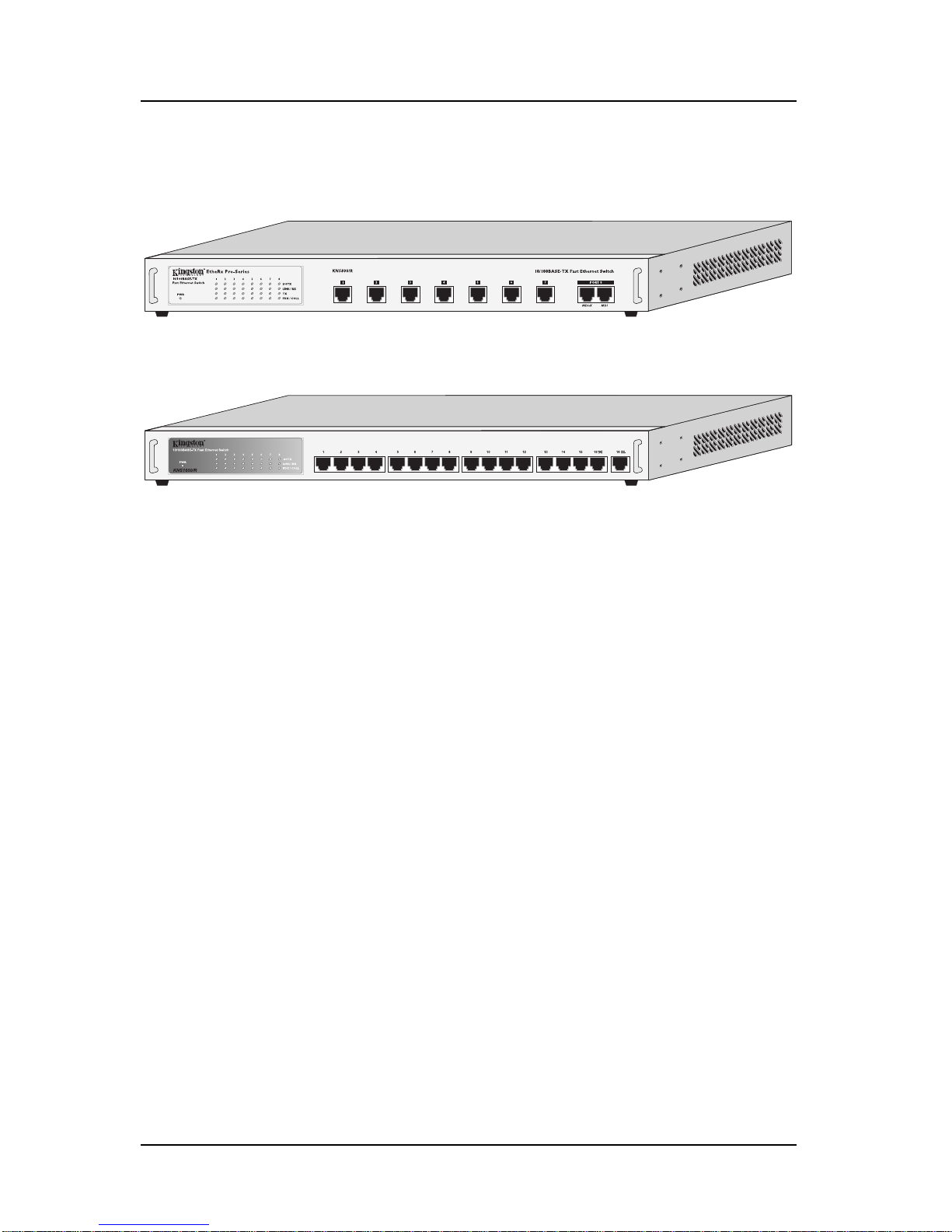

Model Types
Model KNS800/R
Model KNS1600/R
Special Features 3
KNS1600/R User’s Guide - Rev. B00 Kingston Technology Company
Special Features
•Provides automatic switching function between 10Mbps and 100Mbps
•Auto-Negotiation for 10/100Mbps selection
•Auto-Negotiation for half-duplex and full-duplex mode operation
•Uses Store and Forward switching approach to minimize re-
transmission of faulty packets
•Filtering/Forwarding rate of 148,800 packets/second at 100Mbps
•Filtering/Forwarding rate of 14,880 packets/second at 10Mbps
•Supports collision-based flow control
•Link, Receive, Transmit, and Full Duplex LEDs for troubleshooting
•Power LED and Collision LED for collision detection
•Last UTP port supports crossover or straight-through cabling
•Conforms to IEEE 802.3u 100BASE-TX, IEEE 802.3i 10BASE-T, and
IEEE 802.3 CSMA/CD Ethernet Standards
•Internal auto-sensing universal power supply operating at 100-240VAC
(50/60Hz)
Package Contents
Your Fast EtheRx package should contain the following items:
‰KNS800/R or KNS1600/R Fast EtheRx Switch
‰AC power cord
‰Mounting kit includes:
(2) Angle brackets
(8) Bracket screws
(4) 10/32” Rack-Mount thumb screws
(4) Rubber feet
‰User's Guide
If any of the above items are missing or damaged, please contact your Kingston
dealer for a replacement. Be sure the items you receive are genuine Kingston
Technology products. If the Kingston name and logo are not on the front panel
of your unit, it is not a genuine Kingston product.
4 Design Features
Kingston Technology Company KNS1600/R User’s Guide - Rev. B00
Compliance Standards
The Fast EtheRx Switch complies with the 10/100Mbps functions as defined by
IEEE802.3u 100BASE-TX, IEEE802.3i 10BASE-T, and IEEE802.3 CSMA/CD
Ethernet standards.
Design Features
Switching Function
The Fast EtheRx Switch is basically designed to bridge Standard 10BASE-T
Ethernet networks to 100BASE-TX Fast Ethernet networks and to segment 10Mbps
or 100Mbps network segments.
Auto-Negotiation
Auto-Negotiation provides the means of automatically establishing a link by
detecting the link capabilities of the connected device on the network to select the
best operational mode available (i.e. 10/100BASE-TX selection, half- / full-duplex
mode operation, etc.)
Full-Duplex
Full-Duplex transmission means that dedicated inbound and outbound channels are
established for bi-directional transmission of data. This allows the collision
detection mechanism (CSMA/CD) to be by-passed, thus decreasing transmission
delay normally caused by listening, collisions, and packet resends when operating in
half-duplex mode.
Store-and-Forward Switching
The Fast EtheRx Switch uses a packet-forwarding method called Store-and-
Forward, which minimizes the re-transmission of faulty data packets. This means
that the Fast EtheRx Switch can store the incoming frame in an internal buffer and
check the packet for errors before sending it out to the destination port. If the frame
does contain errors, it will be discarded and then retransmitted.
Flow Control
The Fast EtheRx Switch implements a collision-based flow control mechanism that
reduces the risk of data being lost at the congested ports. This is accomplished by
forcing a collision with the data frames on all ports once the free-buffer queue has
reached the pre-set minimum.
Hardware Installation 5
KNS1600/R User’s Guide - Rev. B00 Kingston Technology Company
Hardware Installation
Before you begin installing network cables, please take a few moments to
familiarize yourself with Fast EtheRx Switch. The functions on the front and
rear panels are illustrated in the following sections.

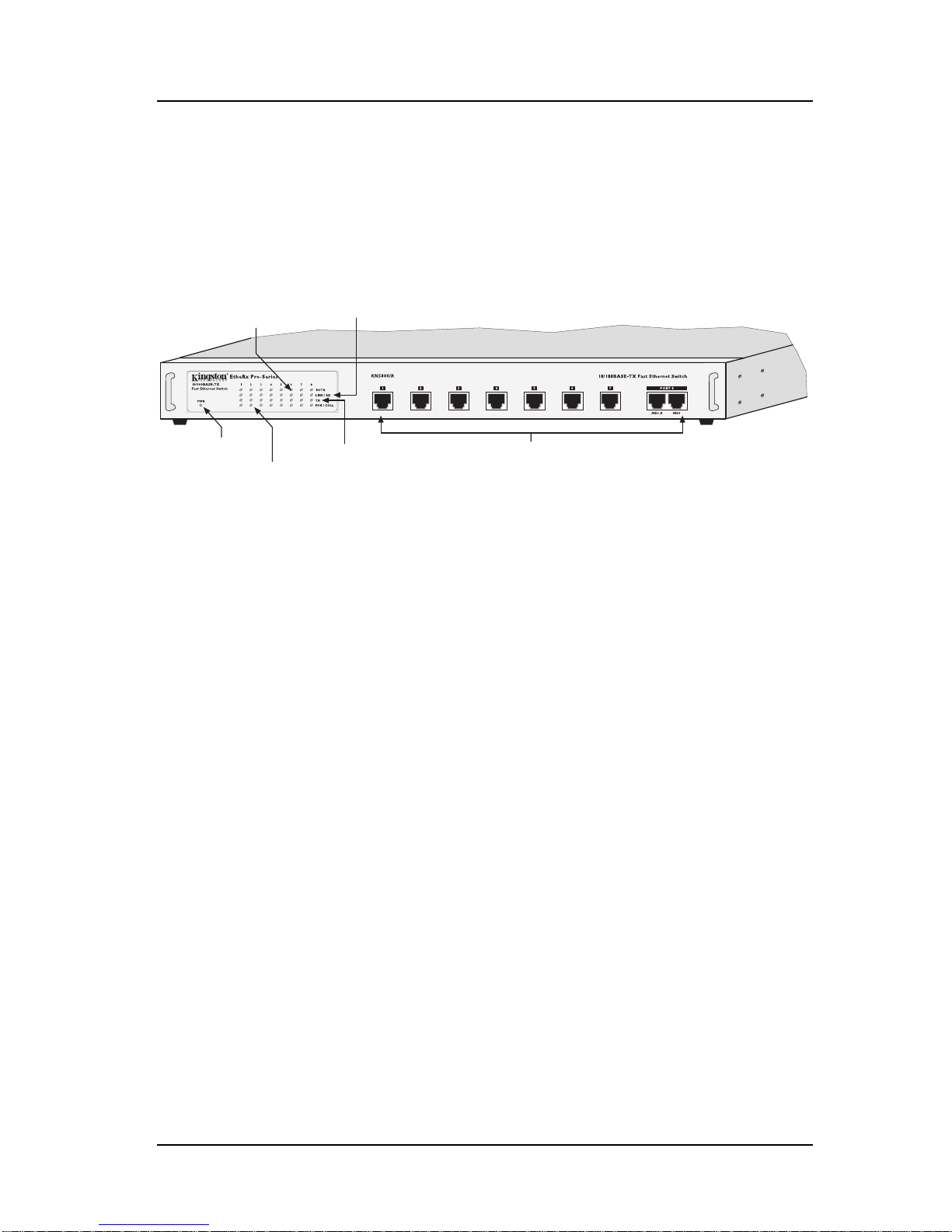

Fig. 1-KNS800/R Front Panel
Front Panel
Power LED
The PWR LED indicates the power status of the Fast EtheRx switch. The LED
will light up steady green when the AC power cord is connected to the unit
from a power source and the power switch on the unit has been turned on.
100BASE-TX (100TX) LED
The 100TX LED will automatically light up when 100Mbps operation is
detected. This LED will not light up if 10Mbps operation is detected.
LINK/RX LED (for both 10 and 100Mbps)
The LINK/RX LED uses a single LED to display two functions. A steady
green light indicates that a good link has been established, and a flashing green
light indicates when data is being received. If the LED does not display solid
green indicating a good link, check the following:
1. Make sure that the power is turned on for both the Fast
EtheRx Switch and the attached device.
2. Verify that the drivers for the network adapter have been
loaded on the PC. Some network adapters require that the
driver be loaded before establishing a proper link.
Power LED
10/100BASE-TX
UTP Ports
Full-Duplex /
Collision LED
TX (Transmit) LED
Link / RX (Receive) LED
100TX Speed
Detection LED
Questo manuale è adatto per i seguenti modelli
4
Indice
Altri manuali Kingston Technology Interruttore
Kingston Technology
Kingston Technology KND1610TX Manuale utente
Kingston Technology
Kingston Technology KNE12TX/RS Manuale utente
Kingston Technology
Kingston Technology KNE4TX/WG Manuale utente
Kingston Technology
Kingston Technology KNE16SE Manuale utente
Kingston Technology
Kingston Technology EtheRx KNE8TX/WG Manuale utente
Kingston Technology
Kingston Technology MobileLite Wireless G2 Manuale utente
Kingston Technology
Kingston Technology KNE16TP/RS Manuale utente
Kingston Technology
Kingston Technology KNS1600 Manuale utente
Kingston Technology
Kingston Technology KNS500/WG Manuale utente
