TM840 DMR Mobile Quick User Guide
TM840 DMR Mobile Quick User Guide
Quick User Guide
TM840
DMRMobile
We are very grateful for your purchasing KIRISUN DMR Mobile
produced by Kirisun Communications Co., Ltd.
We believe KIRISUN DMR Mobile, which always incorporates the
latest technology, can bring great convenience to your life and work.
We also believe that the quality and function of KIRISUN DMR Mobile
can meet your demands for reliable communication.
TM840 DMR Mobile Quick User Guide
2
TM840 DMR Mobile Quick User Guide
1
1 Safety Information
zThe government bans on operation the radio transmitter without permission in the jurisdiction
scope. Illegal operation will punished with fine or arrest. This product can only be maintained
by the professional technicians.
zSafety: It’s very important for users to realize the generally dangerous of using the radio.
zWarning: Please turn off the radio when you are refueling in the explosive atmosphere (such
as gas, dust and smog, etc.) or park at the gas station.
TM840 DMR Mobile Quick User Guide
2
2 First Use
2.1 Unpacking and Checking
Please unpack carefully and check all the items listed in the following table before discarding the
packing material. If any damage or loss occurs during shipment, please contact your dealer.

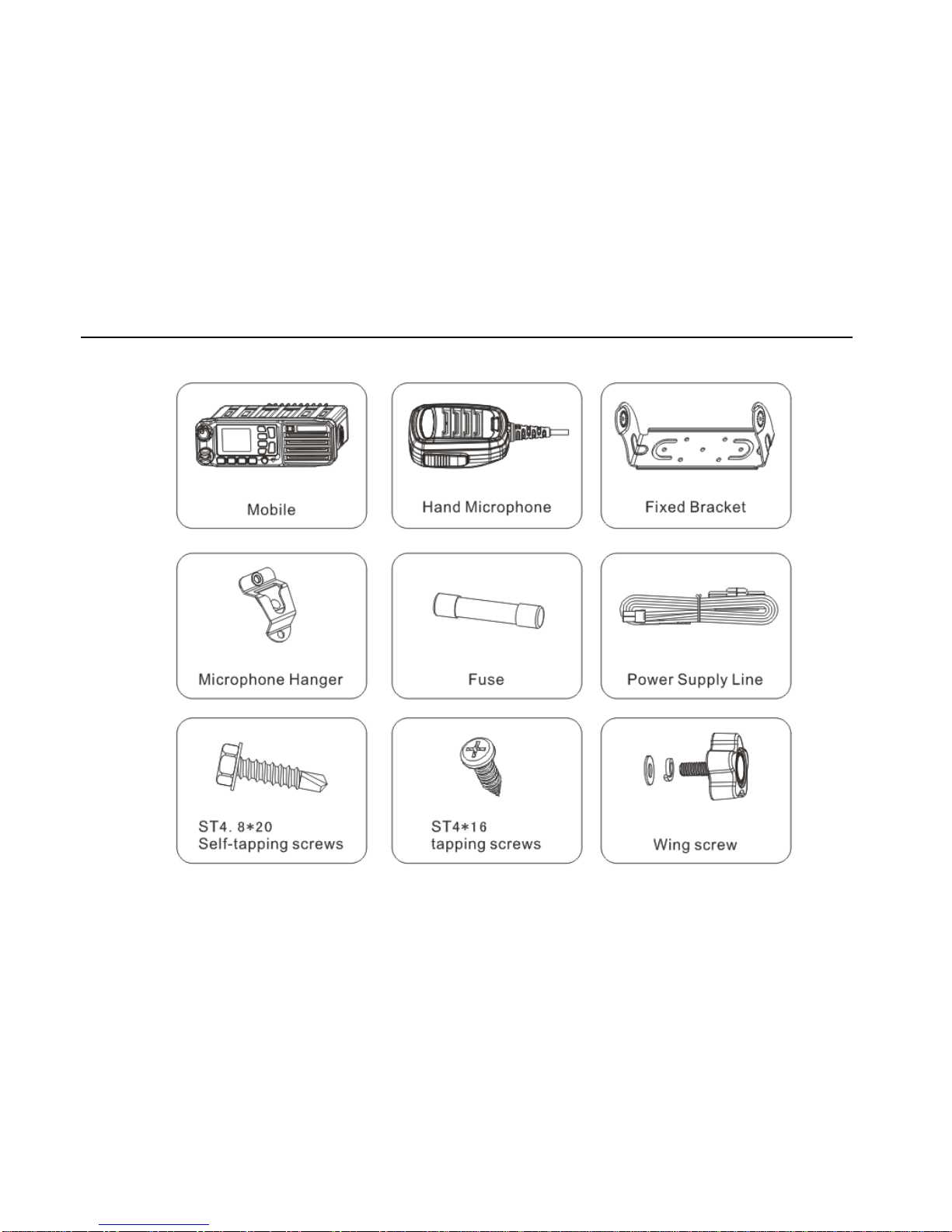

2.1.1 Standard Accessories
No. Material Quantity
1 Mobile 1
2 Hand Microphone 1
3 Fixed Bracket 1
4 Power Supply Line 1
5 Fuse 2
6 Microphone Hanger, with two ST4*16 tapping screws 1
TM840 DMR Mobile Quick User Guide
3
7 Plastic handle screw, contain matching flat washer and spring
washer 2
8 ST4.8*20 Self-tapping screws 6
9 Certificate of Approval 1
10 Quick User Guide 1
TM840 DMR Mobile Quick User Guide
4
TM840 DMR Mobile Quick User Guide
5
2.2 Preparing Your Mobile for Use
2.2.1 Installing your Mobile
1）Using six ST4.8*20 self-tapping self-drilling screws to fasten the bracket at the suitable place
inside the vehicle.
2）Using two Plastic handle screw to fasten the mobile on the bracket.
3）Connect the Power Supply Cable
First, arrange the 5 meter power cable (First, find that if there is a hole on the thermal baffle can
cross the power line. If there don’t have one, please drill a hole use the suitable drill bit and put on
rubber hole. Then let the power line through the thermal baffle into the engine compartment), and
connect the engine battery or other power supply to the open end (the power supply can’t exceed
16 Volt). Attention that the red line connect positive pole, the black line connect the negative pole.
Put in the suitable protective tube (random provided, please apply the protective tube from the
suppliers if you change it in the late, avoid causing other damage), put the plug insert the power
interface socket at the tail of turn-table.
4）Connect the Antenna
TM840 DMR Mobile Quick User Guide
6
5）Connect the hand Microphones
Install hand microphone
Put the direction indicative plane of the hand microphone plug on the top and insert it into the
microphone interface of the mobile. Then clockwise rotate the self-lock cover on the microphone
plug until the self-lock cover against the card slot. At this moment, please press down a little bit
and continue rotate in clockwise until it can’t be rotated.
Uninstall hand microphone
Anticlockwise rotate the self-lock cover on the hand microphone until you can’t be rotated, then
pull the plug out.
Install Microphone Hanger Clip
Using two ST4*16 tapping screw to install the microphone Hanger clip at the place where it is
convenient for your use (the microphone and the microphone line should install at the place
doesn’t impact the safe drive), put the hand microphone hang on the microphone hanger.
