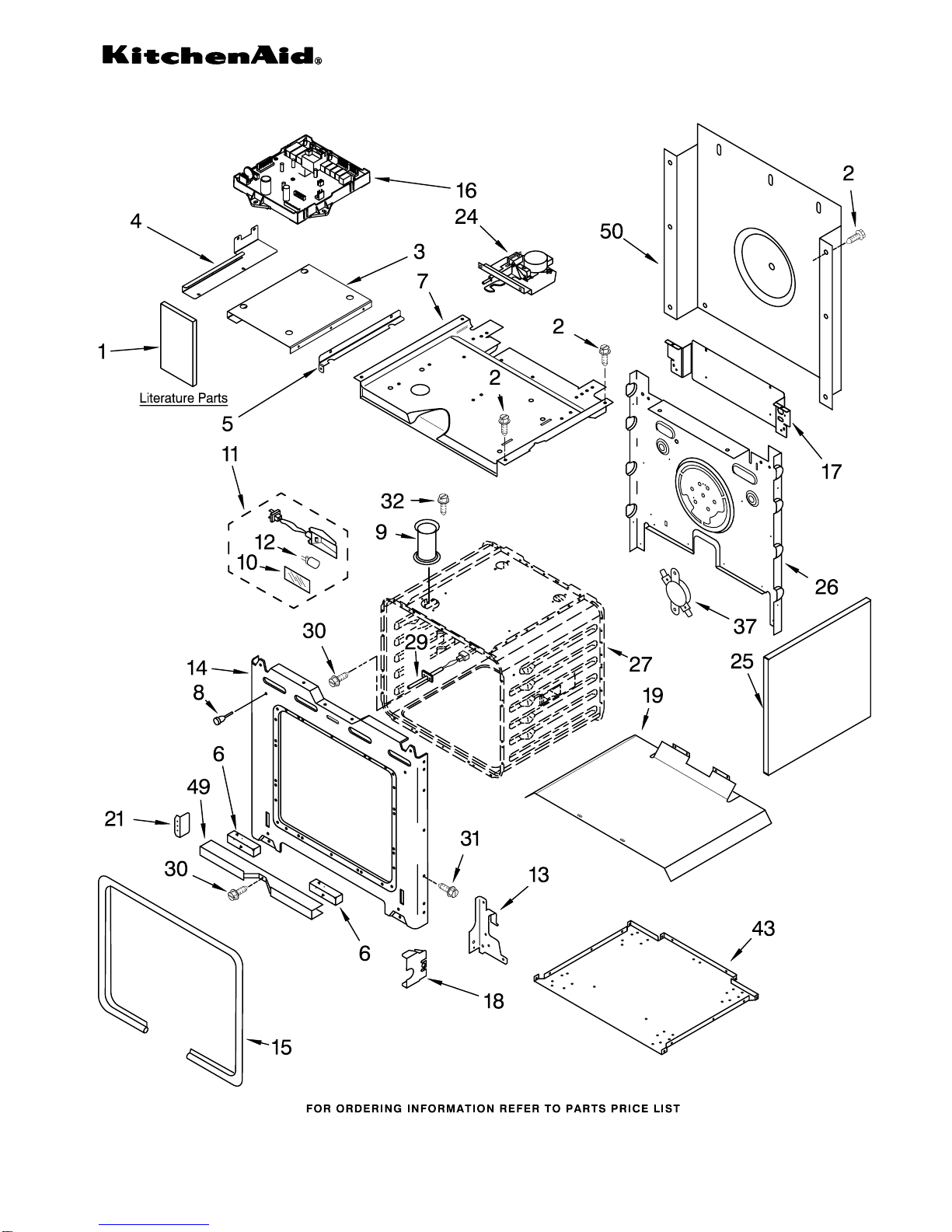

OVEN PARTS

For Model:KDRP487MSS00

(Stainless Steel)

2−04 Litho in U.S.A. (cre) Part No. 8186112

48" KITCHENAID

FREE STANDING RANGE

DUAL FUEL

OVEN PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT8301285

Installation

Instructions

LIT8301284

Use & Care Guide

LIT8301281

Tech Sheet

LIT8301283

Conversion

Instructions

LIT3191638

Safer Cooking Tips

2 4449809 Screw, 8−18 x 3/8

3 8301573 Bracket, Control

Support

4 8301572 Bracket, Control

(Left Side)

5 8301574 Bracket, Control

(Right Side)

6 4452260 Spacer, Foam

7 8302191 Top, Chassis

8 4448520 Bumper, Door

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

14 4455610 Frame, Front

15 4455380 Gasket, Door

16 Control, Zodiac

8301182 Assist, (Right Side)

8301583 Assist, (Left Side)

17 8301254 Filler, Rear

18 4452152 Bracket, Mounting

19 4451476 Support, Insulation

21 4455510 Bracket, Support

24 8302157 Latch, Motorized

25 4455641 Side, Chassis

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 4449154 Screw, 8−32 x .440

31 4449040 Screw, 8−18 x 3/8

32 3196176 Screw, 8−18 x 1/2

37 4452223 Thermostat (TOD)

(Temp.) SPST

43 8302289 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

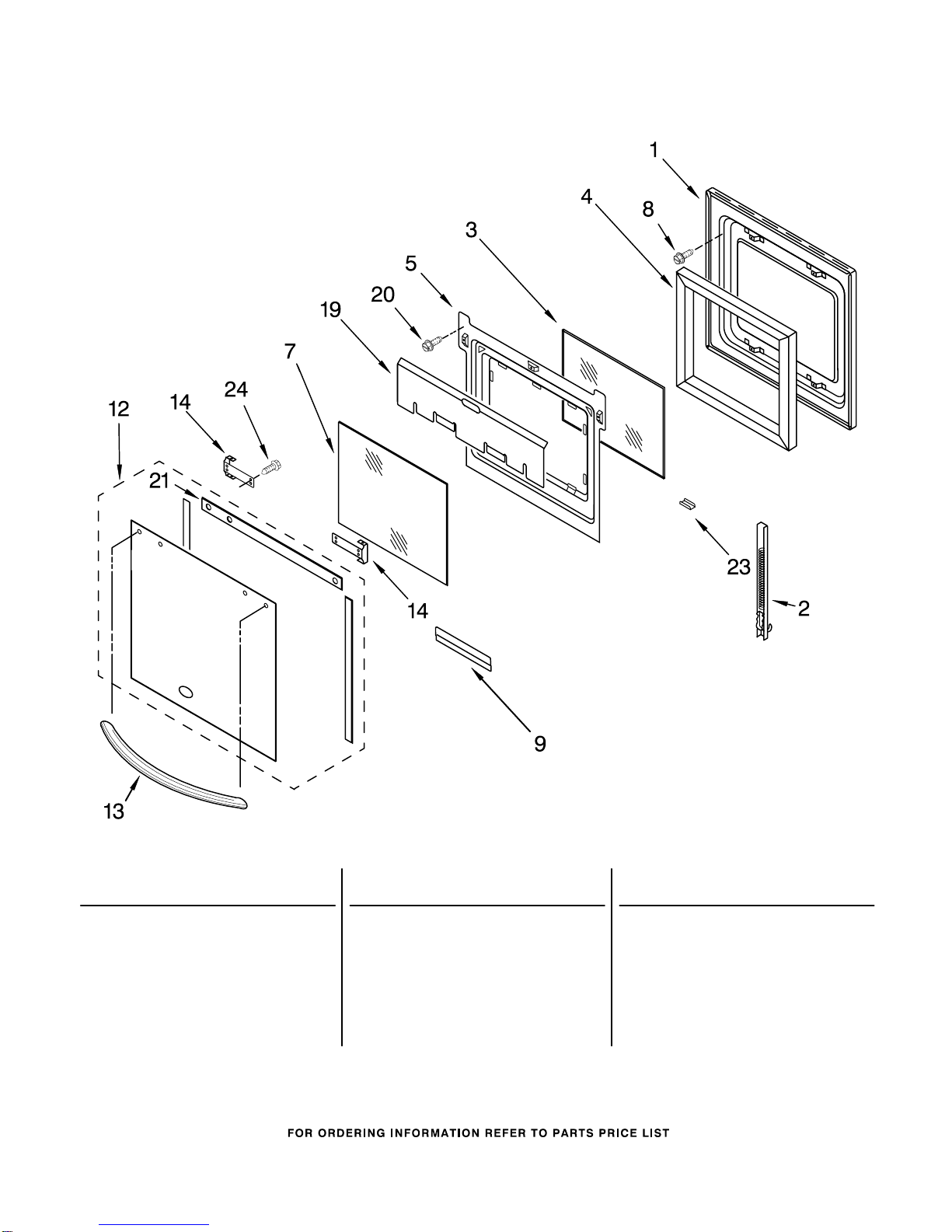

OVEN DOOR PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455616 Door Liner

2 Hinge, Door

8300571 R.Side

8300572 L.Side

3 4449251 Glass, Inner

4 4451720 Insulation, Door

5 8300776 Retainer, Glass

7 4449247 Glass, Inner

8 4449743 Screw, 8−32 x 3/8

9 4451668 Retainer, Glass

12 8301257 Assy, Door Glass

13 8301255 Door Handle

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

3400832 Screw

19 4450360 Shield, Heat

20 4449809 Screw, 8−18 x 3/8

21 8300853 Seal, Door Top

23 4450863 Retainer, Clip

3400832 Screw

24 3196184 Screw, 8−32 x .548

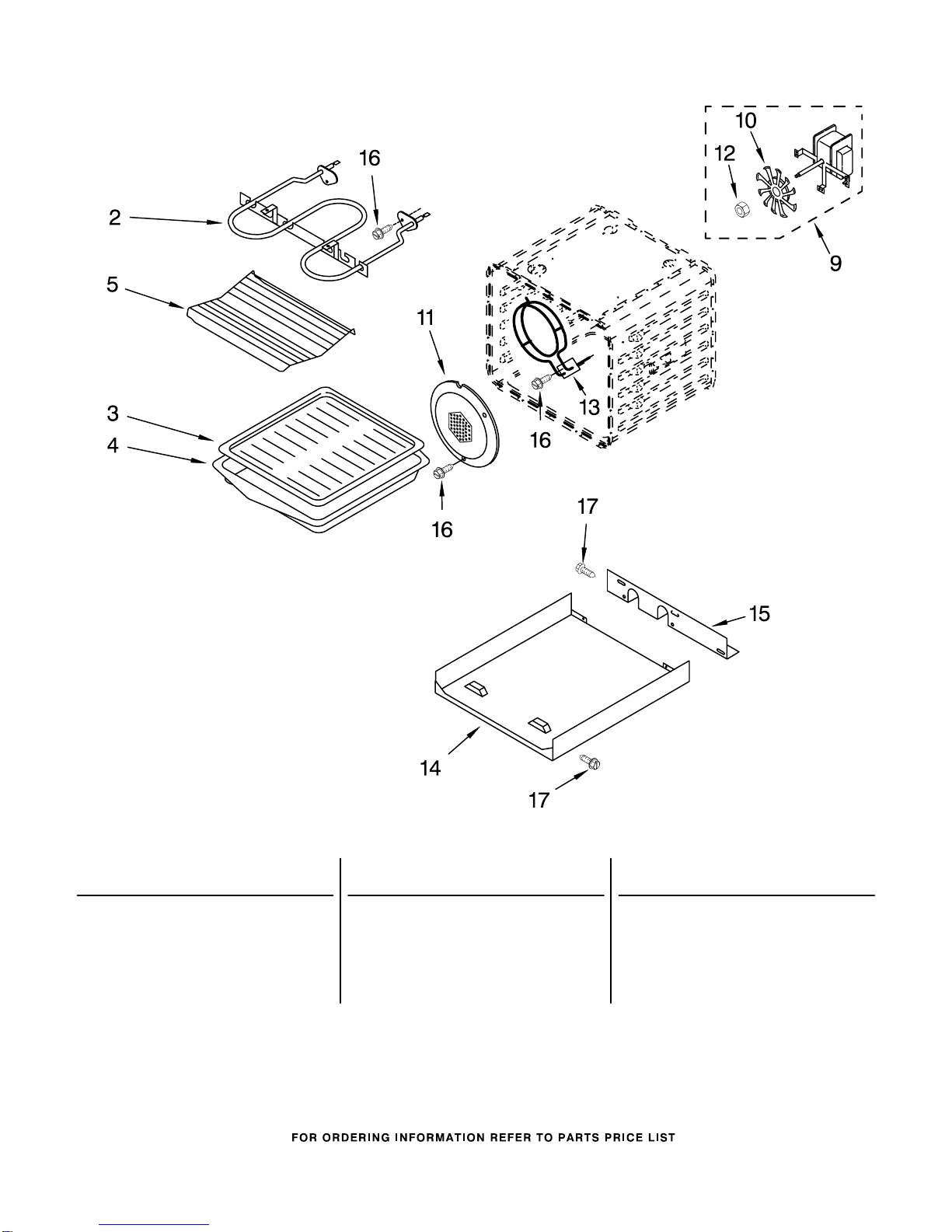

INTERNAL OVEN PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

3 3195996 Grill, Broiler

4 3196076 Pan, Broiler

5 3181534 Rack, Roasting

9 4451583 Motor, Convection

10 4452226 Blade, Fan

11 4448418 Cover, Fan

12 4452227 Nut

13 4452157 Element,

Convection

14 4455035 Tray, Hidden

Bake

15 4450039 Cover, Access

16 4449154 Screw, 8−32 x .440

17 4449809 Screw, 8−18 x 3/8

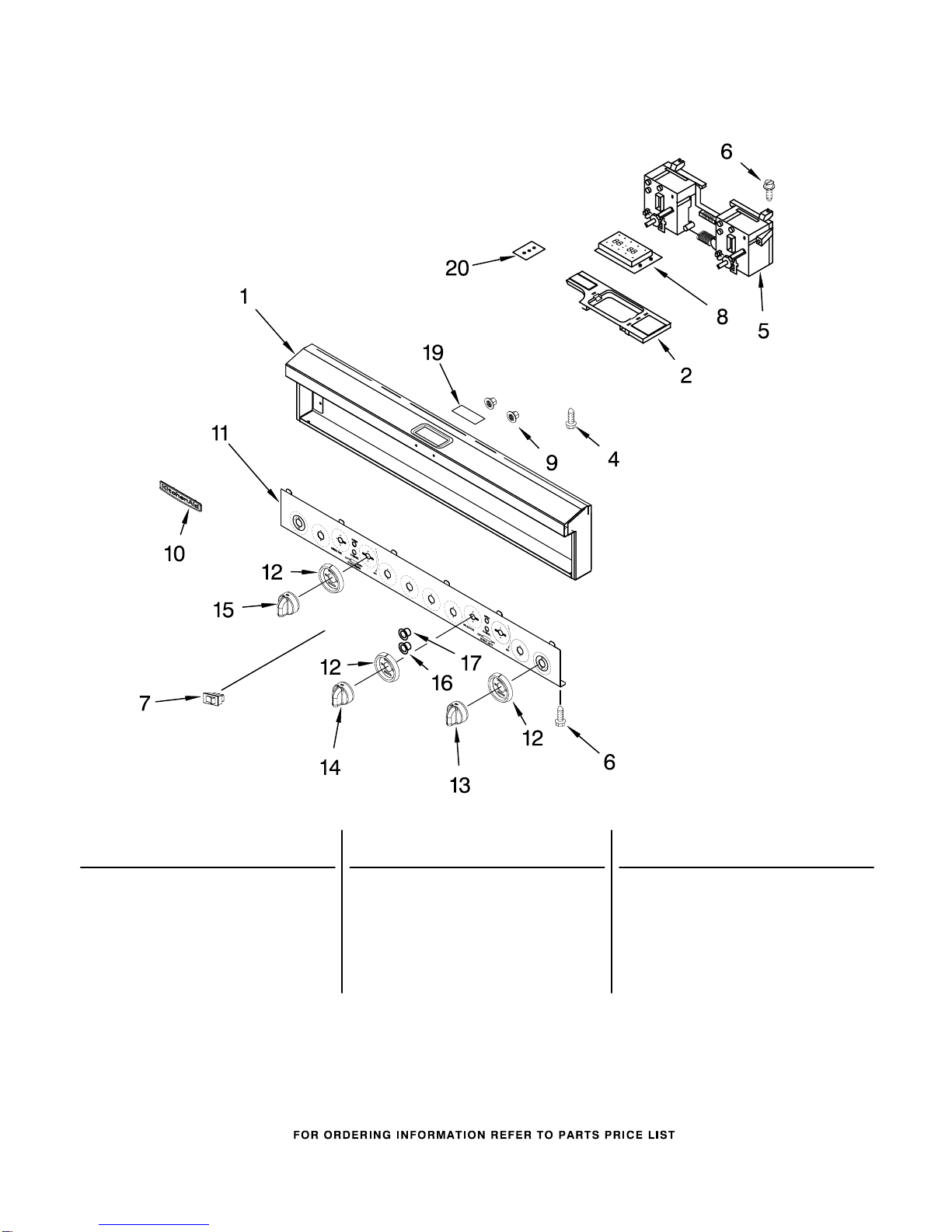

CONTROL PANEL PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8301149 Panel, Control

2 4453000 Bracket, Display

4 3196537 Screw, 8−18 x 3/8

5 8300203 Control, Zodiac

6 4449899 Screw, 6−19 x 1

7 4452842 Switch, Rocker

8 4452999 Module, Display

9 2004333 Palnut

10 2005292 Nameplate

11 8301260 Face, Control

Panel

12 4455192 Bezel, Knob

13 4454970 Knob, Control

14 4455115 Knob, Temp/Time

15 4455141 Knob, Selector

16 4452998 Button, Cancel

17 4452997 Button, Enter

19 4455806 Glass, Display

20 3192439 Seal, Limiter

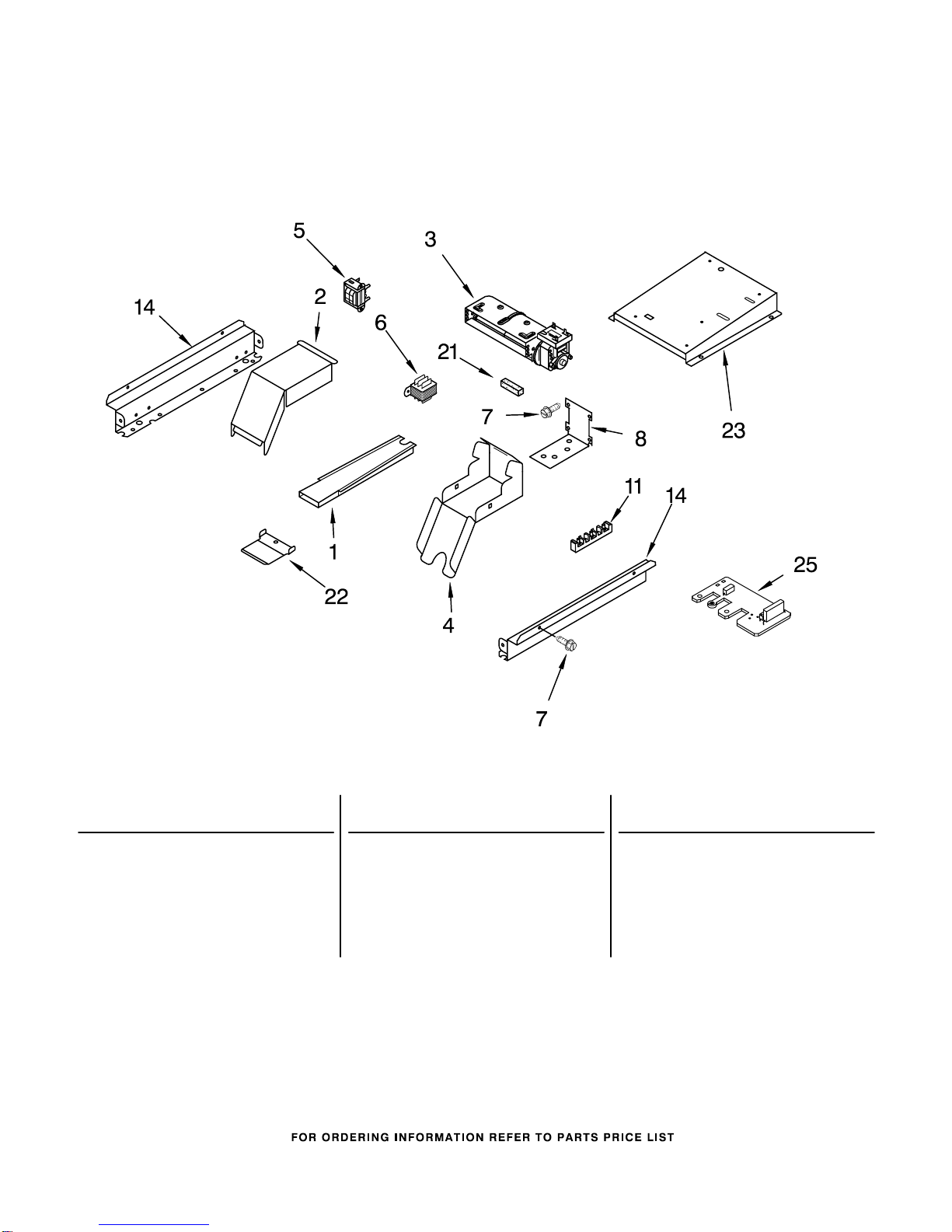

TOP VENTING PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4451438 Elbow, Vent−Top

3 8300223 Blower 60MM

4449809 Screw (4)

3400015 Screw (1)

4 4451752 Elbow, Vent−Bottom

5 6610122 Transformer, Light

6 8300642 Transformer,

Control

7 4449809 Screw, 8−18 x 3/8

8 4455352 Bracket, Blower

11 4449868 Block, Terminal

14 4452442 Side, Control Top

21 4451758 Seal, Foam

22 4452489 Deflector, Vent

Box

23 8301489 Bracket, Control

Mounting

25 4451985 Suppressor

3400080 Screw (4)

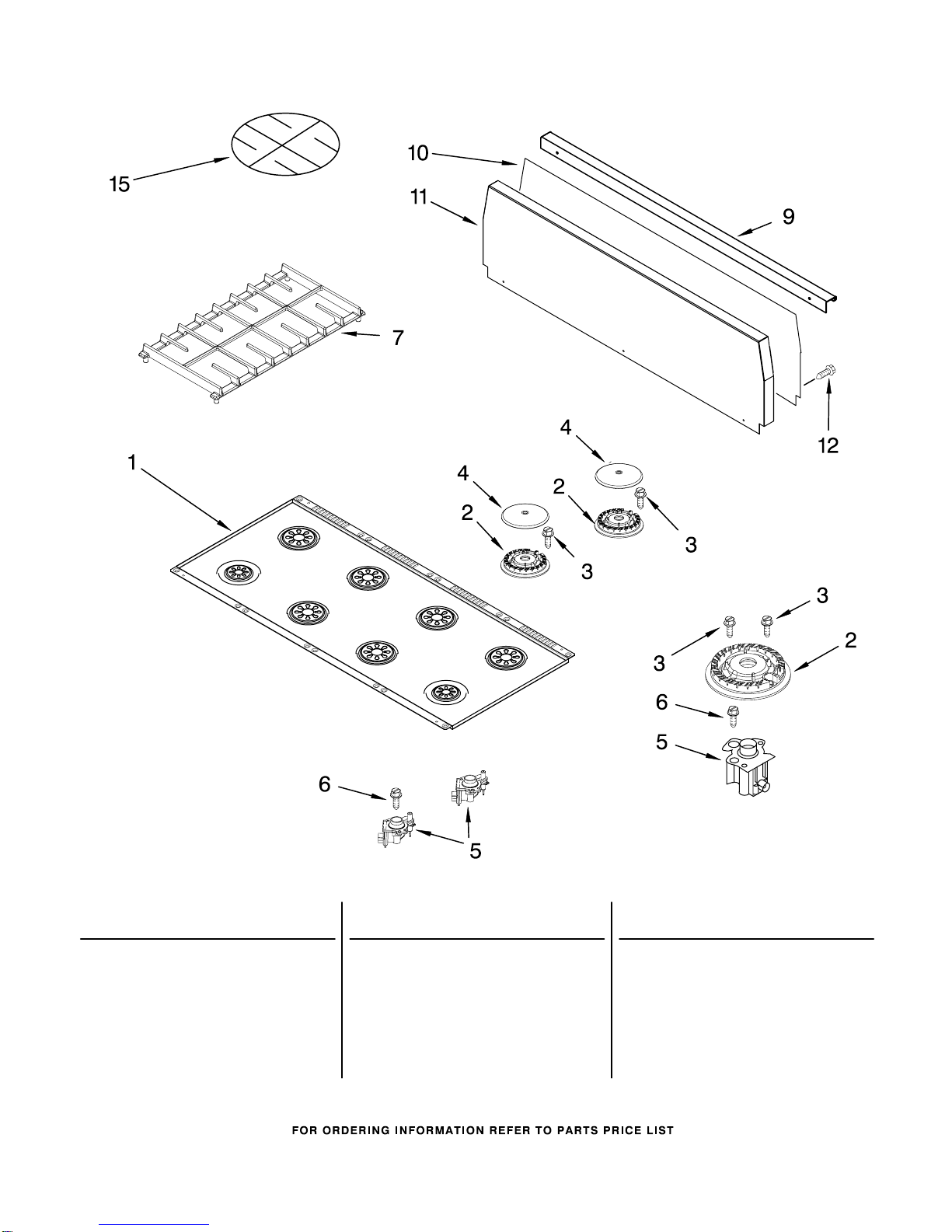

COOKTOP PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8302148 Cooktop

2 Burner Head

4455849 (Turbi)

4455979 (Auxi)

3 3368921 Screw, 7−18 x 3/4

4 Cap, Burner

4455243 (14K)

8284669 (6K)

5 Orifice Holder

(Includes Orific &

Ignitor)

9754188 Turbi

9754183 Auxi

3400843 Screw

6 3177991 Screw, 8−18 x 1/4

7 4454963 Grate, Burner

9 8284728 Trim, Island

10 8284760 Support,

Backsplash

11 8284730 Trim, Backsplash

12 3400837 Screw, 8−18 x 3/8

15 4455109 Plate, Simmer

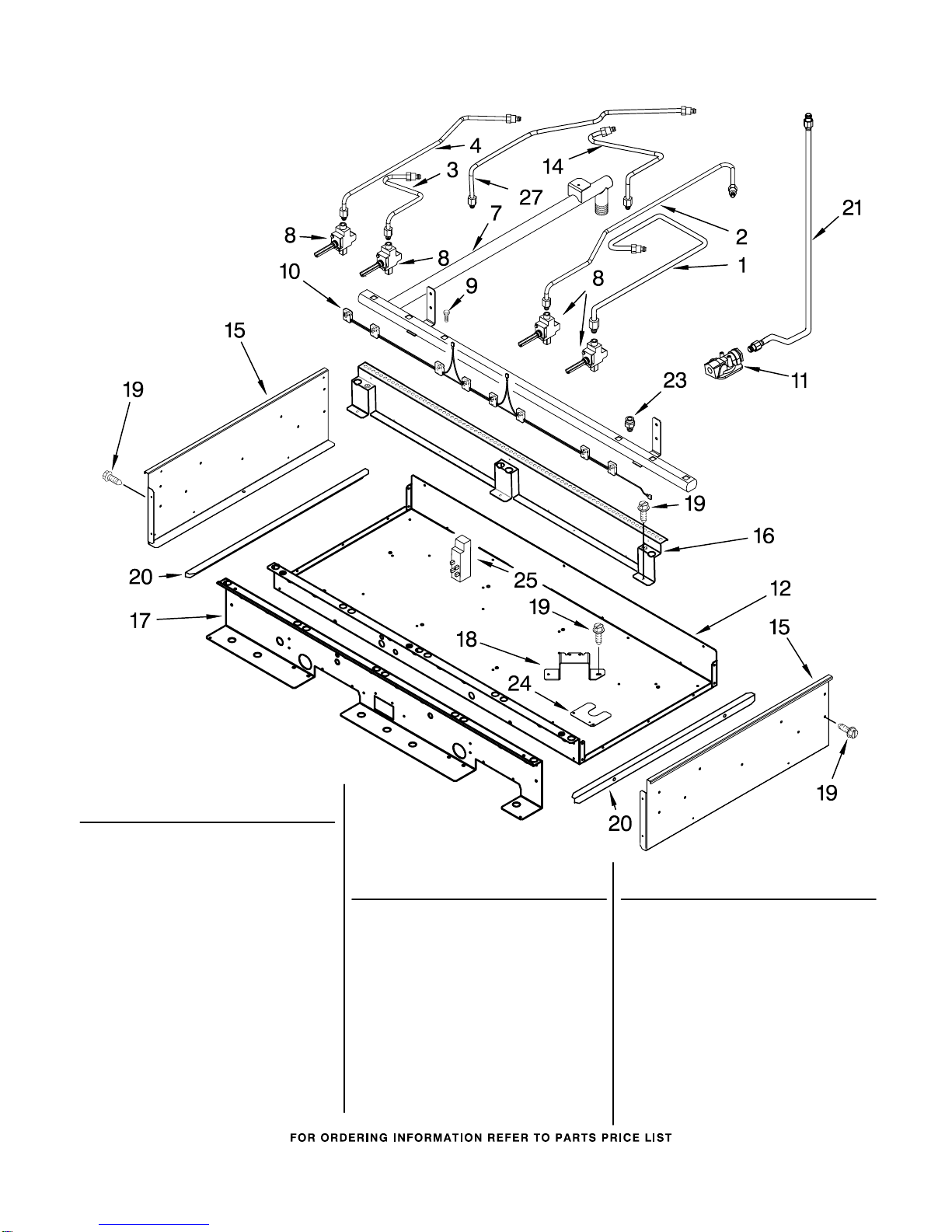

BURNER BOX AND MANIFOLD PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Tubing, Gas

8300251 Burner − RF

4455078 30"

8301938 Center Right

2 8302040 Tubing, Gas

Burner − RR

3 8300187 Tubing, Gas

Burner − LF

4 8300188 Tubing, Gas

Burner − LR

7 8301188 Manifold Assembly

Right Side

8 Valve, Burner

3192157 (Silver)

3191292 (Red)

3185829 Bolt (4)

9 3185829 Bolt, Gas Valve

10 8301585 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4453033 Pressure Regulator

12 8301262 Box, Burner

14 8301937 Tubing, Gas

Burner − CF

15 Side, Burner Box

8285487 Right Side

8285488 Left Side

16 8301998 Support, Rear

17 8301187 Support, Cooktop

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4454974 Rail, Support

RH & LH

21 8302193 Tube, Manifold

23 Adapter

4453116 1/2" Female

4453115 1/2" Male

4450118 Nut, 6−32 U Type

24 8301589 Cover, Manifold

Slot

25 8522426 Module, Spark

27 8301936 Tubing, Gas

Burner − CR

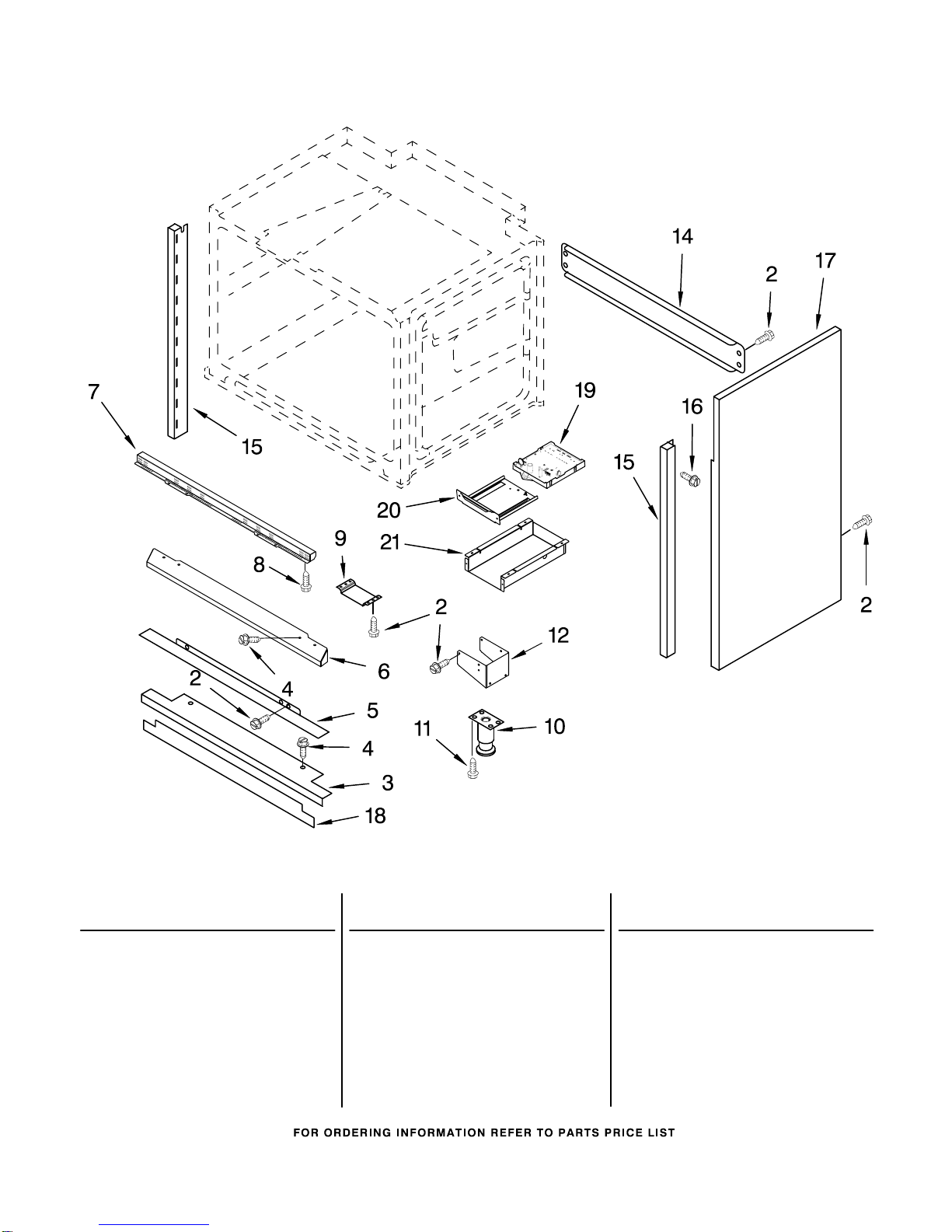

CHASSIS PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4449809 Screw, 8−18 x 3/8

3 8301141 Backer, Trim Lower

4 3400837 Screw, 8−18 x 3/8

5 8301137 Deflector, Center

6 8301138 Vent, Bottom Upper

7 8301142 Vent, Center

8301576 Gasket

3400805 Screw (4)

8 3196537 Screw, 8−18 x 3/8

9 4455604 Bracket, Mounting

Regulator

10 4452430 Foot Assembly

11 3400518 Screw,

5/16−12 x 5/8

12 4455644 Gusset

14 8301135 Brace, Rear

15 Trim, Front

8301133 Right Side

8301134 Left Side

16 3196537 Screw, 8−18 x 3/8

17 Side Chassis

8301131 Right Side

8301132 Left Side

18 8300154 Insulation

19 8301195 Control, Master

20 8301288 Box, Control

21 8301577 Bracket, Control

Box

MISCELLANEOUS PARTS

For Model:KDRP487MSS00

(Stainless Steel)

8186112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

4453192 Seal, Ribbon

Cable

4453191 Seal, Access

Panel

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4448444 Grommet, Rail

Harness, Wire

(Main)

8302377 Right Side

8301264 Left Side

8301196 Jumper Harness

8301582 Harness, Control

Master

8284771 Harness, Wire

(Ignitor 39")

3192230 Harness, Wire

(Ignitor 28")

8284772 Harness, Wire

Ignitor (Brown)

3191506 Bushing, Conduit

1129449 Bushing

8302203 Conduit

4449809 Screw

112432 Nut

4450800 Screw, Ground

4454835 Tie, Cable

4452222 Spacer, Harness

Miscellaneous

814381 Pin Hinge Kit

8284782 Spud Kit

4453141 Bracket, Anti−Tip

4453202 Bracket, Anti−Tip
