KitchenAid KECC507BAL0 Manuale utente

COOKTOP PARTS

For Models: KECC507BBL0, KECC507BWH0, KECC507BAL0

(Black) (White) (Almond)

1−95 Litho in U.S.A. (drs) Part No. 4174485

30" ELECTRIC

BUILT−IN

COOKTOP

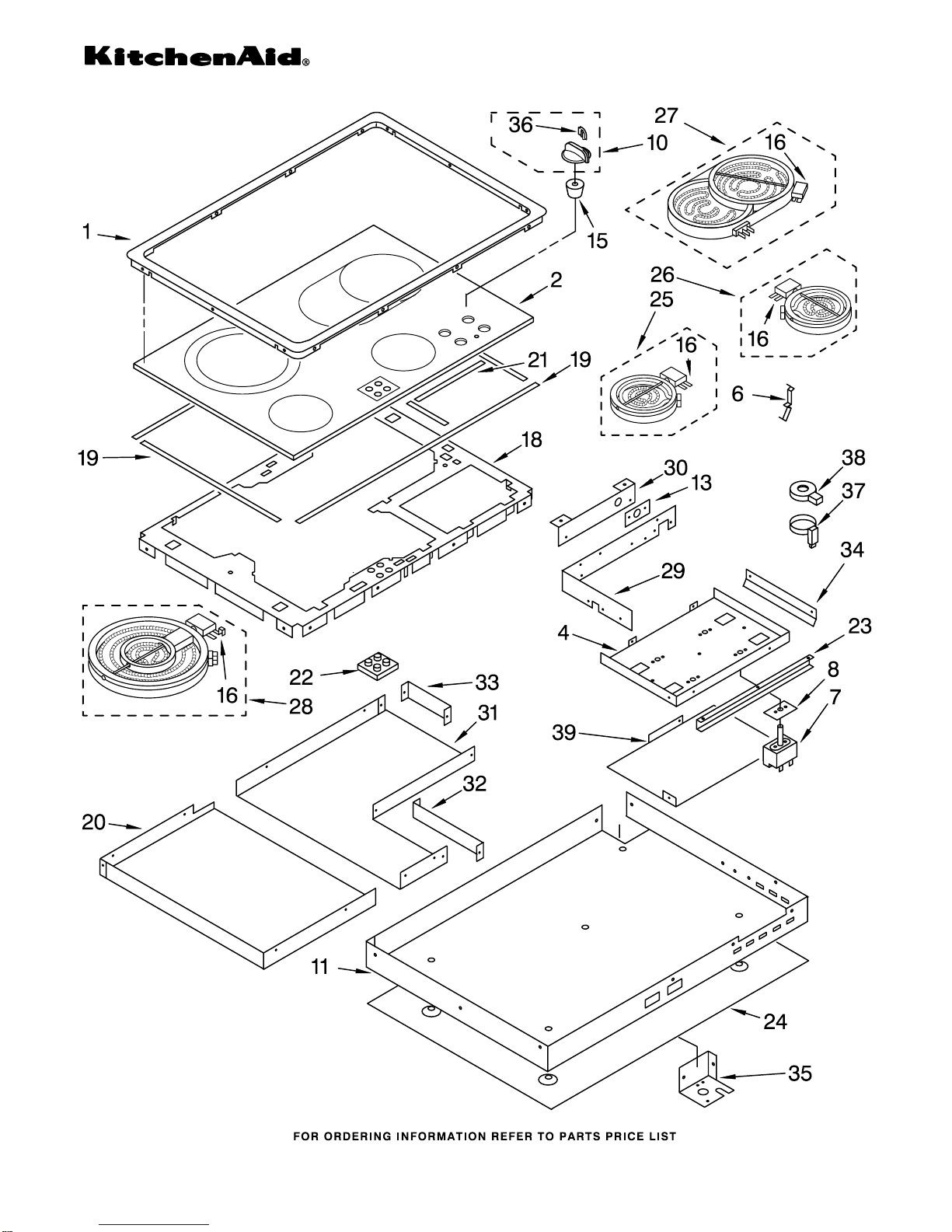

COOKTOP PARTS

For Models: KECC507BBL0, KECC507BWH0, KECC507BAL0

(Black) (White) (Almond)

4174485

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

Trim Ring, Cooktop

3187744

Black

3187745

White

3187746

Almond

Cooktop, Glass

3187814

Black

3187815

White

3188895

Almond

3188101

Bracket, Switch

Mounting

3187707

Spring Locator (8)

246119

Screw (8)

Switch, Infinite

3188755

Use W/2400W/1000W

Left Rear Burner

3188755

Use W/2200W/1400W

Right Rear Burner

3148970

Use W/1500W

Right Front Burner

3148969

Use W/1200 W

Left Front Burner

3183956

Seal, Switch Shaft

311865

Screw

Knob, Control (4)

9750372FF

Black

9750372FW

White

9750372FT

Almond

3188754

Box, Burner

3188533

Grommet

4159456

Screw

3182435

Seal, Switch (4)

Switch, Limiter

3187538

Use W/3188157

Element

3188784

Use W/3188781

Element

3187537

Use W/3187119

Element

3187536

Use W/3187188

Element

3188100

Plate, Backer

Seal, Silicone

3185589

Small (2)

3185590

Large (2)

3187753

Shield, Heat

4159456

Screw

3188852

Seal, Silicone

3188879

Lamp, Hot

Surface Indicator

4168863

Screw

3189152

Bracket, Stiffening

4159456

Screw

3188437

Shield, Heat

4159456

Screw

3188157

1200W Left Front

3188781

1500W Right Front

3187119

2200W/1400W Right Rear

3187188

2400W/1000 Left Rear

3188844

Shield, Heat

4159456

Screw

3189174

Bracket

4159456

Screw

3188102

Shield, Heat

3188158

Plate, Interior

4159456

Screw

3189159

Plate, End

4159456

Screw

3189036

Plate Louver

4159456

Screw

3189273

Cover, Conduit

Insert

9751376

Black & White

Model

9751377

Almond Model

Knob, Control (4)

3188760

Housing, Backlight

486579

Screw

3188761

Lens, Backlight

3188785

Insulator,Electrical

4159456

Screw

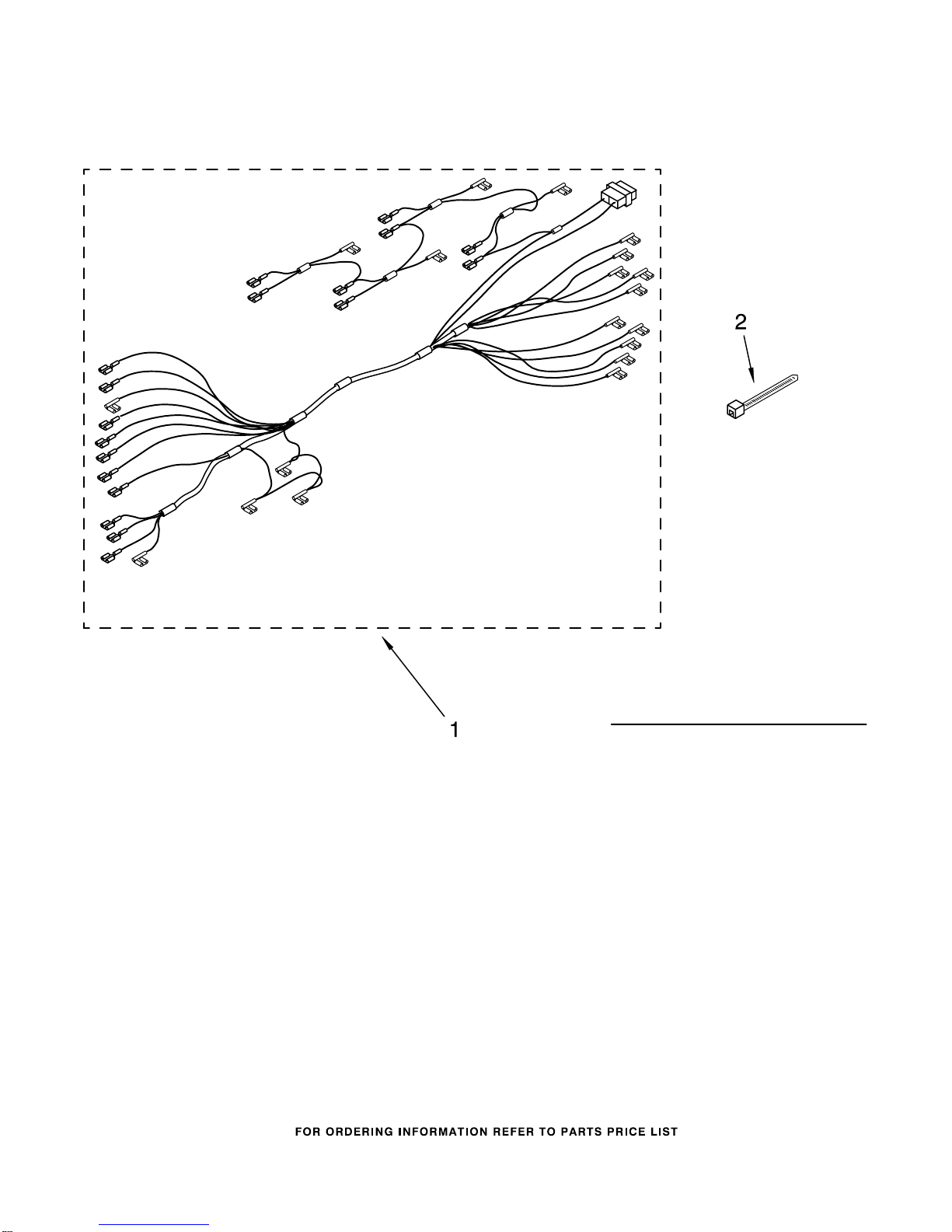

WIRING HARNESS PARTS

For Models: KECC507BBL0, KECC507BWH0, KECC507BAL0

(Black) (White) (Almond)

4174485

Illus. Part

No. No. DESCRIPTION

3189126

Wiring Harness

Surface Unit

3179589

Tie, Wire

OPTIONAL PARTS (NOT INCLUDED)

For Models: KECC507BBL0, KECC507BWH0, KECC507BAL0

(Black) (White) (Almond)

4174485

Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3189330

Installation

Instructions

LIT3188759

Wiring Diagram

LIT3188107

Use & Care Guide

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828

Wire, Black

12 Ga. 150 C

242820

Wire, Black

14 Ga. 150 C

242822

Wire, Blue

14 Ga. 150 C

242830

Wire, Brown

14 Ga. 200 C

242823

Wire, Green

14 Ga. 150 C

242824

Wire, Orange

14 Ga. 150 C

242829

Wire, Red

12 Ga. 150 C

242825

Wire, Red

14 Ga. 150 C

242831

Wire, Red

14 Ga. 200 C

242826

Wire, White

14 Ga. 150 C

242827

Wire, Yellow

14 Ga. 150 C

242832

Wire, Yellow

14 Ga. 200 C

Miscellaneous

Mounting Screws

258644

10A X 2 (2)

3150320

Clamp (2)

ACCESSORY PARTS

3184478

Cleaner, Glass

3183488

Scraper, Window
