COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP462KSS04

(Stainless Steel)

12−05 Litho in U.S.A. (cre) Part No.8186493

36" Stainless Steel

Professional Cooktop

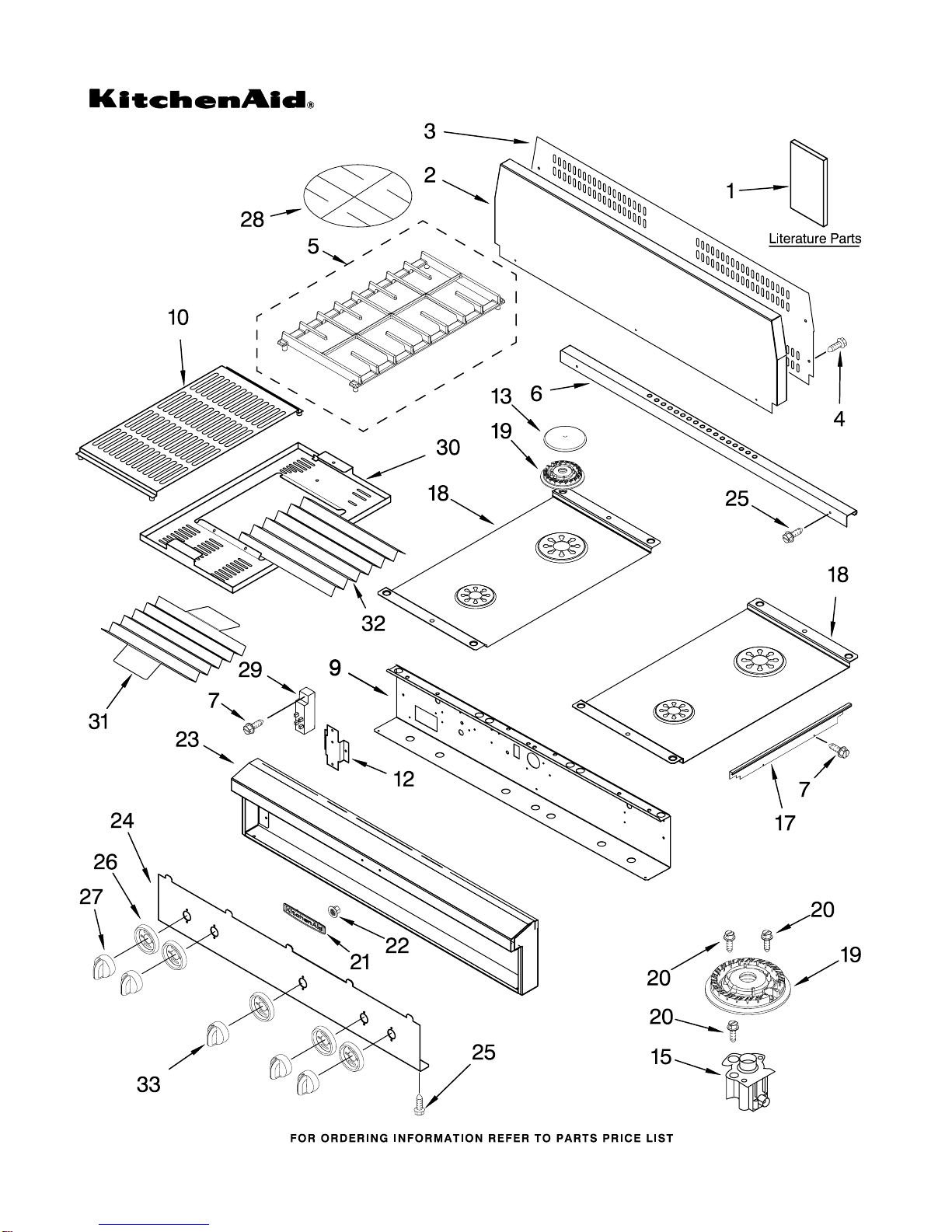

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP462KSS04

(Stainless Steel)

8186493

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8285586 Wiring Diagram

8286611 Use & Care Guide

9759405 Installation

Instructions

9759442 Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4457331 Grate, Burner

6 8284851 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8285478 Support, Control

Panel

10 4457151 Grate, Grill

12 4457260 Bracket, Spark

4455243 14K (2)

13 Cap, Burner

4455243 14K

8284669 6K

15 Holder, Orifice

8284669 6K (2)

4456622 Turbo (2)

4456920 Auxillary (2)

Includes Orifice

17 Trim, Side

4457294 Right Hand

4457295 Left Hand

18 9760863 Cooktop, Black

4449040 Screw (2)

4449743 Screw (2)

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 4457159 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

33 8284742 Knob, Grill

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP462KSS04

(Stainless Steel)

8186493

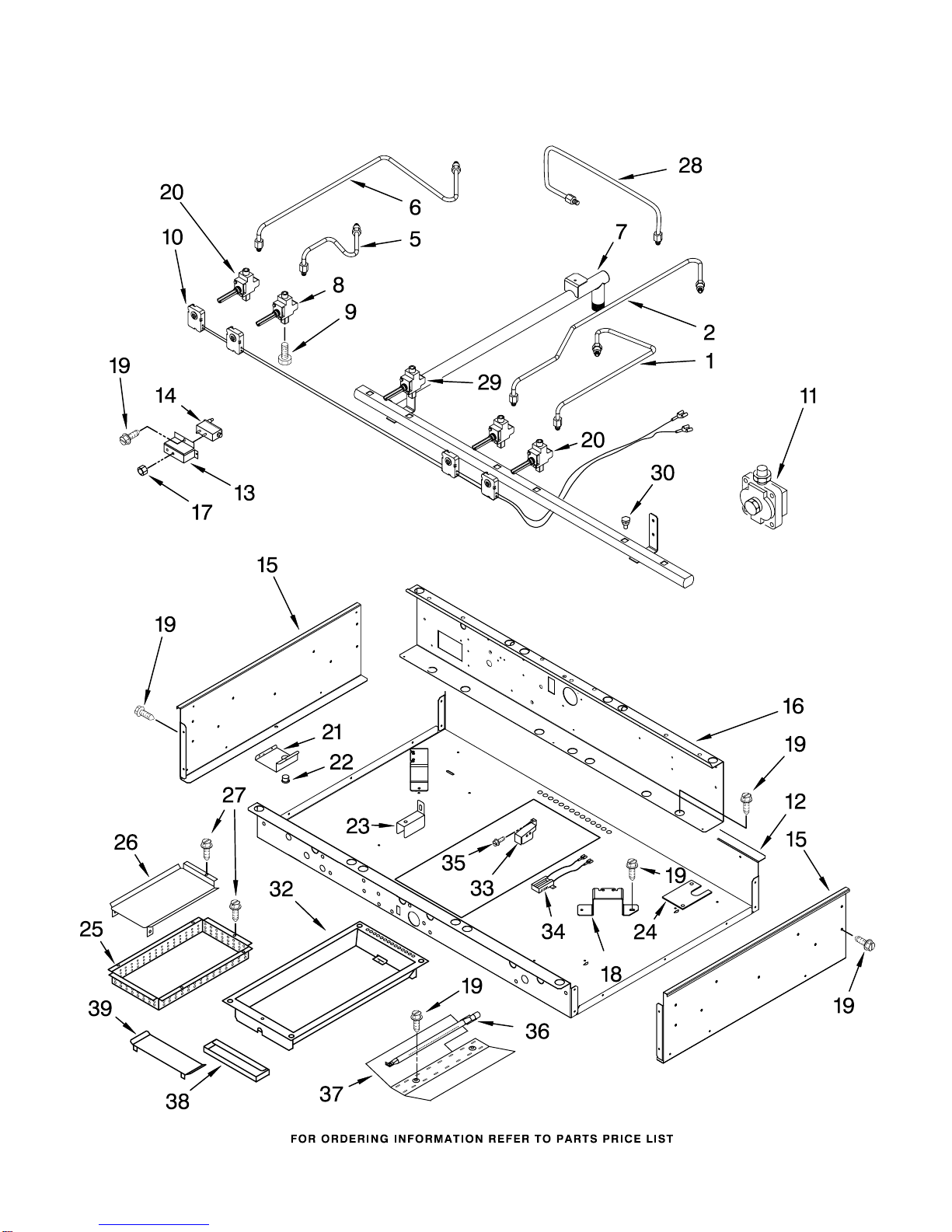

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP462KSS04

(Stainless Steel)

8186493

Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

(Includes Items

#9 & #30)

8 4456818 Valve, Burner

(Turbo)

9 8523704 Bolt, Valve

10 4456911 Burner Switch &

Harness Assembly

3192439 Seal, Switch

11 9759091 Regulator,Pressure

12 4457093 Burner Box

13 9760835 Bracket, Grill

Valve

14 8284858 Valve, Grill

15 Side, Burner Box

8285607 Right Hand

8285606 Left Hand

16 9759136 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456816 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 8284790 Tube, Grill

29 4456819 Valve, Gas Grill

30 8284796 Plug, Manifold

32 8284787 Module, Grill

Grill

33 8284968 Bracket, Ignitor

34 8284941 Ignitor, Grill

35 3400855 Screw

36 8285052 Log Burner, Grill

37 8284900 Deflector

38 8284791 Tray, Drip

39 8285030 Guard, Spill

OPTIONAL PARTS

For Model: KGCP462KSS04

(Stainless Steel)

8186493

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

8285527 Power Cord

4456627 Harness, Wire

4173634 Bushing, Electric

1129449 Bushing

4167077 Nut, Tinnerman

4456628 Harness, Wire

Jumper

4457185 Harness, Grille

Switch

Miscellaneous

8284782 L.P. Orifice Spud

8537055 Cleaner, S.Steel
