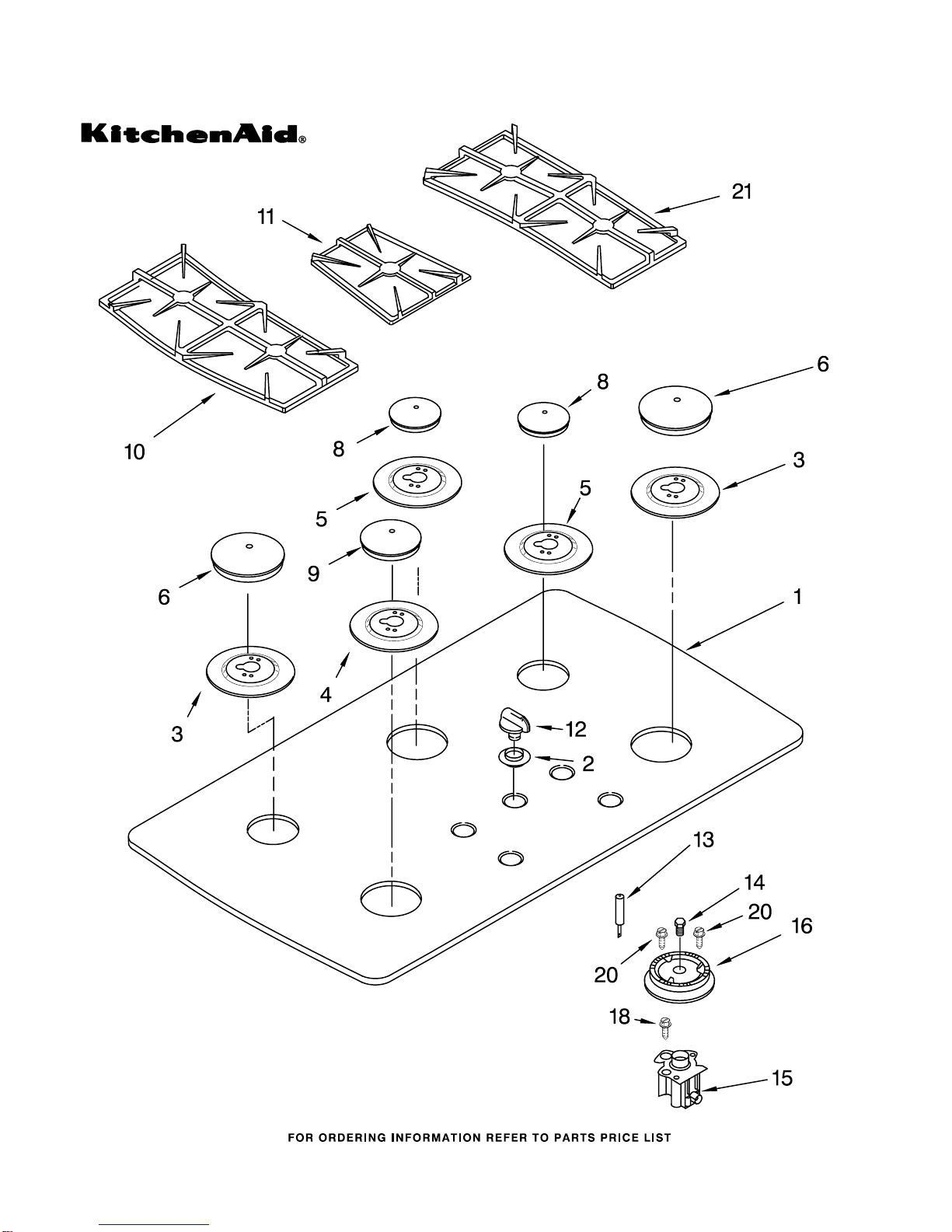

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1

(Black) (White) (Biscuit)

9−00 Litho in U.S.A. (RS) Part No.8185558

36" GAS GLASS

SURFACE COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1

(Black) (White) (Biscuit)

8185558

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cooktop, Glass

4455575 White

4455573 Black

4455576 Biscuit

2 Grommet, Glass

3180081 White

3180079 Black

3191817 Biscuit

3 Bezel, Cooktop

(RF)(LR)

9753602GS

White

9753602GB

Black

4 Bezel, Cooktop

(LF)

9753600GS

White

9753600GB

Black

5 Bezel, Cooktop

(RR)(Center)

9753601GS

White

9753601GB

Black

6 Cap, (RF)(LR)

3191729 White

3191728 Black

3191730 Moleskin

8 Cap, (RR)(Center)

3191735 White

3191734 Black

3191736 Moleskin

9 Cap, (LF)

3191738 White

3191737 Black

3191739 Moleskin

10 Grate, Burner LH

3193014 White

3193013 Black

3193015 Moleskin

11 Grate, Filler

3193023 White

3193022 Black

3193024 Moleskin

12 Knob, Control (4)

3191923 White

3191922 Black

3191925 Biscuit

13 9754215 Ignitor

14 Orifice

3192528 RF − LR

3192523 Center

3192524 RR

3192525 LF

15 Holder, Orifice

9754182 RF − LR

9754194 Center

9754187 RR

9754188 LF

16 Head, Burner

8273216 RR − Center

8273214 RF − LR

9754181 LF

18 4449809 Screw

20 3368921 Screw

21 Grate, Burner RH

3193016 Black

3193017 Mouse Gray

3193018 Moleskin

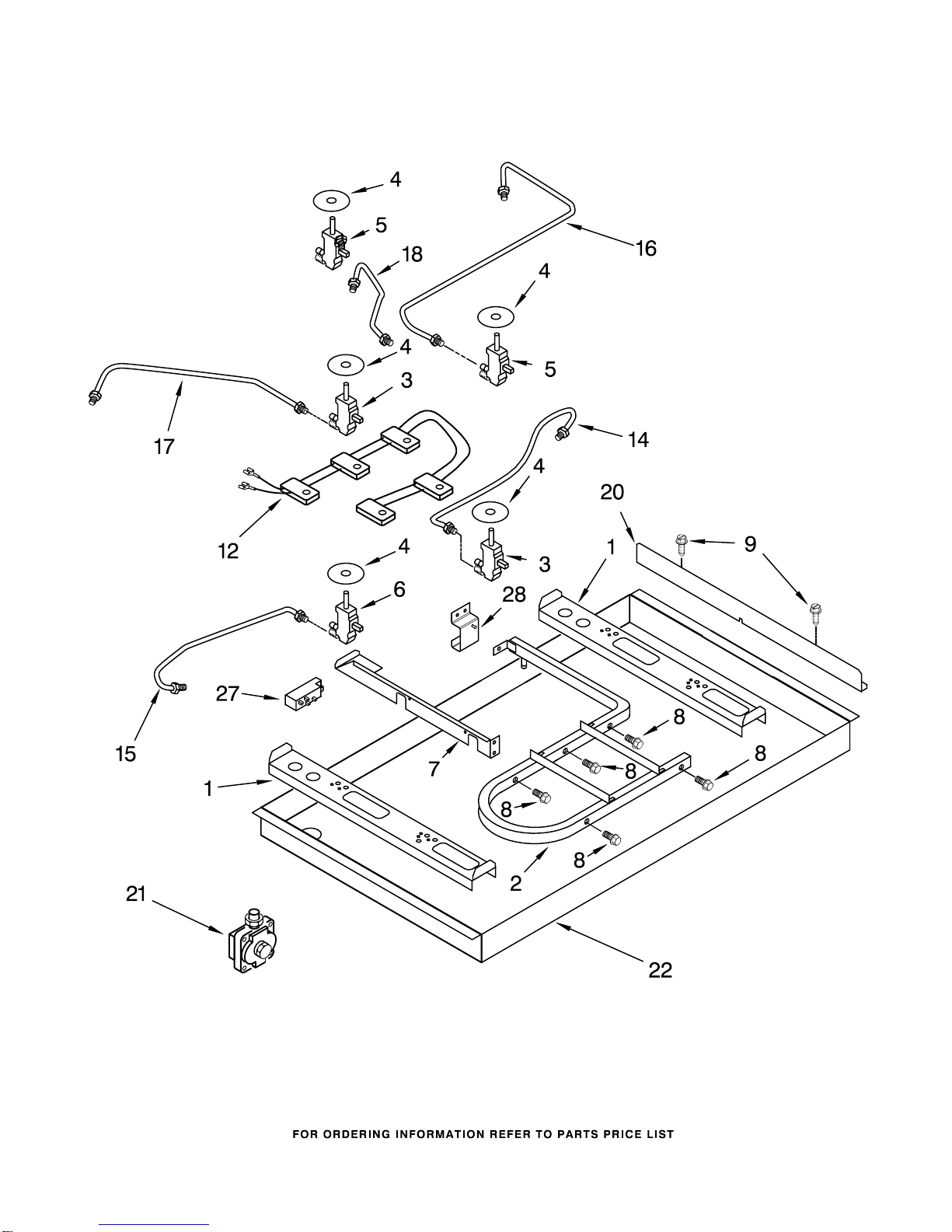

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1

(Black) (White) (Biscuit)

8185558

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1

(Black) (White) (Biscuit)

8185558

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3191557 Rail, Burner

2 3191317 Pipe, Manifold

3192491 Bracket, Manifold

3 3191292 Valve, Gas Burner

Burner, (RF)(LR)

4 3191387 Seal, Shaft

5 3191293 Valve, Gas Burner

(RR)(Center)

6 3192157 Valve, Gas

Burner (LF)

7 3192819 Rail, Center

8 307630 Bolt, Gas Valve

9 3177991 Screw

Illus. Part

No. No. DESCRIPTION

12 3191336 Harness & Switches

14 3191324 Tubing, Gas

Burner (RF)

15 3191326 Tubing, Gas

Burner (LF)

16 3191325 Tubing, Gas

Burner (RR)

17 3191327 Tubing, Gas

Burner (LR)

18 3191332 Tubing, Gas

Burner (Center)

20 3191462 Shield, Heat

21 3177120 Regulator, Pressure

22 3192603 Burner Box

27 3190700 Module Spark

28 3192613 Bracket, Mounting

LITERATURE PARTS

LIT3191827

Installation

Instructions

LIT3193071

Use & Care Guide

LIT3192099

Wiring Diagram

LIT3191638

Safe Cooking Tips

LIT3192742

LP Conversion

Instructions

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3177991 Screw

3183401 Bracket

4167077 Tinnerman Nut

3191933 Seal, Foam−Cooktop

Miscellaneous

3188310 Hardware, Mounting

3192741 Conversion Kit

Natural Gas To L.P.

WIRING HARNESS PARTS

3192229 Harness,

Ignitor 15" (2)

3192230 Harness,

Ignitor 28" (2)

3191417 Wire, Ground
