COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP463KSS04

(Stainless Steel)

12−05 Litho in U.S.A. (cre) Part No.8186494

36" Stainless Steel

Professional Cooktop

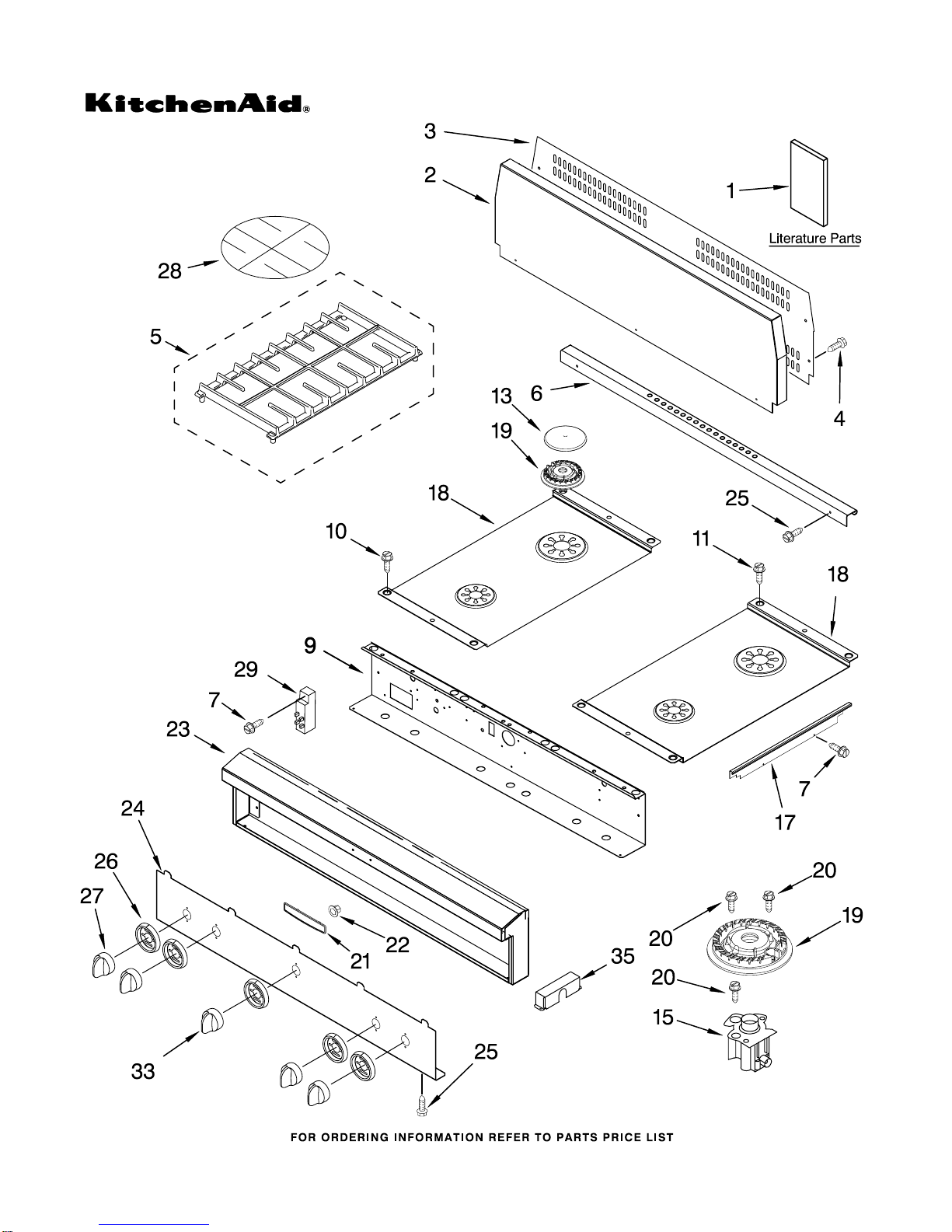

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP463KSS04

(Stainless Steel)

8186494

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8285587 Wiring Diagram

8286611 Use & Care Guide

9759405 Installation

Instructions

9759442 Instructions,

LP Conversion

2 4454960 Backsplash

3 8284712 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4457149 Grate, Burner

6 8284851 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8285478 Support, Control

Panel

10 4449743 Screw (2)

11 4449040 Screw (2)

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

15 Holder, Orifice

Includes Orifice

4456622 Turbo (2)

4456920 Auxillary (2)

17 Trim, Side

4457294 Right Hand

4457295 Left Hand

18 9760863 Cooktop, Black

19 Burner Head 14K

4455849 Turbo (2)

4455979 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 4455217 Control Frame

24 4457160 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

33 8284743 Knob, Griddle

35 8285038 Cover, Burner

Spud

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP463KSS04

(Stainless Steel)

8186494

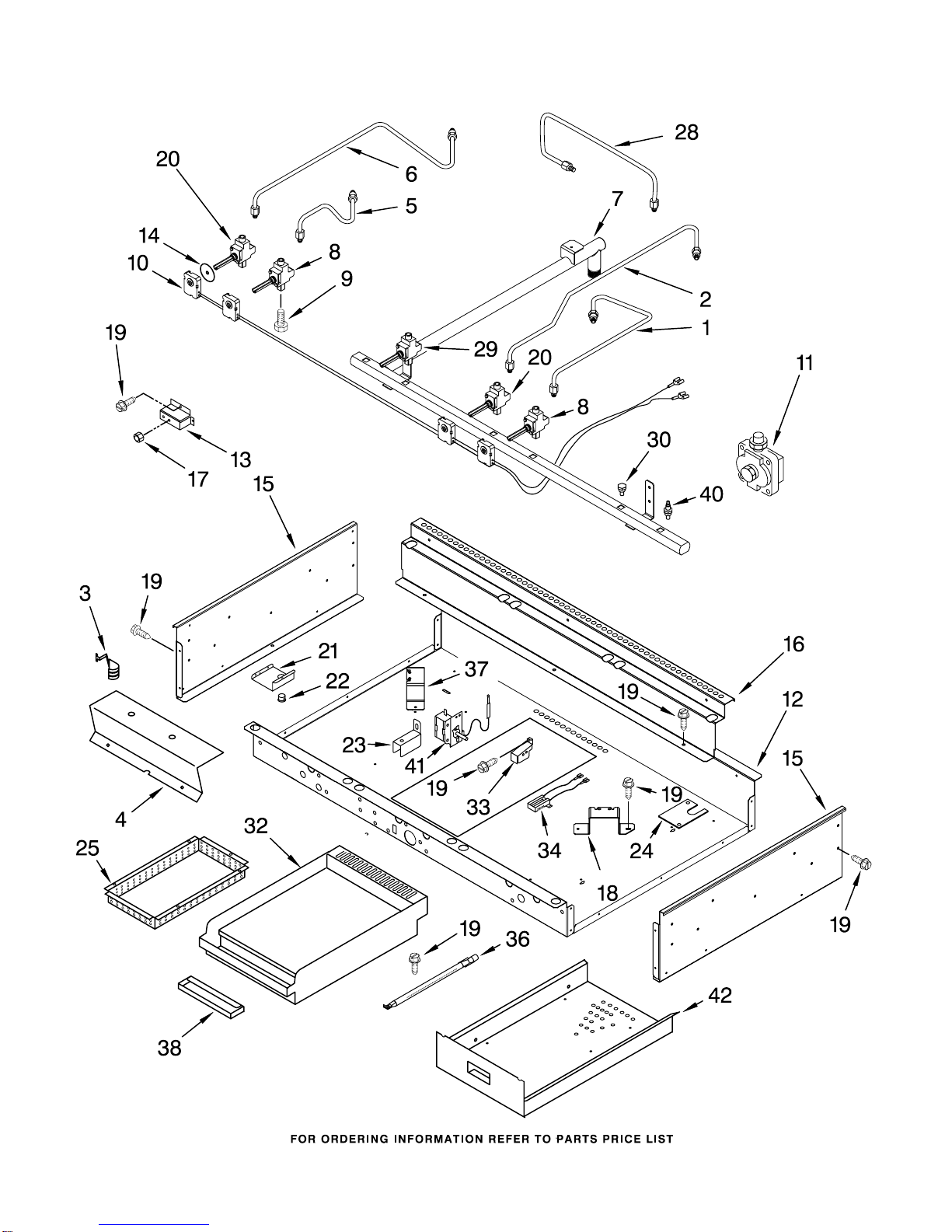

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP463KSS04

(Stainless Steel)

8186494

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 313382 Clip, Bulb

4 8284811 Bracket

5 4455153 Tubing, Gas

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284749 Manifold

(Includes Items

#9 & #30)

8 4456816 Valve, Burner

Small (Red)

9 8523704 Bolt, Valve

10 4456911 Burner Switch &

Harness Assembly

11 9759091 Regulator,Pressure

12 4457093 Burner Box

13 9760834 Bracket, Griddle

Valve

14 3191387 Seal, Switch

15 Side, Burner Box

8285607 Right Hand

8285606 Left Hand

16 9759136 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 4456818 Valve, Burner

Turbi (Bronze)

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 8285361 Cover, Panel

25 8285031 Box, Burner

Lower

28 8284975 Tube, Griddle

29 8284788 Valve, Griddle

30 8284796 Plug, Manifold

(closed)

32 8284759 Module, Griddle

33 8284800 Bracket, Ignitor

34 8284941 Ignitor, Grill

36 8285051 Log Burner,

griddle

3400805 Screw

37 8284993 Bracket, Thermo

38 8285569 Tray, Drip

40 8284804 Plug, Manifold

(open)

41 8284765 Griddle, Thermo

42 8285056 Enclosure,

Griddle

OPTIONAL PARTS

For Model: KGCP463KSS04

(Stainless Steel)

8186494

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

8285527 Power Cord

1129449 Bushing

4173634 Bushing, Electric

4456627 Harness, Wire

Jumper

4456628 Harness, Wire

Ignitor

Miscellaneous

8284782 L.P. Orifice Spud

Pack

3192439 Seal, Limiter

8537055 Cleaner, S.Steel
