COOKTOP, BURNER AND GRATE PARTS

For Models: KGCS166GSS06

(Stainless Steel)

8−05 Litho in U.S.A. (cre) Part No. 8186375

36" GAS COOKTOP

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCS166GSS06

(Stainless Steel)

8186375

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

4455834 Installation

Instructions

4456479 Use & Care Guide

3192099 Wiring Diagram

3191638 Safe Cooking Tips

9759133 Safer Cooking Tips

9759440 LP Conversion

Instructions

2 4457192 Collar, Knob

3 3193091 Seal, Foam

4 3191514 Nameplate

5 8285735 Cooktop

7 Cap

8286153BL

6K (Black)(2)

8286154BL

9K (Black)

8286155BL

12K (Black)

3192489 14K (Black)

10 9759505 Grate, Burner

11 9759513 Grate, Filler

12 3191922 Knob, Control (4)

15 Holder, Orifice

4456622 Turbi

8286179 Auxi (2)

8286180 Rapid

8286178 Semi Rapid

16 Head, Burner

8286181 (6K) (2)

4455849 (Turbi)

8286184 (9K)

8286182 (12K)

18 4449809 Screw

20 3368921 Screw

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCS166GSS06

(Stainless Steel)

8186375

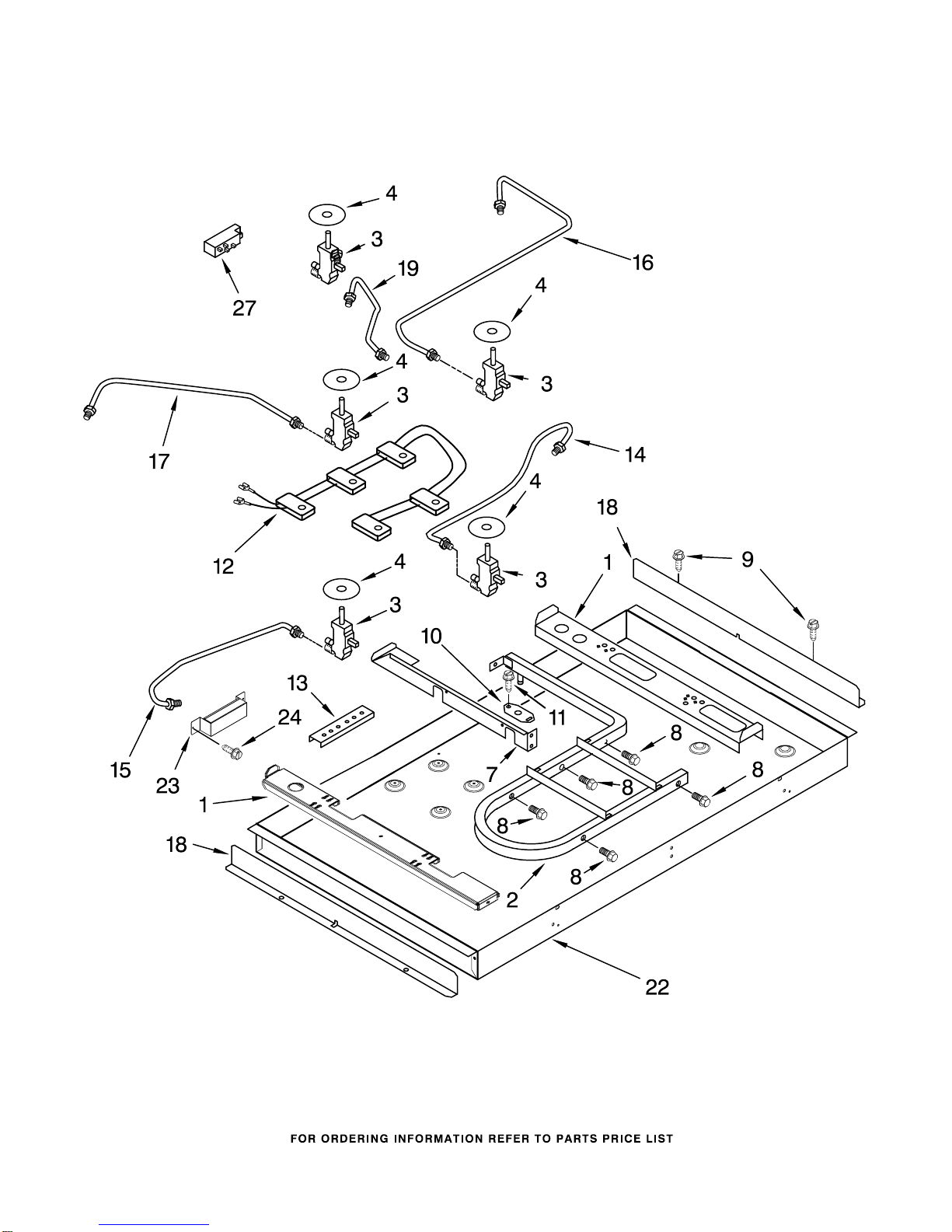

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCS166GSS06

(Stainless Steel)

8186375

Illus. Part

No. No. DESCRIPTION

1 8285796 Rail, Burner

2 8285751 Pipe, Manifold

3 Valve, Gas Burner

8286559 White (2)

4456817 Black

4456818 Bronze

8286560 Yellow

4 3191387 Seal, Shaft

7 8285791 Rail, Center

8 8523704 Bolt, Gas Valve

9 3400843 Screw

10 3192491 Bracket, Mainfold

11 3196160 Screw

12 4456901 Harness & Switches

13 4455917 Bracket, Mounting

3400093 Screw

14 8285768 Tubing, Gas

Burner (RF)

15 8285766 Tubing, Gas

Burner (LF)

16 8285767 Tubing, Gas

Burner (RR)

17 8285769 Tubing, Gas

Burner (LR)

18 3191462 Shield, Heat (2)

19 8285770 Tubing, Gas

Burner (CR)

22 8286565 Burner Box

23 8285789 Shield, Heat

24 4449809 Screw

27 8522424 Module Spark

PARTS NOT ILLUSTRATED

Illus. Part

No. No. DESCRIPTION

For Models: KGCS166GSS06

(Stainless Steel)

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3177991 Screw

9760279 Seal, Foam

Miscellaneous

4455918 Hardware, Mounting

3192741 Conversion Kit

Natural Gas To L.P.

2261590 Cleaner, S.Steel

WIRING HARNESS PARTS

4456626 Harness,

Ignitor 15" (2)

8285402 Wire, Ground

4456627 Harness,

Ignitor 28" (2)

8186375
