COOKTOP, BURNER AND GRATE PARTS

For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0

(Black) (White) (Almond)

(Biscuit)

(Stainless Steel)

36" GAS COOKTOP

10-99 Litho in U.S.A. (RS) Part No.885447 Rev.A

COOKTOP, BURNER AND GRATE PARTS

For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0

(Black) (White) (Almond)

(Biscuit)

(Stainless Steel)

885447

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cooktop

3191256 White

3191255 Black

3191257 Almond

3191295 Biscuit

3191258 Stainless Steel

2 Collar, Knob

3192165 White

3192164 Black

3192166 Almond

3192167 Biscuit

3 3191936 Seal, Foam

4 Nameplate

3191516 White

3191514 Black

3191517 Almond

3191920 Biscuit

6 Cap, (RF)(LR)

3191729 White

3191728 Black

3191730 Biscuit

3192486 Use w/Stainless

Steel Model

7 Cap, (CR)

3191732 White

3191731 Black

3191733 Biscuit

3192487 Use w/Stainless

Steel Model

8 Cap, (RR)

3191735 White

3191734 Black

3191736 Biscuit

3192488 Use w/Stainless

Steel Model

9 Cap, (LF)

3191738 White

3191737 Black

3191739 Biscuit

3192489 Use w/Stainless

Steel Model

10 Grate, Burner

3191486 White

3191485 Black

3191487 Biscuit

3192485 Use w/Stainless

Steel Model

11 Grate, Filler

3191281 White

3191280 Black

3191282 Biscuit

3192483 Use w/Stainless

Steel Model

12 Knob, Control (4)

3191923 White

3191922 Black

3191924 Almond

3191925 Biscuit

13 3192527 Ignitor

14 Orifice

3192528 RF - LR

3192523 Center

3192524 RR

3192525 LF

15 Holder, Orifice

3191740 RF - LR

3191741 LF

3191742 RR

3191743 Center

16 Head, Burner

9753109 RF - LR

9753187 LF

9753110 RR

9753111 Center

18 4449809 Screw

20 3368921 Screw

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0

(Black) (White) (Almond)

(Biscuit)

(Stainless Steel)

885447

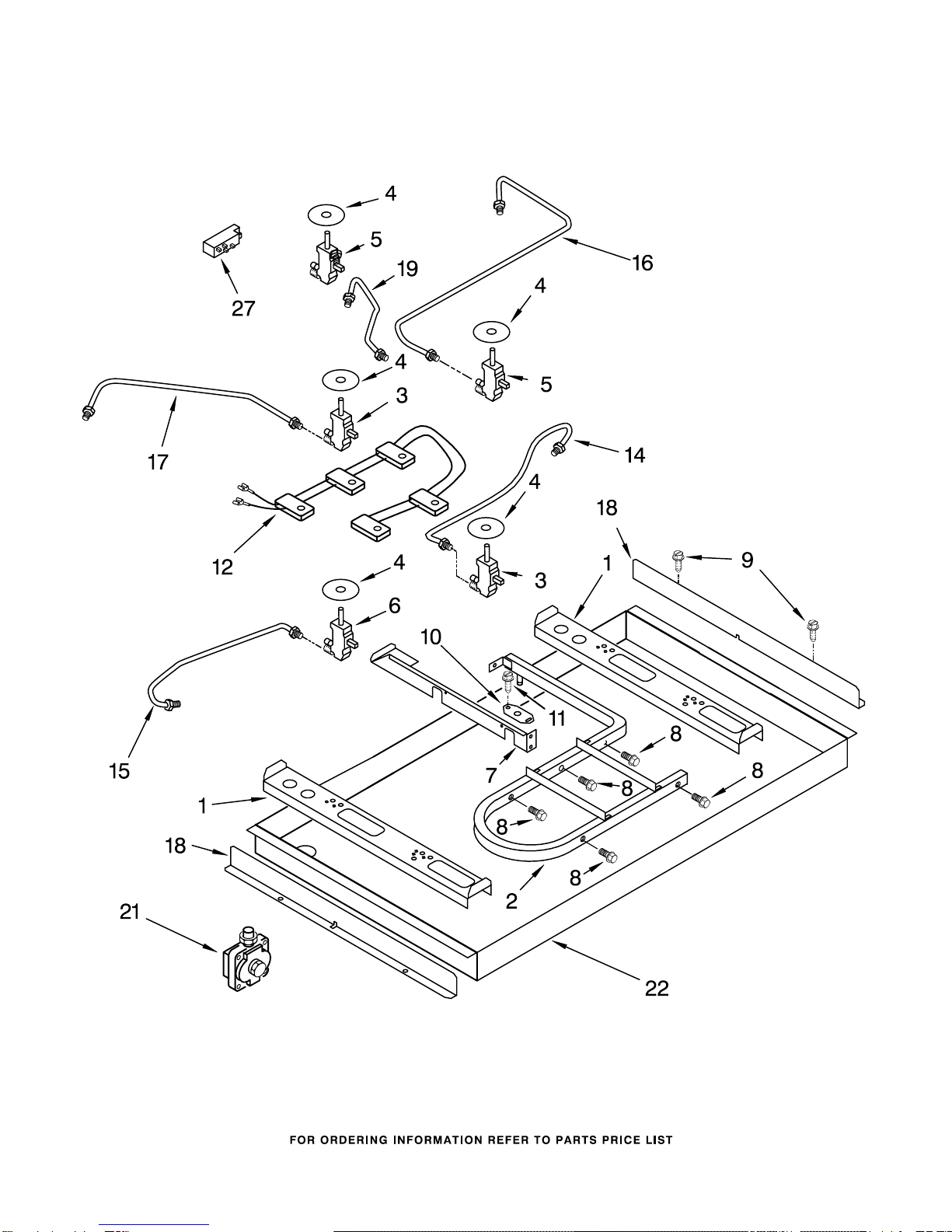

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Models: KGCS166GBL0, KGCS166GWH0, KGCS166GAL0, KGCS166GBT0, KGCS166GSS0

(Black) (White) (Almond)

(Biscuit)

(Stainless Steel)

885447

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3191557 Rail, Burner

2 3191317 Pipe, Manifold

3 3191292 Valve, Gas Burner

Burner, (RF)(LR)

4 3191387 Seal, Shaft

5 3191293 Valve, Gas Burner

(RR & CR)

6 3192157 Valve, Gas

Burner (LF)

7 3192819 Rail, Center

8 307630 Bolt, Gas Valve

9 3177991 Screw

10 3192491 Bracket, Mainfold

11 3196160 Screw

12 3191336 Harness & Switches

14 3191324 Tubing, Gas

Burner (RF)

15 3191326 Tubing, Gas

Burner (LF)

16 3191325 Tubing, Gas

Burner (RR)

17 3191327 Tubing, Gas

Burner (LR)

18 3191462 Shield, Heat (2)

19 3191332 Tubing, Gas

Burner (CR)

21 3177120 Regulator, Pressure

22 3192498 Burner Box

27 3190700 Module Spark

LITERATURE PARTS

LIT3191827

Installation

Instructions

LIT3191828

Use & Care Guide

LIT3192099

Wiring Diagram

LIT3191638

Tips-Safer Cooking

LIT3192260

LP Conversion

Instructions

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

3192231 Cord, Power

4173634 Bushing

3179557 Screw

3183401 Bracket, Mounting

4167077 Tinnerman Nut

Miscellaneous

3188310 Hardware, Mounting

3192304 Conversion Kit

Natural Gas To L.P.

WIRING HARNESS PARTS

3192229 Harness,

Ignitor 15" (2)

3191417 Wire, Ground

3192230 Harness,

Ignitor 28" (2)
