KitchenAid KUDC20FVBL - ARCHITECT Series II Manuale utente

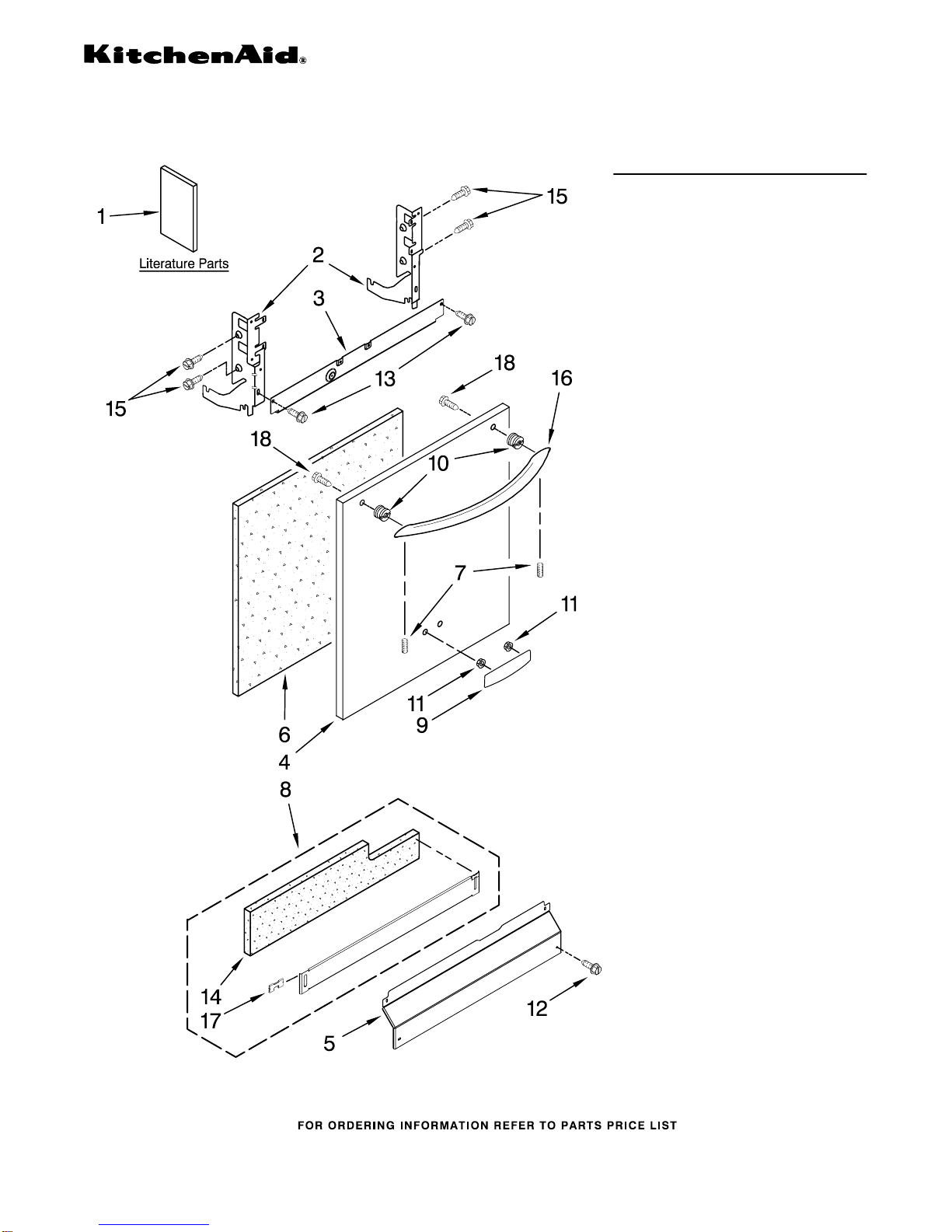

DOOR AND PANEL PARTS
1
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
11−09 LITHO IN U.S.A. (MLR)(bay) Part No. W10304967 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10056407
Instructions,
Installation
W10247452
Energy Guide
W10205938
Guide, Use & Care
Spanish
W10205937
Guide, Use & Care
English/French
W10142800
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener,
Door
4 Panel Front
(Includes Items
6, 9, 10, 11 & 18)
W10078007
Black
W10078008
White
W10137623
Stainless
5 Access Panel
8573255 Black
8573256 White
6
W10073520
Insulation, Door
7 8534008 Screw
8 Toe Panel
(Includes
Items 14 & 17)
W10205336
Black
W10205337
White
9 Nameplate
W10021860
Black
W10021870
White
W10021850
Stainless
10 8564951 Stud, Mounting
11 2004333 Nut
12 Screw
302868 Black
3400836 White
13 304392 Screw
14
W10073540
Insulation, Toe
Panel
15 3400071 Screw
16 Handle
(Includes
Items 18)
W10257146
Black
W10257147
White
W10257145
Stainless
17 8269016 Clip, Grounding
18
W10123421
Screw

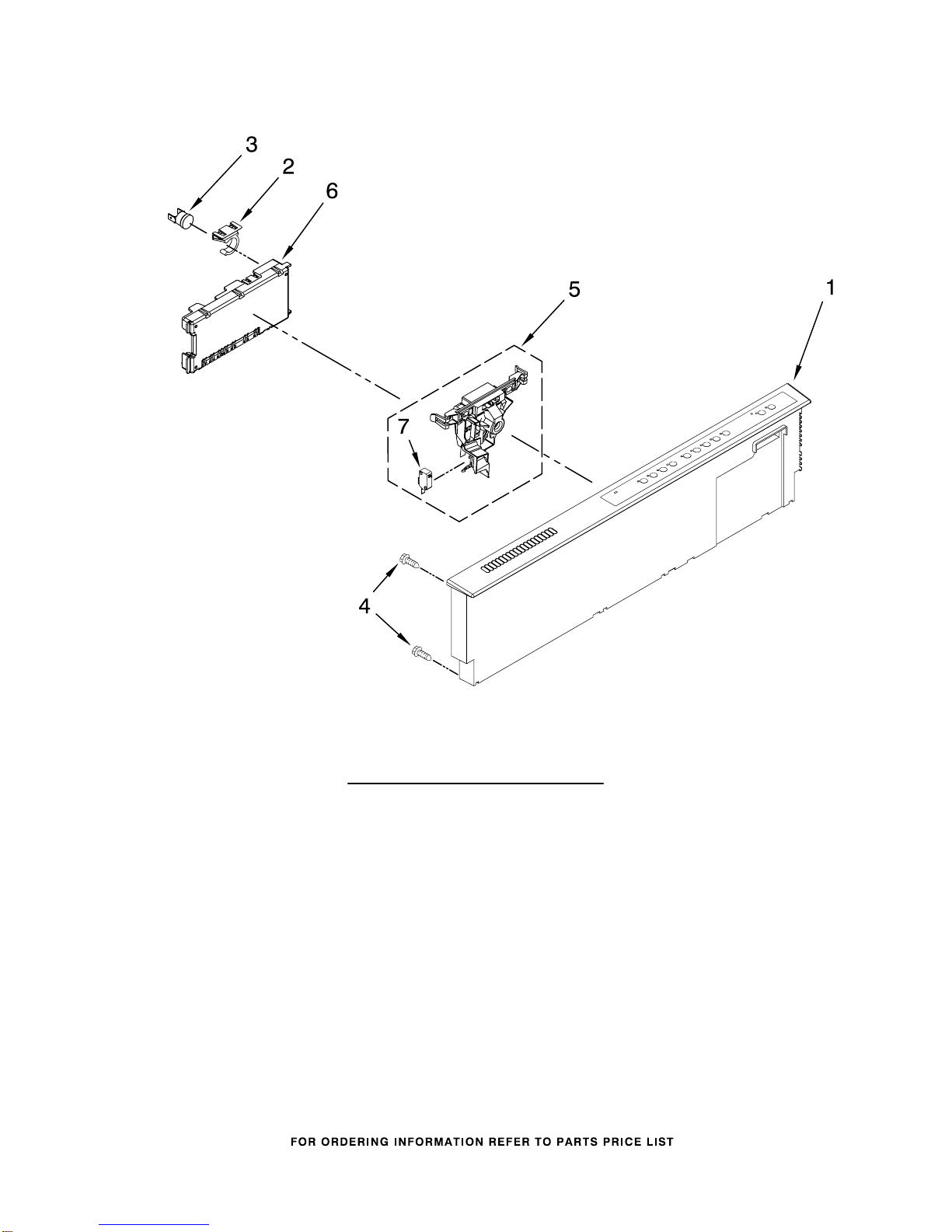

CONTROL PANEL PARTS
2
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10243236
Black
W10249985
White
W10249986
Stainless
2 8546546 Clip, Bi−Metal
3 661663 Bi−Metal
4 3369051 Screw
5
W10077360
Latch Assembly
6
W10208673
Control,
Electronic
7
W10255029
Switch, Door

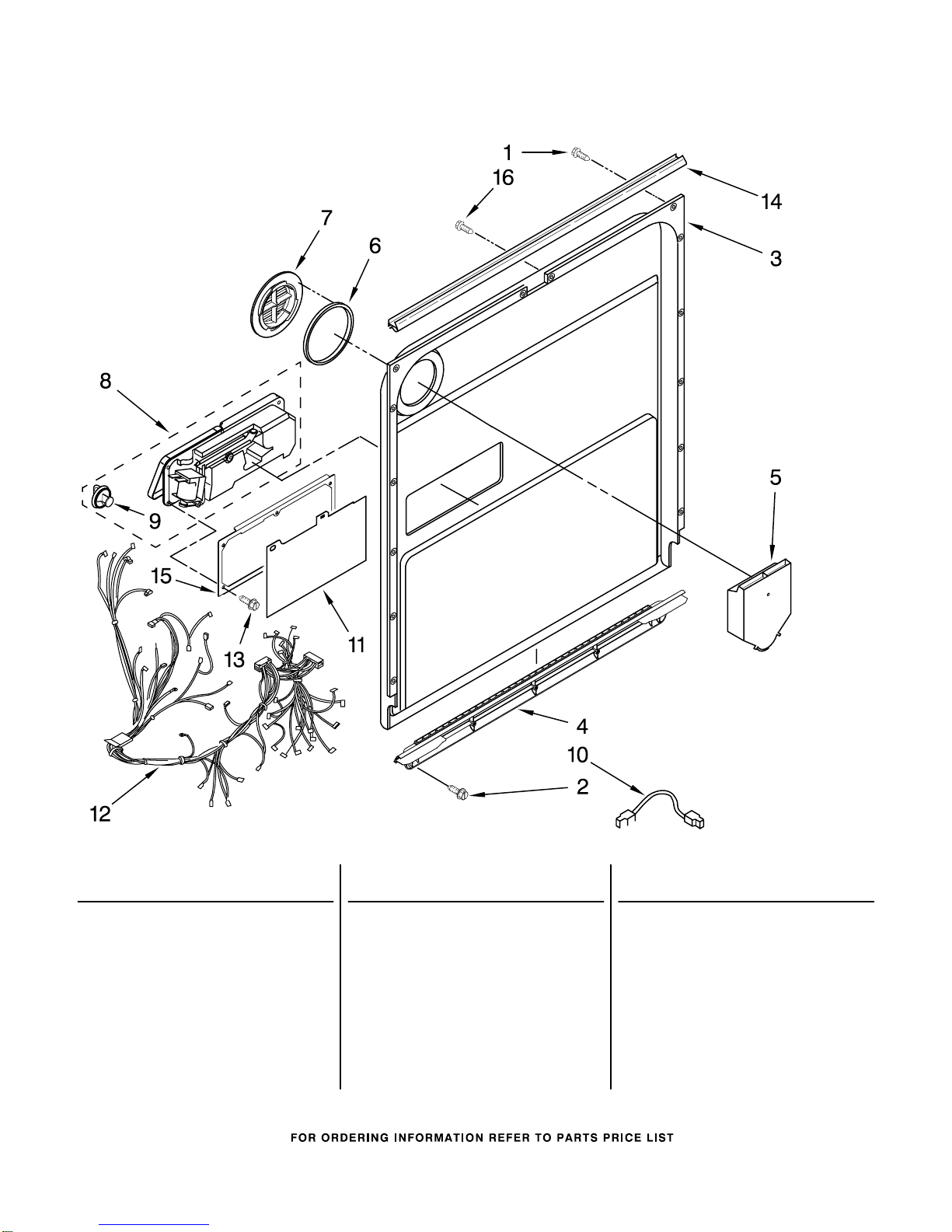

DOOR AND LATCH PARTS
3
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also OrderItem 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also OrderItem 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10224431
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11 8531865 Shield, Dispenser
12
W10224469
Wiring Harness
Main
13
W10177098
Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8533965 Screw

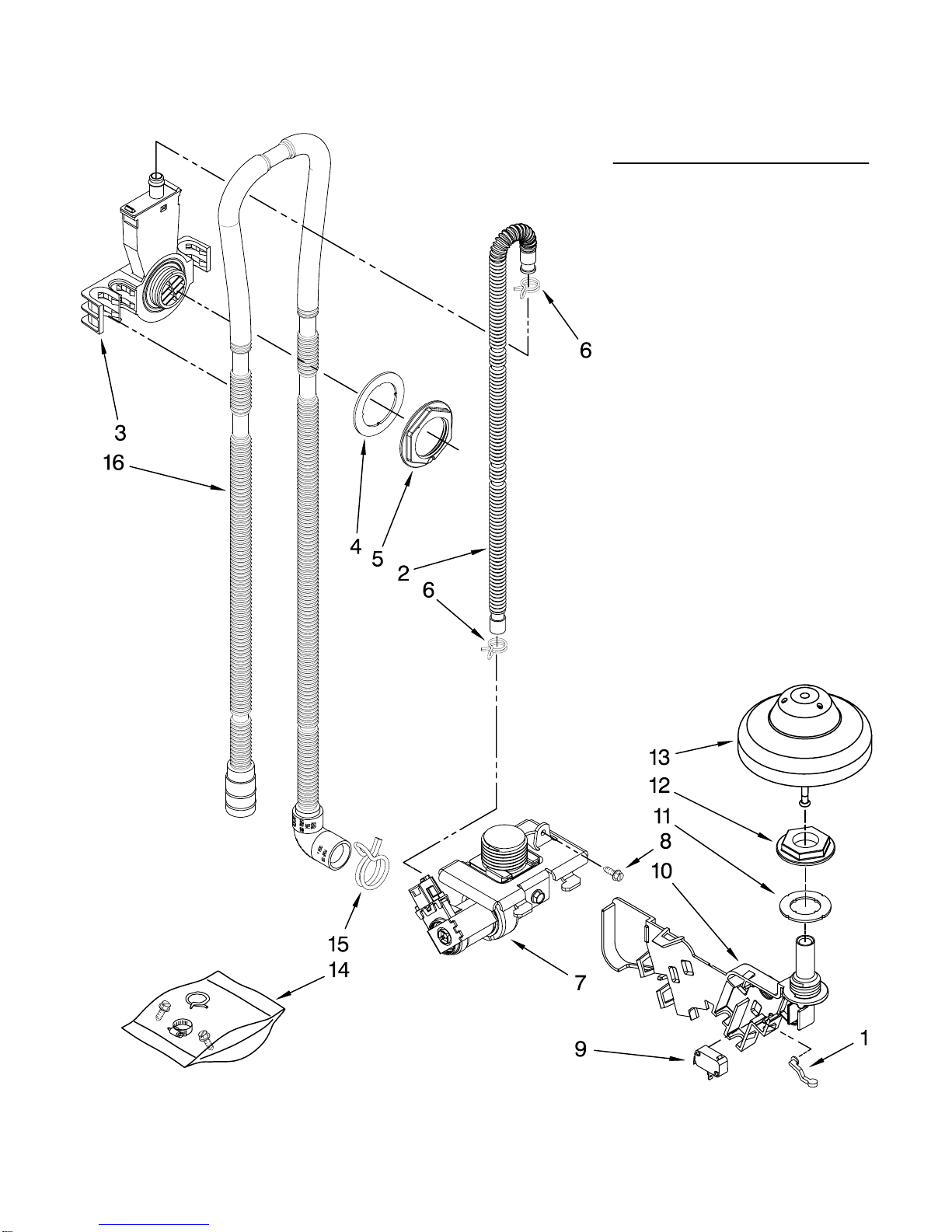

FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3
W10195536
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5
W10213826
Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10195049
Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Clamp, Hose
16
W10137608
Drain Loop
with Check Valve)

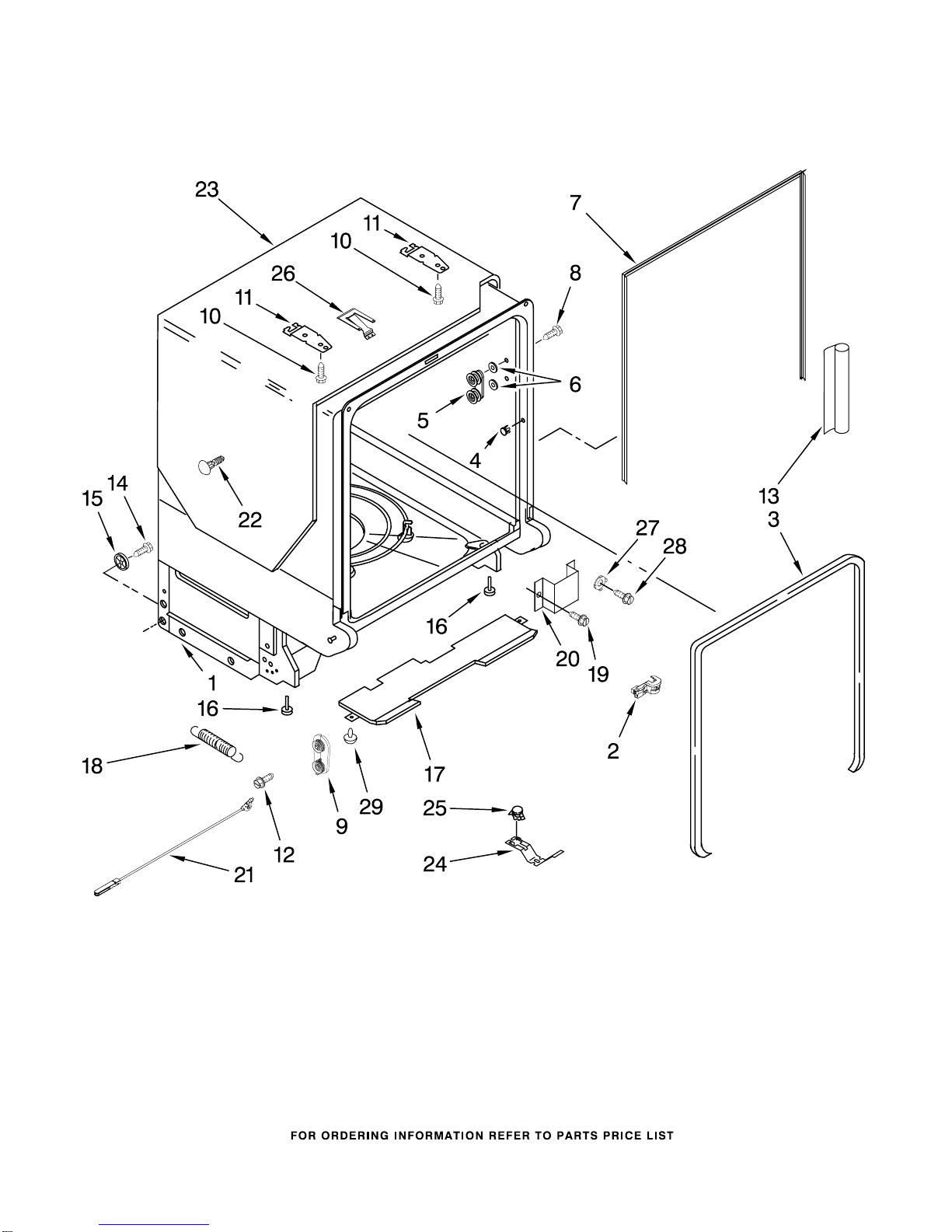

TUB AND FRAME PARTS
5
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
TUB AND FRAME PARTS
6
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION
1
W10213822
Tub Assembly
(Includes Heater
Assembly)
2 8573061 Strain Relief
3
W10112096
Door Seal
4
W10082838
Plug Tub
5
W10078083
Wheel & Mount
Assembly
(Also Order
Item 6)
6 9743002 Gasket, Bracket
Mounting
7 8269110 Seal, Cabinet
8 3400072 Screw
9
W10084086
Door Balance
Assembly
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 8574123 Barrier, Moisture
Undercounter
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17
W10266857
Insulator,
Sound
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21
W10158291
Cable, Door
Balance
22 304666 Retainer, Push
23 8573241 Shield, Sound
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26
W10077370
Strike, Latch
27 3378128 Washer,
Pronged Cup
28 3400014 Screw
29 3400924 Retainer,
Push−in

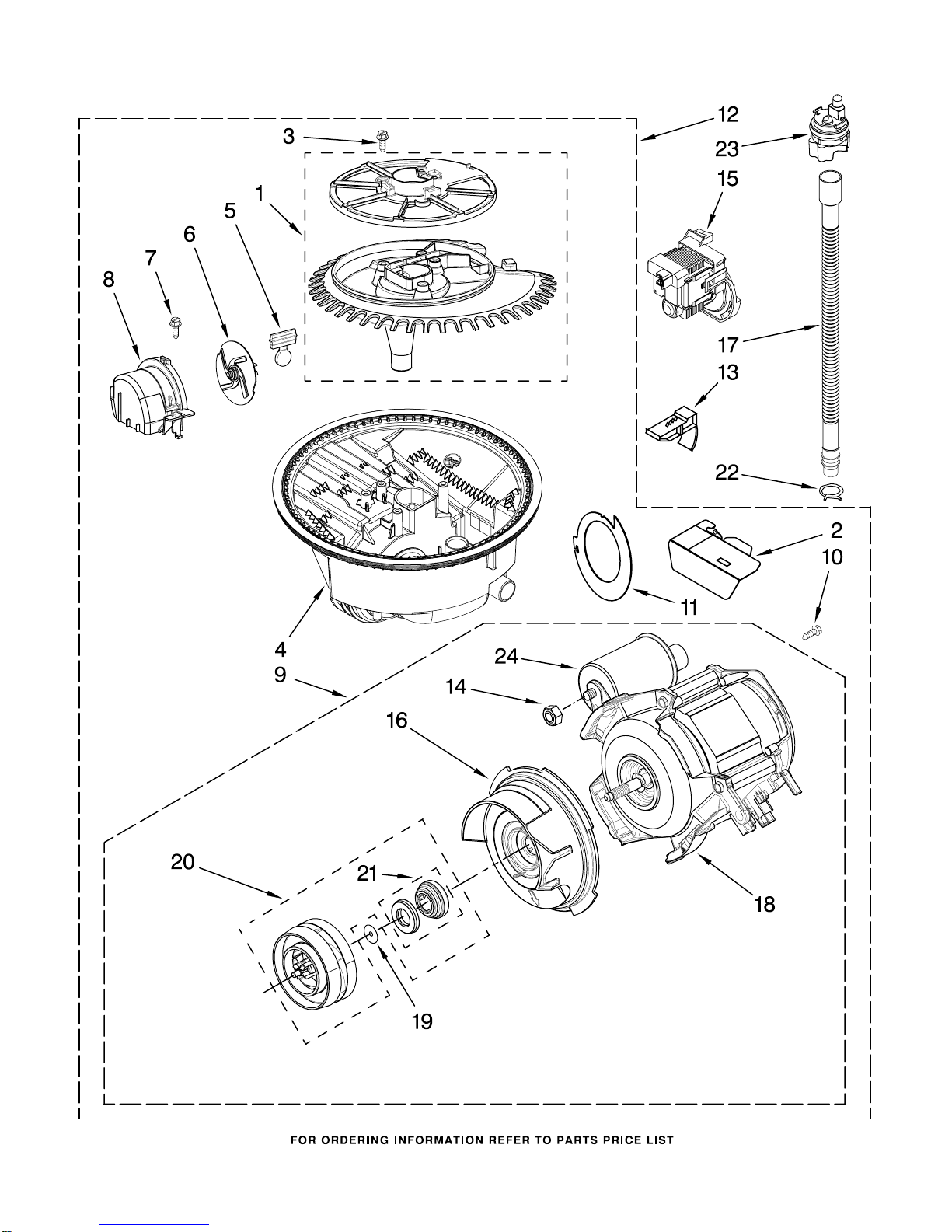

PUMP AND MOTOR PARTS
7
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
PUMP AND MOTOR PARTS
8
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield
3 3400069 Screw
4 8572618 Sump
(Includes Seal)
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9
W10239404
Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10237169
Sump & Motor
Assembly
13 8269524 Tab, Sump
14 8533949 Nut
15 8558995 Pump, Drain
16
W10142656
Volute W/Seal
(Also Order
Items 19 & 21)
17 8269144 Hose, Drain
18
W10239401
Motor
19 8531018 Washer
Also Order
Item 19)
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
(Also Order
Item 19)
22 356138 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10216724
Capacitor

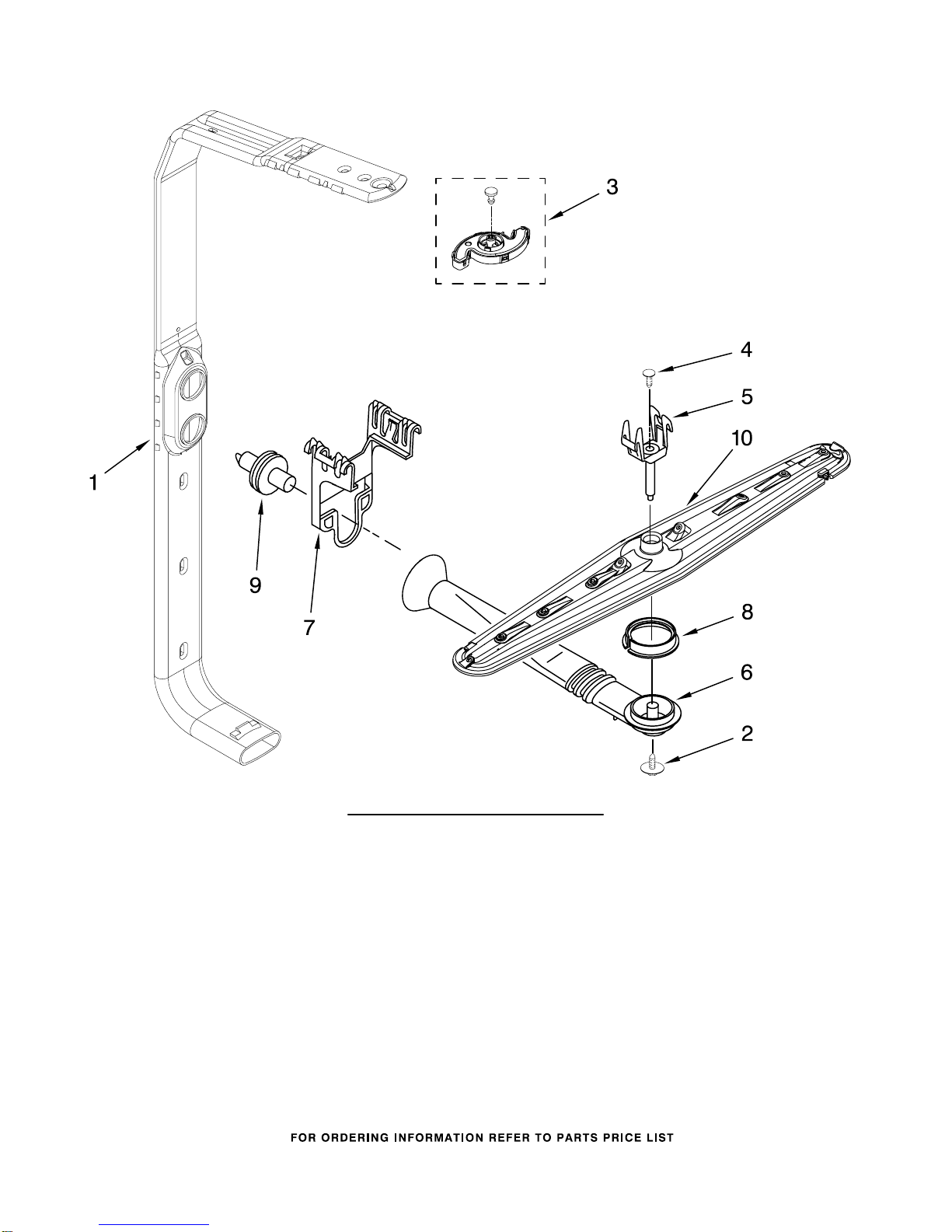

UPPER WASH AND RINSE PARTS
9
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION
1
W10077863
Feed Tube
Assembly
(Also Includes
Item 3)
2 8533889 Screw
3 8557720 Spinner, 3rd
Level
4
W10118464
Fastener, Push−In
5
W10082867
Mount
6
W10082949
Manifold
7
W10082832
Hanger
8 8268433 Seal, Sprayarm
9
W10082831
Nozzle−Feed
10
W10082841
Sprayarm

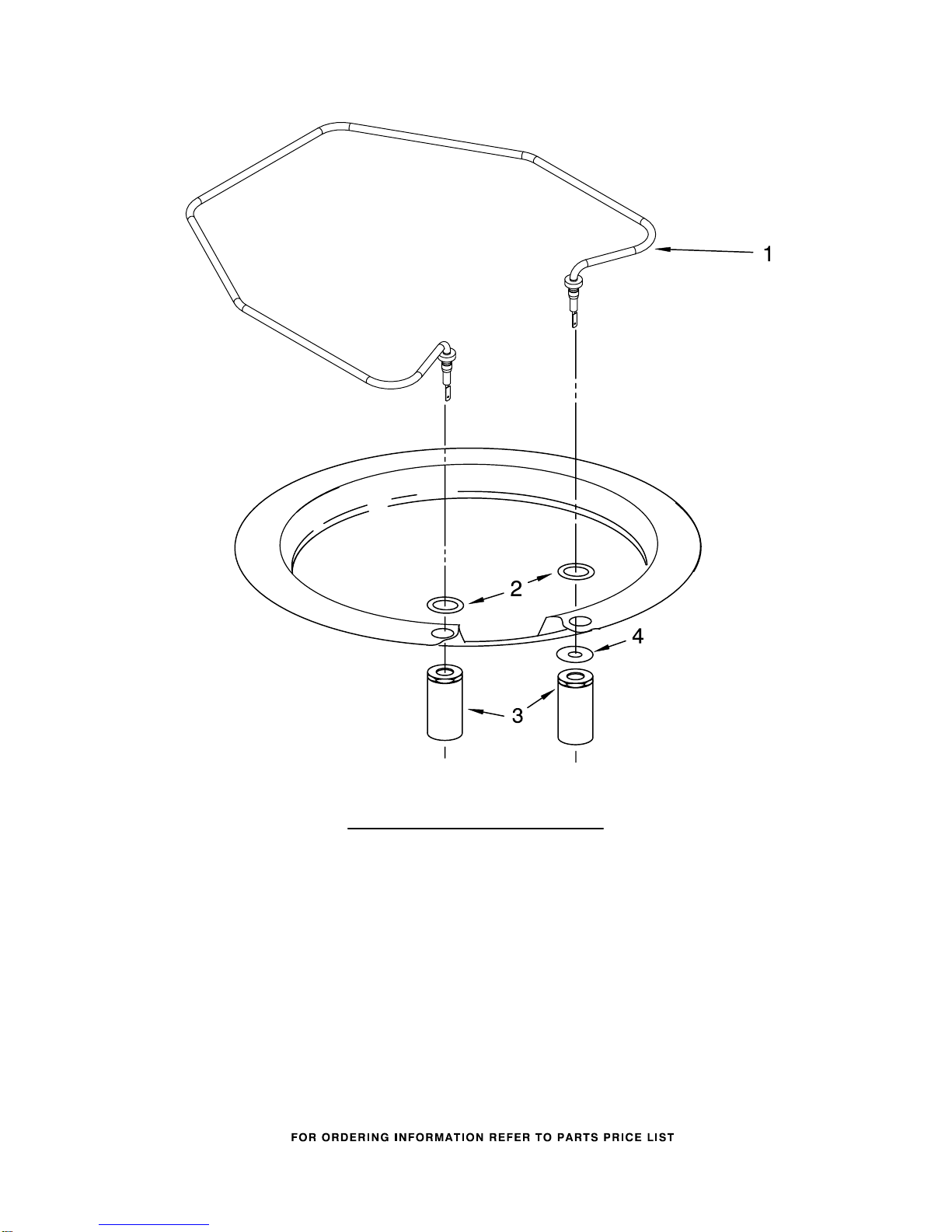

HEATER PARTS
10
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
W10304967
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
