DOOR AND PANEL PARTS

For Model: KUDS03FTPA1

(Panel Ready)

9−07 Litho in U.S.A. (els) Part No. W10161737 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10111124

Energy Guide

W10084169

D/W User

Instructions,

Spanish

W10084091

D/W User

Instructions,

Enlish/French

W10082651

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

4 8535133 Panel, Front

5 Access Panel

(Includes #14)

8558260 Black

7 8531882 Screws, Bag

Door Assembly

8 Toe Panel

(Includes 9 & 10)

8558252 Black

9 8269016 Clip, Ground

W10073550

Insulation,

Toe Panel

11 302868 Screw

12 304392 Screw

13 3400071 Screw

W10073540

Insulation,

Access Panel

CONTROL PANEL PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10084178

Black

2 8524447 Cable, Ribbon

3 8546546 Clip, BI−Metal

W10078079

User Interface

5 661663 BI−Metal

6 3369051 Screw

W10077360

Latch Assembly

W10084141

Control Assembly

W10134019

Switch, Door

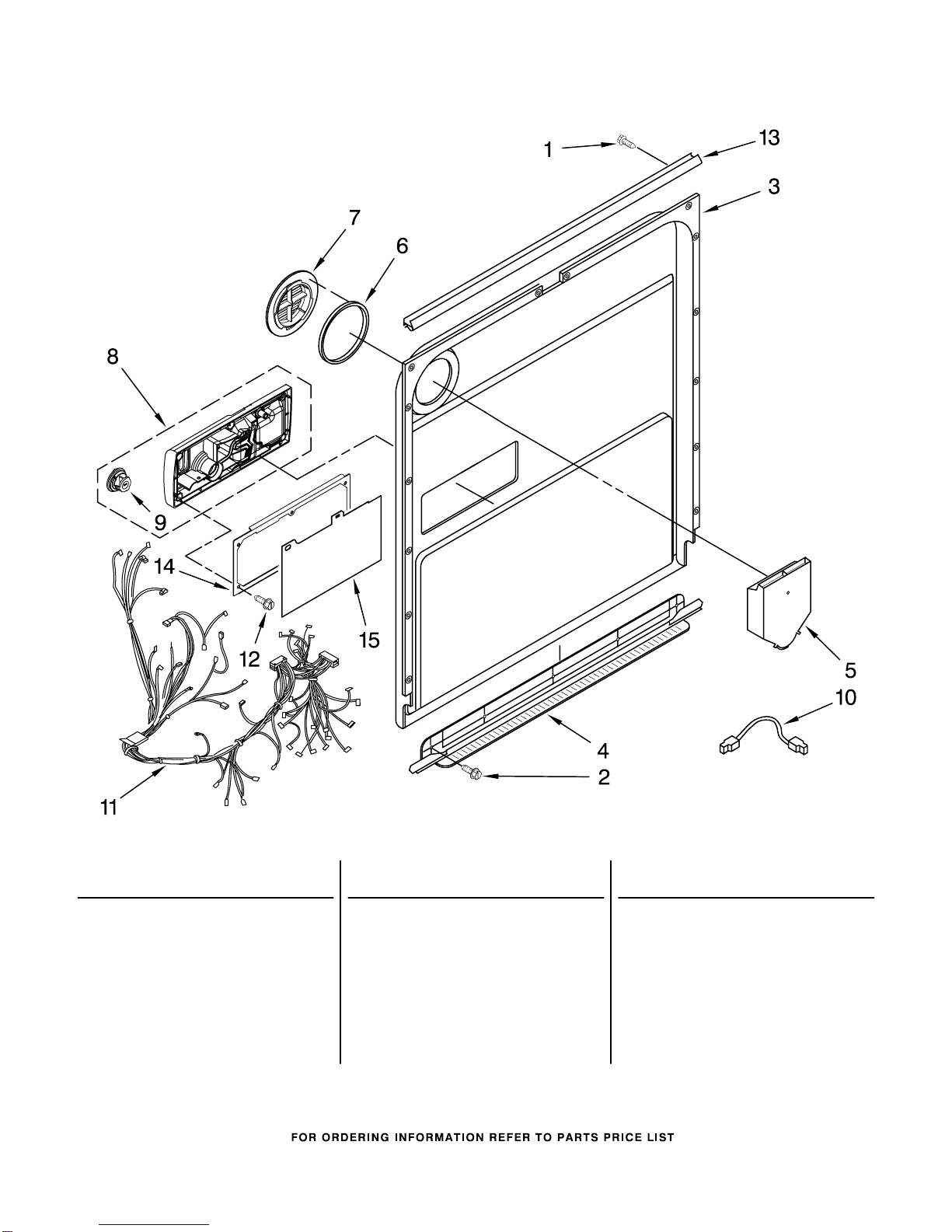

DOOR AND LATCH PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8530900 Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10077882

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10078202

Wiring Harness

12 8281154 Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

15 8531865 Shield,

Dispenser

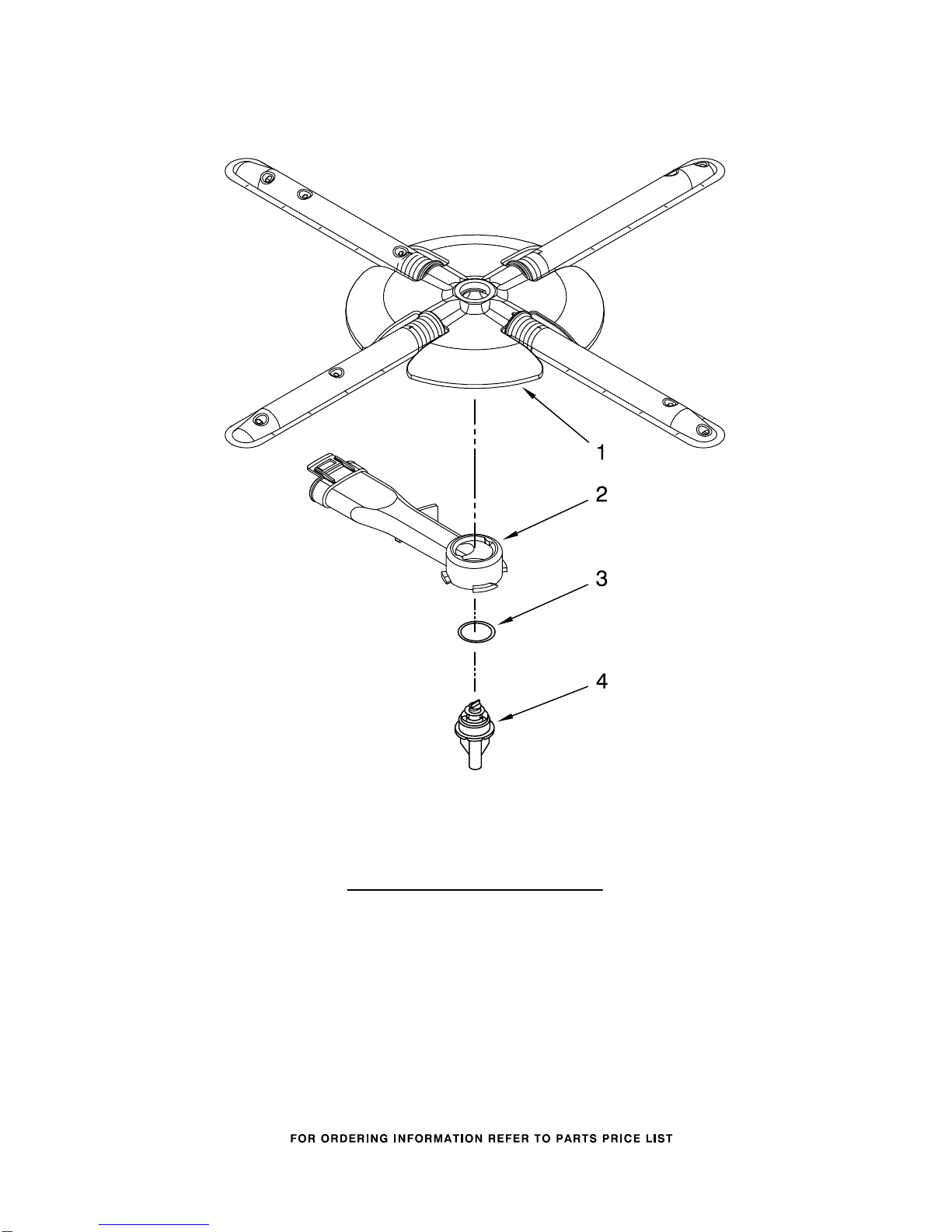

LOWER WASHARM AND STRAINER PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION

W10077965

Wash Arm Assembly

W10077899

Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

W10077898

Hub, Lower

Sprayarm

(Also Order

Item 3)

HEATER PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.

FILL, DRAIN AND OVERFILL PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Also Includes

Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Hose, Clamp

16 8531022 Drain Loop

with Check Valve

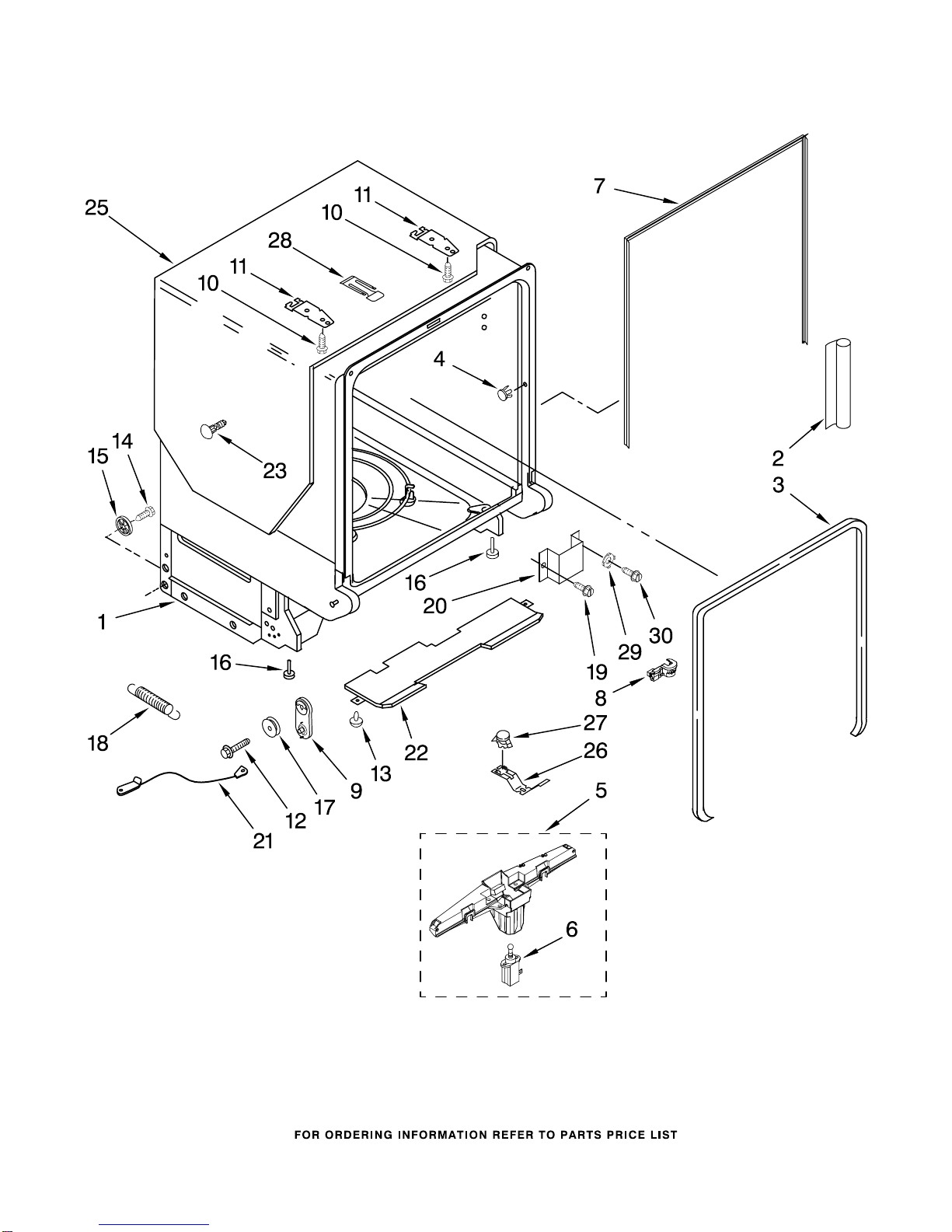

TUB AND FRAME PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

TUB AND FRAME PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION

W10053090

Tub Assembly

2 8574123 Barrier, Moisture

W10112096

Door Seal

W10082838

Plug Tub

5 8572661 Actuator Assembly

6 8559844 Motor, Wax

7 8269110 Seal, Cabinet

8 8573061 Strain Relief

9 8270021 Mount, Door

Balance

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

13 3400924 Retainer, Push−in

14 3370389 Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 8524474 Wheel, door

Balance

18 8270020 Spring, Door

Balance

19 3400892 Screw

20 8268991 Cover, Terminal

Box

21 8535568 Link, Door

Balance

22 8268582 Insulator, Sound

23 304666 Retainer, Push

25 8573239 Shield, Sound

Tub

26 9742648 Bracket,

Thermostat

27 661566 Thermostat

W10077370

Strike, Plate

29 3378128 Washer,

Pronged Cup

30 3400014 Screw

PUMP AND MOTOR PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

PUMP AND MOTOR PARTS

For Model: KUDS03FTPA1

(Panel Ready)

W10161737

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

9 8535760 Motor Assembly

10 3400217 Screw

11 8268391 Screen, Separation

W10084107

Sump & Motor

Assembly

(Includes

Item 13)

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 26)

17 8269144 Hose, Drain

18 8535759 Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 26)

22 356138 Clamp, Hose

W10082647

Optical Water

Indicator

24 8535474 Capacitor

25 8534946 Shield,

Capacitor

26 8531018 Washer
