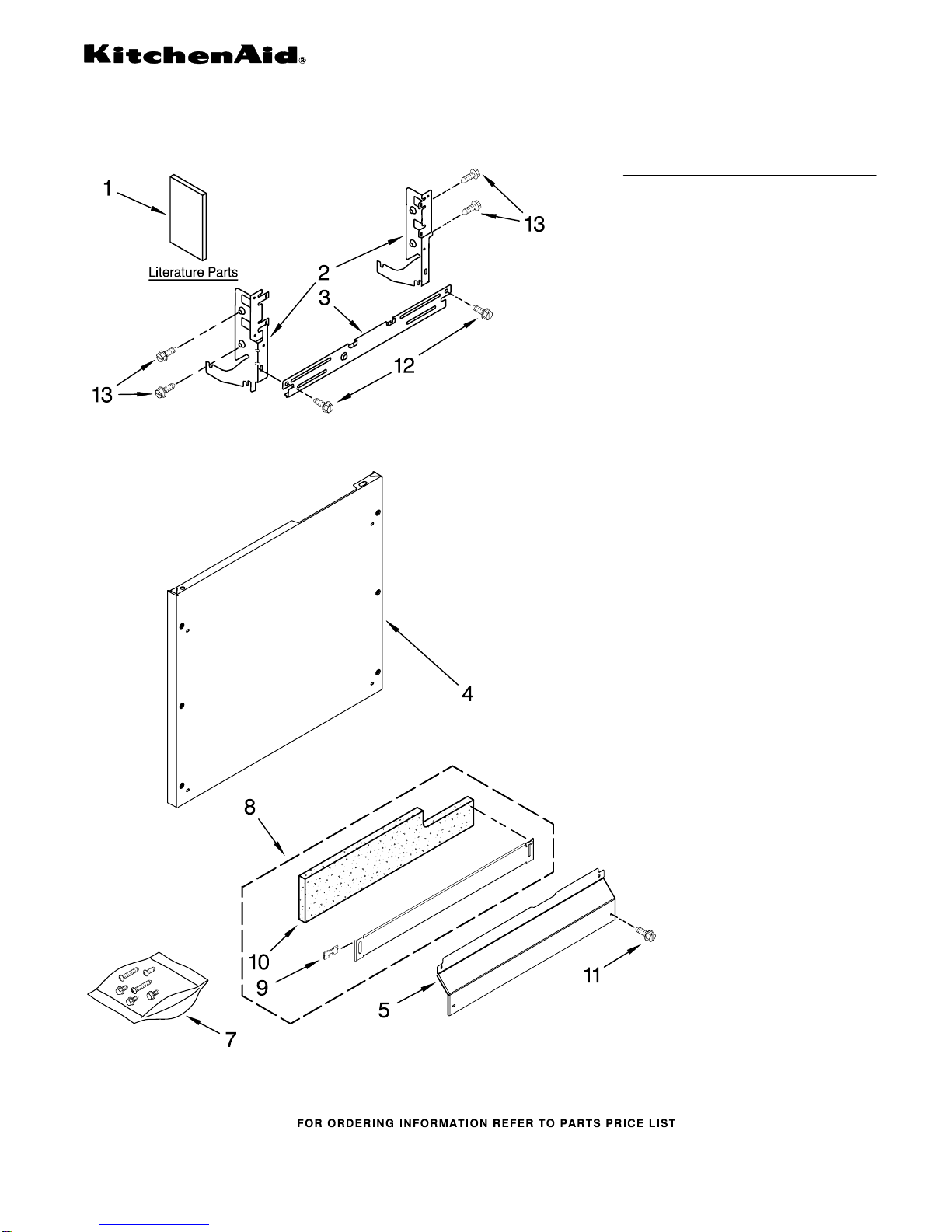

DOOR AND PANEL PARTS

(Panel Ready)

For Model: KUDS03FTPA3

05−09 Litho in U.S.A. (els)(bay) Part No. W10201545 Rev. B

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10078153

Instructions,

Installation

W10056403

Energy Guide

W10193741

Guide, Use & Care

Spanish

W10193740

Guide, Use & Care

Enlish/French

W10130990

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8268983 Stiffener, Door

4 8535133 Panel, Front

5 Access Panel

8573255 Black

7 8531882 Screws, Bag

Door Assembly

8 Toe Panel

(Includes 9 & 10)

W10205336

Black

9 8269016 Clip, Ground

W10073540

Insulation,

Toe Panel

11 302868 Screw

12 304392 Screw

13 3400071 Screw

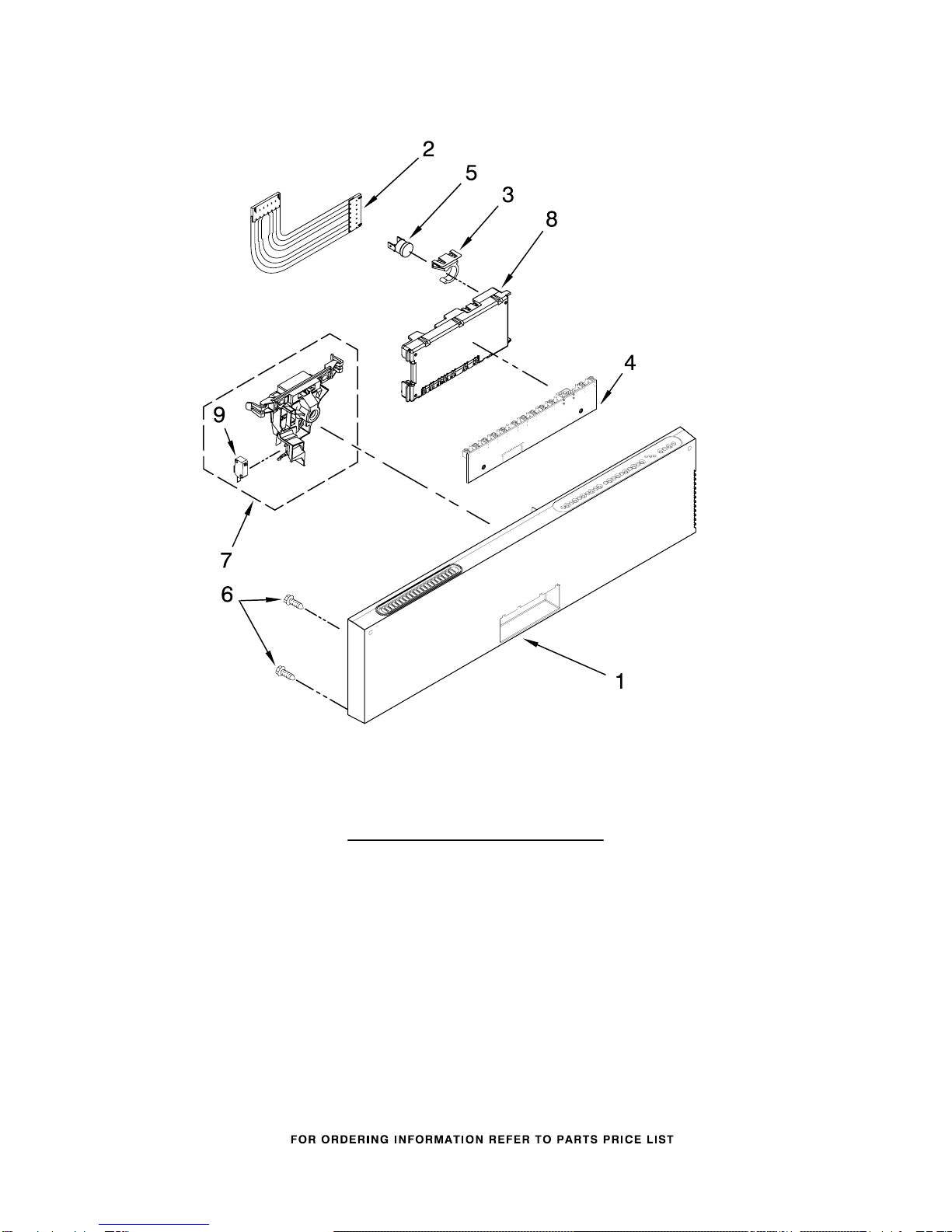

CONTROL PANEL PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10084178

Black

2 8524447 Cable, Ribbon

3 8546546 Clip, BI−Metal

W10078079

User Interface

5 661663 BI−Metal

6 3369051 Screw

W10077360

Latch Assembly

W10084141

Control Assembly

W10134019

Switch, Door

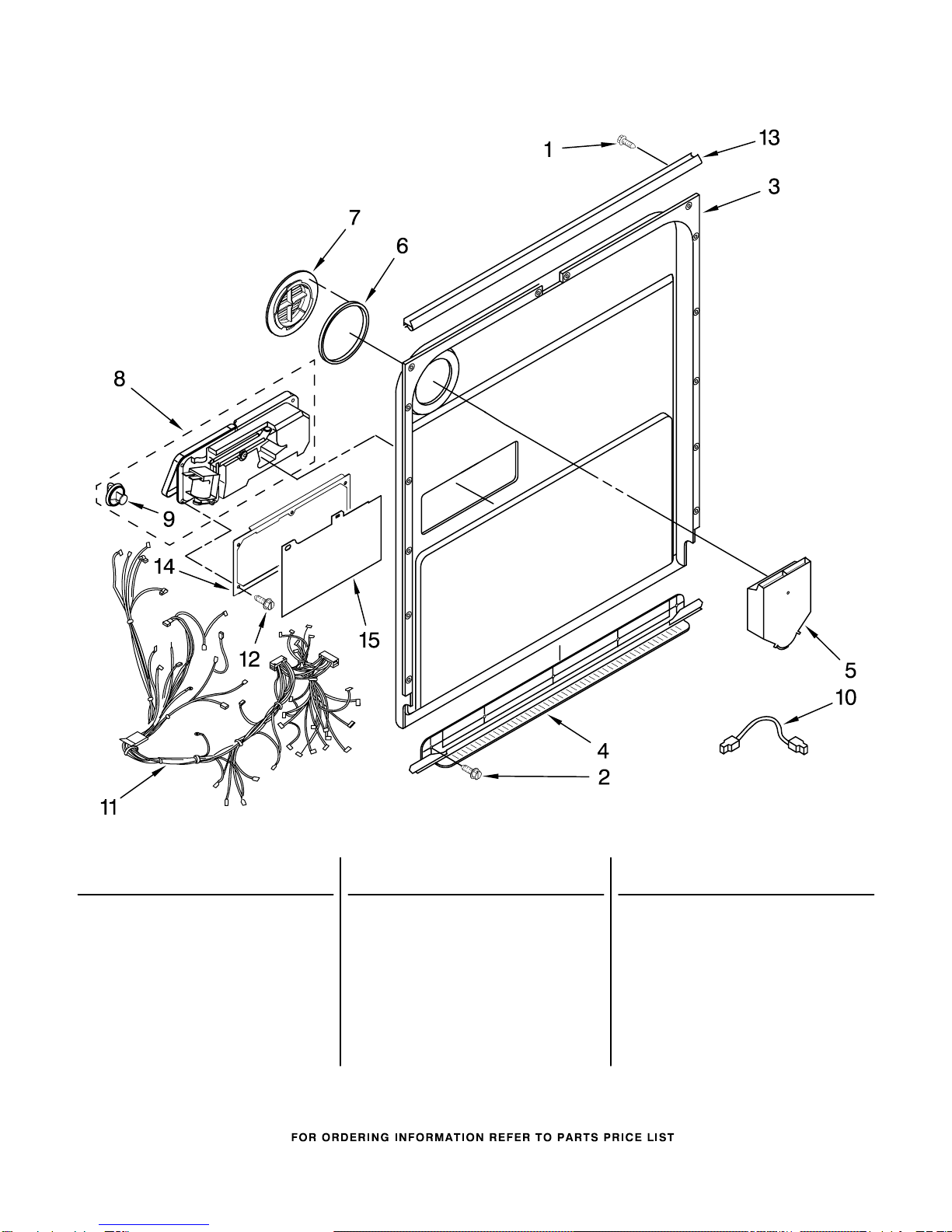

DOOR AND LATCH PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10224431

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10078202

Wiring Harness

W10177098

Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

15 8531865 Shield,

Dispenser

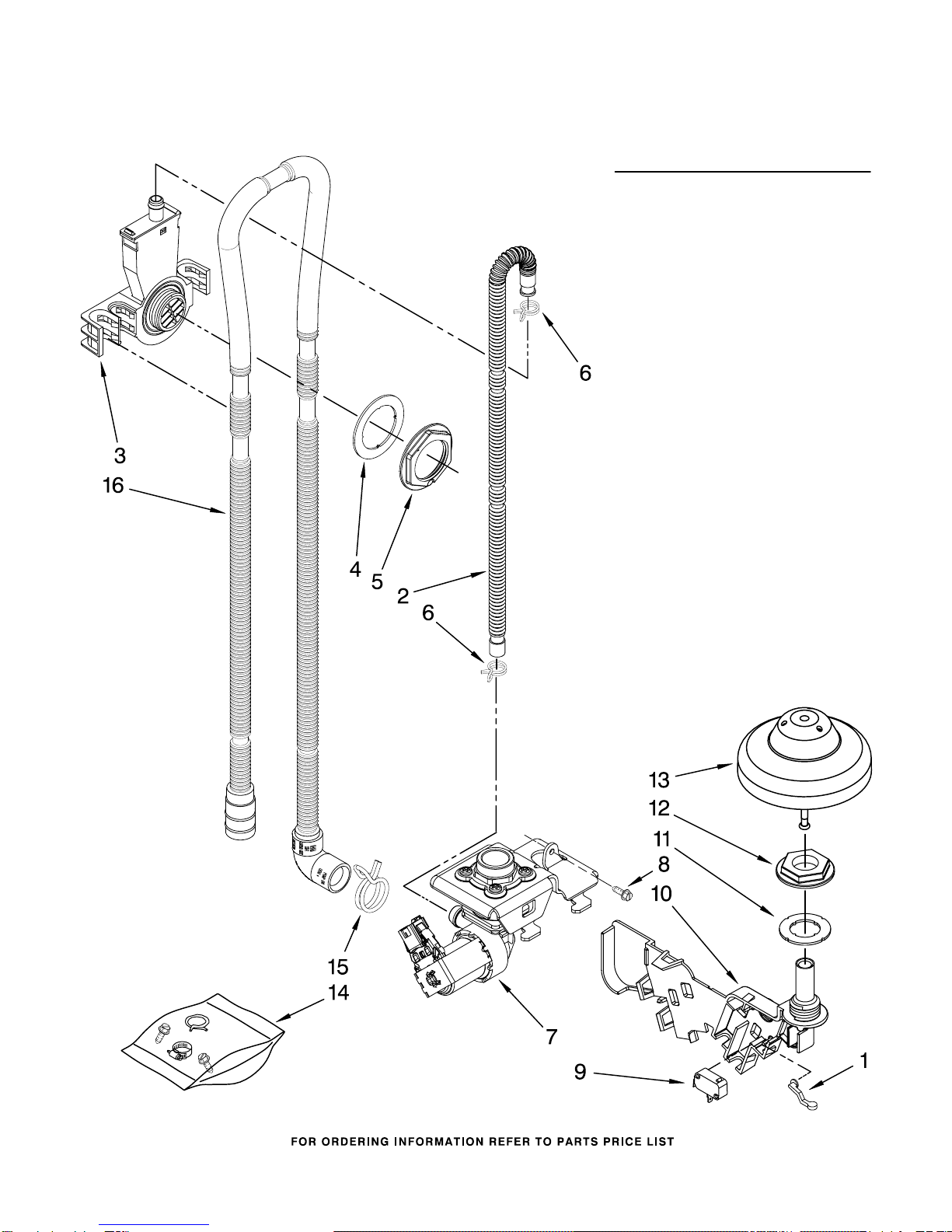

FILL, DRAIN AND OVERFILL PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8531327 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10219505

Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Also Includes

Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

15 356138 Hose, Clamp

W10137608

Drain Loop

with Check Valve

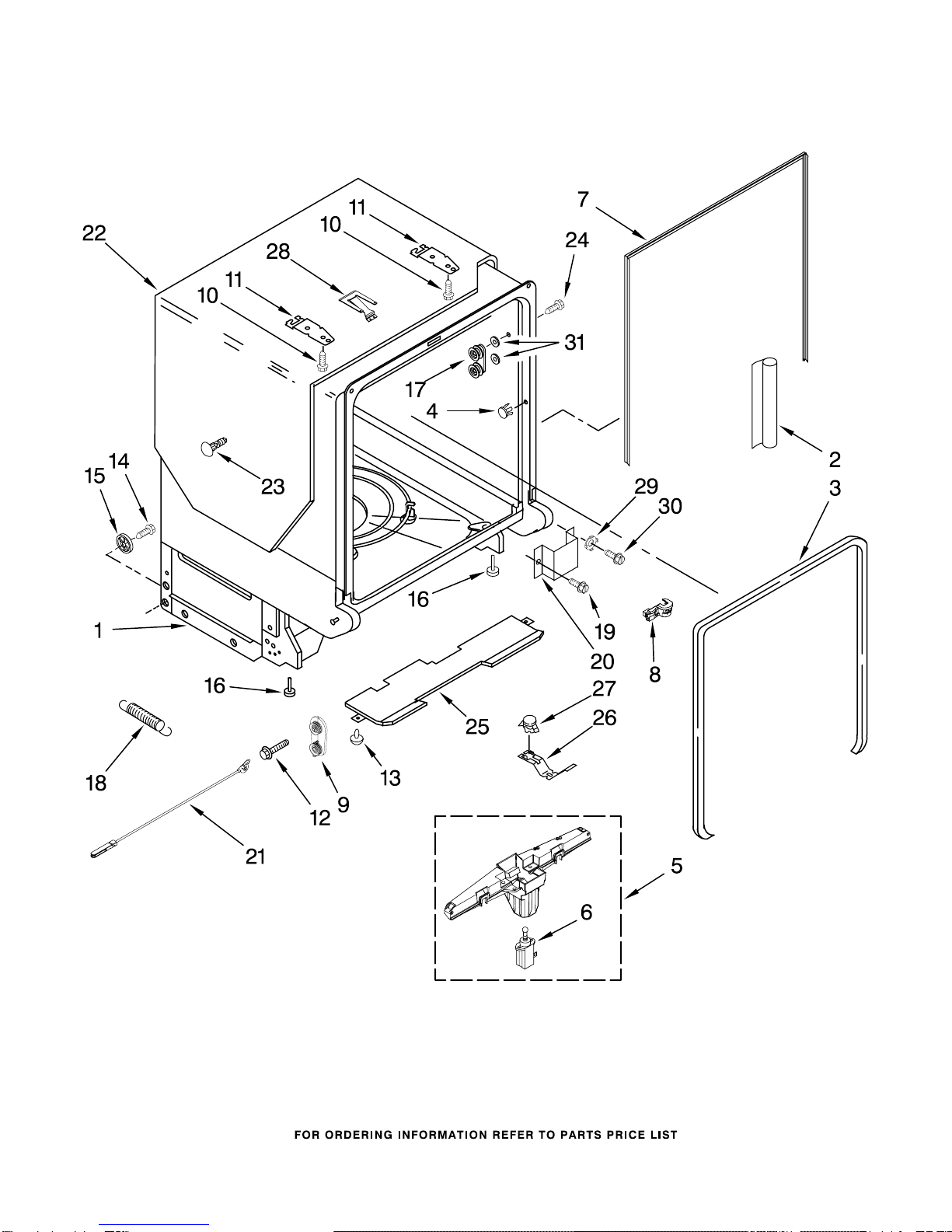

TUB AND FRAME PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

TUB AND FRAME PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION

W10164353

Tub Assembly

(Includes Heater

Assembly)

2 8574123 Barrier, Moisture

W10112096

Door Seal

W10082838

Plug Tub

5 8572661 Actuator Assembly

W10082769

Motor, Wax

7 8269110 Seal, Cabinet

8 8573061 Strain Relief

W10084086

Door, Balance

Assembly

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

13 3400924 Retainer, Push−in

14 3370389 Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

W10078083

Wheel & Mount

Assembly (Also

Order #31)

18 8270020 Spring, Door

Balance

19 3400892 Screw

20 8268991 Cover, Terminal

Box

W10158291

Cable, Door

Balance

22 8268582 Insulator, Sound

23 304666 Retainer, Push

24 3400072 Screw

25 8573239 Shield, Sound

Tub

26 9742648 Bracket,

Thermostat

27 661566 Thermostat

W10077370

Strike, Plate

29 3378128 Washer,

Pronged Cup

30 3400014 Screw

31 9743002 Gasket

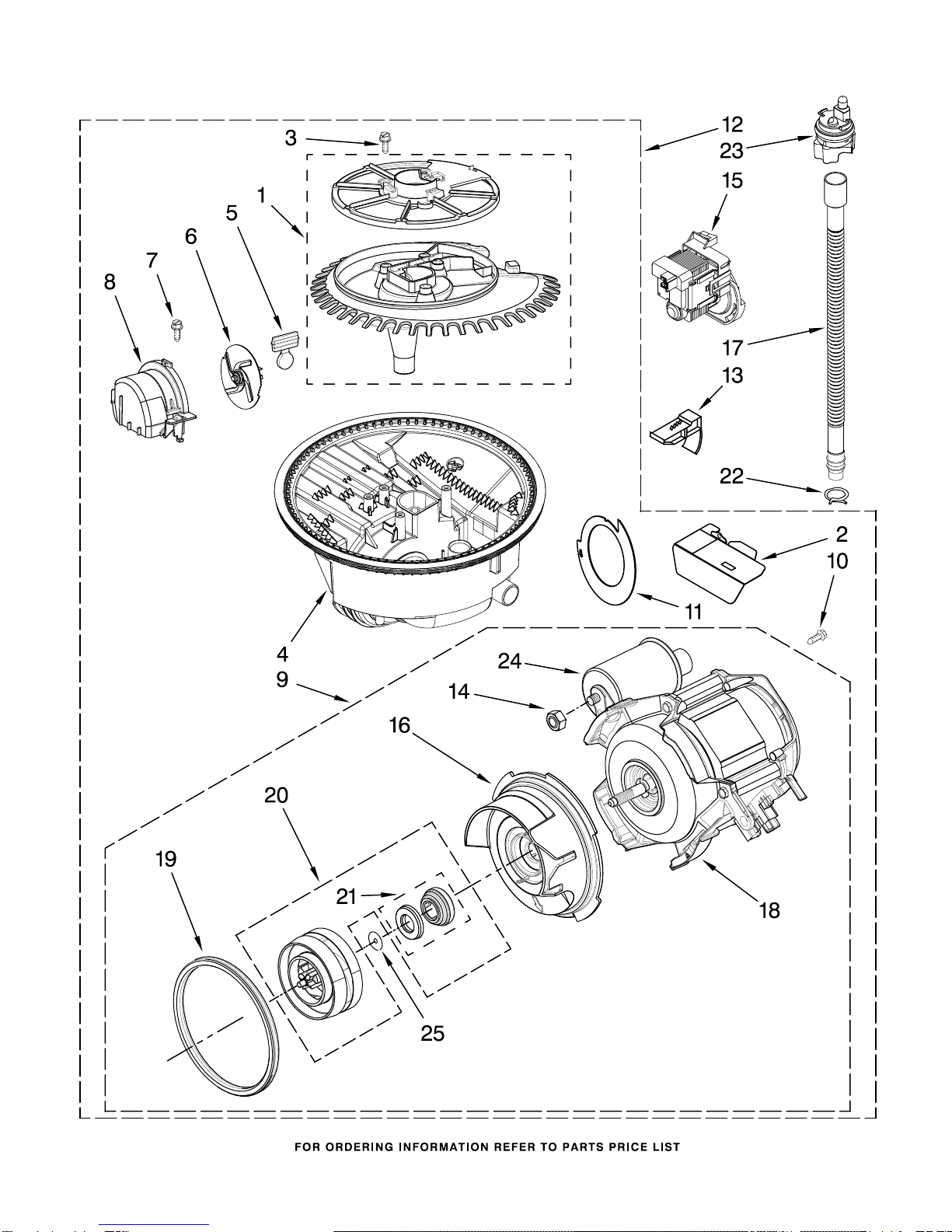

PUMP AND MOTOR PARTS

(Panel Ready)

For Model: KUDS03FTPA3

PUMP AND MOTOR PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

W10239404

Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10237169

Sump & Motor

Assembly

(Includes

Item 13)

13 8269524 Tab, Sump

14 8533949 Nut

15 661662 Pump, Drain

16 8531019 Volute, Back

(Also Order

Items 21 & 25)

17 8269144 Hose, Drain

W10239401

Motor

19 8268397 Seal, Volute

20 8531017 Impeller Kit

21 8268403 Face Seal Assembly

(Also Order

Item 25)

22 356138 Clamp, Hose

W10134017

Optical Water

Indicator

W10216724

Capacitor

25 8531018 Washer

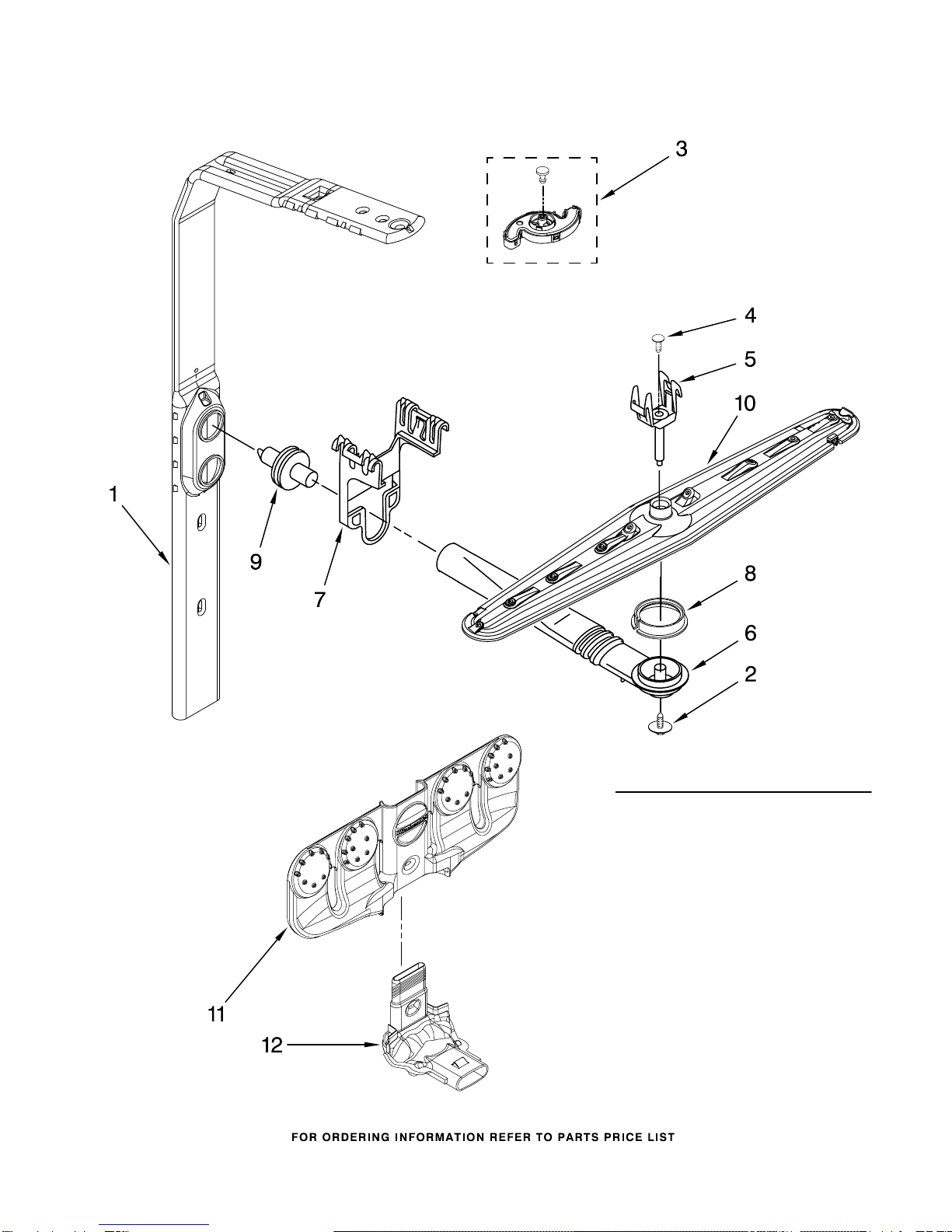

UPPER WASH AND RINSE PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION

W10077859

Feed Tube

Assembly

(Also Includes

Item 3)

2 8533889 Screw

3 8557720 Sprayarm, 3rd

Level

W10118464

Cover, Screw

W10082867

Mount

W10082949

Manifold

W10082832

Hanger

8 8268433 Seal, Sprayarm

W10082831

Probe, Manifold

W10082841

Sprayarm

W10077600

Manifold,

Turbo Zone

W10077903

Valve Assembly,

Manifold

HEATER PARTS

(Panel Ready)

For Model: KUDS03FTPA3

W10201545

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
