KitchenAid KFP0919 Manuale utente

KFP0919

W11212365A.indb 1 5/8/2018 11:22:50 AM

2 | PARTS AND FEATURES

PARTS AND FEATURES

PARTS AND ACCESSORIES

Heavy-duty

base

Power cord and

cord storage

(not shown)

Lid latch

Drive pin

Lid hinge

Handle hinge

Reversible thin

slicing/shredding disc

Drive adapter

Multipurpose

stainless steel blade

Work bowl

cover with

2-in-1 feed

tube

2-piece

food pusher

9-cup (2.1 L)

work bowl

Dough blade

Reversible medium

slicing/shredding disc

Thick slicing

disc

W11212365A.indb 2 5/8/2018 11:22:54 AM

ENGLISH

FOOD PROCESSOR SAFETY | 3

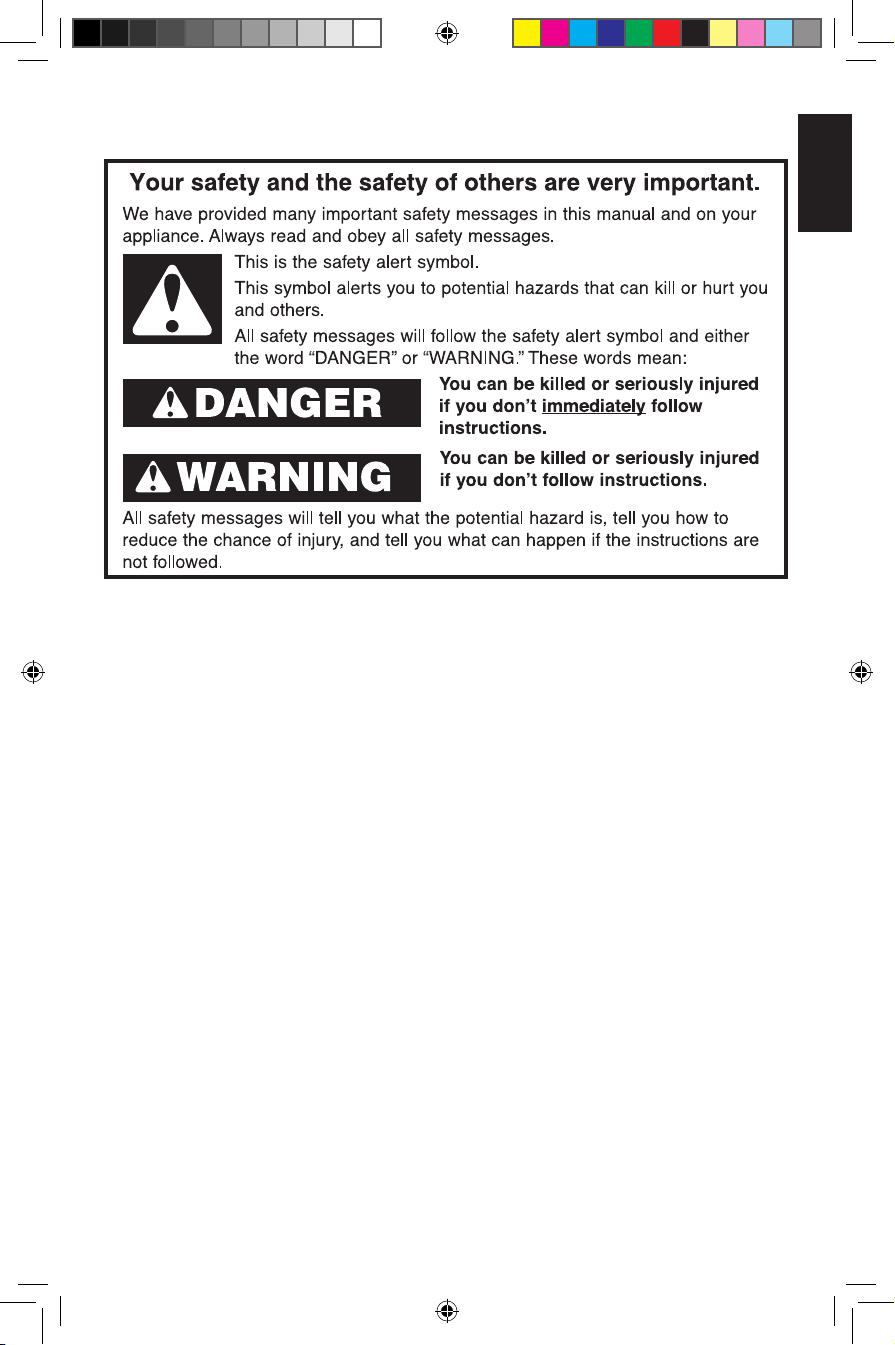

FOOD PROCESSOR SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put Food Processor in water or

other liquid.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they are closely supervised and instructed concerning use

of the appliance by a person responsible for their safety. Close supervision is

necessary when any appliance is used by or near children. Children should be

supervised to ensure that they do not play with the appliance.

4. Turn the appliance OFF, then unplug from the outlet when not in use, before

assembling or disassembling parts, and before cleaning. To unplug, grasp the

plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions, or is dropped or damaged in any manner. Return

appliance to the nearest Authorized Service Center for examination, repair, or

electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause re,

electric shock, or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

W11212365A.indb 3 5/8/2018 11:22:56 AM

4 | FOOD PROCESSOR SAFETY

FOOD PROCESSOR SAFETY

10. Keep hands and utensils away from moving blades or discs while processing

food to reduce the risk of severe injury to persons or damage to the Food

Processor. A scraper may be used, but must be used only when the Food

Processor is not running.

11. Blades are sharp. Handle carefully.

12. To reduce the risk of injury, never place cutting blade or discs on base without

rst putting bowl properly in place.

13. Be certain cover is securely locked in place before operating appliance.

14. Never feed food by hand. Always use the food pusher.

15. Do not attempt to defeat the cover interlock mechanism.

16. Do not ll the bowl above the marked maximum ll line (or rated capacity) to

avoid risk of injury due to damage to the cover or bowl.

SAVE THESE INSTRUCTIONS

ELECTRICAL REQUIREMENTS

This product is designed for household use only.

Voltage: 120 V

Frequency: 60 Hz

NOTE: This Food Processor is equipped

with a polarized plug (one blade is wider

than the other). To reduce the risk of

electrical shock, this plug will fit in a

polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse

the plug. If it still does not fit, contact a

qualified electrician. Do not modify the

plug in any way.

W11212365A.indb 4 5/8/2018 11:22:56 AM

ENGLISH

USING THE FOOD PROCESSOR | 5

USING THE FOOD PROCESSOR

ACCESSORIES SELECTION GUIDE

ACTION SETTING FOOD ACCESSORY

Chop Low or Pulse Cheese

Chocolate

Fruits

Fresh herbs

Nuts

Tofu

Vegetables

Multipurpose stainless steel blade

Mince or

Purée High or Pulse

Mix Low

Pasta Sauce

Pesto

Salsa

Sauces

Batters

Doughs

Slice

Low

Fruit (soft)

Potatoes

Tomatoes

Vegetables (soft)

Reversible slicing/shredding disc

(slicing side) OR slicing disc

High

Cheese

Chocolate

Fruits (hard)

Vegetables (hard)

Shred

(ﬁne to

medium)

Low Potatoes

Vegetables (soft) Reversible slicing/shredding disc

(shredding side)

High

Cabbage

Cheese

Chocolate

Fruits (hard)

Vegetables (hard)

Knead Pulse/High Yeast dough

Dough blade

FOR DETAILED INFORMATION ON USING THE FOOD PROCESSOR

Visit kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes,

and tips on how to use your Food Processor.

W11212365A.indb 5 5/8/2018 11:22:58 AM

6 | USING THE FOOD PROCESSOR

USING THE FOOD PROCESSOR

Before using your Food Processor for the ﬁrst time, wash all parts and accessories either

by hand or in the dishwasher (see the “Cleaning the Food Processor” section). Your Food

Processor is designed so that all accessories may be stored inside the work bowl.

BEFORE FIRST USE

ASSEMBLING THE FOOD PROCESSOR

IMPORTANT: Place the Food Processor on a dry, level counter top with the controls

facing forward. Do not plug in the Food Processor until it is completely assembled.

Place the work bowl on the base,

aligning the handle with the raised

button on the right side of the base.

The bowl will click into place and

should be flush against the base

when properly aligned.

2Place the drive adapter in the work

bowl, lowering it onto the drive pin.

Lift up the lid latch to unlock the

cover. Tilt the work bowl cover back

and lift it straight up so that the lid

hinge pulls out of the handle hinge.

2Remove all parts and accessories

from the work bowl, and lift the food

pusher out of the feed tube.

W11212365A.indb 6 5/8/2018 11:23:01 AM

ENGLISH

USING THE FOOD PROCESSOR | 7

USING THE FOOD PROCESSOR

NOTE: For ease of assembly, install the desired blade or disc before attaching

the work bowl cover.

NOTE: Your Food Processor will not

operate unless the work bowl cover is

fully closed and the work bowl is properly

seated on the base.

3To attach the work bowl cover, hook

the lid hinge into the handle hinge on

the work bowl and close the cover. 4Once the work bowl cover is closed,

push the lid hinge down into the

locked position.

INSTALLING THE MULTIPURPOSE BLADE OR DOUGH BLADE

1Place the blade on the drive adapter.

Rotate the blade so it falls down to

the base of the adapter. 2Install the work bowl cover, and be

sure the lid latch is pushed down to

the locked position.

W11212365A.indb 7 5/8/2018 11:23:02 AM

8 | USING THE FOOD PROCESSOR

USING THE FOOD PROCESSOR

INSTALLING THE REVERSIBLE SLICING/SHREDDING DISC OR

SLICING DISC

To slice: Turn the disc so that the

raised slicing blade is facing up.

To shred: Turn the disc so that the

small, raised shredding blades are

facing up.

The disc can be placed in two different

positions: level with the top of the bowl

for processing, and lower, inside of the

bowl for storage.

NOTE: While the disc will operate

in the storage position, it will not

perform as well. Make sure the disc is

level with the top of the bowl for best

performance.

Hold the disc by its center hub and

lower it onto the drive adapter,

aligning the mark on the center hub

of the disc to the matching mark on

the adapter. When properly placed,

the disc should be level with the top

of the bowl. If the disc falls to the

storage position, lift it out, turn it 90°,

and lower it again.

3Install the work bowl cover, and be

sure the lid latch is pushed down to

the locked position.

Process

Storage

Alignment

marks

W11212365A.indb 8 5/8/2018 11:23:04 AM

ENGLISH

USING THE FOOD PROCESSOR | 9

OPERATING THE FOOD PROCESSOR

Before operating the Food Processor, be

sure the work bowl, blades, and work bowl

cover are properly assembled on the base

(see the “Assembling the Food Processor”

section).

Rotating Blade Hazard

Always use food pusher.

Keep ngers out of openings.

Keep away from children.

Failure to do so can result in

amputation or cuts.

USING THE FOOD PROCESSOR

To turn on, press Low or High. The

Food Processor will run continuously

and the indicator light will glow.

To turn off, press Low or High again,

or press Off/Pulse.

To use the Pulse function:

Press Off/Pulse for short bursts,

or press and hold for longer bursts.

The Pulse function runs at high

speed only. The Food Processor will

turn off when the Off/Pulse button

is released.

3When finished, press Off/Pulse. The

indicator light will go out and the

blade or disc will slow to a stop. 4

Wait until the blade or disc comes to

a complete stop before removing the

work bowl cover. Be sure to turn off

the Food Processor before removing

the work bowl cover, or before

unplugging the Food Processor.

W11212365A.indb 9 5/8/2018 11:23:05 AM

10 | USING THE FOOD PROCESSOR

USING THE FOOD PROCESSOR

The 2-in-1 feed tube features a 2-piece

food pusher. To slice or shred small items,

insert the 2-piece food pusher into the

feed tube.

Use the small feed tube and pusher to

process small or slender items, like single

carrots or celery stalks.

To slowly drizzle oil into ingredients, just ﬁll

the small pusher with the desired amount

2-piece

food

pusher

1Turn the Food Processor off: Press

Off/Pulse and unplug the Food

Processor before disassembling. 2Lift the lid latch to unlock the work

bowl cover, then lift cover to remove.

REMOVING PROCESSED FOODS

3If using a disc, remove it before

removing the bowl. Holding the disc

by the center hub, lift it straight up. 4

Remove the drive adapter and

multipurpose blade, if using. The blade

will stay in place on the drive adapter

when you remove the adapter.

5Lift the work bowl off of the base to remove

food from the bowl with a spatula.

of oil. A small hole in the bottom of the

pusher will drizzle the oil at a constant rate.

W11212365A.indb 10 5/8/2018 11:23:07 AM

Altri manuali per KFP0919

Indice

Lingue:

Altri manuali KitchenAid Robot da cucina

KitchenAid

KitchenAid KFC3516 Manuale del proprietario

KitchenAid

KitchenAid KFPW763OB Manuale utente

KitchenAid

KitchenAid 5KFP0921E Manuale utente

KitchenAid

KitchenAid KFP710 Guida rapida

KitchenAid

KitchenAid 5KFP1644 Manuale utente

KitchenAid

KitchenAid KFPW760 Manuale utente

KitchenAid

KitchenAid KFP1133OB Manuale utente

KitchenAid

KitchenAid KFP1333 Manuale utente

KitchenAid

KitchenAid 5KFPM771 Guida rapida

KitchenAid

KitchenAid KFP600 - Ultra Power Food Processor Manuale utente

KitchenAid

KitchenAid KFP0922 Manuale utente

KitchenAid

KitchenAid 5KFP13FF Manuale utente

KitchenAid

KitchenAid 9KFC0516 Manuale utente

KitchenAid

KitchenAid KJA09 Manuale utente

KitchenAid

KitchenAid 4KFPM770 Guida rapida

KitchenAid

KitchenAid 5KFP0719 Manuale utente

KitchenAid

KitchenAid KFPM650 Guida rapida

KitchenAid

KitchenAid 4KFP740WH1 Manuale utente

KitchenAid

KitchenAid 5KFP1335 Manuale utente

KitchenAid

KitchenAid Chef's Chopper KFC3100 Manuale utente

KitchenAid

KitchenAid 5KFP0919EOB Manuale utente

KitchenAid

KitchenAid KSM12FPA Manuale utente

KitchenAid

KitchenAid 5KFP1333 Manuale utente

KitchenAid

KitchenAid 5FVSP Guida rapida

Manuali Robot da cucina popolari di altre marche

INNOLIVING

INNOLIVING INN-727 Manuale utente

Berkel

Berkel C32 Manuale utente

Beko

Beko CHP5554W Manuale utente

QUIGG

QUIGG KM 2017Wi.20 Manuale utente

Lakeland

Lakeland PRESS AND CHOP 31557 Manuale utente

Bosch

Bosch MMR08 GB Series Manuale utente

HOFFEN

HOFFEN Chef Express T9532 Manuale utente

Garland

Garland 852 ZG Manuale utente

Robot Coupe

Robot Coupe CL50 Gourmet Manuale utente

SAPIRHOME

SAPIRHOME SP-1111-K Manuale utente

Moulinex

Moulinex DJ3051 Manuale utente

Bosch

Bosch MUM5 Manuale utente

cecotec

cecotec Mambo Touch Manuale utente

Black & Decker

Black & Decker hc 300 Istruzioni per l'installazione

Gorenje

Gorenje SBR 1000 DV Manuale utente

Arzum

Arzum AR 1128 Manuale utente

Saturn

Saturn ST-FP0069 Manuale utente

Vitek

Vitek VT-1641 W Manuale utente
