KitchenAid KHMS2056SBL0 Manuale utente

CONTROL BOARD PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

11−07 Litho In U.S.A. (rek) Part No. W10144495 Rev. A

MICROWAVE

HOOD

COMBINATION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10117076

Use & Care Guide

8205288 Tech Sheet

8205744 Quick Reference

2 8206039 Support, Cavity

(Left)

3 8206040 Plate, Protection

(Left)

4 8206608 Control Board,

(Relay)

5 8206061 Plate, Protection

(Right)

W10113785

Plate, Chassis

7 8206065 Support, Cavity

(Right)

8 8206493 Board, Relay

9 8206053 Holder,

Microcomputer

10 8206062 AC Line Filter

11 8206060 Holder, Filter

W10113782

Resistor (50W)

W10113783

Resistor (25W)

W10113784

Spacer (6)

15 8169499 Glass, Lamp

16 8169646 Frame, Glass

W10143955

Seal, Foam

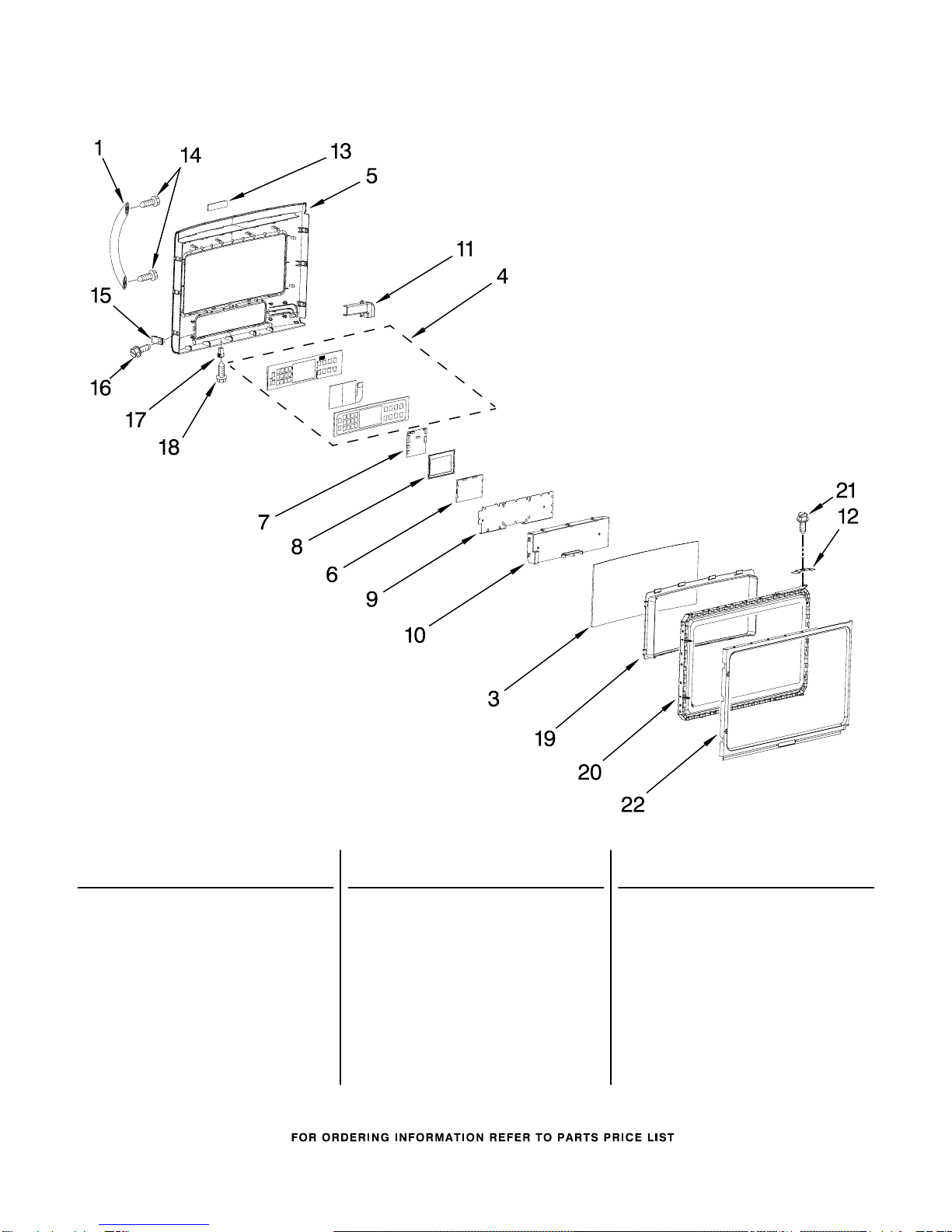

DOOR PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Handle

8206501 White

W10110267

Black

W10116265

Stainless Steel

3 8206528 Outer Door Glass

4 8206635 Control Panel

5 Outer Door Frame

8206518 White

8206519 Black

8206521 Stainless Steel

W10116269

LCD Frame

W10143961

Board, User

(Interface)

W10143962

LCD Module

9 8206511 Cntrl Panel Plate

10 8206512 Cntrl Panel Cover

11 8206527 Cable Cover, Door

W10143965

Clip,Hinge Screw

13 Logo

8206514 White

8206515 Black

8206517 Stainless Steel

14 8206513 Screw (2)

15 Spacer, Side (6)

8206522 White

8206523 Black

8206525 Stainless Steel

16 8206215 Screw (6)

17 8206178 Spacer, Bottom (2)

18 8206179 Screw (2)

19 8206529 Cover, Choke

W10112215

Door Plate Assy

W10143963

Hinge Screw

W10143964

Dr Innr Frm Assy

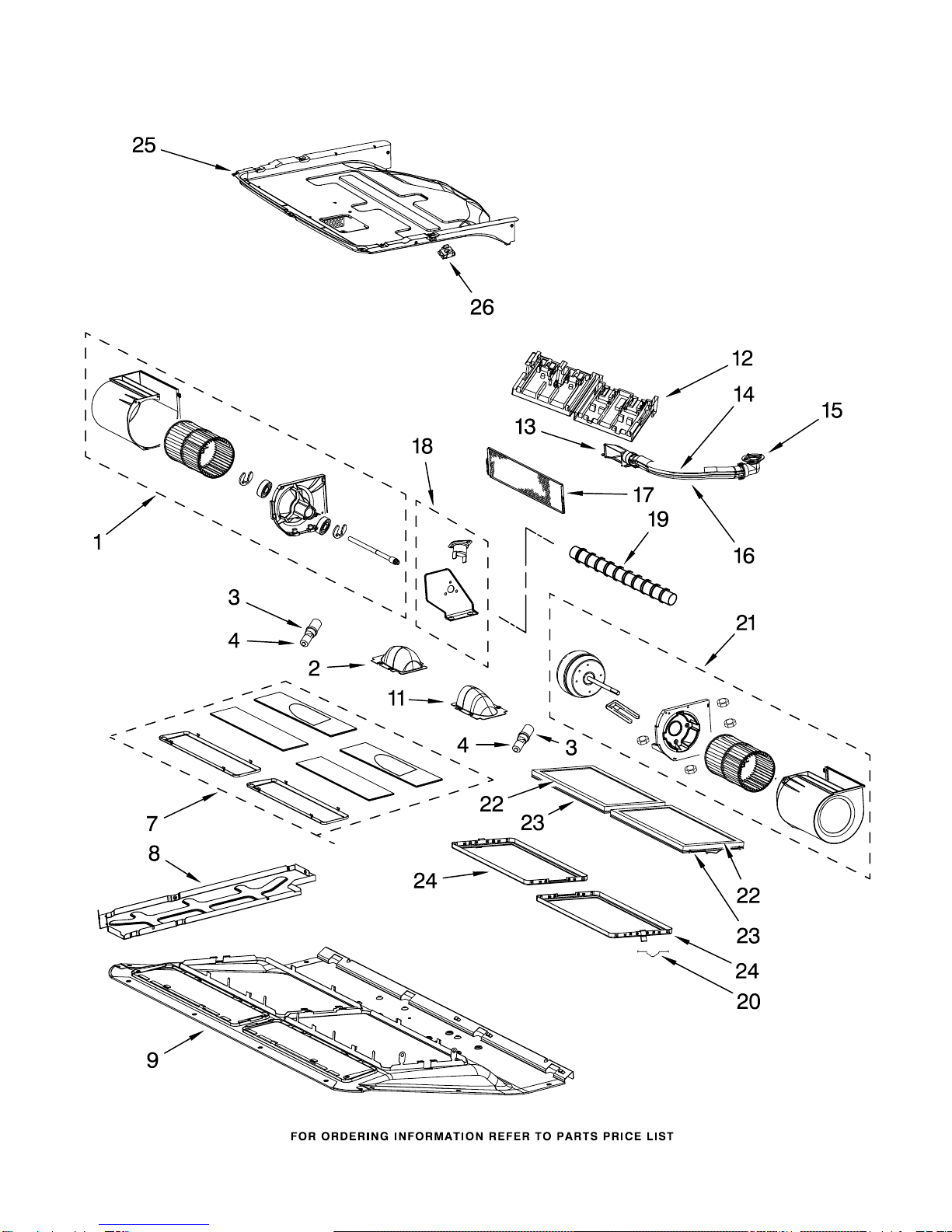

VENTILATION PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

VENTILATION PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

Illus. Part

No. No. DESCRIPTION

1 8206092 Housing, Blower

(Left)

W10143957

Reflector, Lamp

3 8204670 Lamp (2)

W10143958

Socket, Lamp (2)

(Left)

7 Frame, Glass

W10113788

Left

W10113789

Right

8 8206097 Plate, Separator

(Left)

9 8206497 Plate, Bottom

W10143960

Reflector, Lamp

12 8206103 Cover, Terminal

13 8206104 Diffuser

14 8206105 Cover, Duct

15 8206106 Connector, Duct

16 8206107 Holder, Duct

17 8206498 Shield

18 8206212 Support & Base

Thermostat Assy

19 8206263 Connector Shaft

20 8206499 Spring

21 8206112 Housing, Blower

(Right)

W10120840

Filter, Charcoal

W10120839

Filter, Grease

W10113792

Spring, Hook

W10143951

Air Guide,

Center Hood

W10110862

Mounting Nut (2)

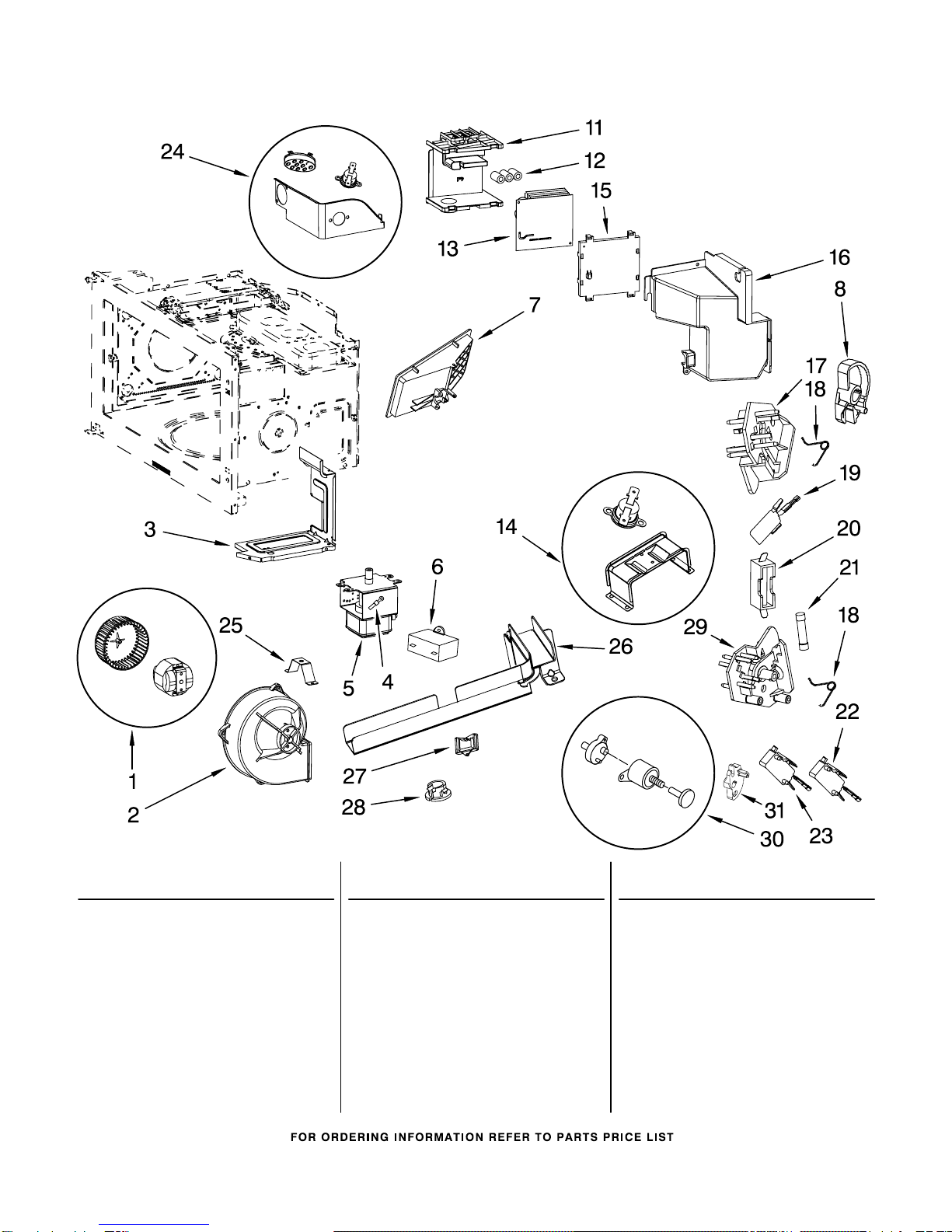

INTERIOR AND AIR FLOW PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206075 Fan Motor Assy

2 8206076 Housing, Fan

3 8206077 Plate, Divider

4 8206078 Thermistor,

Magnetron

5 8206079 Magnetron

6 8206080 Motor, Capacitor

7 8206081 Housing, Valve

W10113786

Cam Plate (Upper)

11 8206085 Cover, Inverter

12 8206086 Ferrite Ring

13 8206087 Inverter

14 8206035 Thermostat,

Base Assembly

15 8206089 Holder, Inverter

16 8206494 Air Guide,

Magnetron

W10143956

Support, Interlock

18 8206091 Spring, Interlock

19 8206345 Switch, Micro

(Secondary)

20 8184312 Holder, Fuse

21 4393308 Fuse

22 8206347 Switch, Micro

(Monitor)

23 8206352 Switch, Micro

(Primary)

24 8206026 Humidity Sensor

& Thermostat Assy

25 8206031 Support, Air Guide

26 8206477 Protector, Wire

27 8206037 Clip, Saddle

28 8206038 Clip, Round

29 8206209 Support, Interlock

30 8206210 Piston Assembly

W10113787

Cam Plate (Lower)

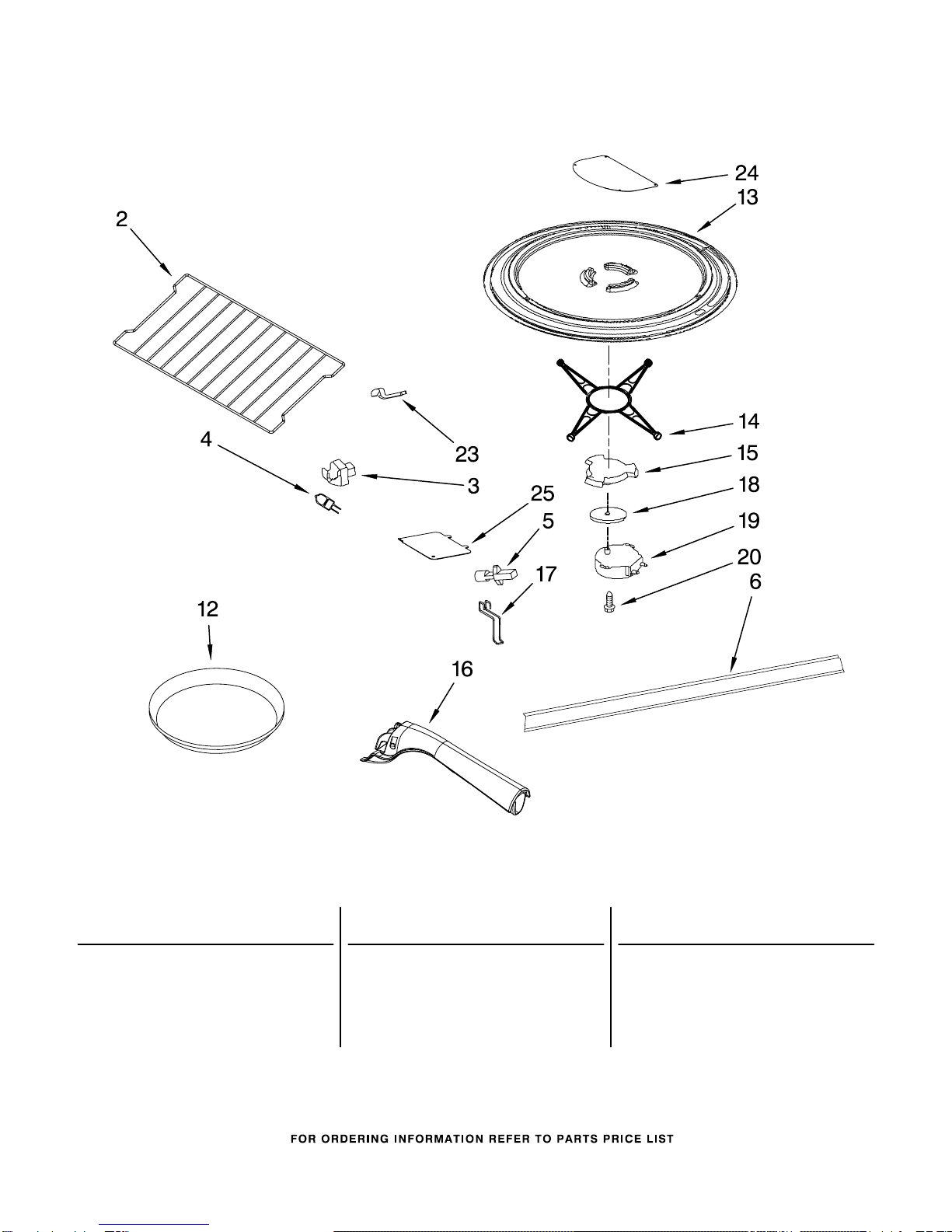

RACK AND TURNTABLE PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 8206117 Rack

3 8206118 Hook, Rack (4)

4 8204670 Lamp, Cavity

W10113781

Holder, Lamp

6 8205980 Deflector, Air

12 8205996 Plate, Crisp

13 8205992 Turntable

14 8206222 Ring, Turntable

15 8205994 Driver, Turntable

W10106520

Handle

17 8206034 Clip, Cavity Lamp

18 8206101 Spacer

W10143959

Motor, Turntable

20 4393832 Screw

23 8206116 Spacer

24 8206066 Cover, Inlet

25 8206476 Lid, Lamp

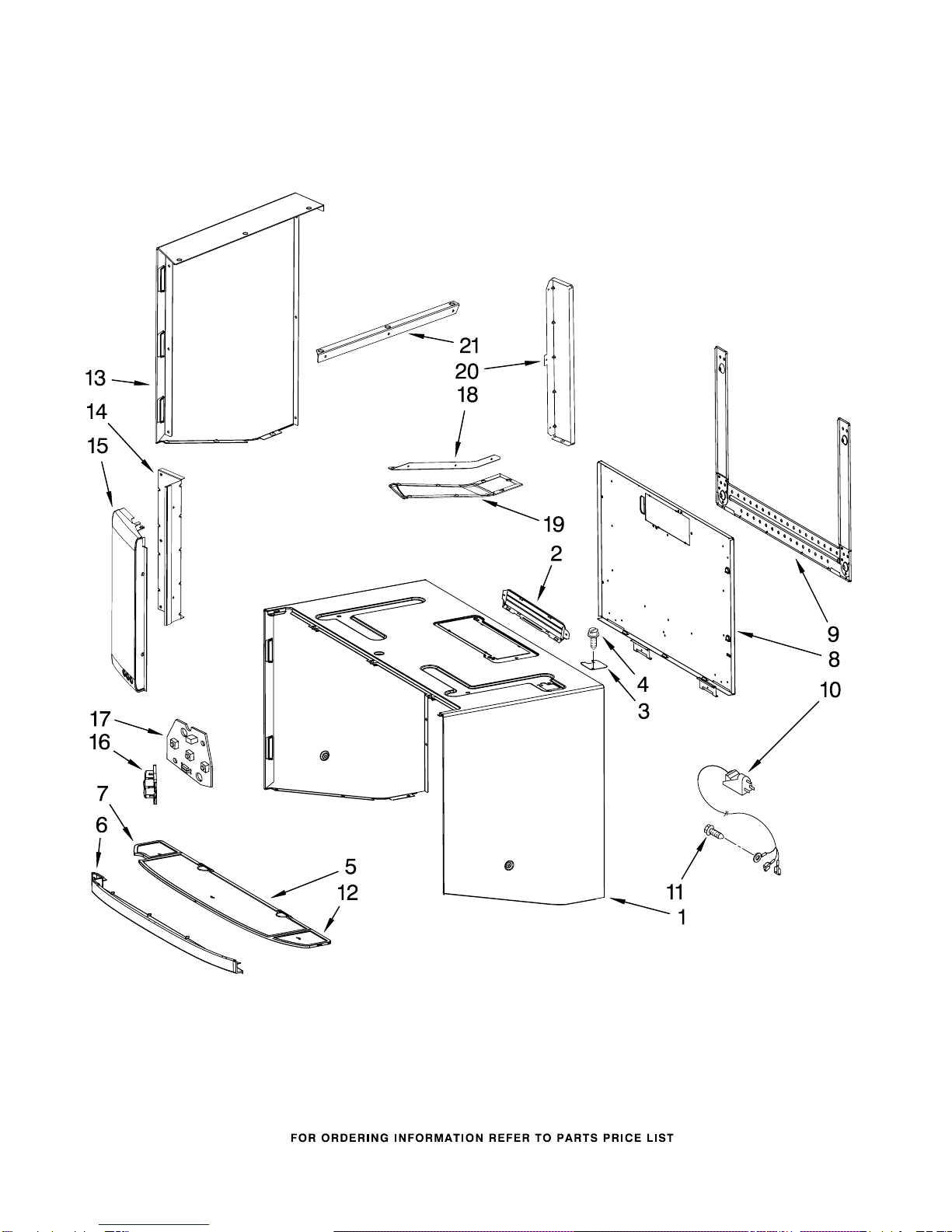

CABINET AND INSTALLATION PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

CABINET AND INSTALLATION PARTS

For Models: KHMS2056SWH0, KHMS2056SBL0, KHMS2056SSS0

(White) (Black) (Stainless Steel)

W10144495

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Case, Outer

W10143952

White

W10143953

Black

W10143954

Apollo Grey

2 8206442 Damper

3 8184897 Lid, Power Cord

4 4393472 Screw

5 8206475 Vent Screen

(Middle)

6 Support,

Vent Screen

8206011 White

W10143735

Black

W10116263

Stainless

7 8206207 Vent Screen

(Left)

8 8206051 Plate, Back

9 8206319 Plate, Mounting

10 8206182 Cord, Power

21 Bracket, Upper

11 4393836 Screw

12 8206206 Vent Screen

(Right)

13 Panel, Side

W10143968

White, Left

W10143991

White, Right

W10143969

Black, Left

W10143992

Black, Right

W10143975

Stainless, Left

W10143993

Stainless, Right

W10143976

Side Panel Sup.(2)

15 Panel, Front

W10143977

White, Left

W10143986

White, Right

W10143978

Black, Left

W10143987

Black, Right

W10143979

Stnls. Left

W10143988

Stnls. Right

16 Button

W10143980

White

W10143981

Black

W10143982

Stainless

W10143983

Hood/Light Switch

Board

18 Bracket

W10143984

Lower Left

W10143990

Lower Right

19 Plate (Co.)

W10143985

Bottom, Left

W10143989

Bottom, Right

20 Plate, Back

W10143994

Right

W10143996

Left

21 Bracket, Upper

W10143995

Right

W10143997

Left

Miscellaneous

W10128803

Hardware, Install

8205274 Template, Upper

W10113776

Harns−Wire,#70 RCB

W10113062

Main Harness

8206185 Ground Wire

8206186 Ground Wire (Mag)

W10143999

Harns−Wire, Cooktp

W10112290

Harns−Wire,#71 RCB

W10113777

Harns−Wire,

RCB − Inverter

8206189 Hood/Light Control

Harns−Wire #74

W10113778

Hood/Light Control

Harns−Wire #73

W10113779

Harns−Wire #75

P64 RCB

W10113780

Harns−Wire #76

P2 RCB

8206468 Harns−Wire #77

P3 LCD to UIB
