KitchenAid KMBS104EBL Manuale utente

W10772547A

BUILT-IN OVEN MICROWAVE SAFETY .................................. 1

INSTALLATION REQUIREMENTS .......................................... 2

Tools and Parts .................................................................... 2

Location Requirements ....................................................... 2

Minimum Dimensions .......................................................... 3

Product Dimensions ............................................................. 4

Electrical Requirements........................................................ 5

INSTALLATION INSTRUCTIONS............................................ 6

Install the Microwave Oven

(24" [61.0 cm] Installation Only)............................................ 6

Install the Microwave Oven

(27" [68.6 cm] or 30" [76.2 cm] Installation Only) ................. 7

Complete Installation............................................................ 8

ASSISTANCE .......................................................................... 8

Table of Contents

This product is suitable for use above electric or gas built-in ovens, and below non-vented electric or gas cooktops. This product

is not suitable for use below downdraft cooktops.

These Installation Instructions cover different models. The appearance of your particular model may differ slightly from

the illustrations in these Installation Instructions.

BUILT-IN MICROWAVE OVEN

INSTALLATION INSTRUCTIONS

24" (61.0 cm), 27" (68.6 cm), 30" (76.2 cm)

BUILT-IN MICROWAVE OVEN SAFETY

You can be killed or seriously injured if you don't immediately

You can be killed or seriously injured if you don't follow

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

INSTALLATION REQUIREMENTS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools

listed here:

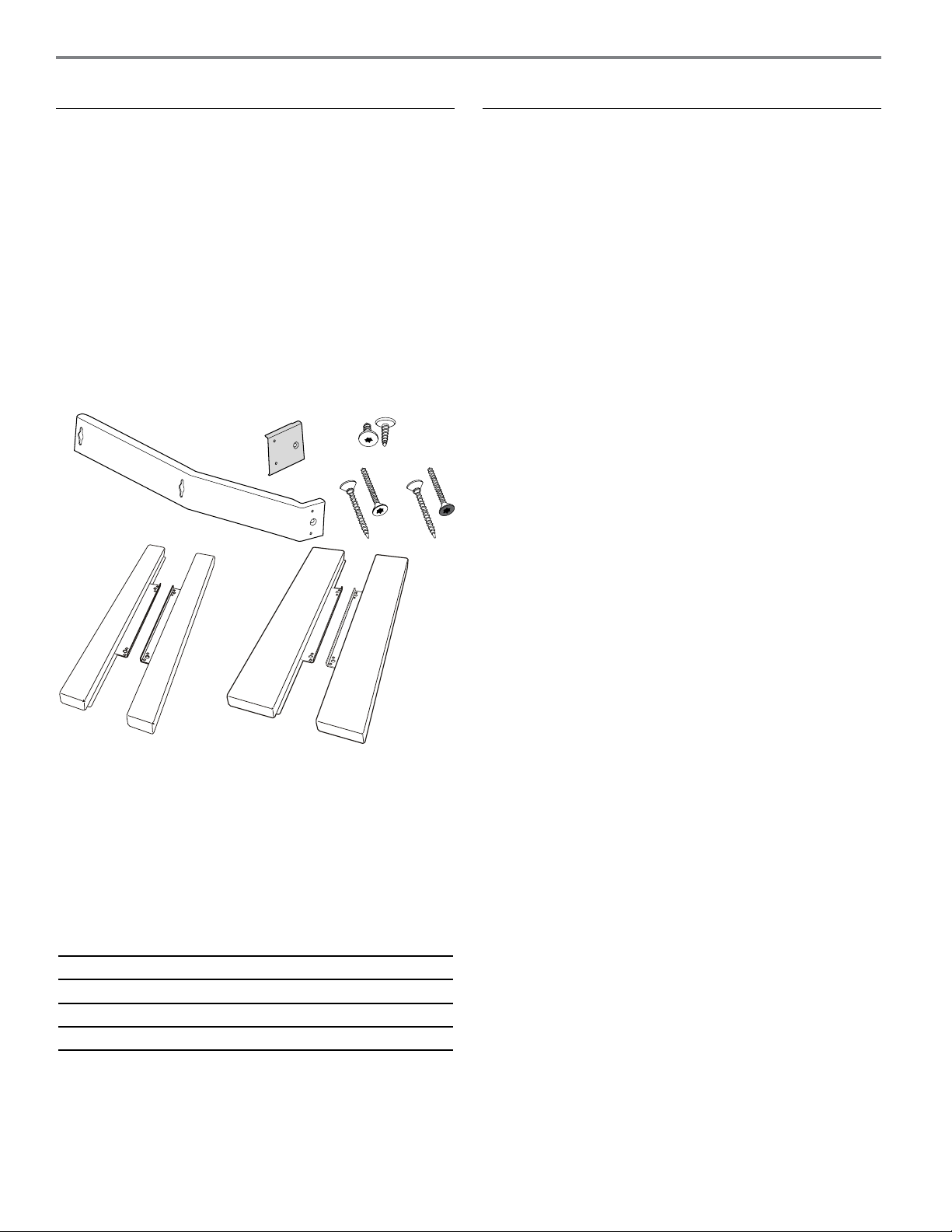

Parts Supplied

All of the following parts are provided, but not all parts will

be used. The cutout opening size will determine which parts

you will use. See chart below parts list to see which parts are

used for each installation.

Location Requirements

The microwave oven may be located in a cabinet, and/or above

a built-in oven, or below the counter and/or below a non-vented

cooktop. Check the opening where the microwave oven will

be installed. The location must provide:

■Wood cabinetry.

■Cutout opening that is plumb and square. See “Minimum

Cutout Dimensions” in “Minimum Dimensions” section.

■Cutout ﬂoor that is solid, level, and ﬂush with bottom

of cabinet cutout.

■Support for weight of at least 150 lbs (68 kg), which includes

microwave oven and items placed inside.

■Grounded electrical outlet. See “Electrical Requirements”

section.

■Minimum installation clearances for installation location.

See “Minimum Dimensions” section.

■Complete enclosure around the recessed portion

of the microwave oven.

■Measuring tape

■Pencil

■T10 TORX®† screwdriver

■Drill

■5/64" (2 mm) drill bit

ABC

A. Side brackets (2)

B. Extension plates (2)

C. 3/8" T10 screws (4)

D. 1" T10 screws – stainless steel (6)

E. 1" T10 screws – black (4)

F. Narrow side trim panels (2)

G. Wide side trim panels (2)

NOTE: On some models, side brackets (A), extension plates

(B), and 3/8" T10 screws (C) may come pre-assembled.

INSTALLATION PARTS USED

24" (61.0 cm) installation D or E

27" (68.6 cm) installation A, D or E, F

30" (76.2 cm) installation A, B, C, D or E, G

†®TORX is a registered trademark of Acument Intellectual Properties, LLC.

Minimum Dimensions

Minimum Installation Clearances

For proper installation, the following minimum clearances must exist above and below the cutout opening.

Above Cabinet/Storage Drawer Installation Above Oven/Warming Drawer Installation

Below Counter Installation Below Built-in Cooktop Installation

A. Upper cabinet

B. Lower cabinet or storage drawer

C. Lower oven or warming drawer

D. Built-in cooktop (non-vented)

E. Storage drawer

F. Toe kick

NOTE: The bottom of the cooktop may be sunk into the counter and lower cabinet. The minimum 3" (7.6 cm) clearance must

exist below the lowest point of the cooktop, and there must be no interference between any part of the cooktop (including any

gas ﬁttings) and the microwave oven.

(25 mm) 1"

(25 mm)

(76 mm)

(25 mm)

(76 mm)

See note

below.

Minimum Cutout Dimensions

NOTE: Depth dimension may be 213/4" (55.2 cm) with non-ﬂush

receptacle only if the receptacle is located in upper right

or upper left corner. See “Cutout Top View”.

*With ﬂush receptacle, or with non-ﬂush receptacle located in

upper right or upper left corner of cutout.

**With non-ﬂush receptacle.

DIM. 24" (61.0 cm)

INSTALLATION

27" (68.6 cm)

INSTALLATION

30" (76.2 cm)

INSTALLATION

Width 221/4"

(56.5 cm)

± 3/16"

(4.8 mm)

253/4"

(65.4 cm)

± 3/16"

(4.8 mm)

Min. 253/4"

(65.4 cm)

Max 283/4"

(73.0 cm)

Height 175/8" (44.8 cm) for all installations

Depth 213/4" (55.2 cm) with flush receptacle, or with

non-flush receptacle located in far corner;

261/4" (66.7 cm) with non-flush receptacle

Cutout Top View

A. Microwave Oven

B. Non-ﬂush receptacle

C. Flush receptacle

D. Non-ﬂush receptacle located in upper right

or upper left corner

Product Dimensions

*Measurements include front facing of microwave oven.

Depth measurement also includes door handle.

Electrical Requirements

Observe all governing codes and ordinances.

Required:

A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with

a fuse or circuit breaker.

Recommended:

A time-delay fuse or time-delay circuit breaker.

A separate circuit serving only this microwave oven.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■

For all cord connected appliances:

The microwave oven must be grounded. In the event of

an electrical short circuit, grounding reduces the risk of

electric shock by providing an escape wire for the electric

current. The microwave oven is equipped with a cord

having a grounding wire with a grounding plug. The plug

must be plugged into an outlet that is properly installed

and grounded.

WARNING:

Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified

electrician or serviceman if the grounding instructions are

not completely understood, or if doubt exists as to whether

the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is

too short, have a qualified electrician or serviceman install

an outlet near the microwave oven.

INSTALLATION INSTRUCTIONS

Install the Microwave Oven

(24" (61.0 cm) Installation Only)

NOTE: For this microwave oven, the door handle may be used

for lifting. Do not use any other portion of the control panel,

side brackets, front frame, or trim for lifting.

1. Empty microwave oven of any loose items.

2. Using 2 or more people, slide the microwave oven

all the way into the opening.

3. Center the microwave within the opening.

Open the microwave oven door.

7. With the microwave oven near the opening, plug

the microwave oven into the grounded 3 prong outlet.

8. Replace microwave oven in cutout opening.

9. Open the microwave oven door. The holes in the door

facing frame should align with the holes just drilled into

the cabinet. Fasten the microwave oven door facing to the

cabinet using four 1" T10 screws. Use the black screws for

black models and the stainless steel screws for stainless

steel models.

10. Proceed to “Complete Installation” section.

WARNING

Excessive Weight Hazard

Use two or more people to move and install

microwave oven.

Failure to do so can result in back or other injury.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

4. Mark 4 holes (2 on each side) in the door facing frame

of the microwave oven.

5. To avoid damage to the frame while drilling during the next

step, close the door and remove the microwave oven.

6. Drill the 4 holes using 5/64" (2 mm) drill.

A. Microwave oven door facing frame

B. Cabinet

C. 1" T10 screws (black or stainless steel) (4)

Install the Microwave Oven

(27" (68.6 cm) or 30" (76.2 cm) Installation Only)

1. Empty microwave oven of any loose contents.

2. For 30" installation, attach the extension plate to each

of the side brackets using two 3/8" T10 screws, as shown.

On some models, the extension plates and side brackets

may come pre-assembled.

7. With the microwave oven near the opening, plug

the microwave oven into the grounded 3 prong outlet.

8. Using 2 or more people, slide microwave oven all

the way into the opening, and center the microwave oven

within the opening.

NOTE: The screw holes on the winged ends of both side

brackets (or extension plates for the 30" installation) must

be fully over the wood of the wall or cabinet, as shown.

A. Side bracket

B.Existing screws (middle and rear)

C.Proper side bracket attachment

A. Door front facing

B. Screw hole for cabinet attachement

C. Cabinet front

WARNING

Excessive Weight Hazard

Use two or more people to move and install

microwave oven.

Failure to do so can result in back or other injury.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

A B C

For 27" installation, remove the extension plate from each

of the side brackets by removing the 2 screws, if it came

pre-assembled.

A. 3/8" T10 screws

3. Loosen the middle and rear screws on each side

of microwave oven. The screws are located at the same

height as the door handle.

4. Place the side bracket over the 2 screws, ﬁtting the screw

heads through the keyholes on the bracket. Then slide

the side bracket down so that the upper portions

of the keyholes rest on the screws.

5. Tighten screws to secure the side bracket

to the microwave oven.

6. Repeat steps 4 and 5 on the other side

of the microwave oven.

9. Using 5/64" (2 mm) drill, drill pilot holes into the cabinet

through the screw holes on the side brackets

(or extension plates for the 30" installation).

10. Install two stainless steel 1" T10 screws in the pilot holes

to secure the microwave oven in place.

NOTE: To ensure proper side trim panel ﬁtting, do not

overtighten screws.

11. Open microwave oven door.

A B C

For 27" Installation For 30" Installation

12. Position the tabular portion of the side trim panel behind

the door facing frame, and then ﬁrmly push the outside

edge of the trim behind the side bracket, as shown.

Exploded View of Panel Placement

A. Door facing frame

B. Tabular portion (shaded) of side trim panel

C. Side bracket

D. Side trim panel in place

A. Door facing frame

B. Trim panel

C. 1" T10 screws (black or stainless steel) (4)

Complete Installation

1. Install the turntable in the microwave oven.

2. Check the operation of microwave oven by placing 1 cup

(250 mL) of water on the turntable and programming cook

time of 1 minute at 100% power.

3. If the microwave oven does not operate:

■Check that a household fuse has not blown, or a circuit

breaker tripped. Replace the fuse or reset the curcuit

breaker. If the problem continues, call an electrician.

■Check that the power supply cord is plugged

into a grounded 3-prong outlet.

■See the Use and Care Guide for troubleshooting

information.

Installation is now complete.

Save these Installation Instructions for future use.

ASSISTANCE

Call your authorized dealer or service center. When you call,

you will need the microwave oven model number and serial

number. Both numbers can be found on the model and serial

number plate, which is located behind the microwave oven

door on the front frame of the microwave oven.

If you need additional assistance, call us at our toll free number

or visit our website listed in the Use and Care Guide.

W10772547A

SP PN W10775971

A B C

13. Attach the side trim panel to the door facing frame using

two 1" T10 screws. Use the black screws for black models

and the stainless steel screws for stainless steel models.

14. Repeat steps 12 and 13 on other side.

2/15

Printed in U.S.A.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Forno a microonde

KitchenAid

KitchenAid KEHU309SSS - 30" Microwave Combination Oven Manuale utente

KitchenAid

KitchenAid KHMC1857WSS Manuale elenco delle parti

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

KitchenAid

KitchenAid KBHS179SSS00 Manuale utente

KitchenAid

KitchenAid Architect Series KBMS1454R Manuale utente

KitchenAid

KitchenAid Architect Series KBMS1454R Manuale utente

KitchenAid

KitchenAid WOC54EC7A Manuale utente

KitchenAid

KitchenAid KHMS145KSS Manuale utente

KitchenAid

KitchenAid KMBD104GSS00 Manuale utente

KitchenAid

KitchenAid KBHC179J Use and care guide Manuale utente

KitchenAid

KitchenAid KMBP107 Manuale utente

KitchenAid

KitchenAid KMCS122PPS Series Manuale utente

KitchenAid

KitchenAid YKMHS120EW Manuale utente

KitchenAid

KitchenAid YKHMS1850S Manuale utente

KitchenAid

KitchenAid KOCE500ESS Manuale utente

KitchenAid

KitchenAid KMCS1016 Manuale utente

KitchenAid

KitchenAid YKMHC319EBS4 Manuale utente

KitchenAid

KitchenAid KMHC319 Manuale utente

KitchenAid

KitchenAid KMHP519ESS Manuale utente

KitchenAid

KitchenAid KMCS1016GSS Manuale utente

KitchenAid

KitchenAid KCO273 Istruzioni per l'installazione

KitchenAid

KitchenAid KBMS1454S Series Manuale utente

KitchenAid

KitchenAid KHMS1850SBL1 Manuale utente

KitchenAid

KitchenAid KCMS185J Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Electrolux

Electrolux EMS2840 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente

Impecca

Impecca CM07M2 Manuale utente
