PROLINE BOWL LIFT

MODEL:

KL26M8XOB5 (Onyx Black)

6 QT. STAND MIXER

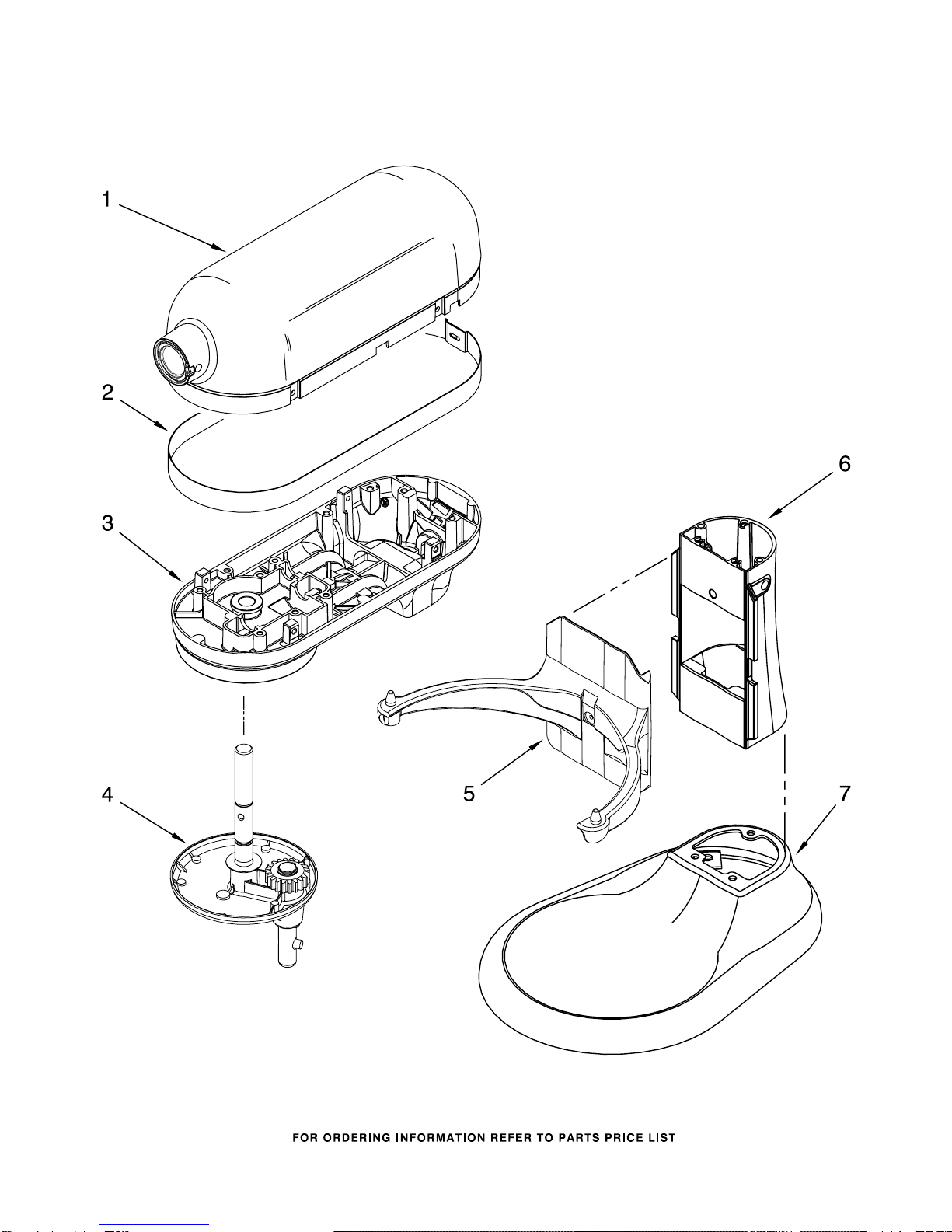

COLOR VARIATION PARTS

For Model: KL26M8X__5

W10157992

COLOR VARIATION PARTS

For Model: KL26M8X__5

W10157992

Illus. Part

No. No. DESCRIPTION

1 Motor Housing

9705296 Onyx Black

2 Trim Band

9707989 Pearl Nickel/Grey

3 Lower Gearcase

9706311 Onyx Black

4 Planetary

9708176 Onyx Black

5 Bowl Support

and Pins

9705356 Onyx Black

6 Column

9705320 Onyx Black

7 Base & Foot

Assembly

9705344 Onyx Black

CASE, GEARING AND PLANETARY UNIT

For Model: KL26M8X__5

W10157992

CASE, GEARING AND PLANETARY UNIT

For Model: KL26M8X__5

W10157992

Illus. Part

No. No. DESCRIPTION

1 Motor Housing

2 9707983 Cap, Attachment

Hub

3Band, Trim

4 9709125 Transmission

Housing

5 9703338 Gear, Attachment

Hub Level

6 9709511 Gasket,

Transmission Cover

7 9703680 Clip, Retaining

8 9703337 Gear, Bevel

9 9707223 Pin, Retaining

10 9706529 Gear, Worm

Follower

11 Lower Gearcase

12 16897 Bearing, Lower

Center

13 9703339 Gear, Internal

14 3400814 Screw

15 9706247 Seal, Motor

Shaft

16 Bearing

9703560 Front

9703570 Rear

17 9703445 Bearing, Thrust

18 9709231 Gear, Worm

19 Control Assembly

9706648 Black Knob

20 9706036 Lead, Motor to

Control

21 3400200 Screw

22 3400617 Screw

23 Thumb Screw

9709194 Black

24 9703312 Sensor, Hall

Effect

25 9707507 Motor (10 Tooth)

26 Cord, Power

9706552 Black

27 67500−55 "O" Ring

28 Planetary Assembly

29 9703434 Washer, Fiber

30 9703438 Clip, Retaining

31 9706090 Washer

32 9707627 Gear, Pinion

33 8533910 Washer

34 9708191 Shaft, Agitator

35 9704677 Pin, Groove

Refer To Page 3

Color Variation Parts

BASE AND PEDESTAL UNIT

For Model: KL26M8X__5

W10157992

BASE AND PEDESTAL UNIT

For Model: KL26M8X__5

W10157992

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9708307 Use & Care, Trilin

W10157992

Repair Parts List

2 9709924 Shield, Pouring

3 9703687 Bowl, 6 Qt.

4 240185 Pin, Bowl Locating

5 9703474 Latch, Bowl Spring

6 3400018 Screw

7Bowl Support

8Base and Foot

Assembly

9 9708649 Foot, Rubber

10 9703307 Clip

11 9706787 Rod, Bowl Lift

12 9237 Spring

13 9703439 Washer

14 8533907 Nut

15 Column Assembly

16 9703485 Beater, Flat

17 9703655 Hook, Dough

18 9706885 Arm, Bowl Lift

19 9707637 Whip, Wire

20 9703426 Cam, Adjusting

21 3400863 Screw

22 9706788 Handle, Bowl Lift

23 9703698 Handle

24 3400200 Screw

Refer To Page 3

Color Variation Parts

ACCESSORY PARTS

For Model: KL26M8X__5

W10157992

Illus. Part

No. No. DESCRIPTION

4164778 Mixer Attachment

Pak (Includes Food

Grinder (FG−A),

Food Strainer

(FVSP), And

Vegetable Slicer,

(RVS−A)

(FPP−A)

4164749 Food Grinder

(FG−A)

8211924 Grain Mill

(KGMA)

4164768 Pasta Maker And

Food Grinder

(Includes SNP

Pasta Maker

Plates)

(SN/FG−A)

4164775 Fruit/Vegetable

Strainer Parts (Use

With FG−A Model

Only) (FVSP)

4164750 Rotor Slicer/Shredder

(With 4 Standard

Cones) Fine Shredder,

Coarse Shredder,

Thick Slicer, And

Thin Slicer (RVS−A)

4164824 Pasta Maker Plates

(SNP−A)

4164774 Fruit/Vegetable

Strainer And Food

Grinder (FVS/FG−A)

4162838 Food Tray (FT)

4164748 Juicer (JE)

4164747 Can Opener (CO)

4164803 Sausage Stuffer

Kit (SSA)

4160588 Grease, Planetary

8212519 Ice Cream Maker

(KICA0WH0)
