KitchenAid KSM150AGBCA0 Manuale utente

5QT.STANDMIXER-TILTHEAD

ARCHITECTSERIES-GLASSBOWL

MODELS:

KSM150AGBCA0(CandyApple)

KSM150AGBCS0(CocoaSilver)

KSM150AGBRI0(RaspberryIce)

KSM150AGBES0(Espresso)

KSM150AGBFP0(FrostedPearl)

07/24/2013PartNo.W10325324Rev.C

COLORVARIATIONPARTS

07/24/20132PartNo.W10325324Rev.C

COLORVARIATIONPARTS

Illus.

No.PartNo.Description

1MotorHousing

W10239115CandyApple

W10171586CocoaSilver

W10384420RaspberryIce

W10383627Espresso

W10477204FrostedPearl

2TrimBand

W10171580DarkPlatinum

Illus.

No.PartNo.Description

3EndCover

W10239110CandyApple

W10171581CocoaSilver

W10384429RaspberryIce

W10383633Espresso

W10477198FrostedPearl

4Planetary

W10239112CandyApple

W10171583CocoaSilver

W10384425RaspberryIce

W10383631Espresso

W10477206FrostedPearl

Illus.

No.PartNo.Description

5LowerGearcase

W10239118CandyApple

W10171589CocoaSilver

W10384415RaspberryIce

W10383623Espresso

W10477200FrostedPearl

6Pedestalw/Feet

W10239121CandyApple

W10171592CocoaSilver

W10392122RaspberryIce

W10403051Espresso

W10606159FrostedPearl

07/24/20133PartNo.W10325324Rev.C

BASEANDPEDESTALUNIT

07/24/20134PartNo.W10325324Rev.C

BASEANDPEDESTALUNIT

Illus.

No.PartNo.Description

1LiteratureParts

9709785UseandCareGuide

2W10220977Ring,Thread

3Beater,Flat

9707572Beater,Flat(Burnished)

4W10154769Bowl,Glass5Qt.

(K5GB)

53400020Screw

6W10191926Cap,BowlScrew

79709707Foot

Illus.

No.PartNo.Description

89704329Whip,Wire

99706626Hook,Dough

(Burnished)

109709055Latch

11Latch,LinkandLever

Assembly

24452Black

W10608282SilkChrome

12110679Screw

13116241Washer,Spring

148533912Washer

Illus.

No.PartNo.Description

15103993Screw,LatchBearing

1624450Link,Latch

17Lever,Latch

9709280Black

W10608281SilkChrome

1816910Pin,Hinge

19Pedestal

(RefertoColorVariation

PartsPage)

07/24/20135PartNo.W10325324Rev.C

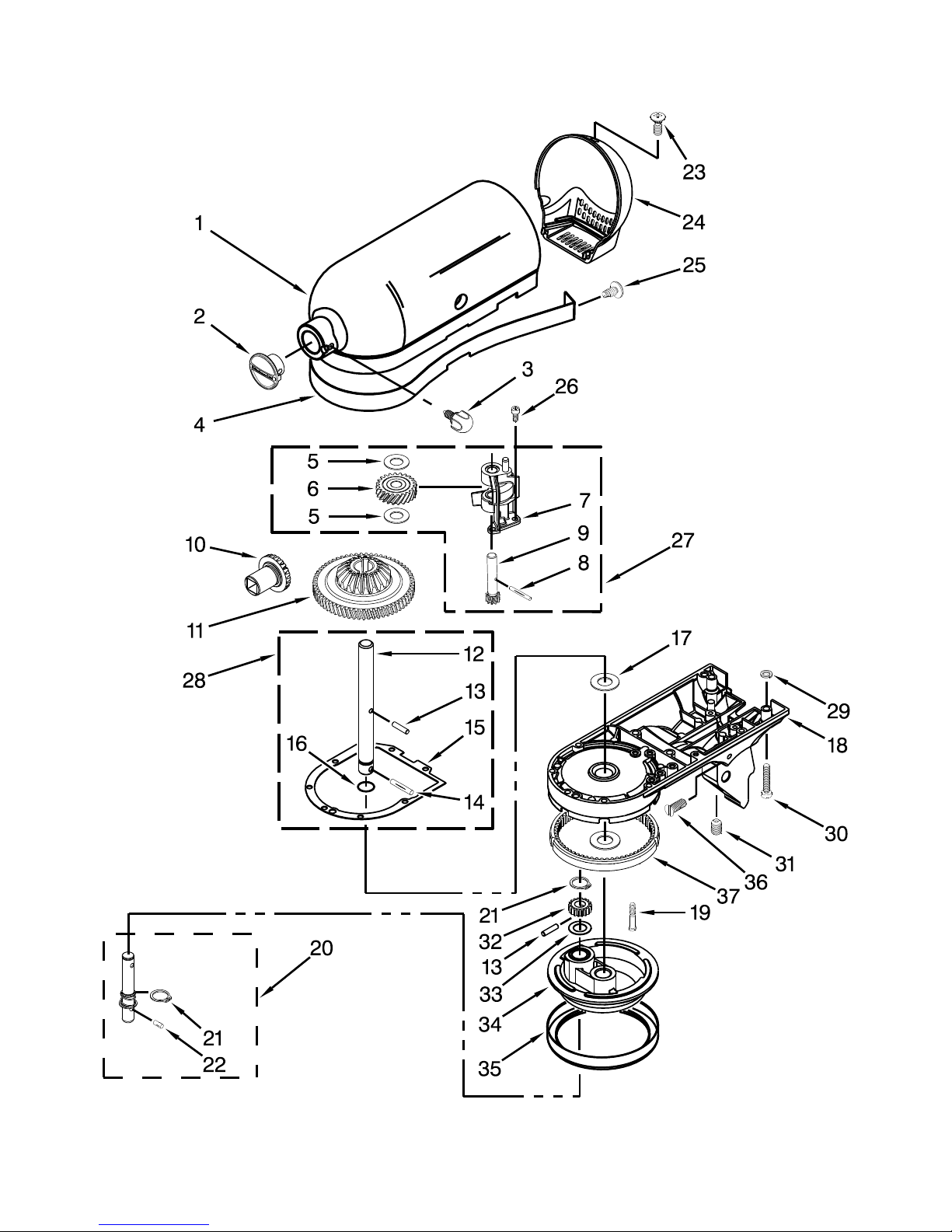

CASE,GEARINGANDPLANETARYUNIT

07/24/20136PartNo.W10325324Rev.C

CASE,GEARINGANDPLANETARYUNIT

Illus.

No.PartNo.Description

1GearcaseMotor

Housing

(RefertoColorVariation

PartsPage)

2Cap,AttachmentHub

242765-2Chrome

W10163146Satin

3ThumbScrew

9709194Black

W10615629SilkChrome

4Band,Trim

(RefertoColorVariation

PartsPage)

5W10323373Washer,Fiber

6W10112253Gear,Worm

7240308Bracket,WormGear

andBearing

89705444Pin,Grooved

9240210-2Gear,PinionandShaft

109705130Gear,AttachmentHub

119709627Gear,CenterBevel

Pinion

Illus.

No.PartNo.Description

12240026Shaft,VerticalCenter

13240018-1Pin,AgitatorShaft

149705443Pin,Grooved

154162324Gasket,Transmission

1667500-55"O"Ring

17W10323378Washer

18LowerGearcase

(RefertoColorVariation

PartsPage)

199708651Screw

204176067Shaft,Agitator

219703438Ring,Retaining

229704677Pin,Groove

234162914Screw

24Cover,End

(RefertoColorVariation

PartsPage)

25311932Screw

263400022Screw

27240309-2WormGearBracketand

GearAssembly

Illus.

No.PartNo.Description

284160474Shaft,CenterAgitator

Assembly

298533914Washer,Lock

303400025Screw

309708652Screw

313400203Screw

329703903Gear,Pinion

339706090Washer

34Planetary

(RefertoColorVariation

PartsPage)

35240285Ring,PlanetaryDrip

(Standard)

3689411Screw

379703904Gear,Internal

07/24/20137PartNo.W10325324Rev.C

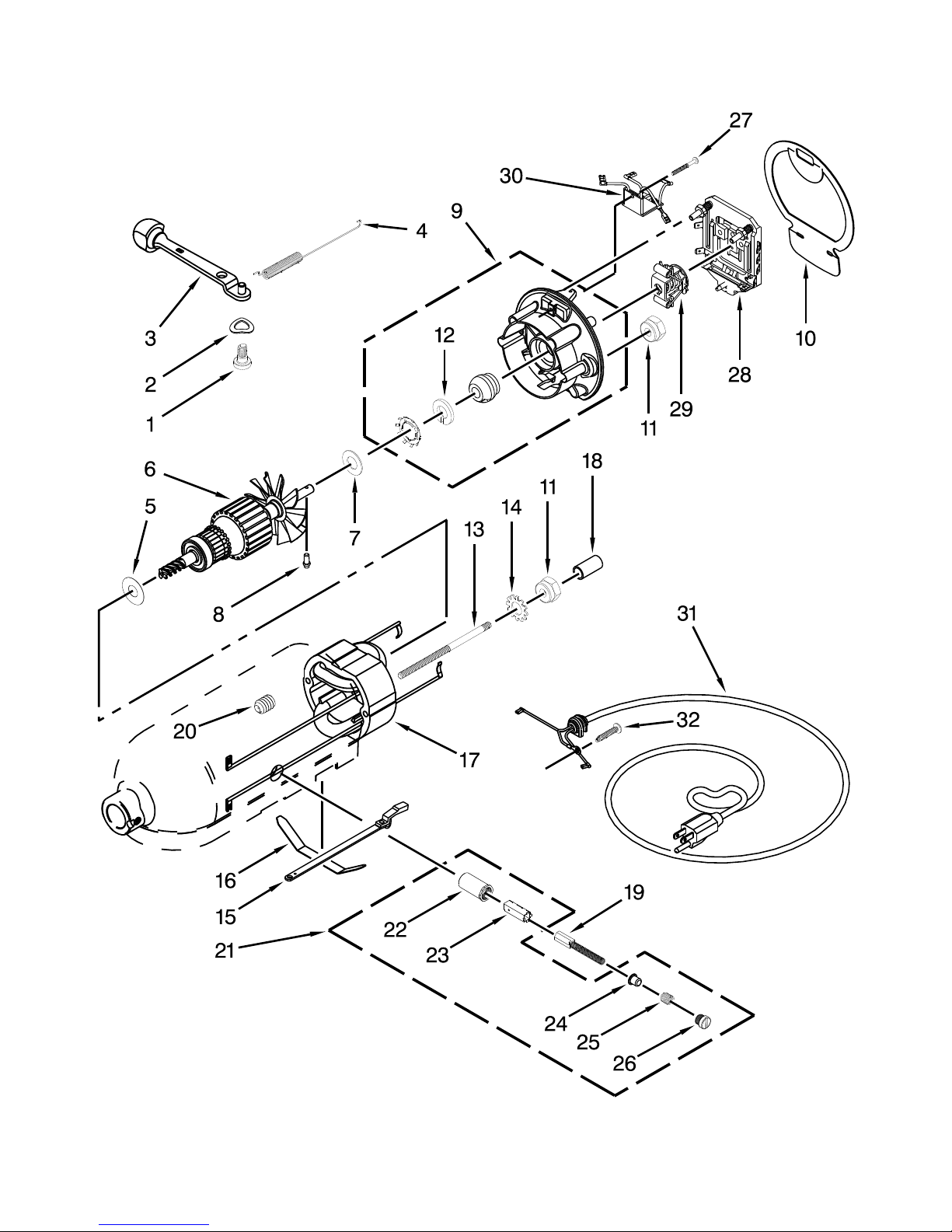

MOTORANDCONTROLUNITPARTS

07/24/20138PartNo.W10325324Rev.C

MOTORANDCONTROLUNITPARTS

Illus.

No.PartNo.Description

1110679Screw

2116241Washer,Spring

3Lever,SpeedControl

Assy

9709276Black

W10615606SilkChrome

43183680Spring,ControlPlate

59704324Washer,BallBearing

(Front)

6W10477035ArmatureandBearing

Assembly,120Volt

7W10323376Washer,Spacing

816998Stud,GovernorDrive

93180526BearingandBracket

Assembly

10240775-1Seal,End

Illus.

No.PartNo.Description

11W10131078Nut

123180238Washer,Felt

13240769Screw,Stator

14W10068270Washer,Lock

153184176Link,SpeedandCam

Assembly

16240205Spring,Flat

17W10477029FieldAssembly,120Volt

184162634Sleeve,MotorStud

19W10380496Brush,CapandSpring

209707926Screw,Set

214162546BrushHolderAssembly

223179908Housing,BrushHolder

23240680Insert,BrushHolder

Illus.

No.PartNo.Description

24116286Spring,Seat-Cap

25116287Spring,Cap

26Cap,BrushHolder

3184212Black

3184211White

27W10068260Screw

28W10119326ControlPlateAssembly

29W10330804GovernorAssembly

30W10325124Board,PhaseControl

(120Volt)

31Cord,Power

W10164883Black

W10325327White

323184609Screw

07/24/20139PartNo.W10325324Rev.C
